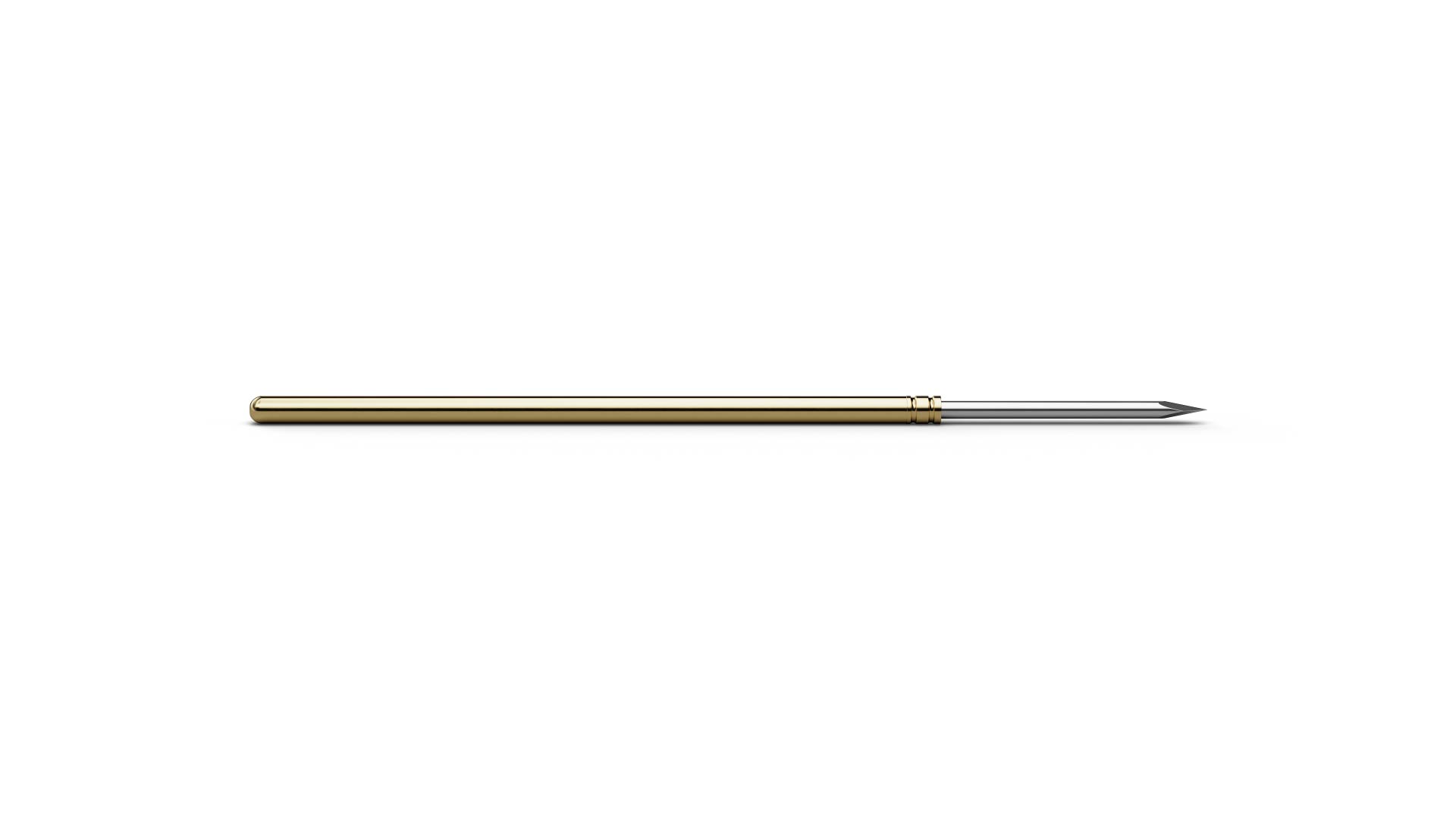

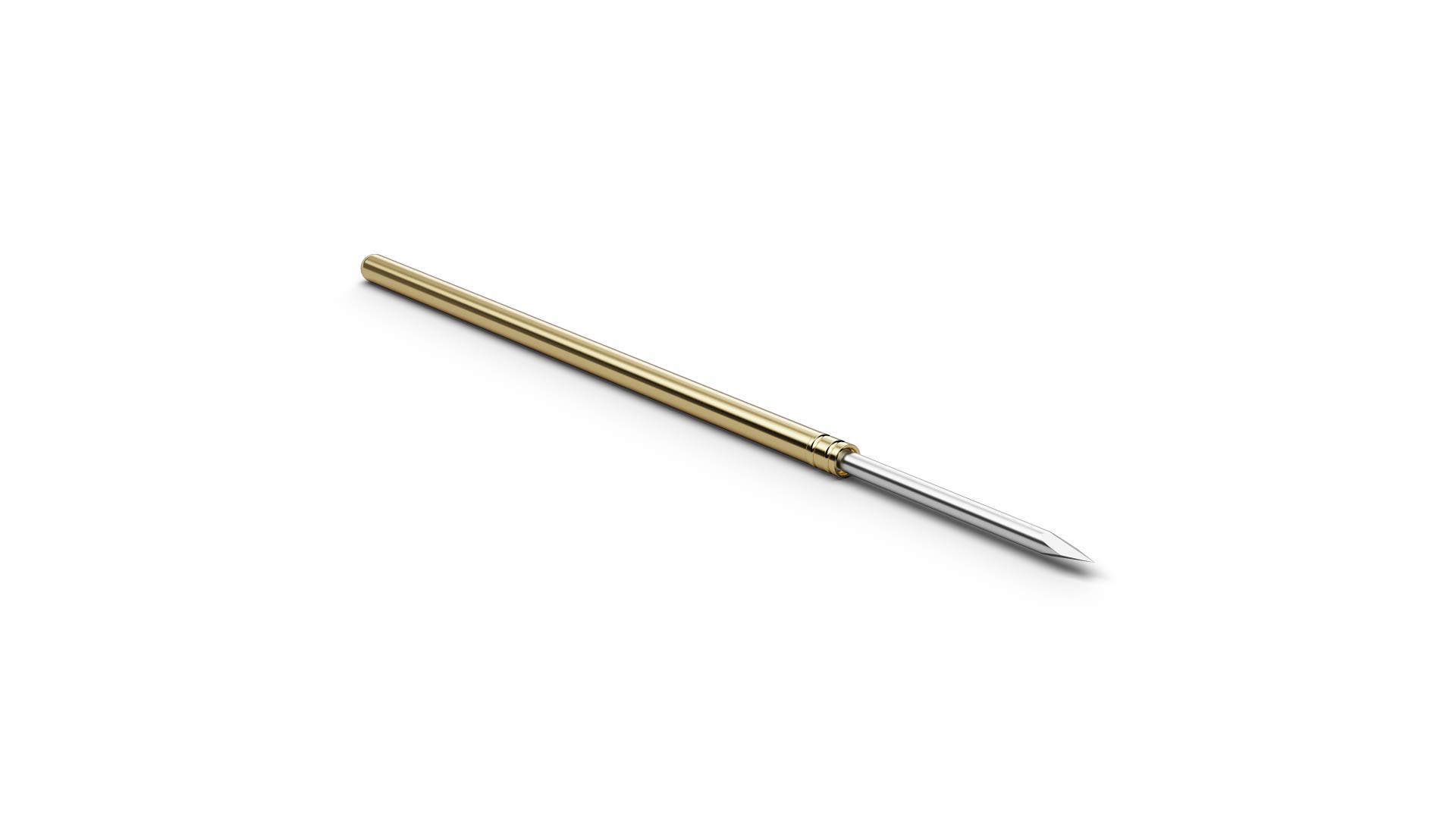

The Basic Contact Probe F07533S064P250HPL (item number 1010291) is a spring-loaded probe for temporary electrical contact with test points. With tip style 33 (Square lance 38°), F07533S064P250HPL combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F07533S064P250HPL combines a pitch of 1.9 mm / 75 mil with tip style 33 (Square lance 38°) and a tip diameter of 0.64 mm. For F07533S064P250HPL, spring force is 250 cN at a nominal travel of 4.3 mm. F07533S064P250HPL is rated for 4 A continuous current with a typical contact resistance of 40 mΩ. The combination of P-Coating and HP spring preload makes F07533S064P250HPL a version for contact points where residues or hard surface layers can make electrical contacting more demanding.
