Home › Products › Product Finder › H100WW10-2.0

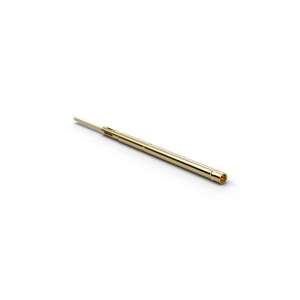

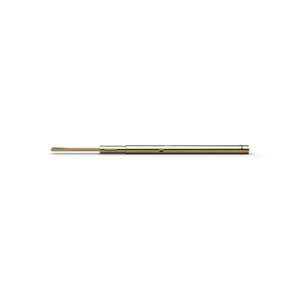

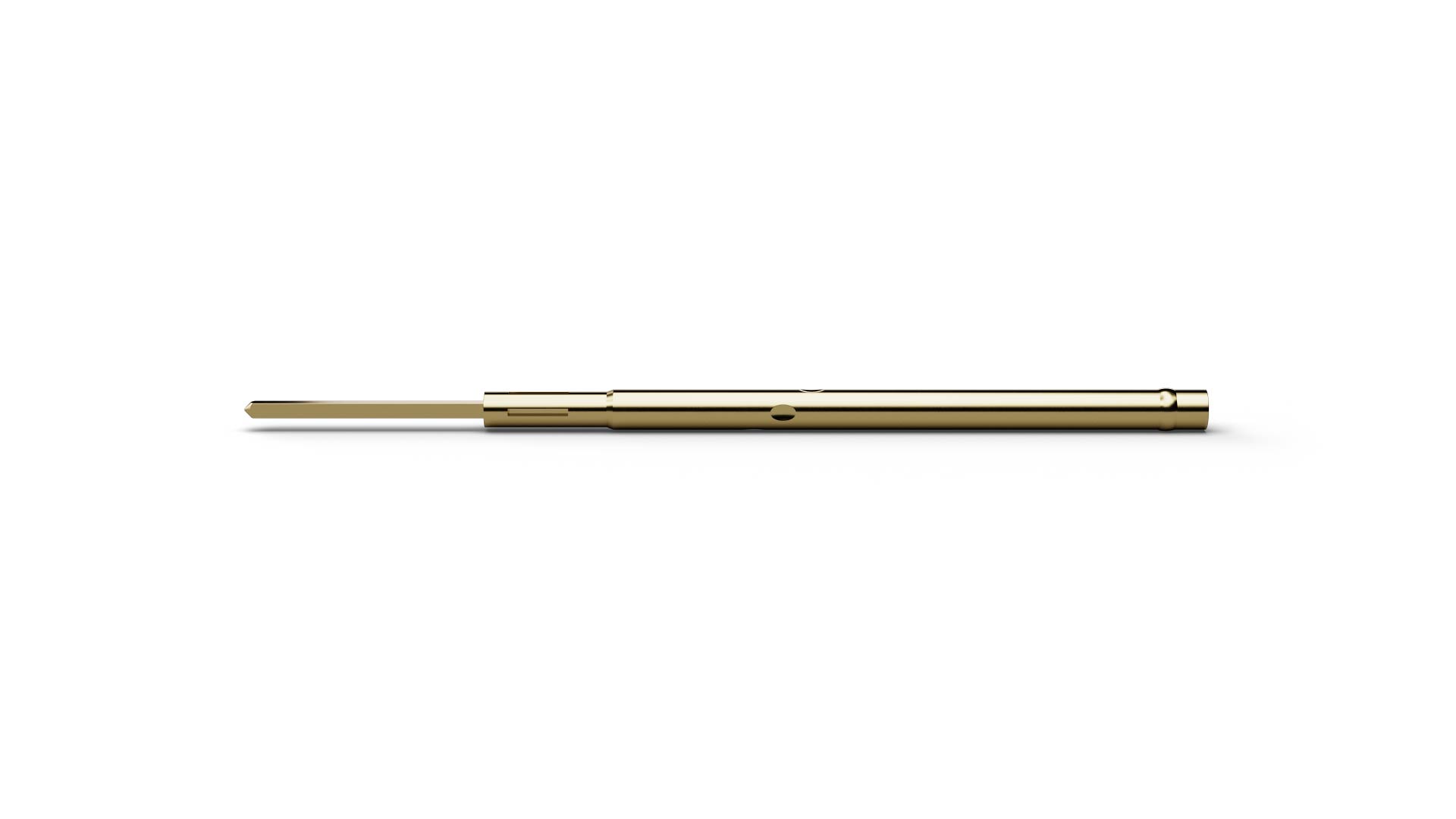

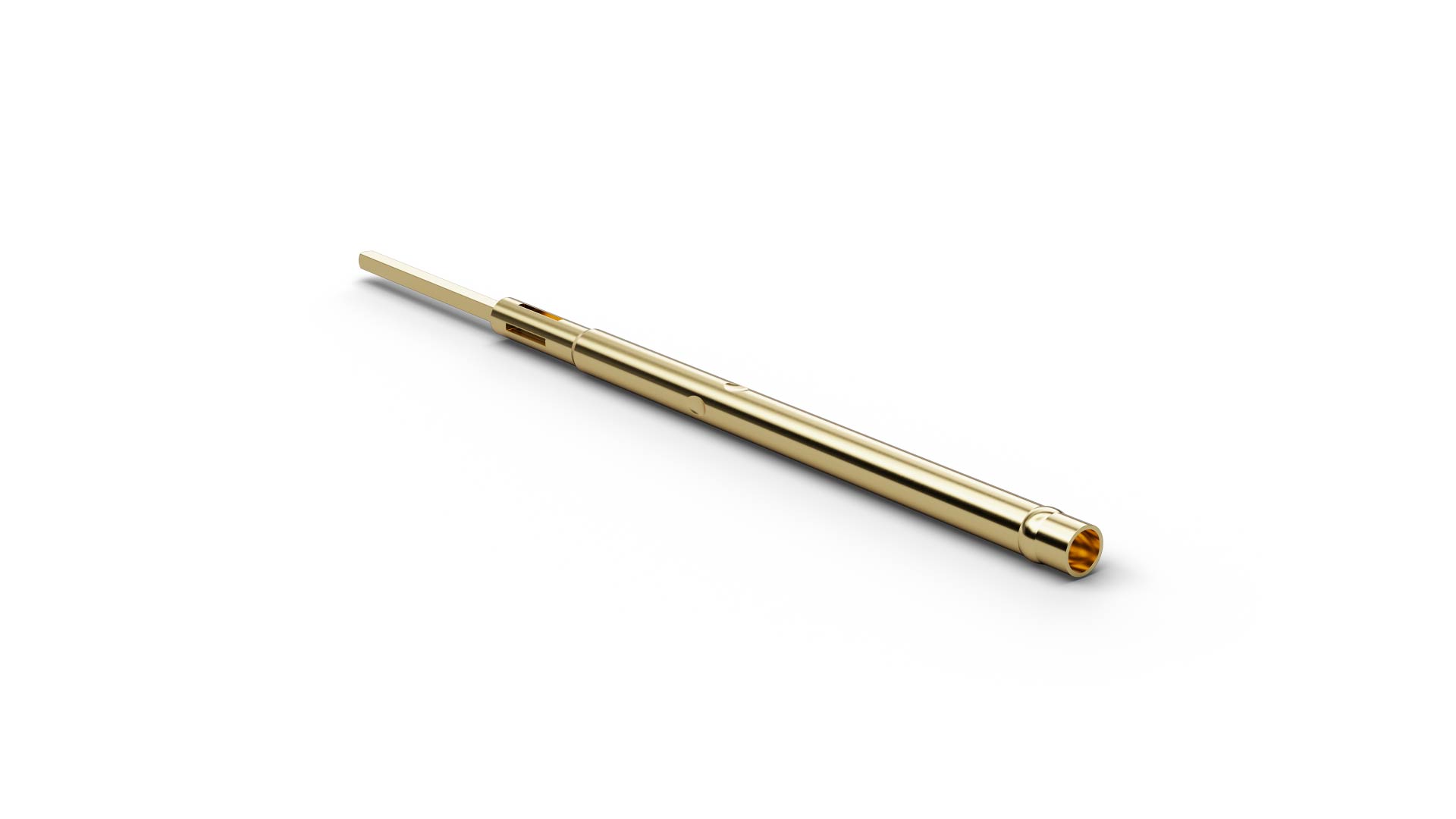

H100WW10-2.0 Perspective 1 H100WW10-2.0 Perspective 2

Basic Contact Probes (100 mil) H100WW10-2.0

Item number 1010829

Technical data sheet

Quantity

Technical data

General
Type/family H100
Pitch (mm/mil) 2,54 / 100
Dimensions
Total length (mm) 40
Press ring diameter (mm) 1.81
Outer diameter (mm) 1.68
Collar height (mm) 0.7
Materials and surfaces
Material, Coating Nickel silver, Gold
Mechanical specifications
Connection Wire Wrap
Electrical specifications
Continuous current (A) 5

Graphics

H100WW10-2.0 Overview of similar Receptacles H100WW10-2.0 Family designation
