Home › Products › Product Finder › IP-B-F-SB-145-LA-145-01

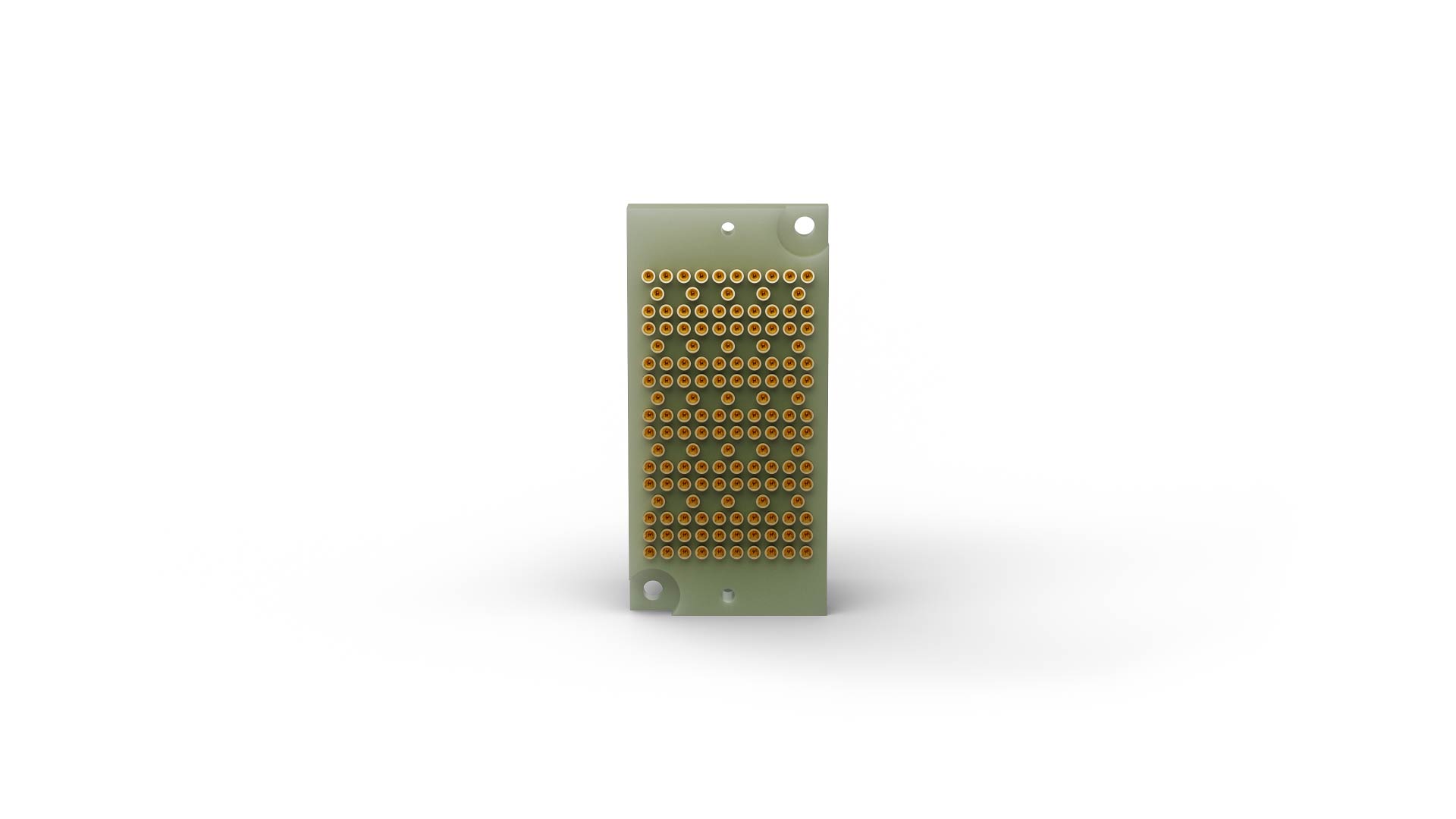

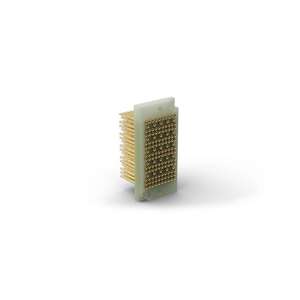

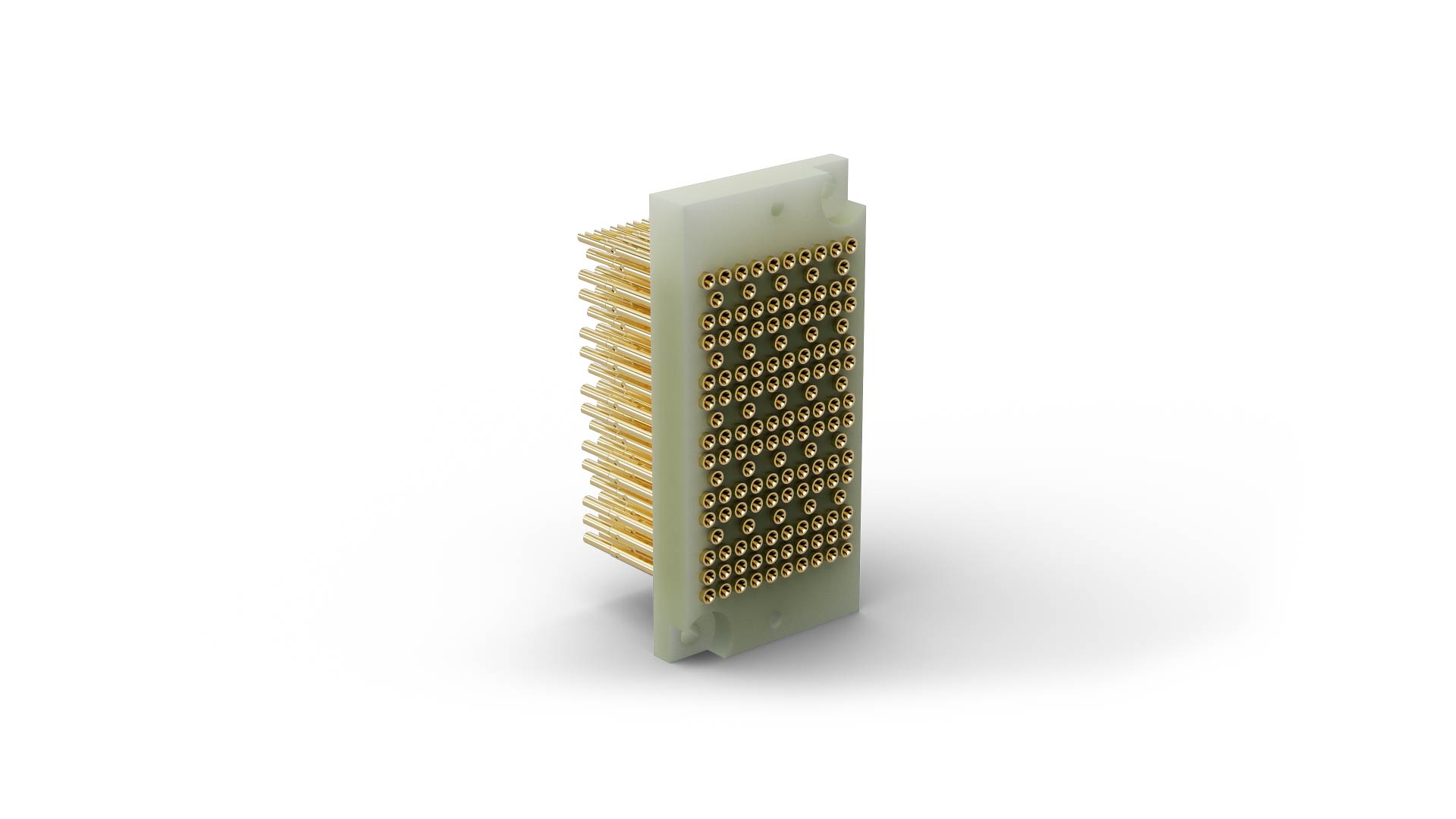

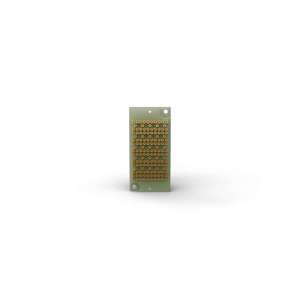

IP-B-F-SB-145-LA-145-01 Perspective 1 IP-B-F-SB-145-LA-145-01 Perspective 2

Interface Solutions (Blocks for ICT fixtures) IP-B-F-SB-145-LA-145-01

Item number 1010966

Technical data sheet

Quantity

Technical data

General
Type/family IP
Dimensions
Total length (mm) 60
Tip style diameter (mm) 2
Materials and surfaces
Tip style 5
Tip style material Brass
Tip style plating Gold
Plunger material Brass
Plunger plating Gold
Block material HGW FR4
Block plating Uncoated
Mechanical specifications
Connection Solder Connection
Electrical specifications
Continuous current (A) 15

Graphics

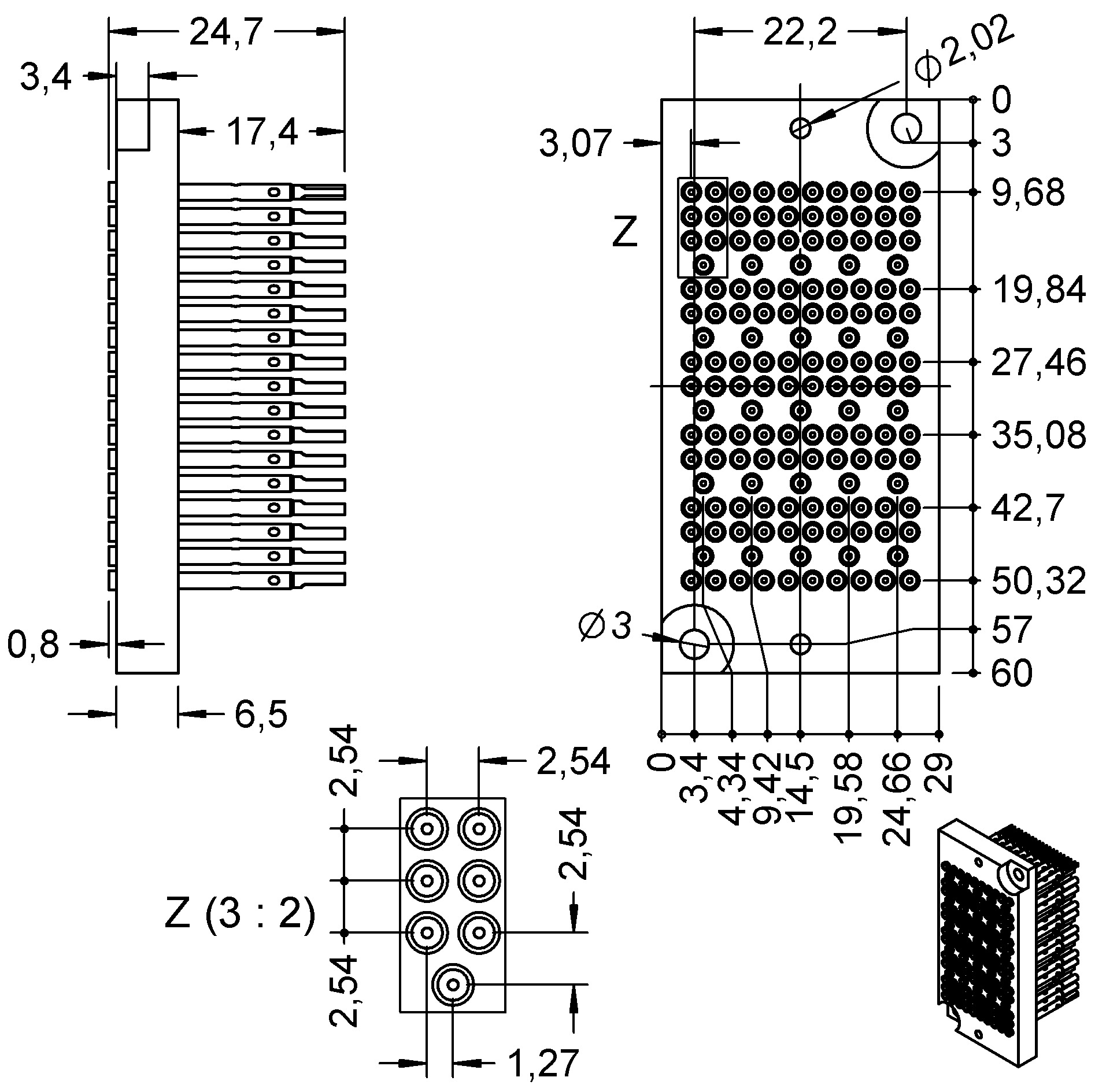

IP-B-F-SB-145-LA-145-01 Family designation
