Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F375-NO |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+100°C |
| Dimensions | |
|---|---|
| Total length (mm) | 55.2 |
| Protrusion height (mm) | 15 |
| Tip style diameter (mm) | 1.8 |
| Barrel diameter (mm) | 1.66 |
| Collar diameter (mm) | 2.3 |
| Press ring diameter (mm) | 2.3 |
| Materials and surfaces | |
|---|---|
| Tip style | 17 |
| Tip style material | Beryllium copper |
| Tip style plating | Gold |
| Plunger material | Bronze |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 30 |
| Spring force (cN) | 200 |
| Nominal travel (mm) | 8 |
| Maximum travel (mm) | 9.5 |
| Pointing accuracy +/- (mm) | 0.15 |
| Thread | M1,6 |
| Tool size (mm) | 1,7 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 50 |
| Switch travel (mm) | 1.5 |
| Continuous current (A) 2 | 1 |

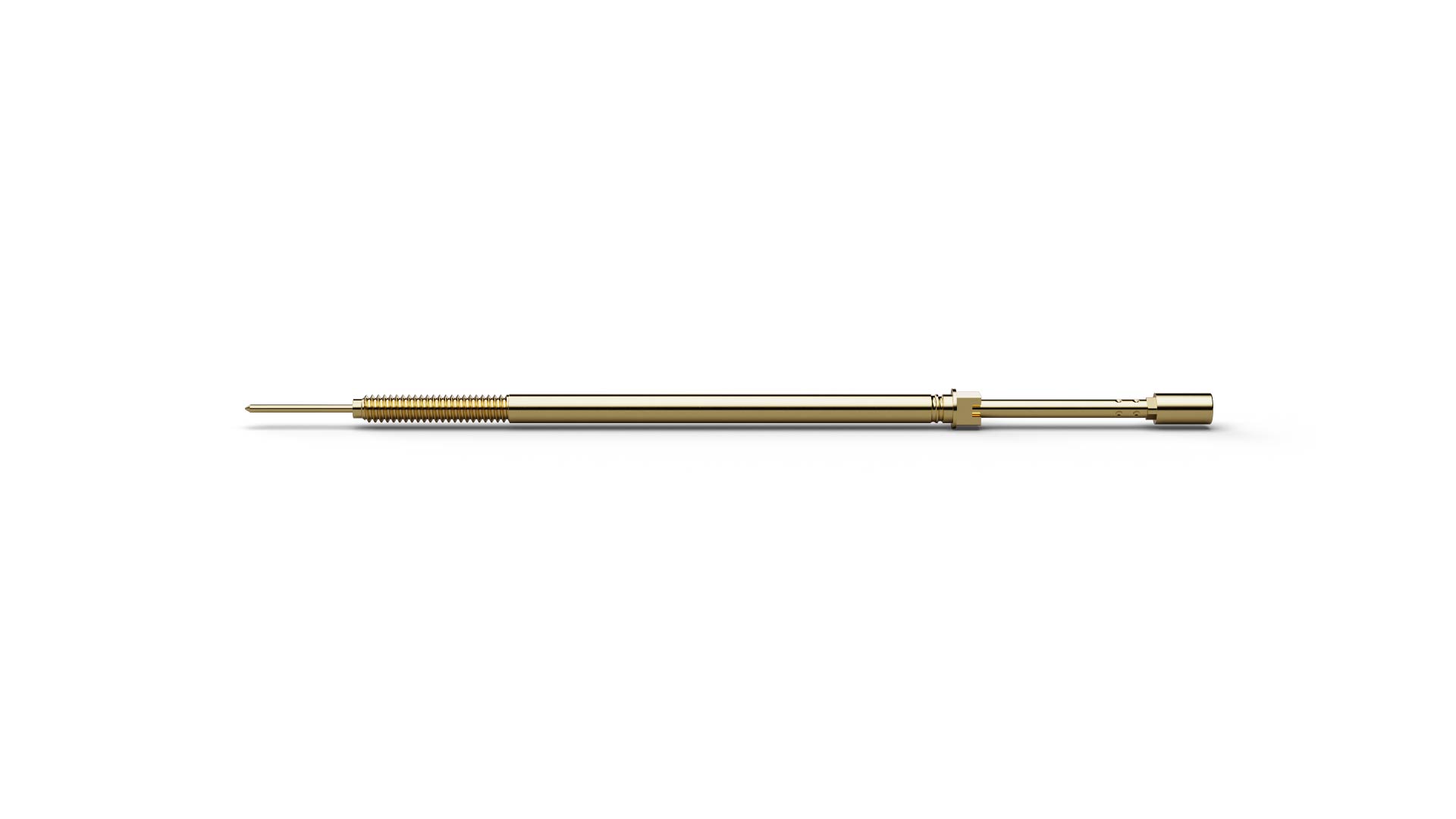

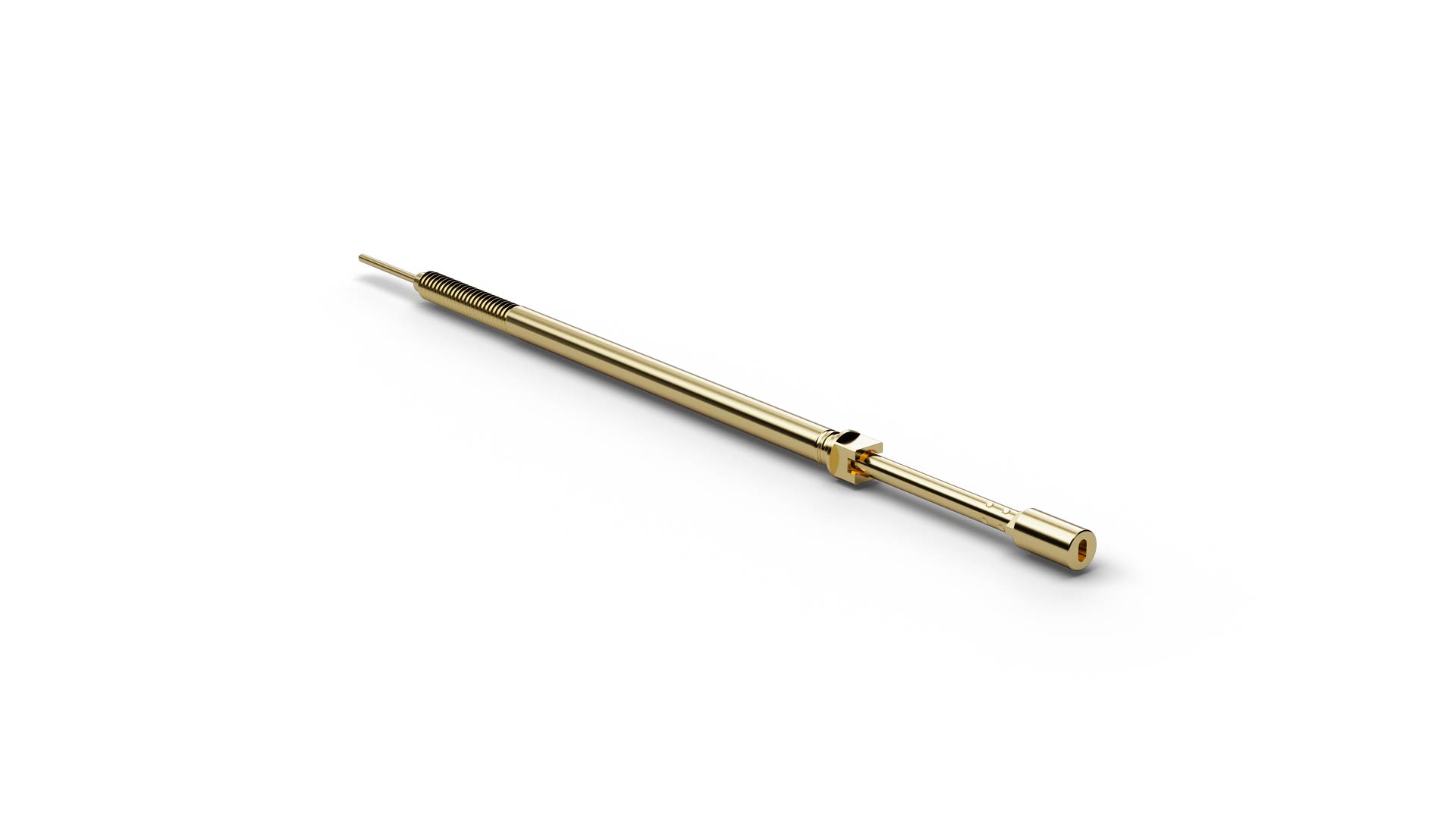

Graphics
