Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F755 |
| Pitch (mm/mil) | 4,50 / 177 |
| Temperature | -45°C...+200°C |
| Additional definition | EXX |
| Dimensions | |
|---|---|
| Total length (mm) | 38 |
| Protrusion height (mm) | 13.3 |
| Tip style diameter (mm) | 4 |
| Barrel diameter (mm) | 3 |
| Collar diameter (mm) | 3.5 |
| Press ring diameter (mm) | 3.5 |
| Materials and surfaces | |
|---|---|
| Tip style | 06 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 120 |
| Spring force (cN) | 500 |
| Nominal travel (mm) | 5.6 |
| Maximum travel (mm) | 7 |
| Pointing accuracy +/- (mm) | 0.1 |
| Thread | M2,5 |
| Tool size (mm) | 3,0 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 10 |
| Typical contact resistance (mOhm) | 30 |

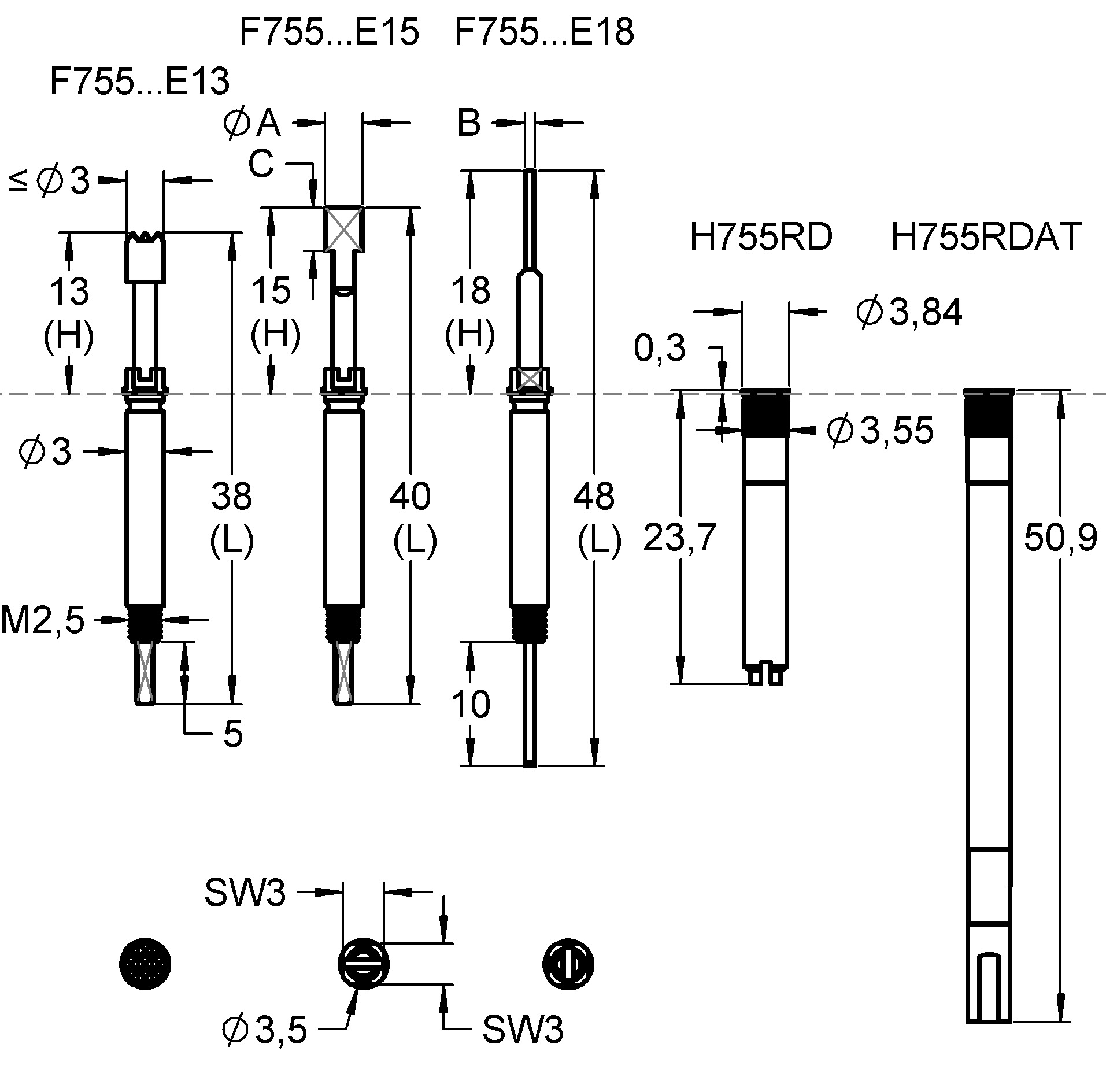

Graphics
Beschreibung des Produkts

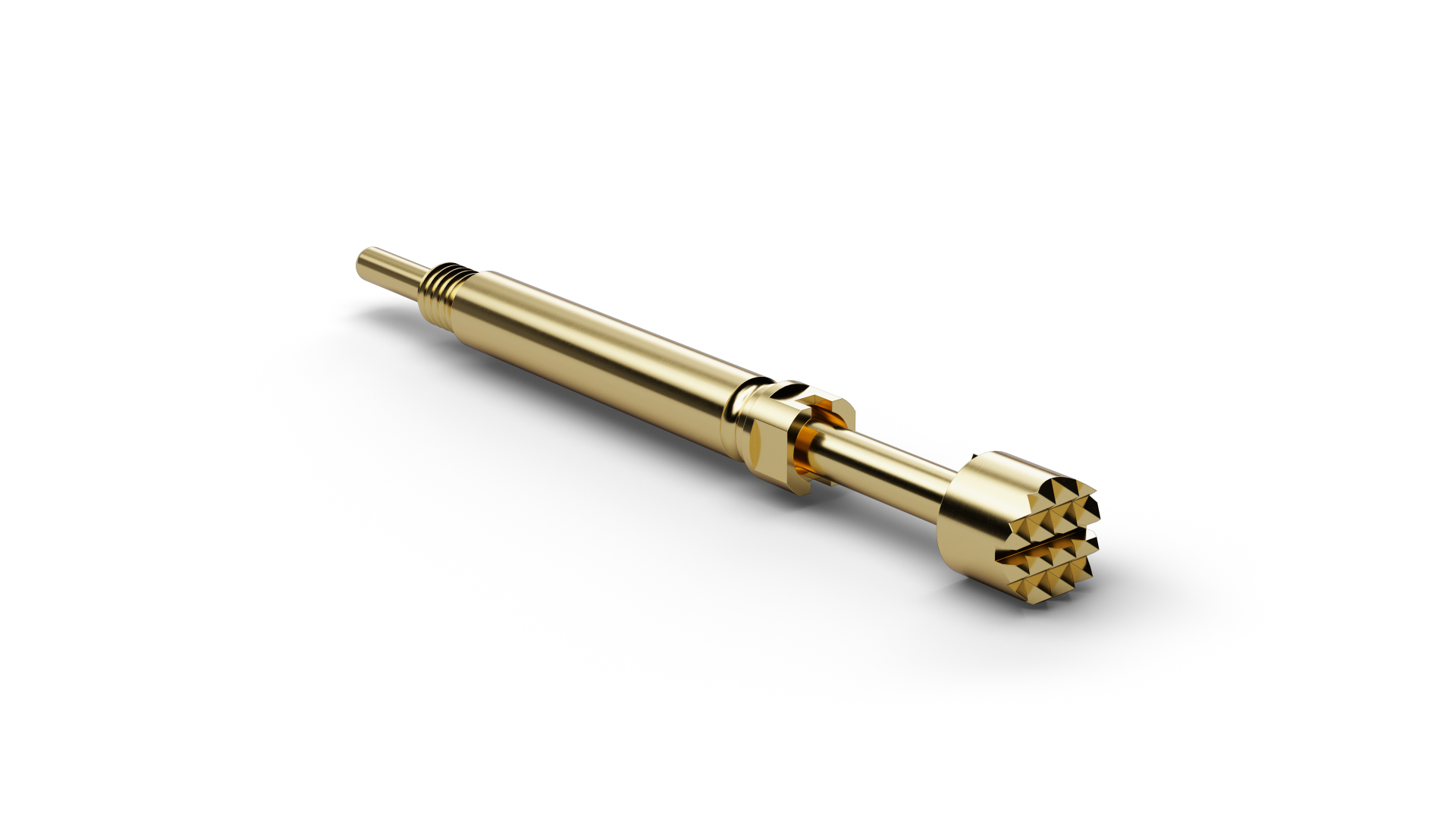

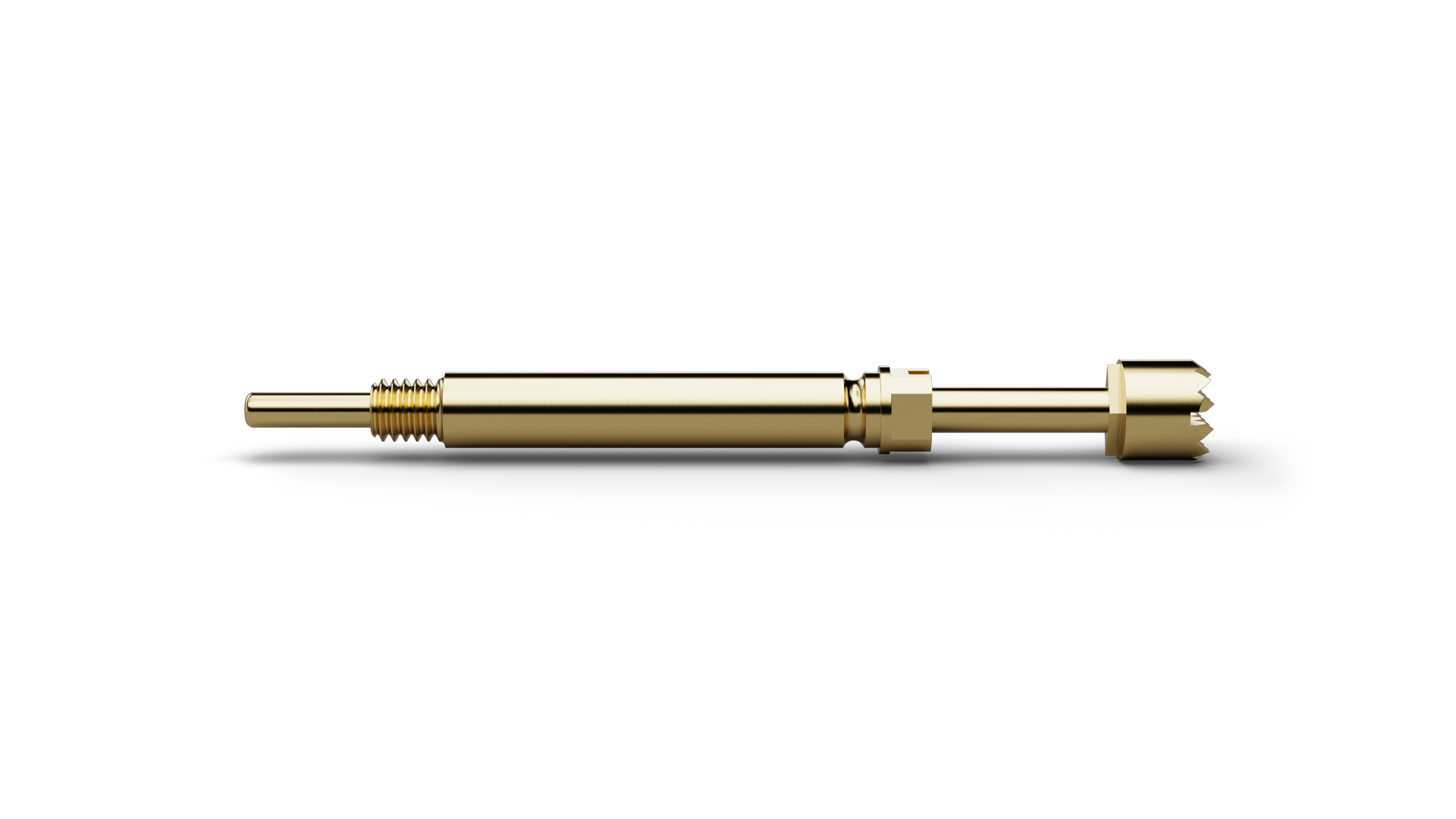

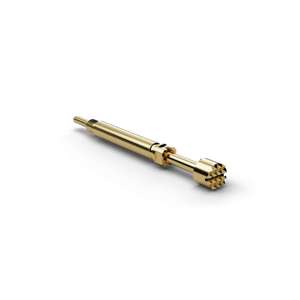

The Twist Proof Probe F75506B400G500E13 (item number 1011252) keeps its contact tip in a defined rotational orientation. The twist-proof design of F75506B400G500E13 keeps the contact geometry in a defined orientation and is therefore suited to direction-sensitive connector contacting. The twist-proof design of F75506B400G500E13 is useful in connector testing when elongated contours, contact tongues or direction-dependent tip geometries must remain precisely aligned. On F75506B400G500E13, tip style 06 (Serrated stepped) has a diameter of 4 mm. Spring force is 500 cN at a nominal travel of 5.6 mm. Pointing accuracy for F75506B400G500E13 is specified as ±0.1 mm.
