Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F886-NO |
| Pitch (mm/mil) | 3,50 / 138 |
| Temperature | -45°C...+100°C |
| Additional definition | LM |
| Dimensions | |
|---|---|
| Total length (mm) | 51.3 |
| Protrusion height (mm) | 16.5 |
| Tip style diameter (mm) | 3 |
| Barrel diameter (mm) | 2.65 |
| Collar diameter (mm) | 3.2 |
| Press ring diameter (mm) | 3.2 |
| Materials and surfaces | |
|---|---|
| Tip style | 17 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 20 |
| Spring force (cN) | 80 |
| Nominal travel (mm) | 4 |
| Maximum travel (mm) | 5 |
| Pointing accuracy +/- (mm) | 0.09 |
| Thread | M2,5 |
| Tool size (mm) | 2,6 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 10 |
| Typical contact resistance (mOhm) | 50 |
| Switch travel (mm) | 1.7 |
| Continuous current (A) 2 | 1 |
Graphics
Beschreibung des Produkts

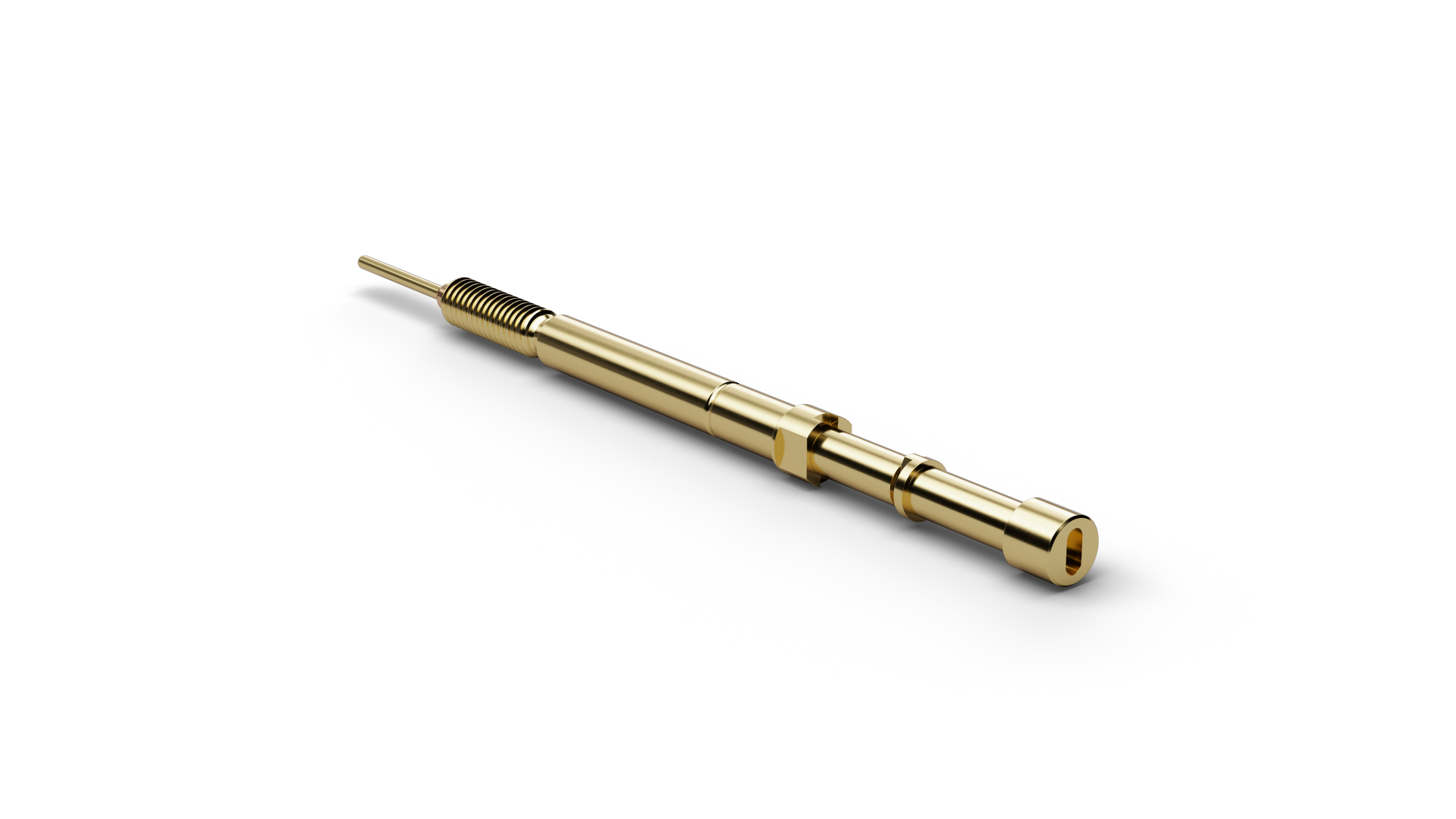

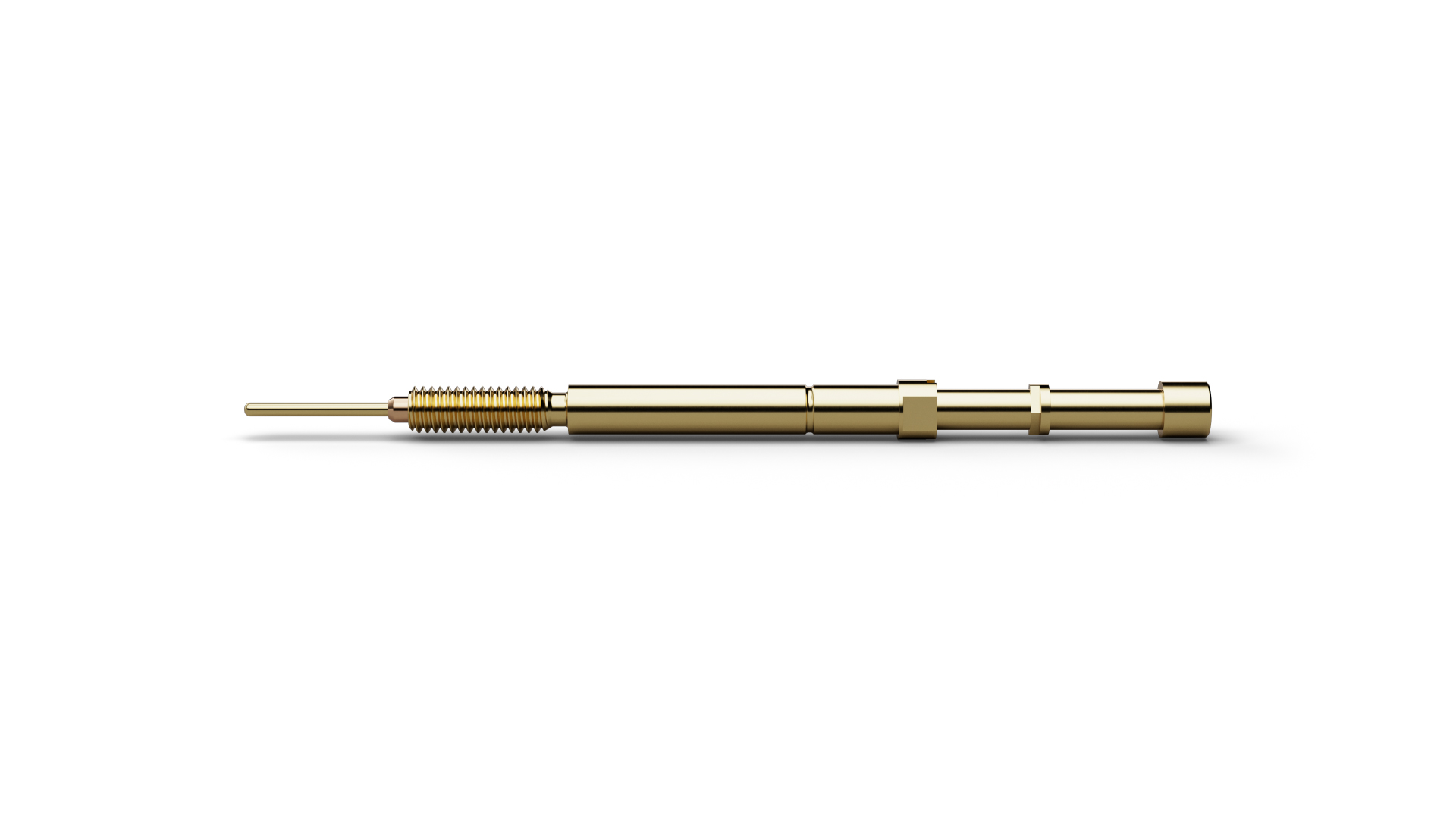

F88617B300G080LM (item number 1011741) belongs to the Switch Probe range and generates an electrical signal at a defined actuation travel. F88617B300G080LM combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. The switch type specified for F88617B300G080LM is NO (Normally Open). The switching travel specified for F88617B300G080LM is 1.7 mm. F88617B300G080LM combines a pitch of 3.5 mm / 138 mil with tip style 17 (Flat stepped) and a tip diameter of 3 mm. F88617B300G080LM operates with 80 cN spring force and 4 mm nominal travel.
