Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F772 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+80°C |
| Additional definition | HP |

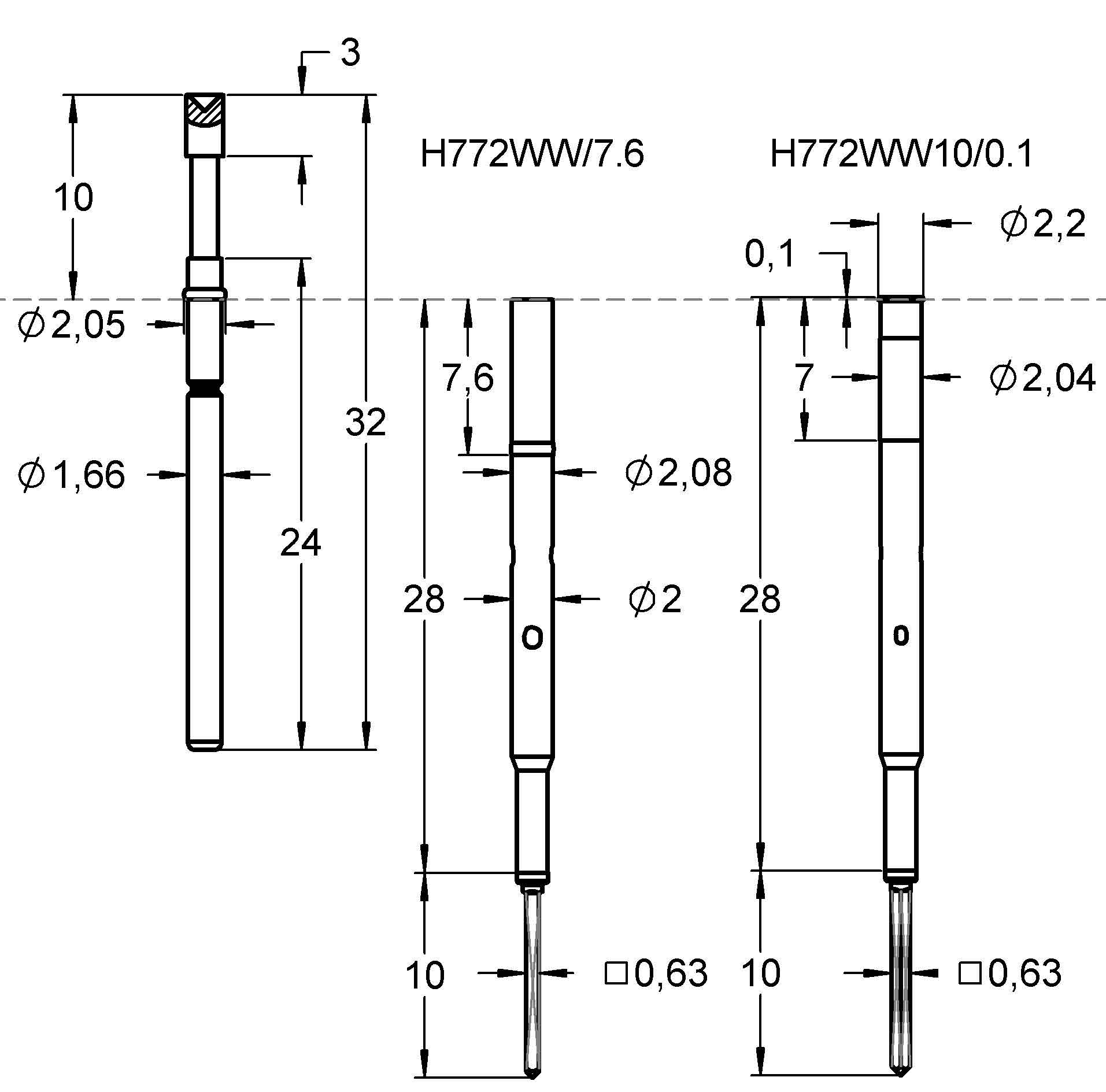

| Dimensions | |
|---|---|
| Total length (mm) | 32 |
| Protrusion height (mm) | 10 |
| Tip style diameter (mm) | 1.3 |
| Barrel diameter (mm) | 1.66 |
| Collar diameter (mm) | 2.05 |
| Press ring diameter (mm) | 2.05 |
| Materials and surfaces | |
|---|---|
| Tip style | 33 |
| Plunger material | Steel |
| Plunger plating | Progressive |
| Barrel material | Nickel silver |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 200 |
| Spring force (cN) | 300 |
| Nominal travel (mm) | 4 |
| Maximum travel (mm) | 5 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 50 |
Graphics
Beschreibung des Produkts

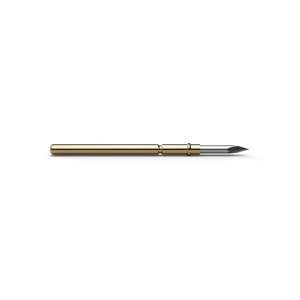

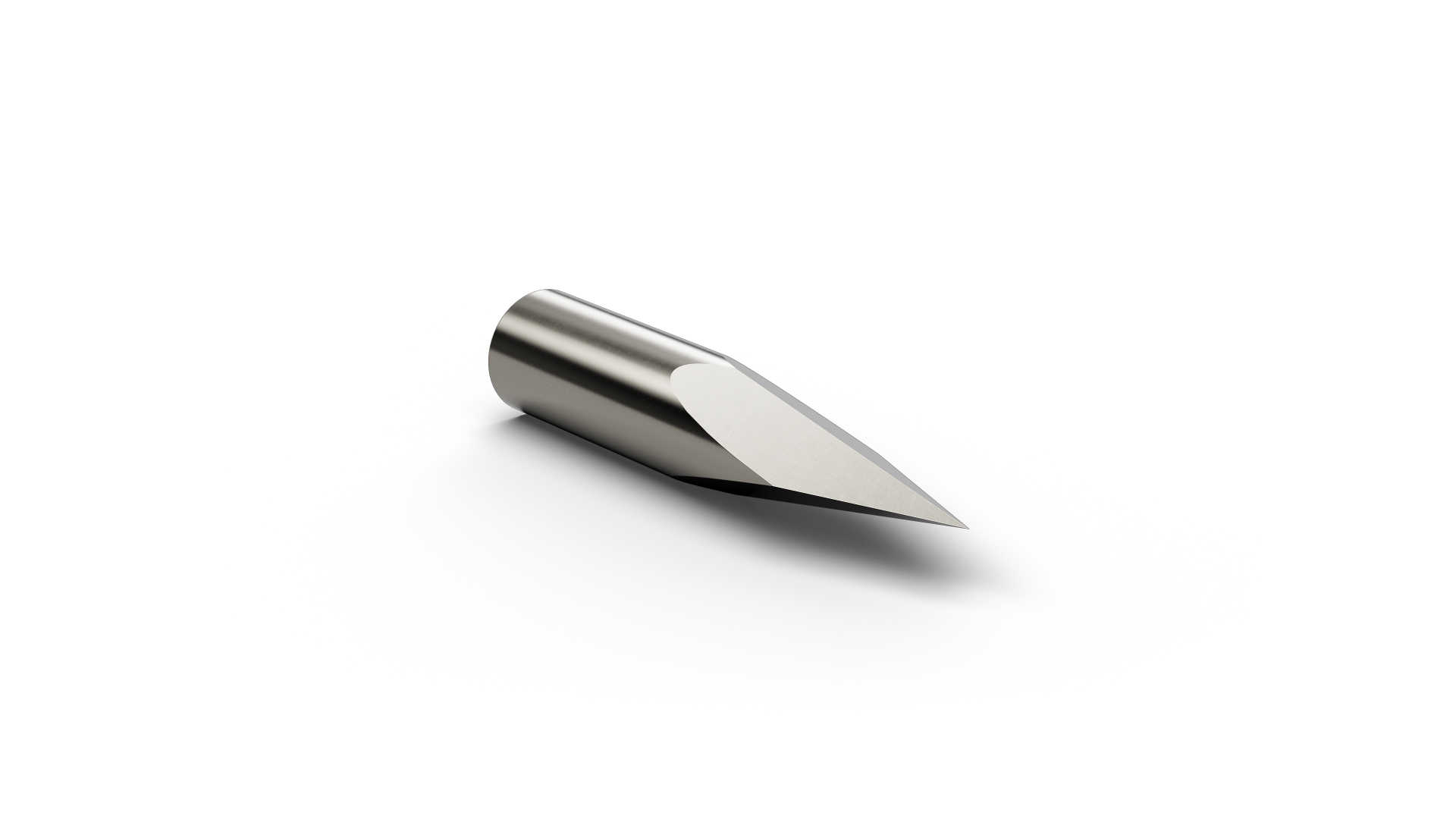

The Basic Contact Probe F77233S130P300HP (item number 1013335) is a spring-loaded probe for temporary electrical contact with test points. With tip style 33 (Square lance 38°), F77233S130P300HP combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F77233S130P300HP combines a pitch of 2.54 mm / 100 mil with tip style 33 (Square lance 38°) and a tip diameter of 1.3 mm. For F77233S130P300HP, spring force is 300 cN at a nominal travel of 4 mm. F77233S130P300HP is rated for 5 A continuous current with a typical contact resistance of 50 mΩ. On F77233S130P300HP, Progressive Coating and the increased spring preload of the HP version form a combined solution for difficult ICT/FCT contacting conditions involving OSP, flux residues, oxidation or contamination.
