Technical data
| General | |
|---|---|
| Structure | Double Plunger Probe |
| Type/family | P-M / P176M-L082 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+100°C |

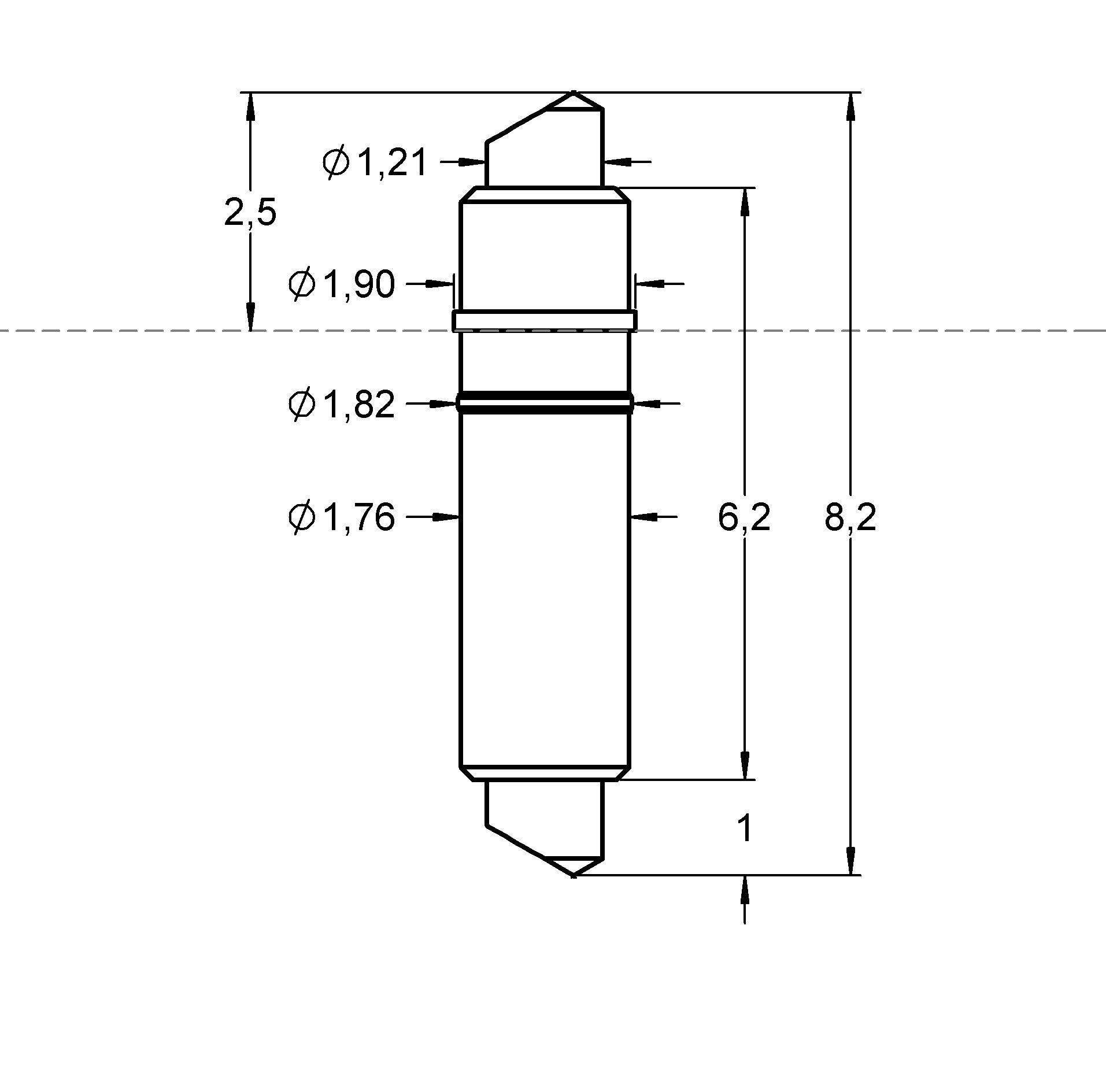

| Dimensions | |
|---|---|
| Total length (mm) | 8.2 |
| Protrusion height (mm) | 2.5 |
| Tip style diameter (mm) | 1.21 |
| Barrel diameter (mm) | 1.76 |
| Collar diameter (mm) | 1.9 |
| Press ring diameter (mm) | 1.9 |
| Materials and surfaces | |
|---|---|

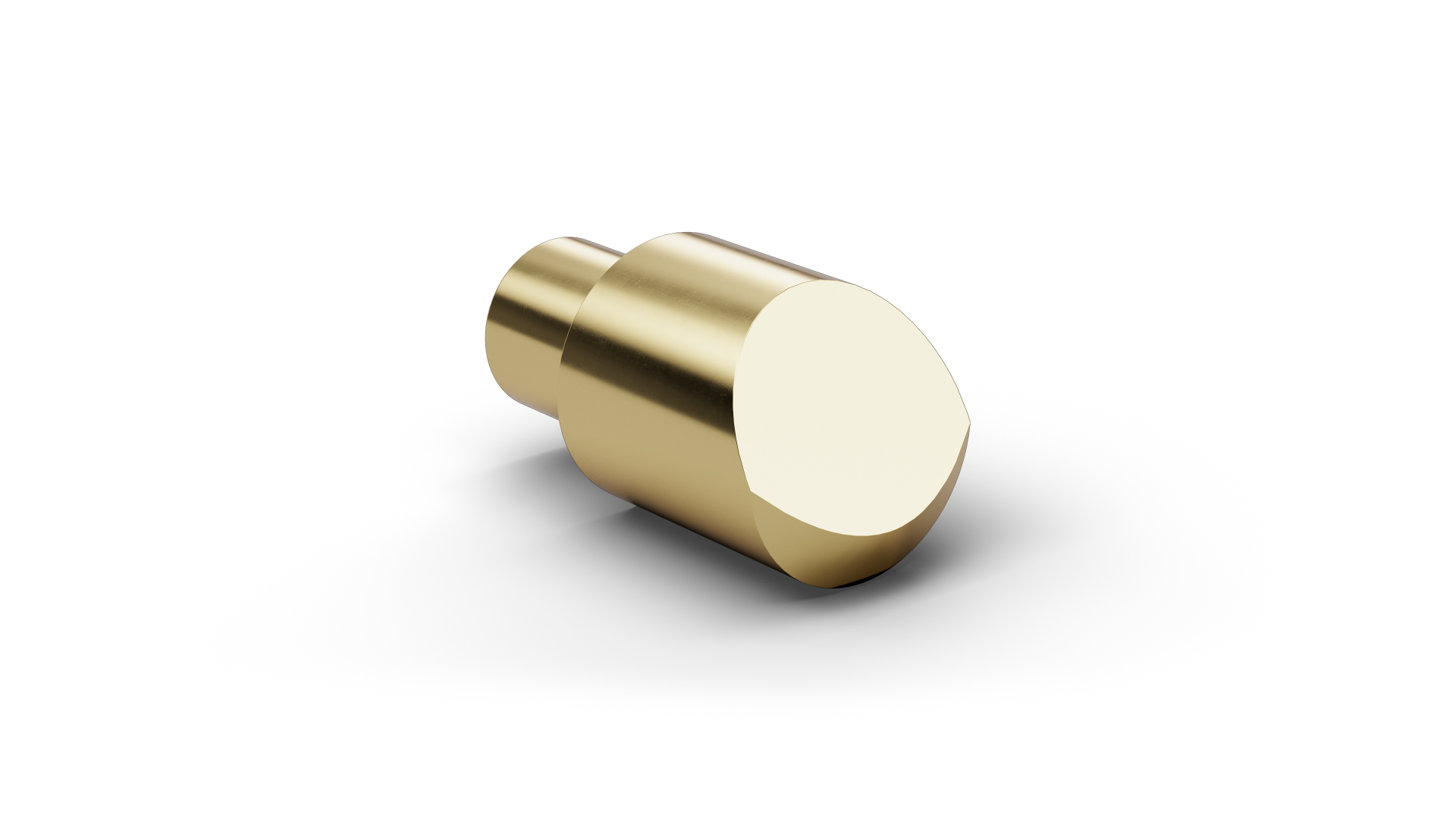

| Tip style | 45 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 25 |
| Spring force (cN) | 60 |
| Nominal travel (mm) | 1.3 |
| Maximum travel (mm) | 1.8 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 30 |
Graphics
Beschreibung des Produkts

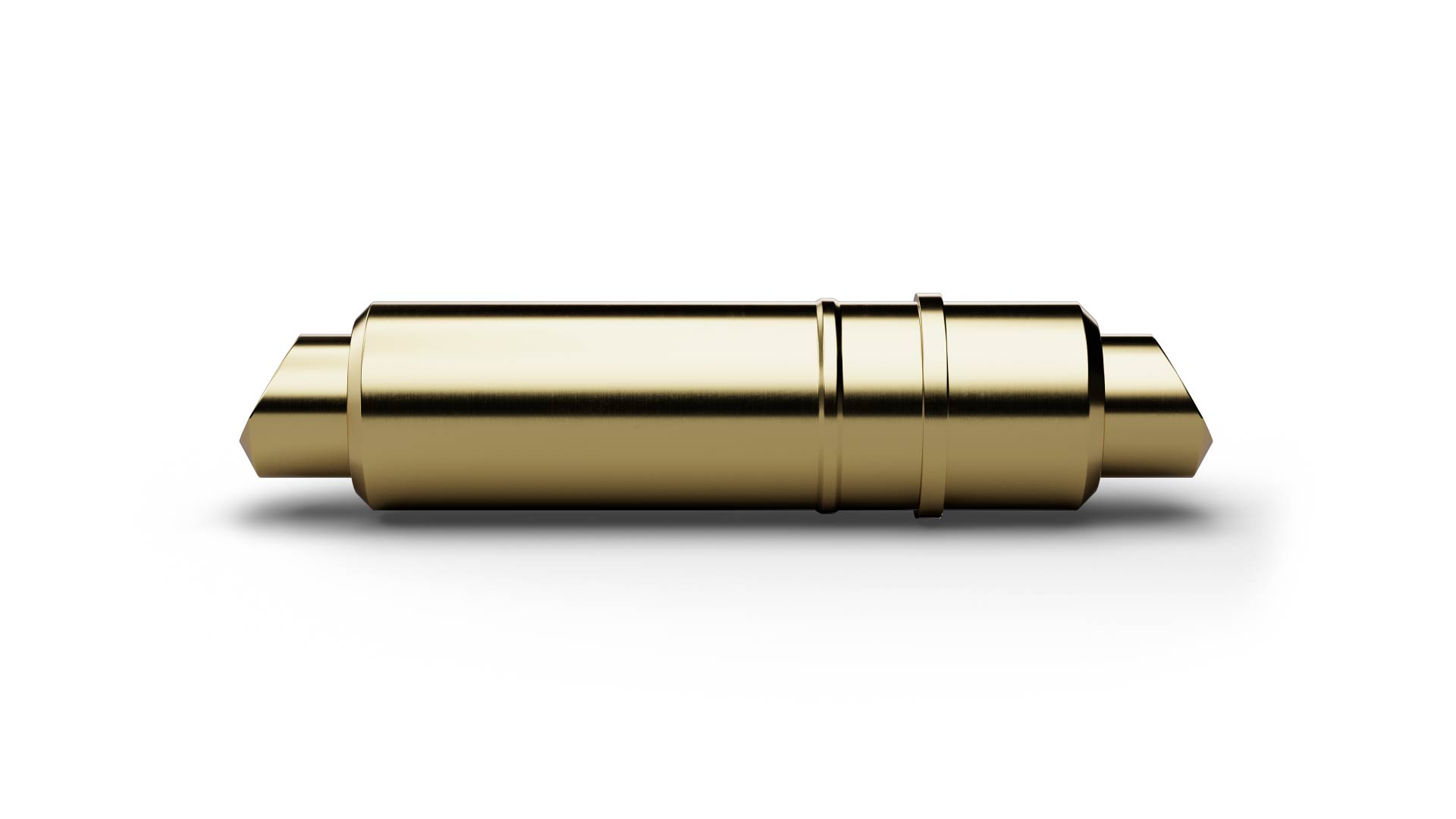

P17645B121G060ML082 (item number 1013895) is a Contact Probe for defined interfaces within electronic test setups. P17645B121G060ML082 provides a standardized contact or interface element for repeatable transfer of test and measurement signals between fixture and test system. The design combines a pitch of 2.54 mm / 100 mil with tip style 45 (Conical 120° with eccentric-cut) and a tip diameter of 1.21 mm. Spring force is 60 cN at a nominal travel of 1.3 mm. For P17645B121G060ML082, the specified continuous current is 5 A.
