Technical data
| General | |
|---|---|
| Type/family | F865-NO |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+100°C |
| Dimensions | |
|---|---|
| Total length (mm) | 38.2 |
| Protrusion height (mm) | 11.3 |
| Tip style diameter (mm) | 1 |
| Barrel diameter (mm) | 1.37 |
| Collar diameter (mm) | 2 |
| Press ring diameter (mm) | 2 |
| Materials and surfaces | |
|---|---|
| Tip style | 11 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 60 |
| Spring force (cN) | 200 |
| Nominal travel (mm) | 5 |
| Maximum travel (mm) | 6.3 |
| Pointing accuracy +/- (mm) | 0.08 |
| Thread | M1,6X0,2 |
| Tool size (mm) | 1,4 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 3 |
| Typical contact resistance (mOhm) | 25 |
| Switch travel (mm) | 4 |
| Continuous current (A) 2 | 1 |

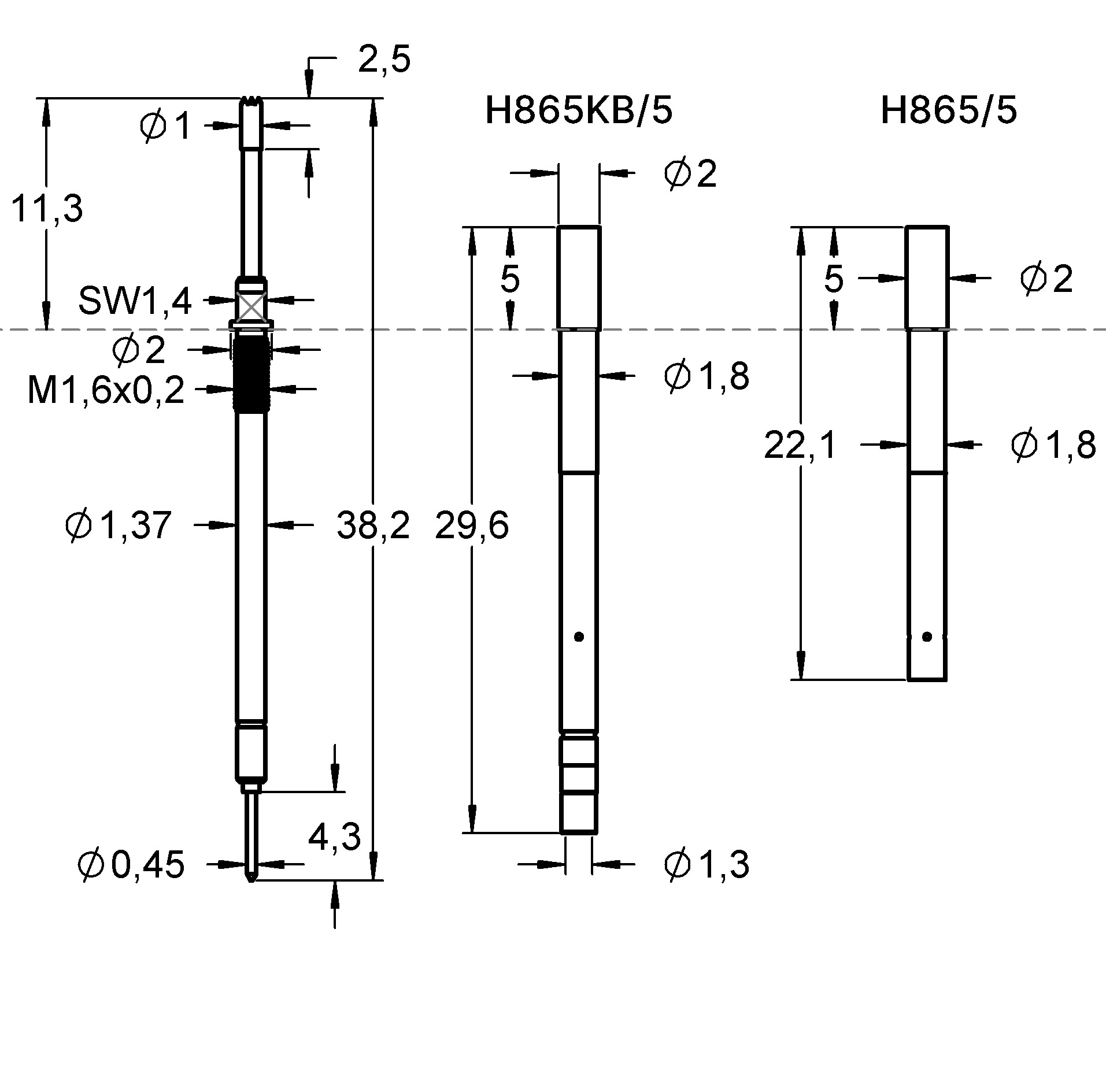

Graphics
Beschreibung des Produkts

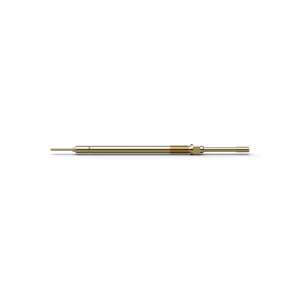

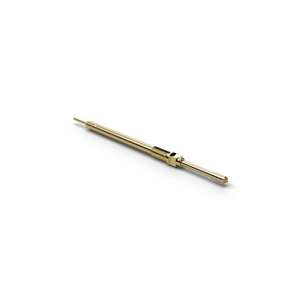

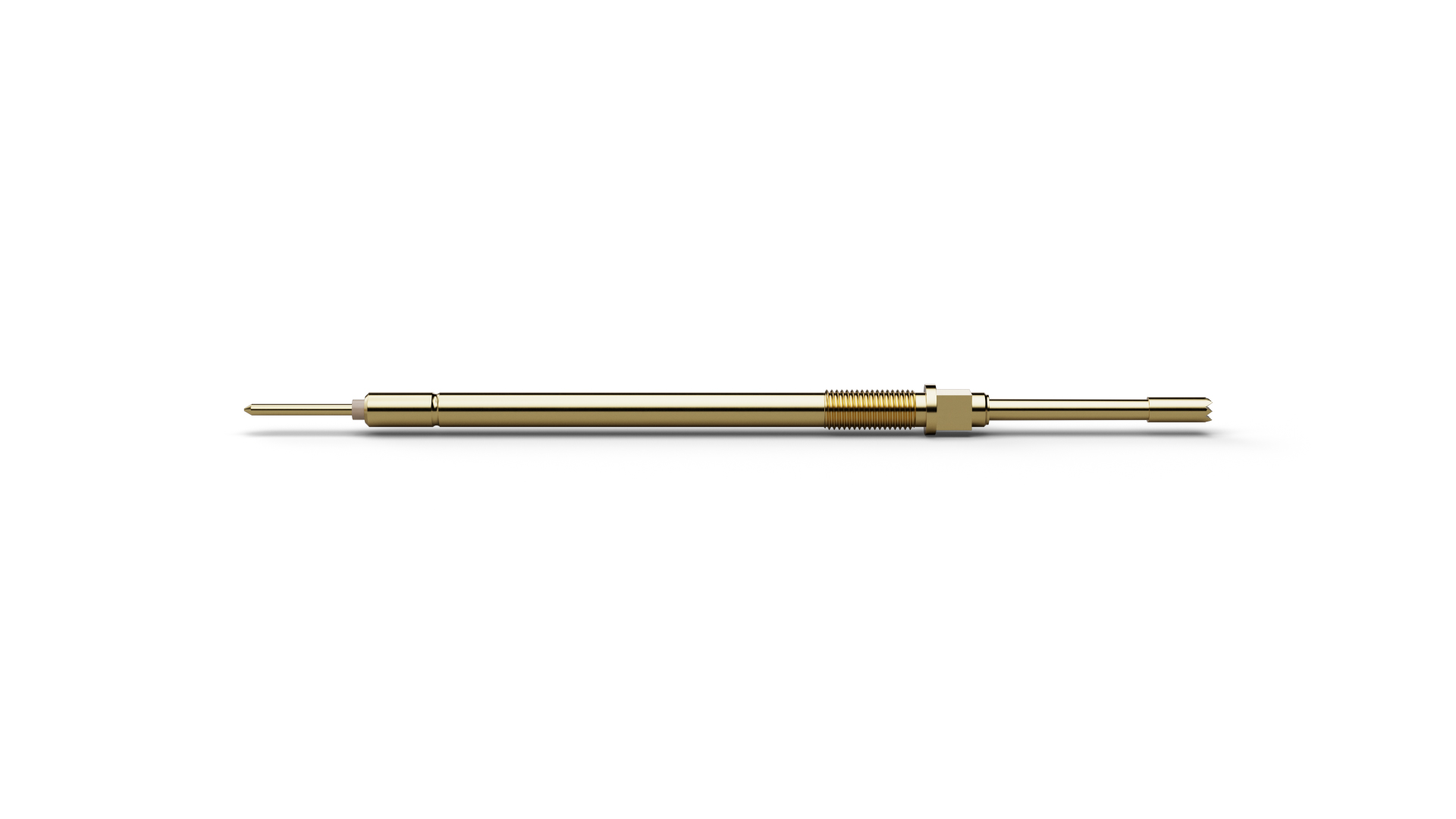

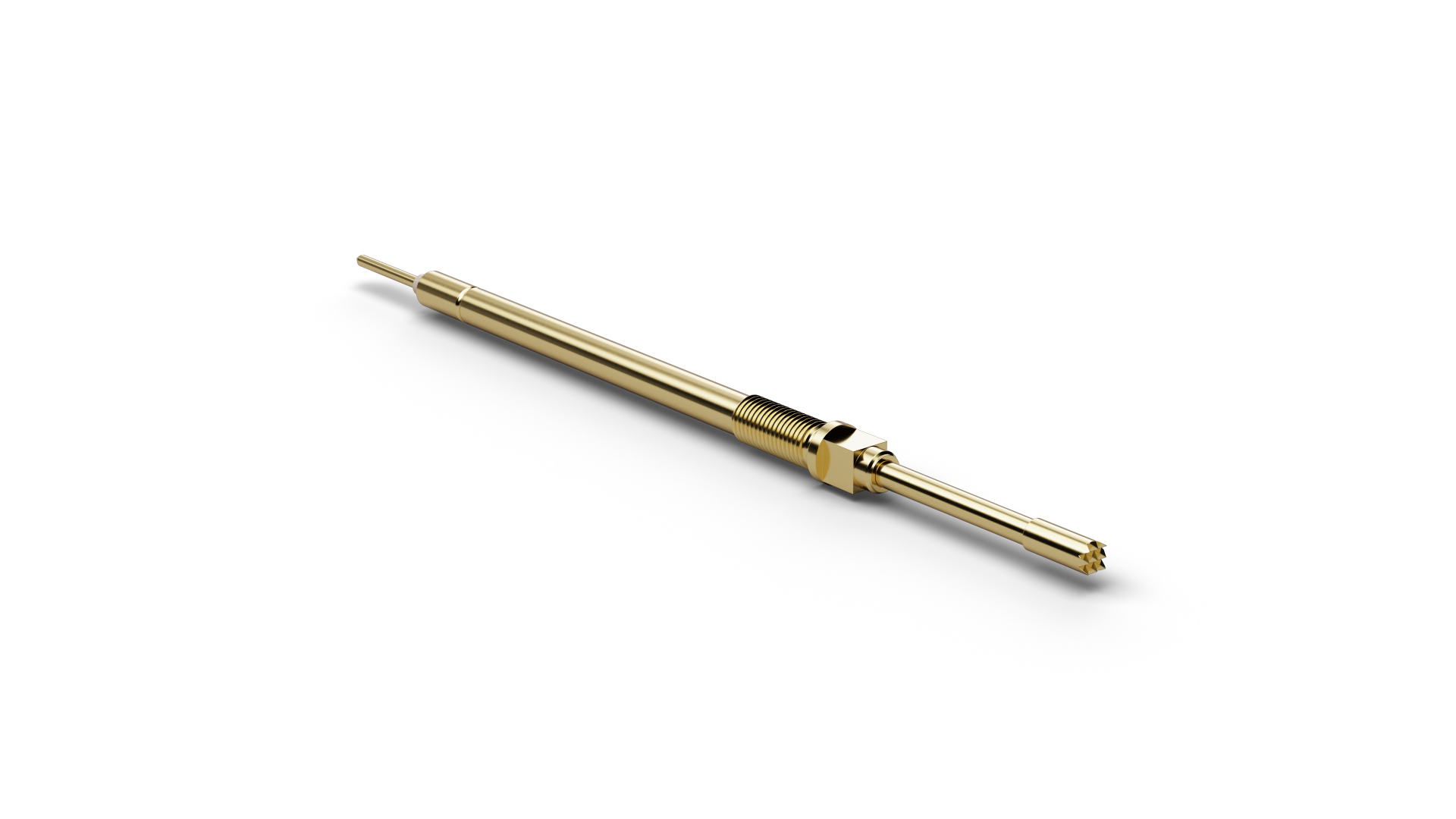

The Switch Probe F86506B100G200 (item number 1014788) combines spring-loaded contacting with a defined switching or sensing function. F86506B100G200 combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. The switch type specified for F86506B100G200 is NO (Normally Open). The switching travel specified for F86506B100G200 is 4 mm. F86506B100G200 combines a pitch of 2.54 mm / 100 mil with tip style 11 (Spherical) and a tip diameter of 1 mm. F86506B100G200 operates with 200 cN spring force and 5 mm nominal travel.
