Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | P-T / P165T-L103 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+200°C |

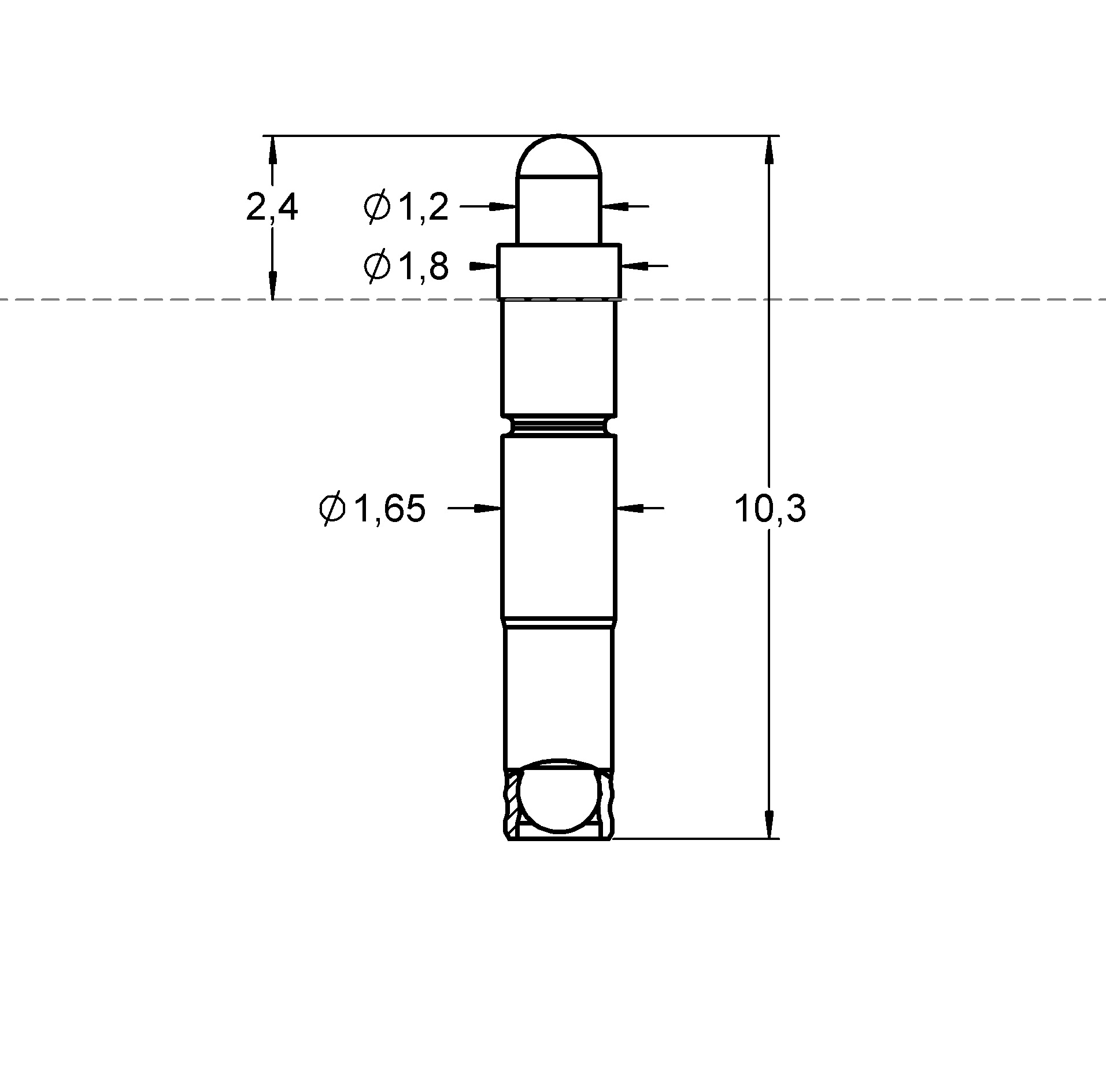

| Dimensions | |
|---|---|
| Total length (mm) | 10.3 |
| Protrusion height (mm) | 2.4 |
| Tip style diameter (mm) | 1.2 |
| Barrel diameter (mm) | 1.65 |
| Collar diameter (mm) | 1.78 |
| Press ring diameter (mm) | 1.78 |
| Materials and surfaces | |
|---|---|
| Tip style | 11 |
| Plunger material | Steel |
| Plunger plating | Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 50 |
| Spring force (cN) | 130 |
| Nominal travel (mm) | 1.3 |
| Maximum travel (mm) | 1.6 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 8 |
| Typical contact resistance (mOhm) | 30 |
Graphics
Beschreibung des Produkts

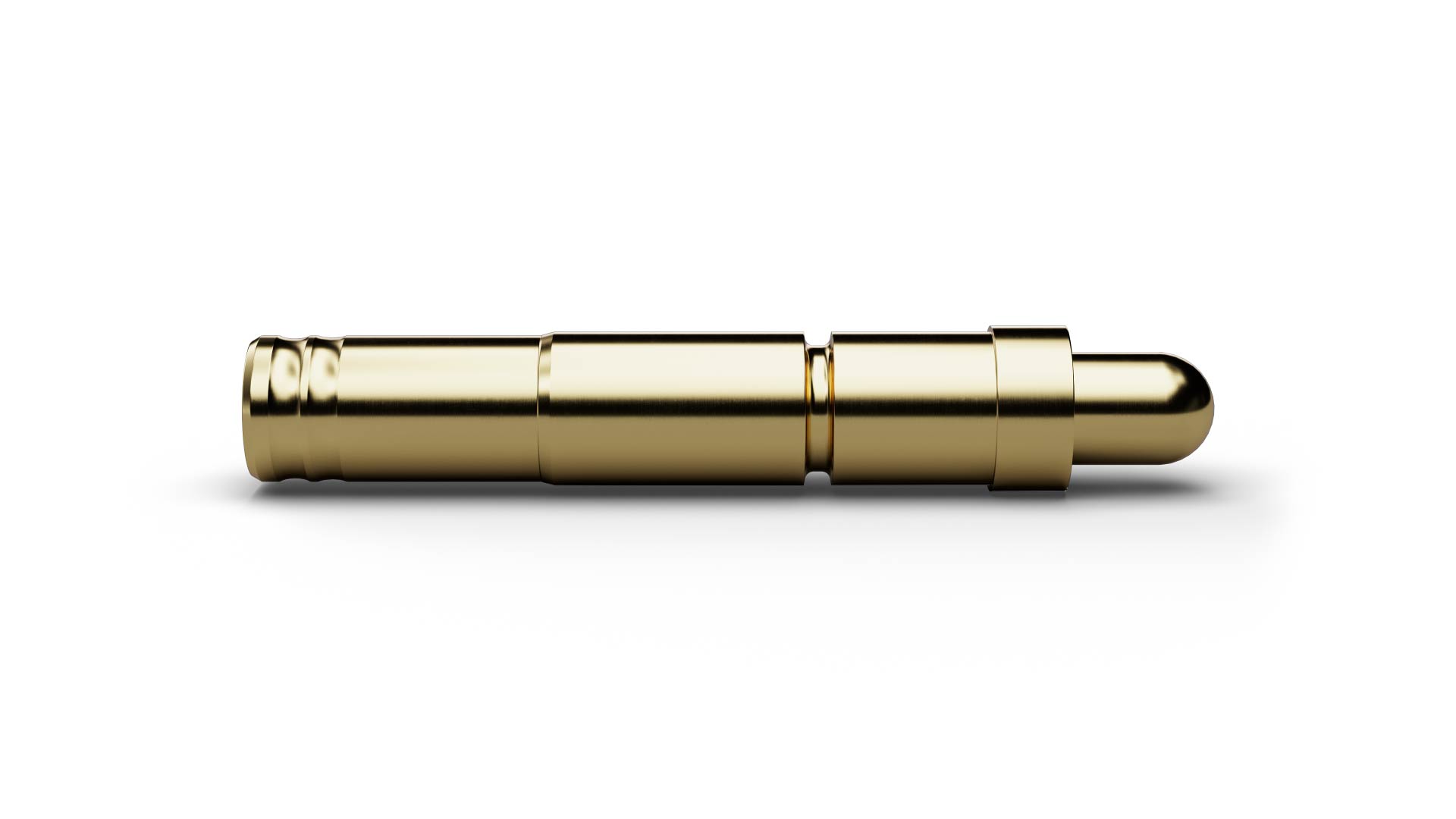

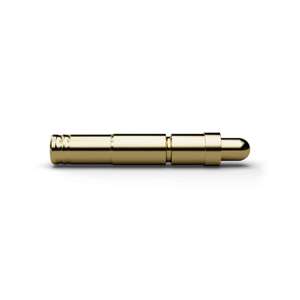

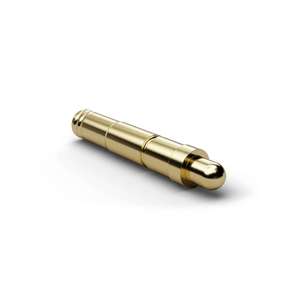

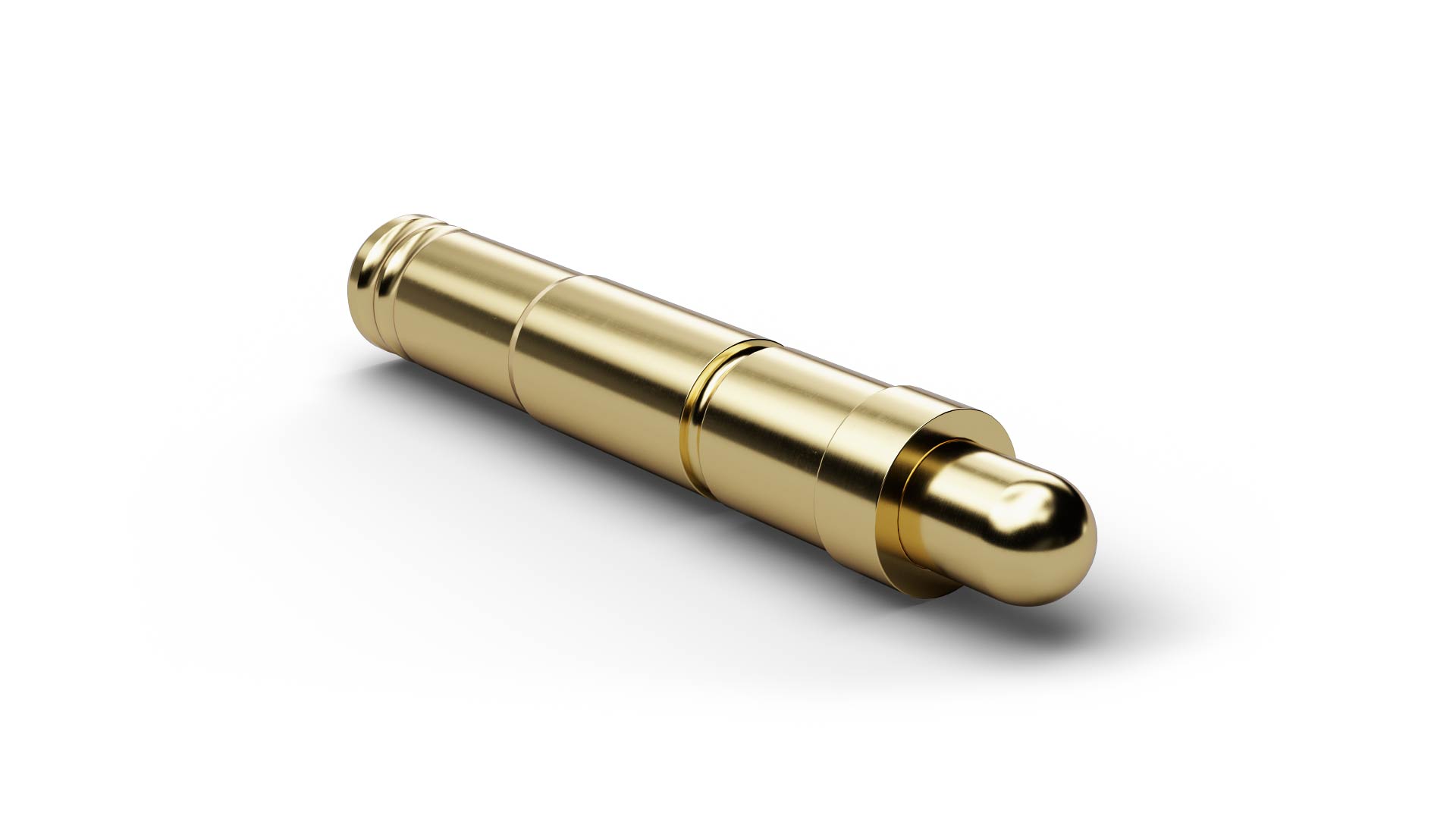

The Pogo Connector P16511S120G130TL103ST (item number 1015131) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P16511S120G130TL103ST is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P16511S120G130TL103ST is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. On P16511S120G130TL103ST, a pitch of 2.54 mm / 100 mil is combined with 130 cN spring force and 1.3 mm nominal travel. The electrical rating of P16511S120G130TL103ST combines 8 A continuous current with 30 mΩ typical contact resistance. On P16511S120G130TL103ST, tip style 11 (Spherical) has a diameter of 1.2 mm.
