Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F588 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+80°C |
| Additional definition | IK04 |
| Dimensions | |
|---|---|
| Total length (mm) | 37.7 |
| Protrusion height (mm) | 12.4 |
| Tip style diameter (mm) | 1.5 |
| Barrel diameter (mm) | 1.37 |
| Materials and surfaces | |
|---|---|
| Tip style | 41 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 110 |
| Spring force (cN) | 300 |
| Nominal travel (mm) | 7.6 |
| Maximum travel (mm) | 10 |
| Pointing accuracy +/- (mm) | 0.1 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 30 |
Graphics
Beschreibung des Produkts

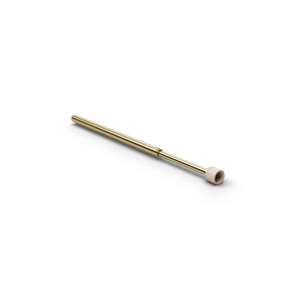

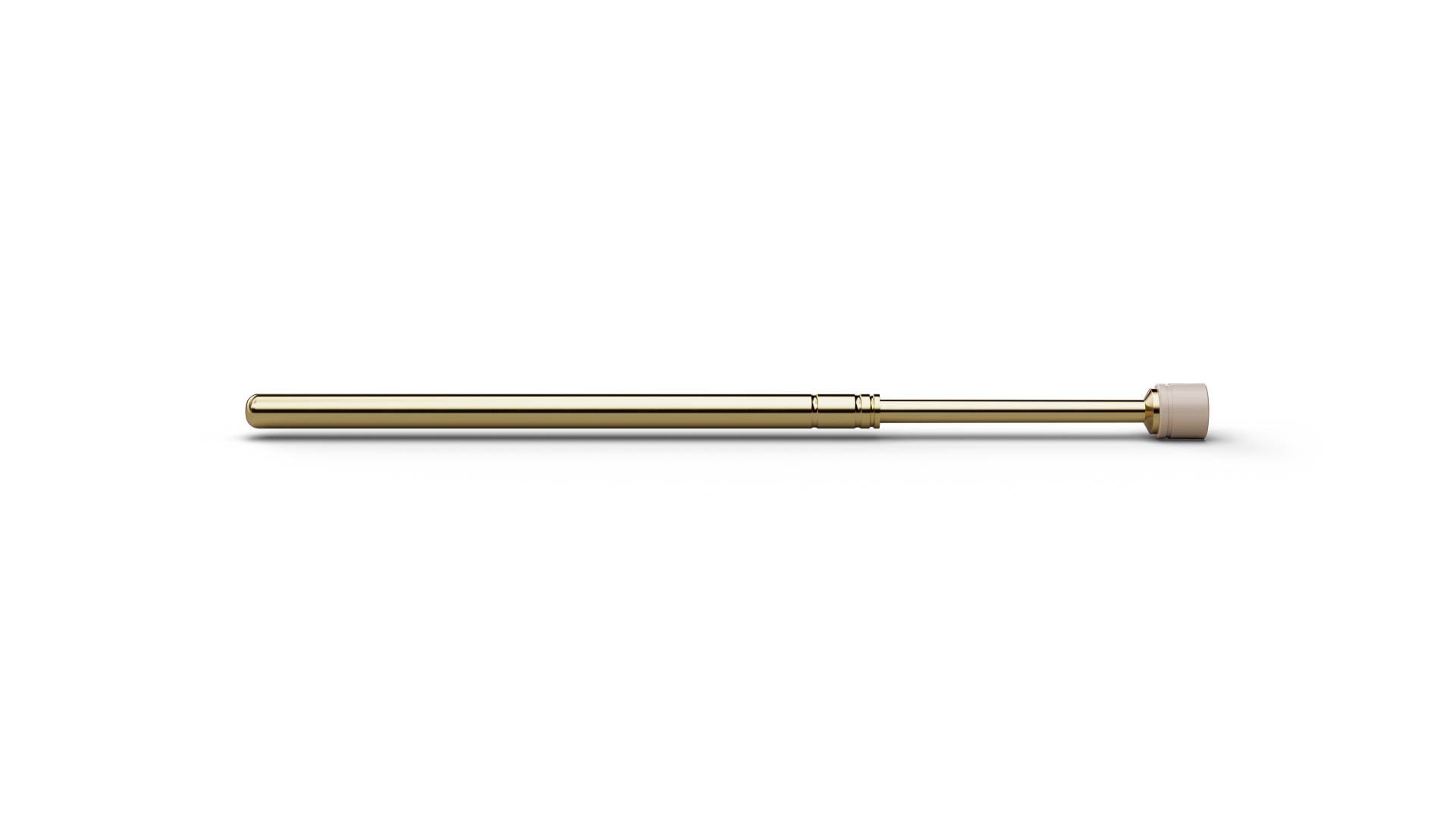

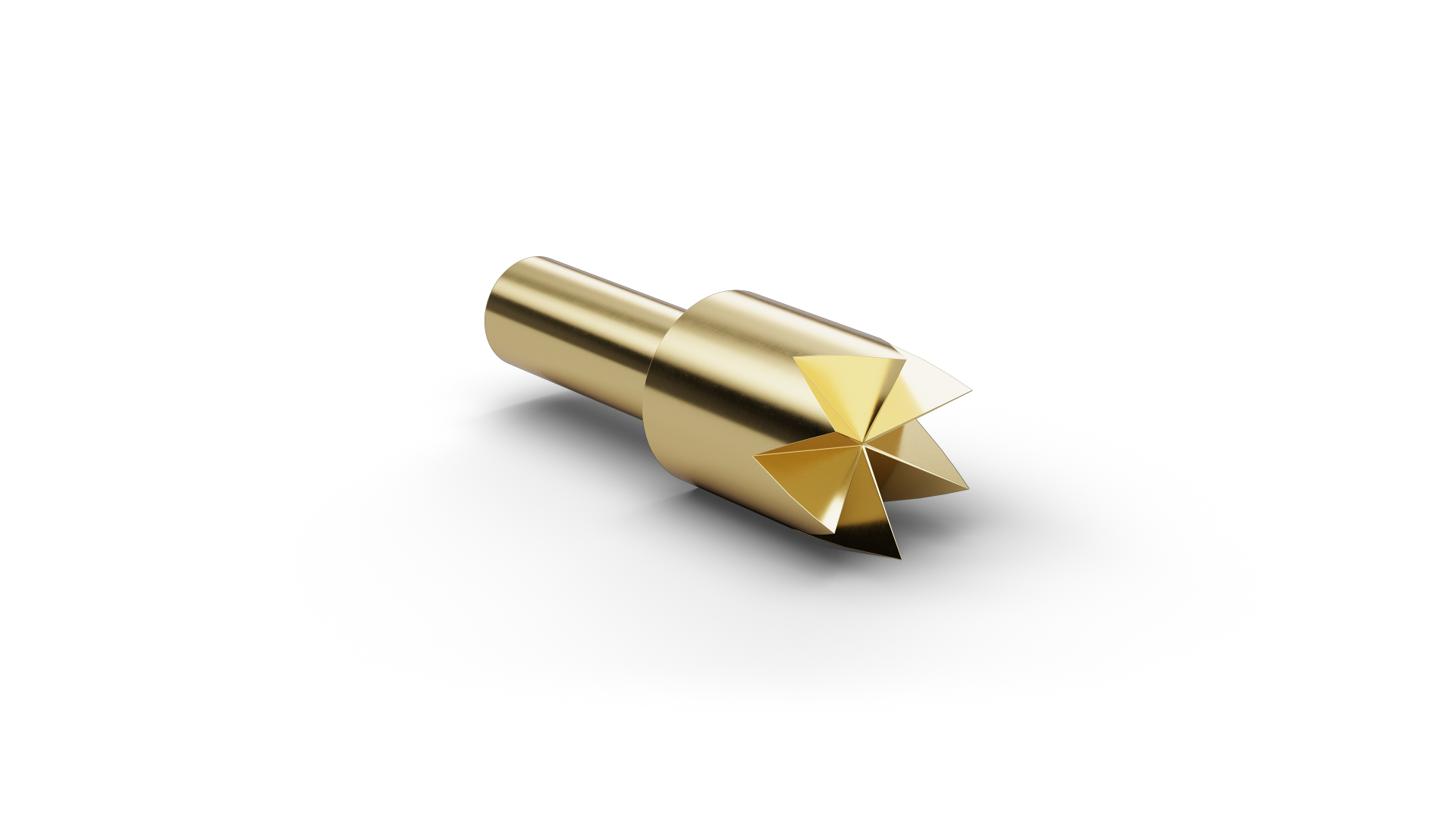

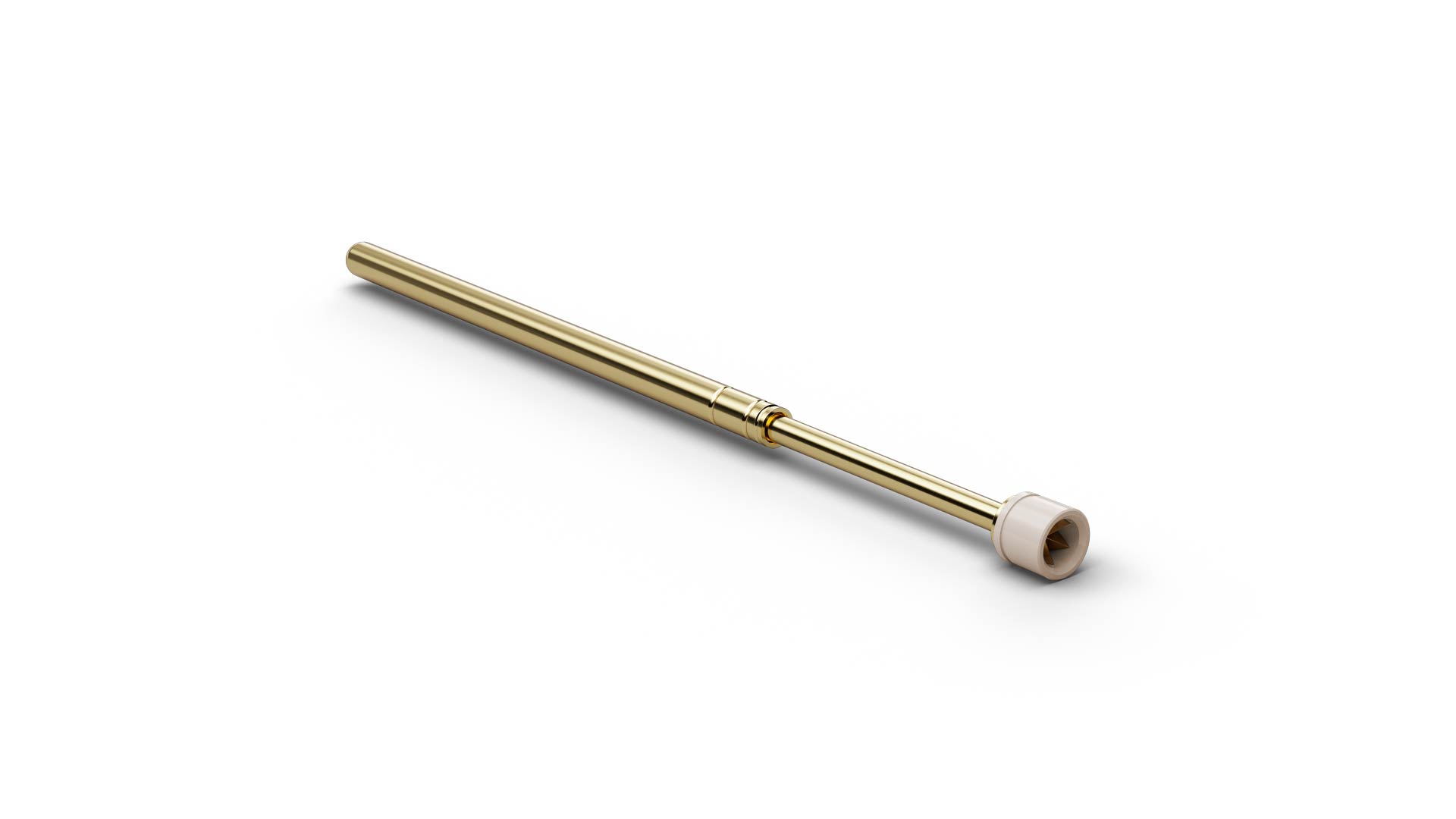

As a Basic Contact Probe, F58841B150G300IK04S (item number 1016151) establishes a spring-loaded electrical connection to the test point. With tip style 41 (6-point crown stepped (self-cleaning)), F58841B150G300IK04S combines ICT/FCT use with a geometry intended for wire-wrap posts, including contacts that are slightly bent or twisted. F58841B150G300IK04S combines a pitch of 2.54 mm / 100 mil with tip style 41 (6-point crown stepped (self-cleaning)) and a tip diameter of 1.5 mm. For F58841B150G300IK04S, spring force is 300 cN at a nominal travel of 7.6 mm. F58841B150G300IK04S is rated for 5 A continuous current with a typical contact resistance of 30 mΩ. The plunger in F58841B150G300IK04S is made of beryllium copper and is gold-plated.
