Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F876-NO |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+100°C |
| Additional definition | S26 |
| Dimensions | |
|---|---|
| Total length (mm) | 42.3 |
| Protrusion height (mm) | 9.3 |
| Tip style diameter (mm) | 1.5 |
| Barrel diameter (mm) | 1.65 |
| Collar diameter (mm) | 2.3 |
| Press ring diameter (mm) | 2.3 |
| Materials and surfaces | |
|---|---|
| Tip style | 17 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 40 |
| Spring force (cN) | 150 |
| Nominal travel (mm) | 4 |
| Maximum travel (mm) | 5.3 |
| Pointing accuracy +/- (mm) | 0.08 |
| Thread | M2X0,25 |
| Tool size (mm) | 1,7 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 3 |
| Typical contact resistance (mOhm) | 20 |
| Switch travel (mm) | 2.6 |
| Continuous current (A) 2 | 1 |
Graphics
Beschreibung des Produkts

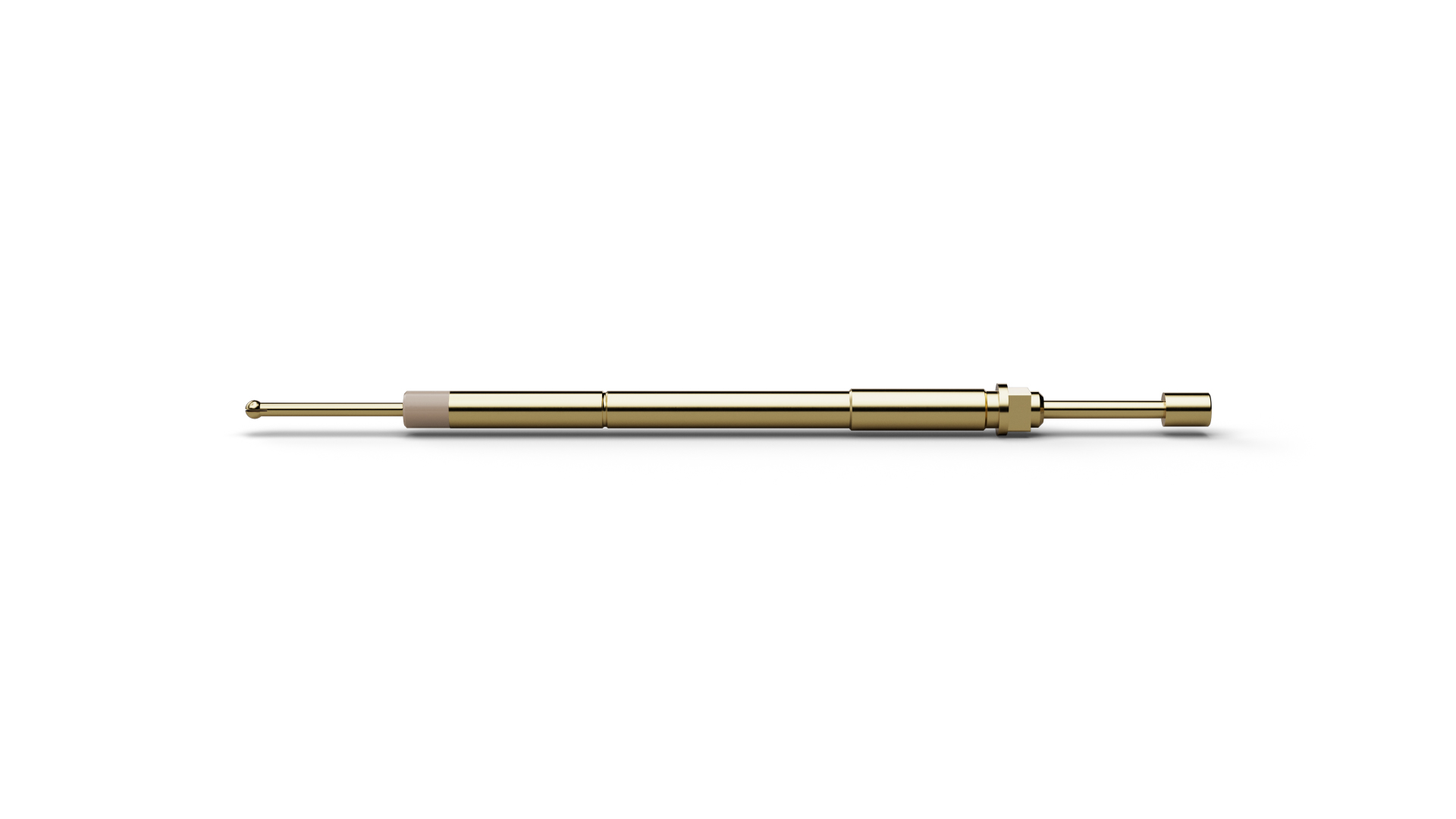

The Switch Probe F87617B150G150S26 (item number 1016183) combines spring-loaded contacting with a defined switching or sensing function. F87617B150G150S26 combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. The switch type specified for F87617B150G150S26 is NO (Normally Open). The switching travel specified for F87617B150G150S26 is 2.6 mm. F87617B150G150S26 combines a pitch of 2.54 mm / 100 mil with tip style 17 (Flat stepped) and a tip diameter of 1.5 mm. For F87617B150G150S26, spring force is 150 cN at a nominal travel of 4 mm.
