Technical data
| General | |
|---|---|
| Type/family | H876 |
| Additional definition | Combi |
| Dimensions | |
|---|---|
| Total length (mm) | 37.9 |
| Outer diameter (mm) | 2 |
| Collar height (mm) | 0.2 |
| Internal thread | 2,0X0,25 |
| Materials and surfaces | |
|---|---|
| Material, Coating | Brass, Gold |
| Mechanical specifications | |
|---|---|
| Internal thread | 2,0X0,25 |

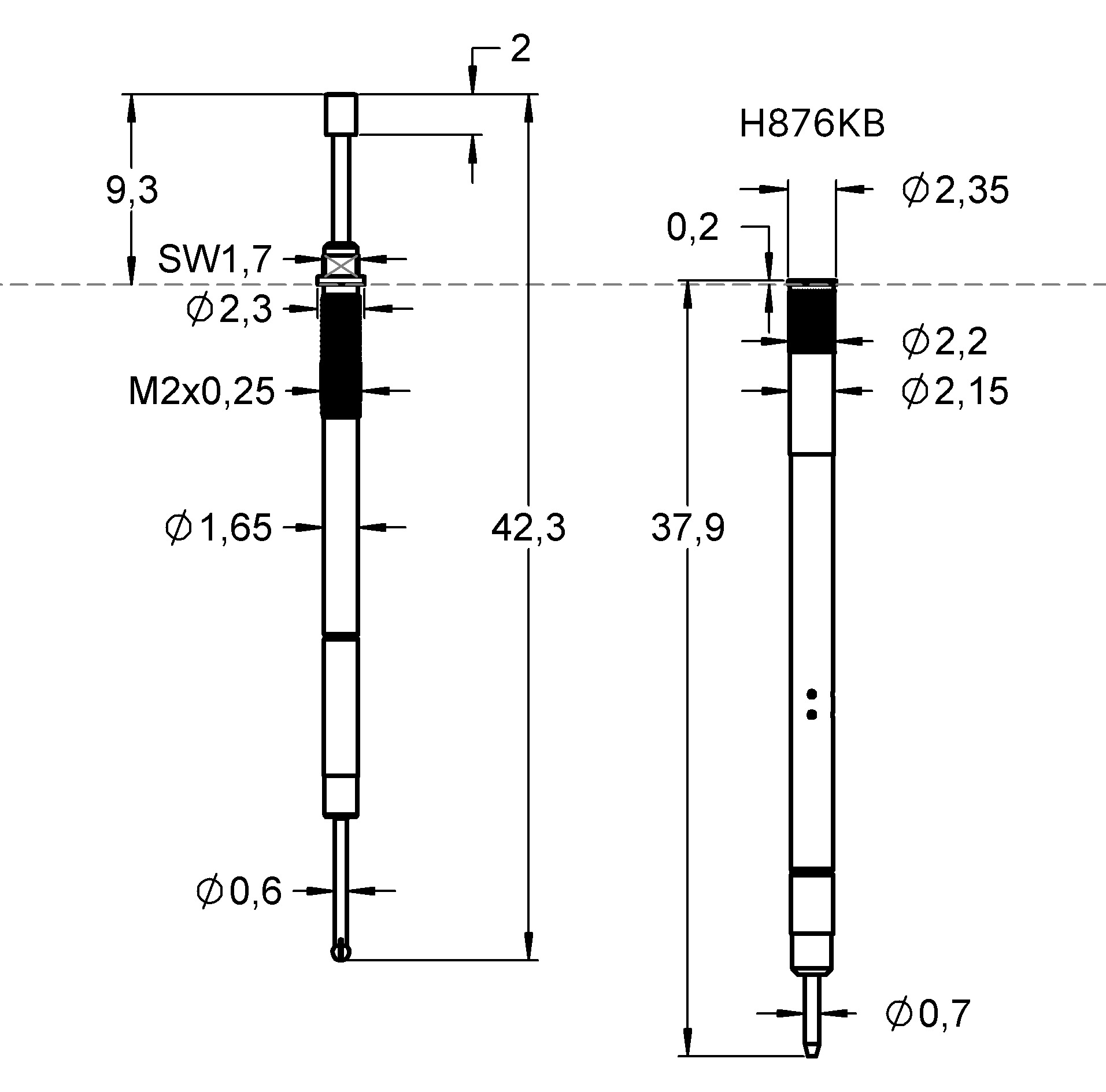

Graphics
Beschreibung des Produkts

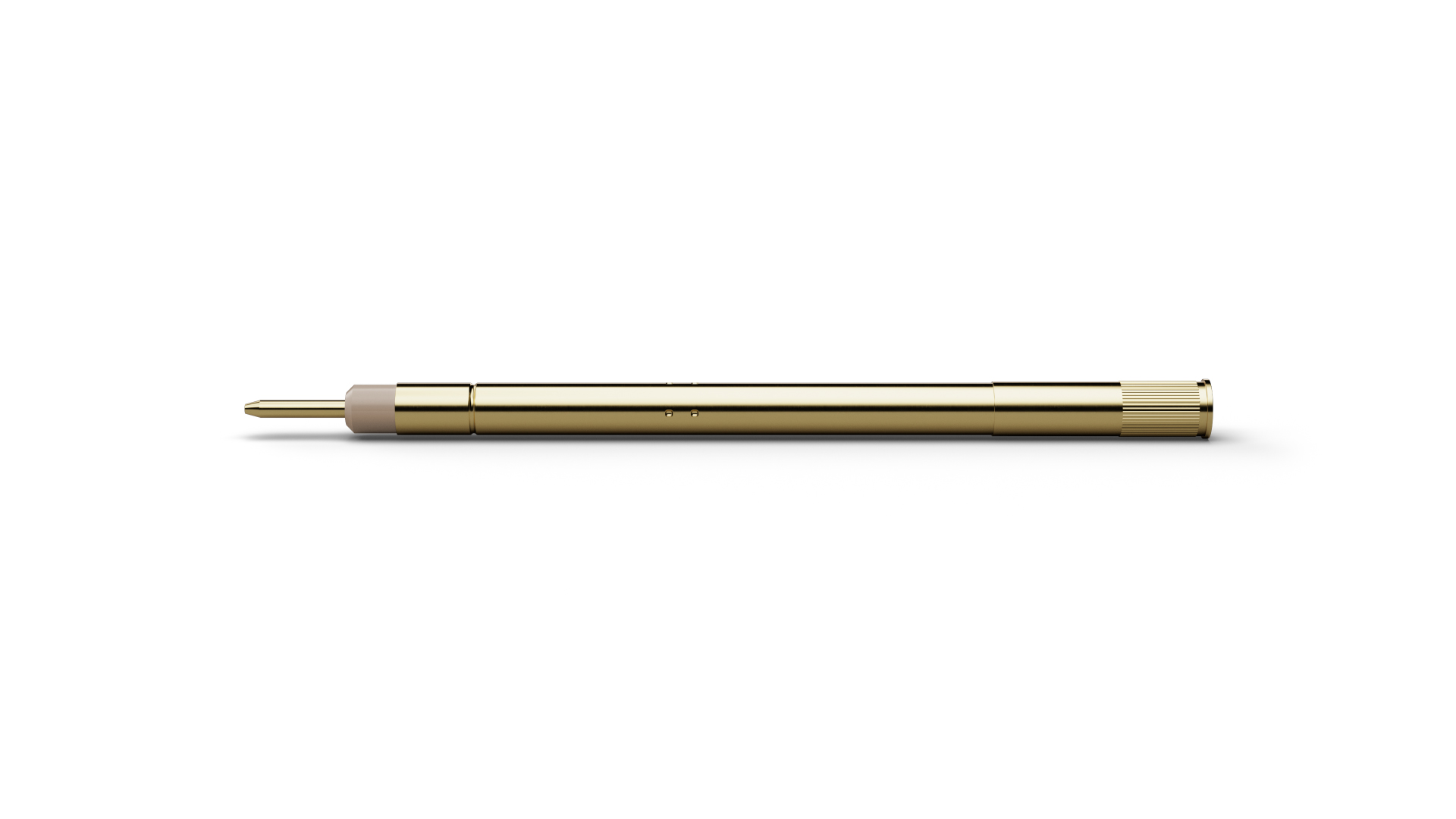

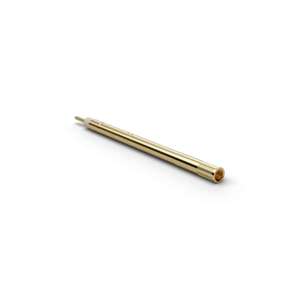

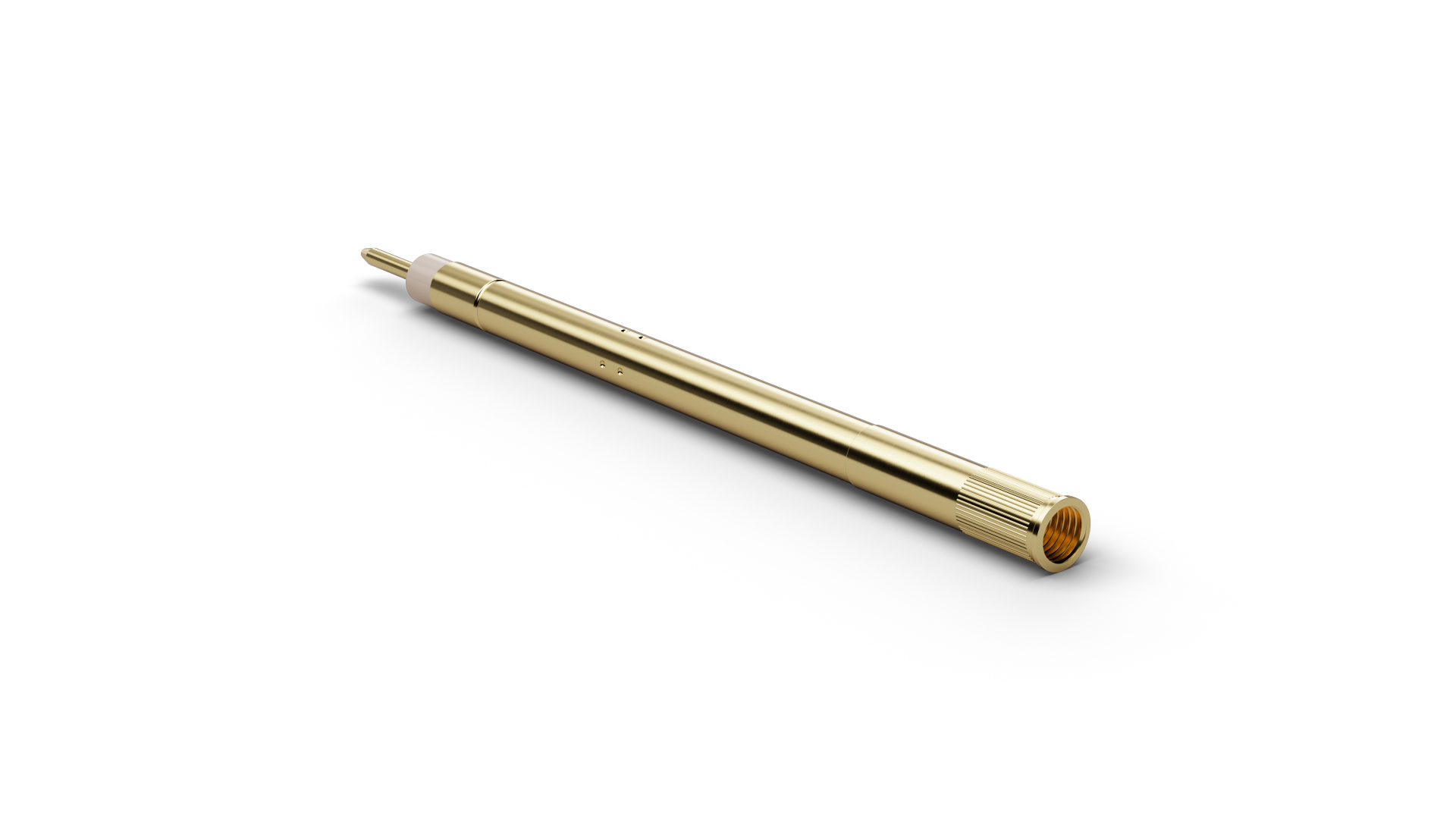

The receptacle H876KB (item number 1016185) is designed for the compatible Switch Probe in the test fixture. As a Receptacle, H876KB guides and positions the matching Contact Probe; depending on the design, the Receptacle can also provide electrical connection or insulation and supports controlled probe replacement during maintenance. When selecting H876KB, the matching probe family, installation dimensions and any required connection or insulation design should be considered together.
