Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | P-T / P197T-L127 |
| Pitch (mm/mil) | 3,00 / 118 |
| Temperature | -45°C...+200°C |
| Dimensions | |
|---|---|

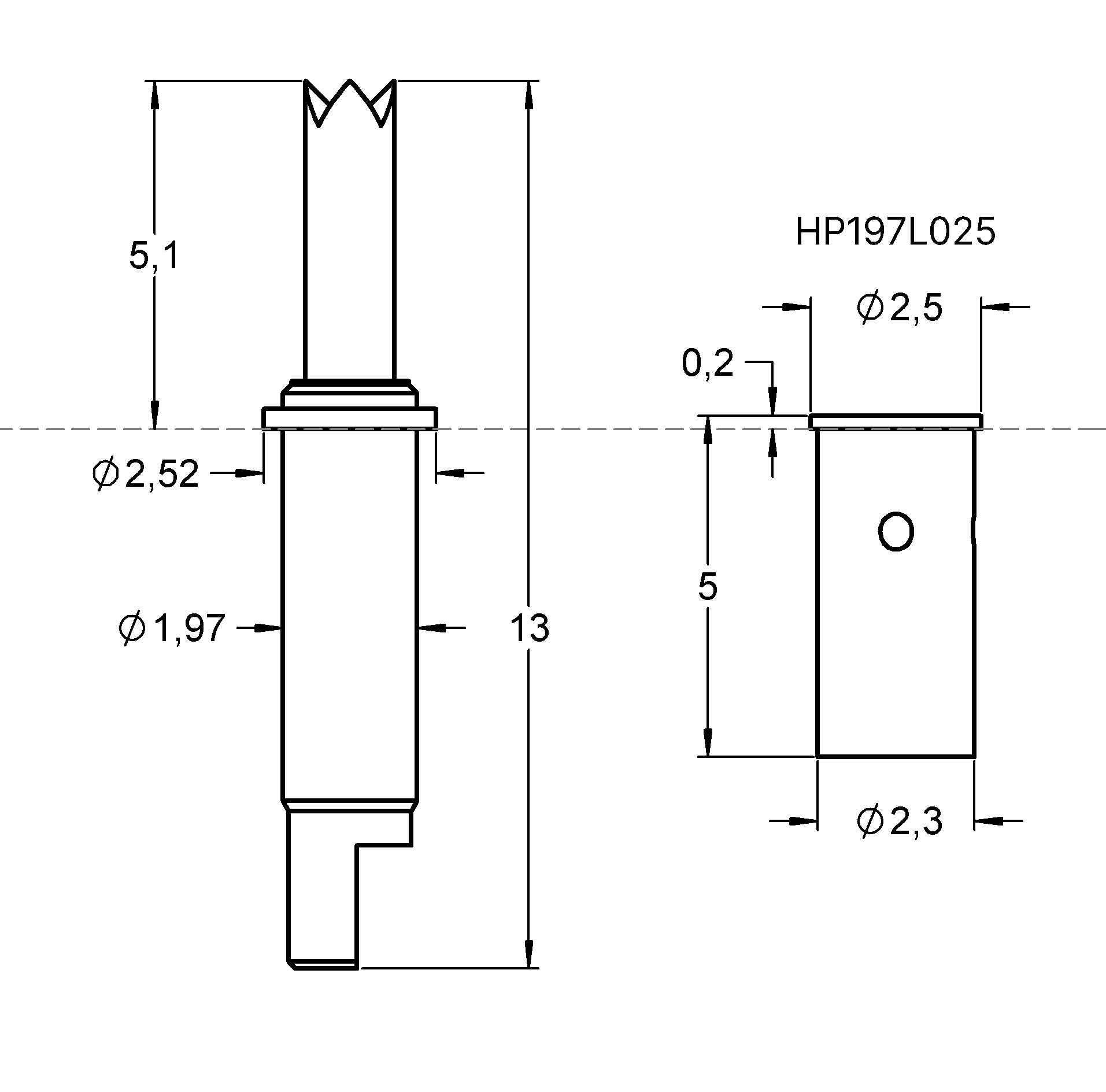

| Total length (mm) | 13 |
| Protrusion height (mm) | 5.1 |
| Tip style diameter (mm) | 1.3 |
| Barrel diameter (mm) | 1.97 |
| Collar diameter (mm) | 2.5 |
| Press ring diameter (mm) | 2.5 |
| Materials and surfaces | |
|---|---|
| Tip style | 29 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 80 |
| Spring force (cN) | 130 |
| Nominal travel (mm) | 1.5 |
| Maximum travel (mm) | 3 |
| Pointing accuracy +/- (mm) | 0.08 |
| Connection | Solder Connection |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 9 |
| Typical contact resistance (mOhm) | 100 |
Graphics
Beschreibung des Produkts

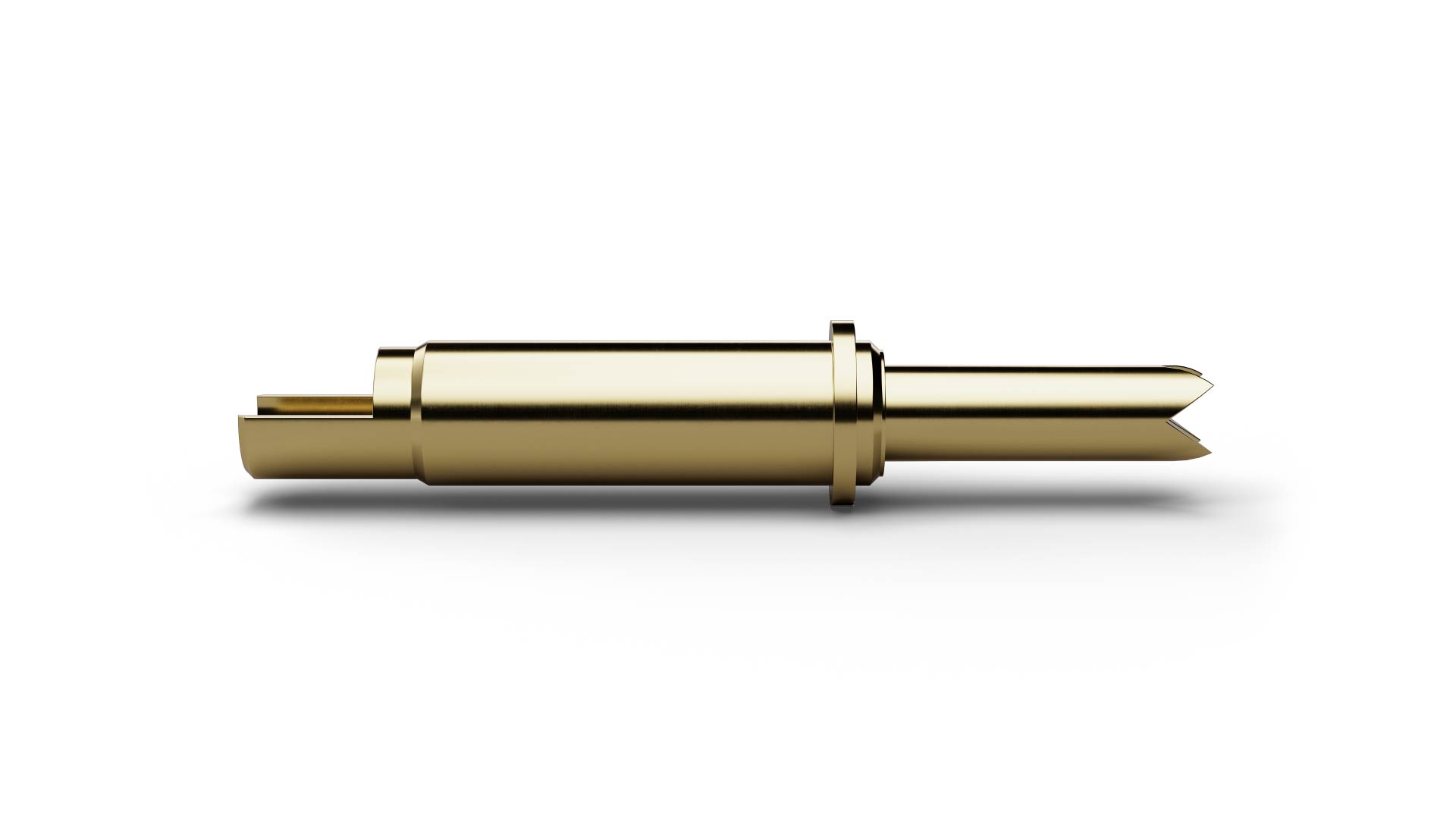

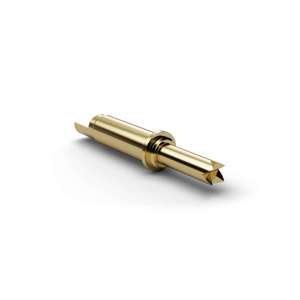

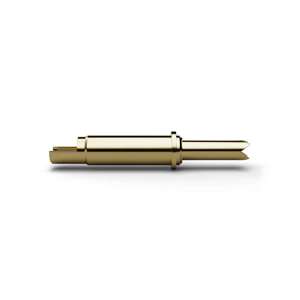

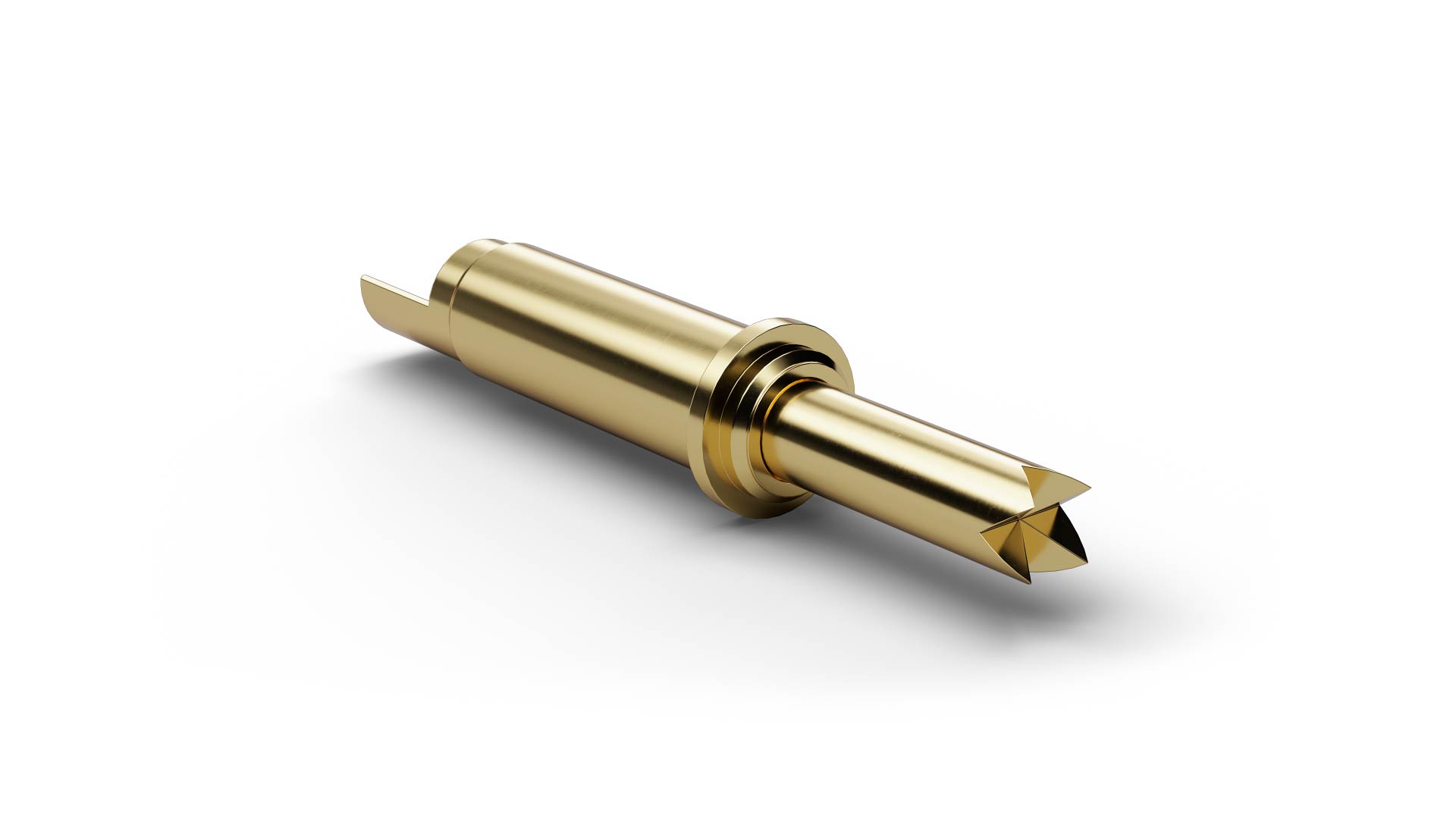

The Pogo Connector P19729B130G130TL127LA (item number 1016315) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P19729B130G130TL130LA is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P19729B130G130TL130LA is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. On P19729B130G130TL130LA, a pitch of 3 mm / 118 mil is combined with 130 cN spring force and 1.5 mm nominal travel. P19729B130G130TL130LA is rated for 9 A continuous current with a typical contact resistance of 100 mΩ. On P19729B130G130TL130LA, tip style 29 (4-point crown) has a diameter of 1.3 mm.
