Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F050 |
| Pitch (mm/mil) | 1,27 / 50 |
| Temperature | -45°C...+80°C |
| Dimensions | |
|---|---|
| Total length (mm) | 43.2 |
| Protrusion height (mm) | 8.1 |
| Tip style diameter (mm) | 0.9 |
| Barrel diameter (mm) | 0.78 |
| Materials and surfaces | |
|---|---|
| Tip style | 05 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 90 |
| Spring force (cN) | 200 |
| Nominal travel (mm) | 4.3 |
| Maximum travel (mm) | 6.4 |
| Pointing accuracy +/- (mm) | 0.05 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 3 |
| Typical contact resistance (mOhm) | 20 |

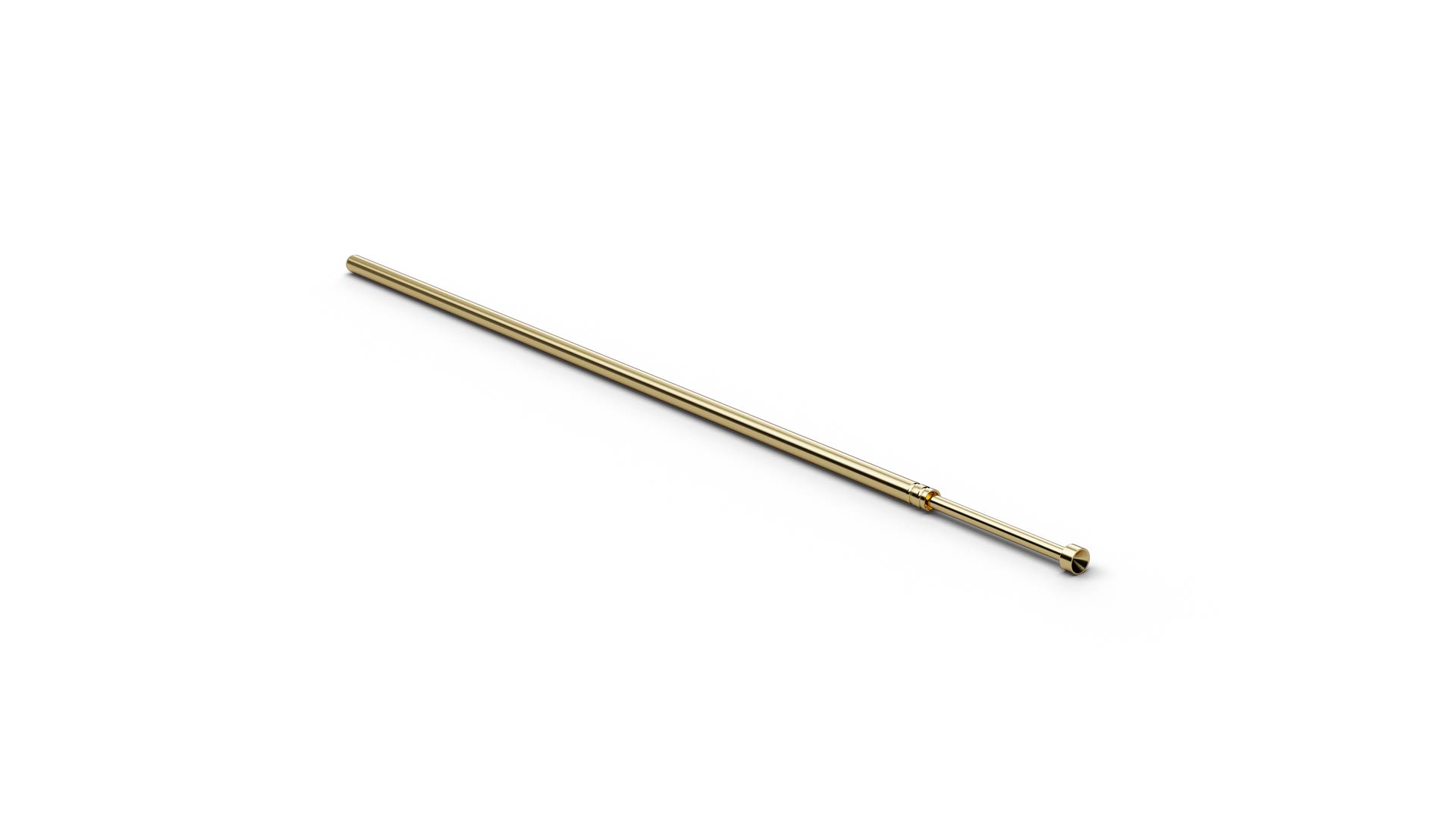

Graphics
Beschreibung des Produkts
F05005B090G200 (item number 1017079) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 05 (Concave stepped), F05005B090G200 combines ICT/FCT use with a geometry intended for pins and wire-wrap posts with a guided, smooth contacting action. F05005B090G200 combines a pitch of 1.27 mm / 50 mil with tip style 05 (Concave stepped) and a tip diameter of 0.9 mm. For F05005B090G200, spring force is 200 cN at a nominal travel of 4.3 mm. F05005B090G200 is rated for 3 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F05005B090G200 is made of beryllium copper and is gold-plated.
