Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F075 |
| Pitch (mm/mil) | 1,90 / 75 |
| Temperature | -45°C...+80°C |
| Dimensions | |
|---|---|
| Total length (mm) | 33.1 |
| Protrusion height (mm) | 8.5 |
| Tip style diameter (mm) | 0.64 |
| Barrel diameter (mm) | 1.02 |
| Materials and surfaces | |
|---|---|
| Tip style | 38 |
| Plunger material | Steel |
| Plunger plating | Longtime Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 80 |
| Spring force (cN) | 200 |
| Nominal travel (mm) | 4.3 |
| Maximum travel (mm) | 6.4 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 4 |
| Typical contact resistance (mOhm) | 20 |

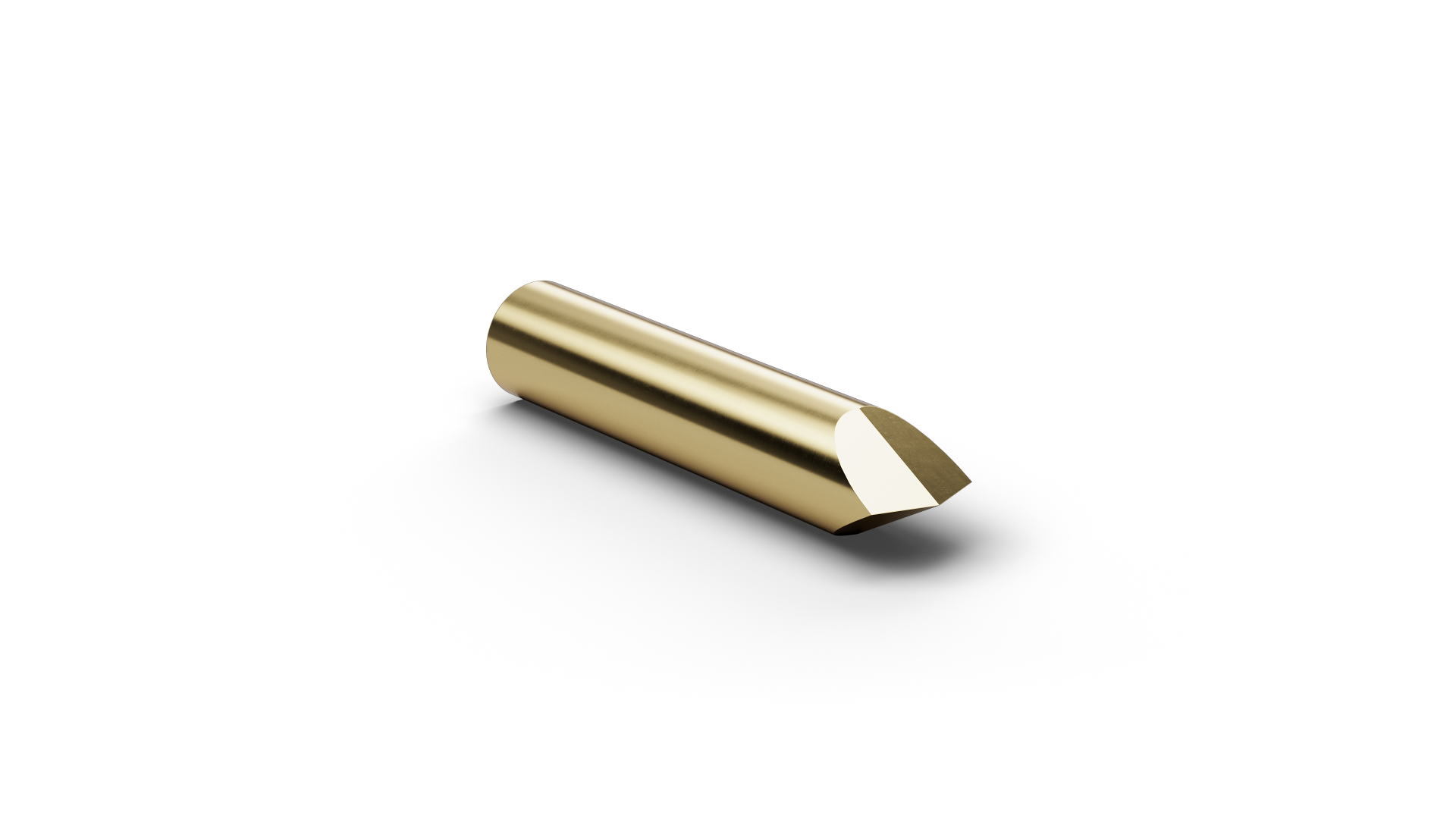

Graphics
Beschreibung des Produkts
F07538S064L200 (item number 1017477) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 38 (Square lance 140°), F07538S064L200 combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F07538S064L200 combines a pitch of 1.9 mm / 75 mil with tip style 38 (Square lance 140°) and a tip diameter of 0.64 mm. For F07538S064L200, spring force is 200 cN at a nominal travel of 4.3 mm. The electrical rating of F07538S064L200 combines 4 A continuous current with 20 mΩ typical contact resistance. The plunger in F07538S064L200 is made of steel and uses Longtime Gold plating.
