Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F100 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+80°C |
| Dimensions | |
|---|---|
| Total length (mm) | 33.3 |
| Protrusion height (mm) | 8.5 |
| Tip style diameter (mm) | 1.5 |
| Barrel diameter (mm) | 1.37 |
| Materials and surfaces | |
|---|---|
| Tip style | 14 |
| Plunger material | Steel |
| Plunger plating | Longtime Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Nickel |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 80 |
| Spring force (cN) | 150 |
| Nominal travel (mm) | 4.3 |
| Maximum travel (mm) | 6.4 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 20 |
Graphics
Beschreibung des Produkts

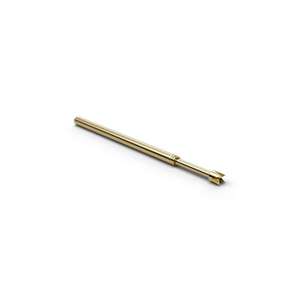

The Basic Contact Probe F10014S150L150 (item number 1017695) is a spring-loaded probe for temporary electrical contact with test points. With tip style 14 (4-point crown stepped (self-cleaning)), F10014S150L150 combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. F10014S150L150 combines a pitch of 2.54 mm / 100 mil with tip style 14 (4-point crown stepped (self-cleaning)) and a tip diameter of 1.5 mm. For F10014S150L150, spring force is 150 cN at a nominal travel of 4.3 mm. The electrical rating of F10014S150L150 combines 5 A continuous current with 20 mΩ typical contact resistance. The plunger in F10014S150L150 is made of steel and uses Longtime Gold plating.
