Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | P-T / P265T-L150 |
| Pitch (mm/mil) | 4,00 / 157 |
| Temperature | -45°C...+200°C |
| Dimensions | |
|---|---|
| Total length (mm) | 15 |
| Protrusion height (mm) | 7.1 |
| Tip style diameter (mm) | 2.3 |
| Barrel diameter (mm) | 2.65 |
| Collar diameter (mm) | 3.2 |
| Press ring diameter (mm) | 3.2 |
| Materials and surfaces | |
|---|---|
| Tip style | 17 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 40 |
| Spring force (cN) | 80 |
| Nominal travel (mm) | 2.8 |
| Maximum travel (mm) | 3.5 |
| Pointing accuracy +/- (mm) | 0.1 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 10 |
| Typical contact resistance (mOhm) | 100 |
Graphics
Beschreibung des Produkts

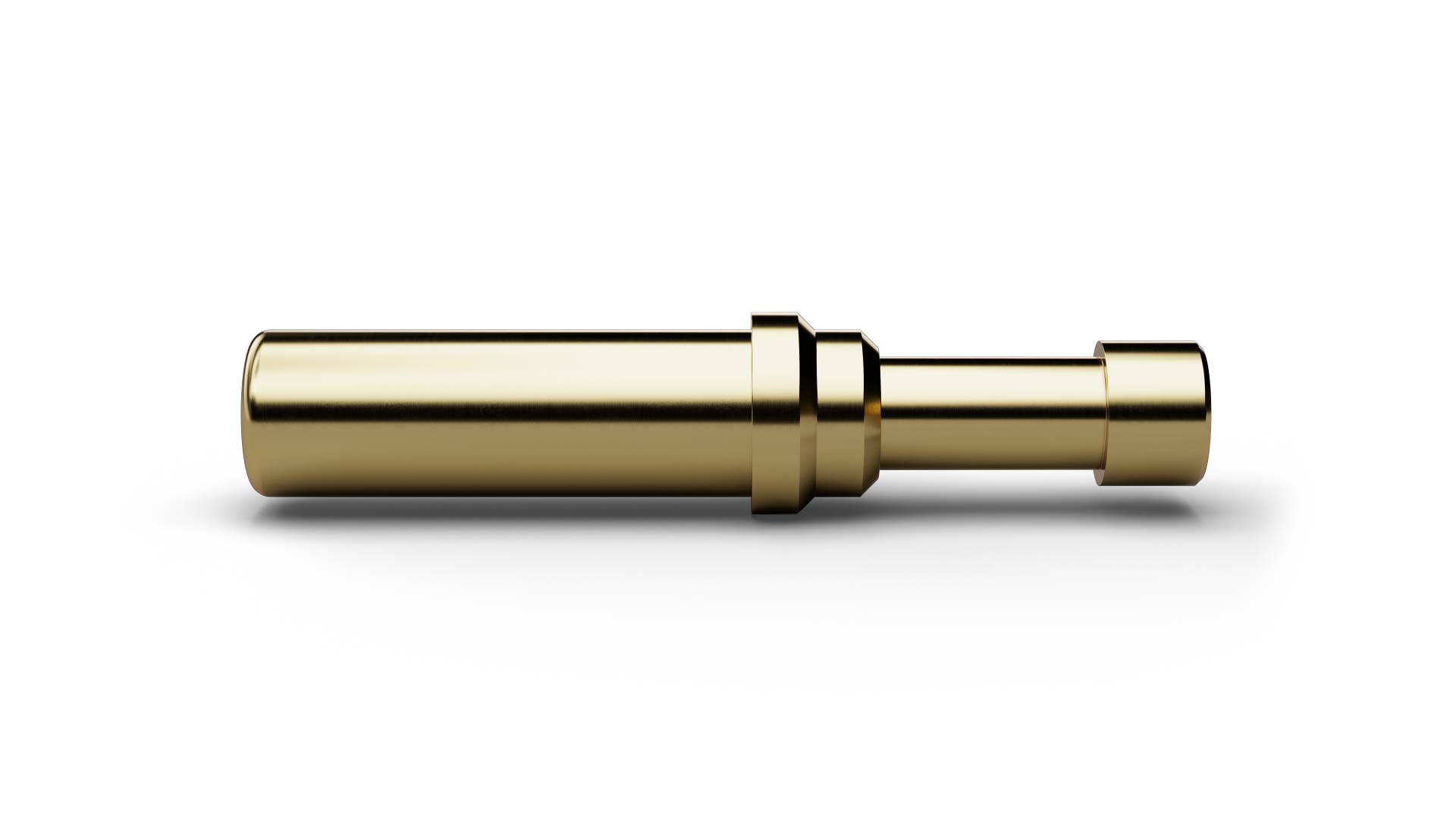

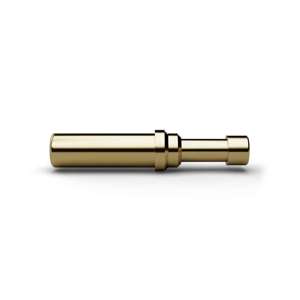

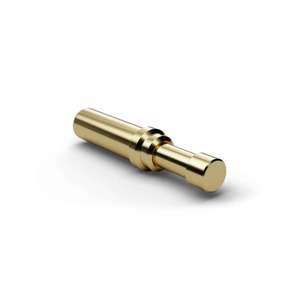

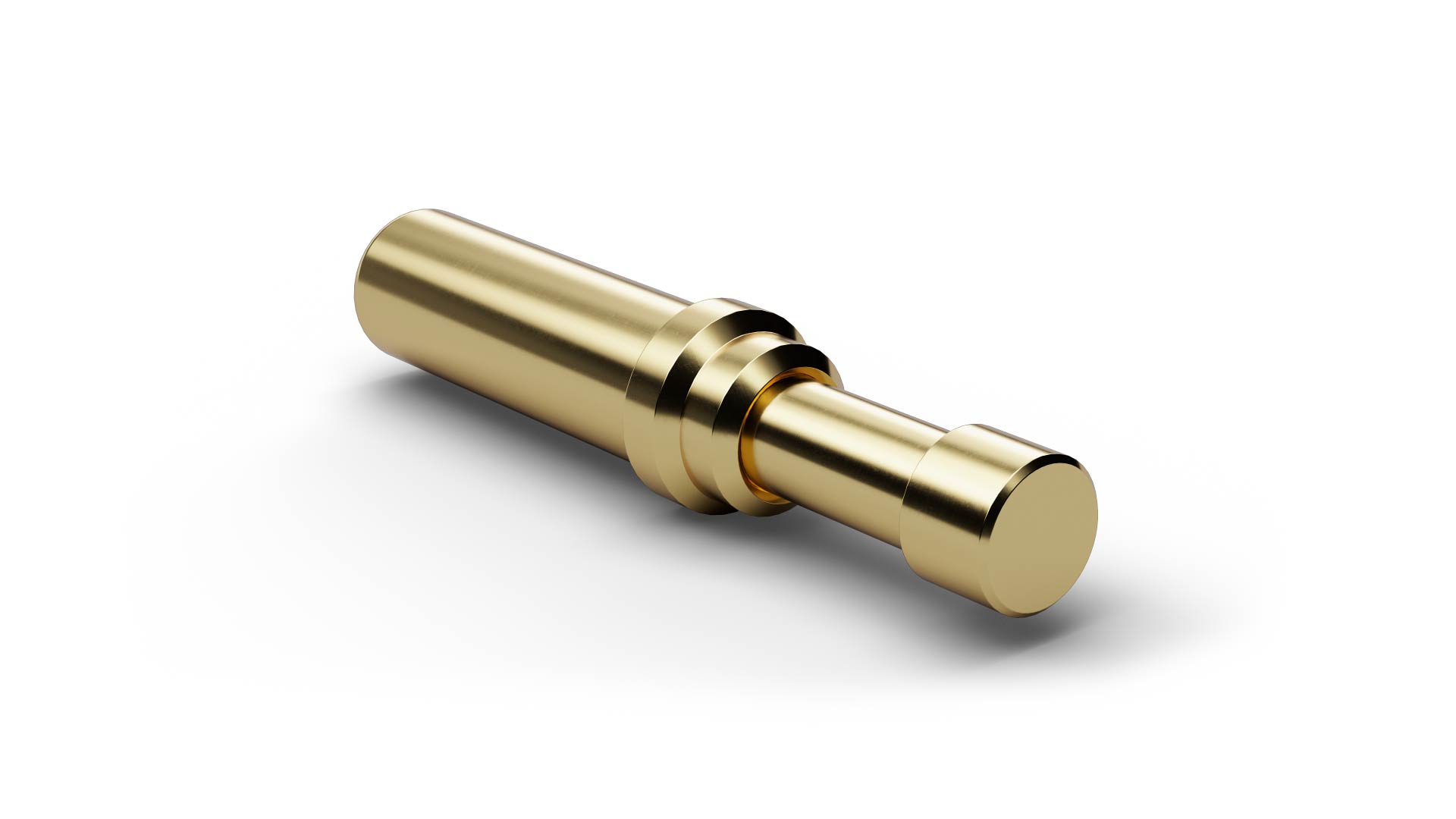

P26517B230G080TL150ST (item number 1018228) is a Pogo Connector for contact points that are connected and released frequently. As a spring-loaded detachable interface, P26517B230G080TL150ST is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P26517B230G080TL150ST is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. P26517B230G080TL150ST combines a pitch of 4 mm / 157 mil with tip style 17 (Flat stepped) and a tip diameter of 2.3 mm. For P26517B230G080TL150ST, spring force is 80 cN at a nominal travel of 2.8 mm. The continuous-current rating of P26517B230G080TL150ST is 10 A.
