Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | I- |
| Pitch (mm/mil) | 4,80 / 189 |
| Temperature | -45°C...+250°C |

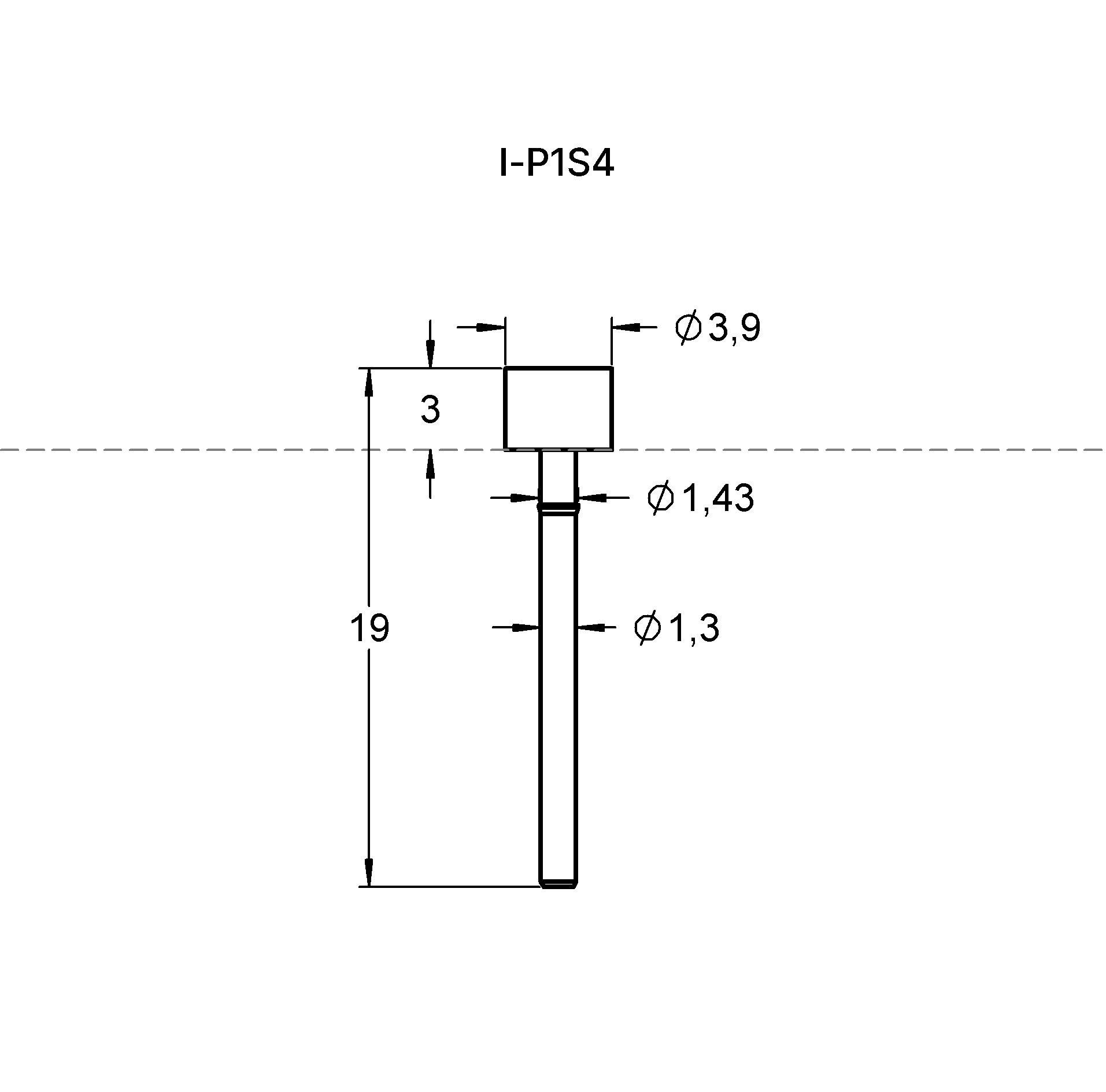

| Dimensions | |
|---|---|
| Total length (mm) | 19 |
| Tip style diameter (mm) | 3.9 |
| Barrel diameter (mm) | 1.3 |
| Materials and surfaces | |
|---|---|
| Tip style | 16 |
| Plunger material | Brass |
| Plunger plating | Gold |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 30 |
Graphics
Beschreibung des Produkts

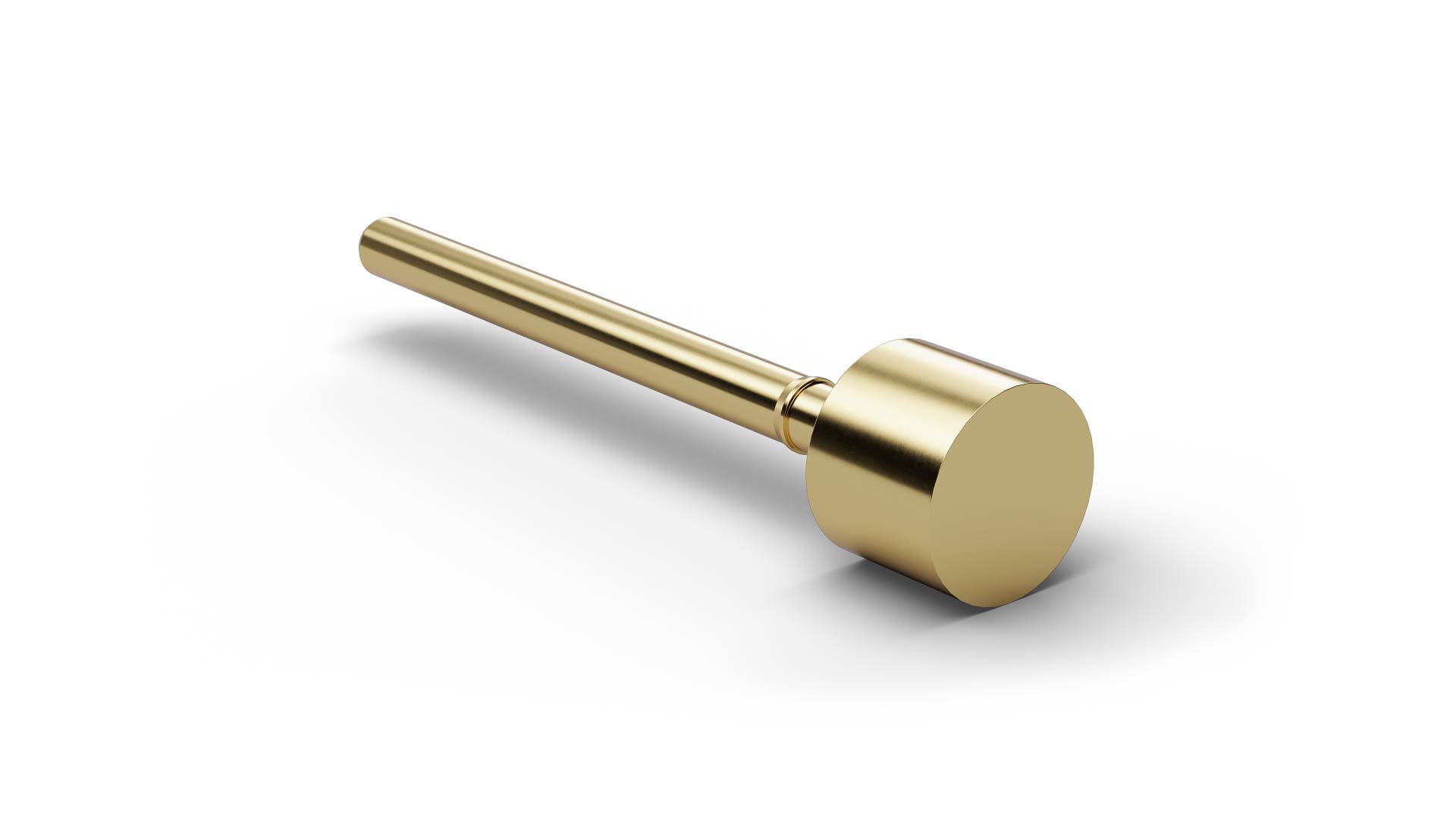

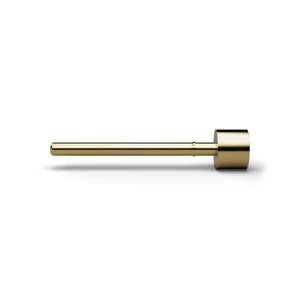

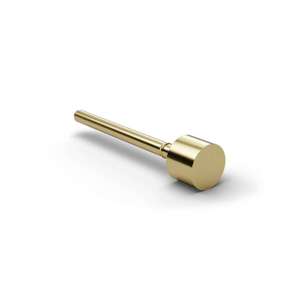

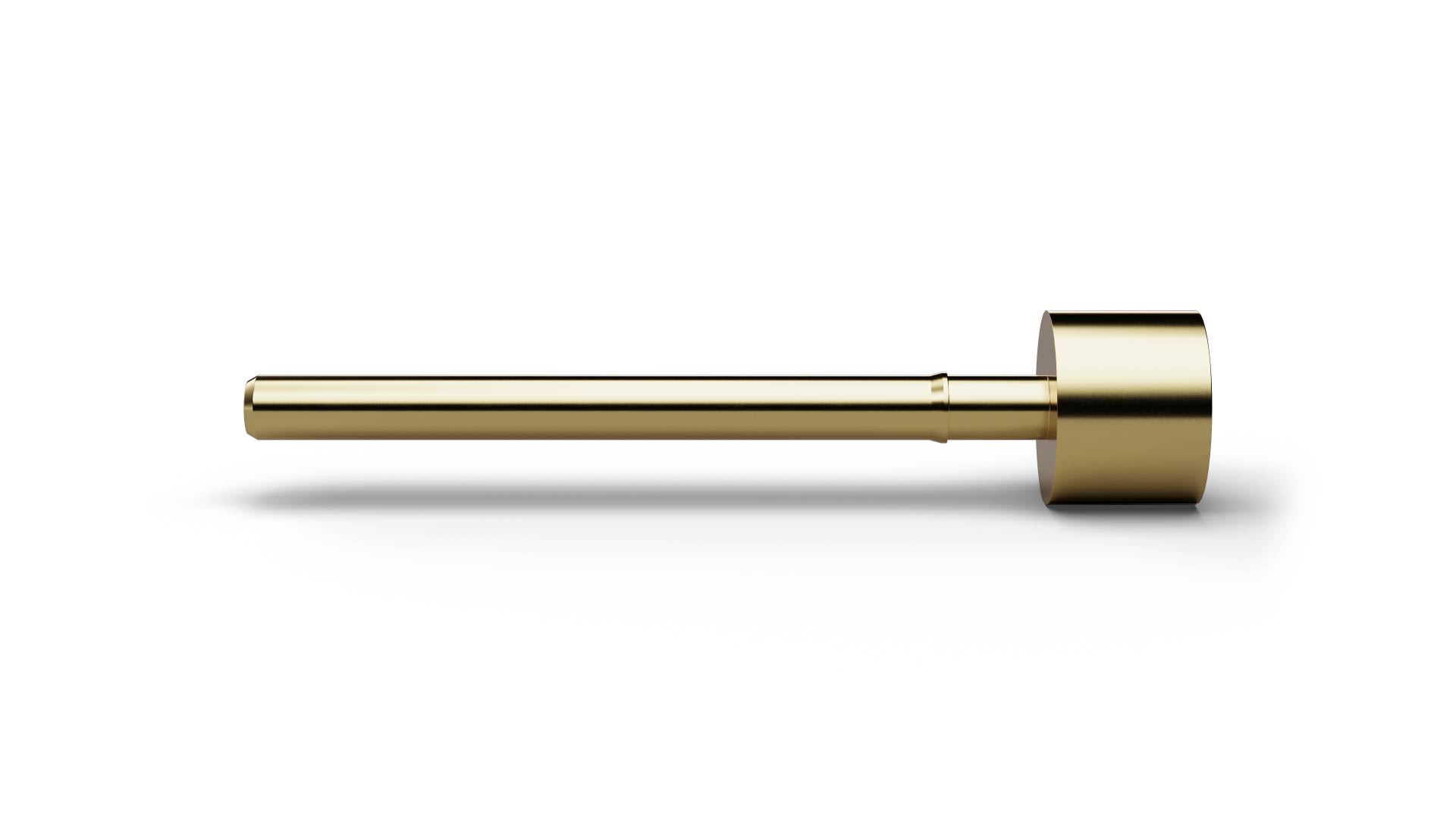

The Interface Probe I-P1S4 (item number 1018248) is designed to transfer electrical signals between the test fixture and test system. I-P1S4 provides a standardized contact or interface element for repeatable transfer of test and measurement signals between fixture and test system. The design combines a pitch of 4.8 mm / 189 mil with tip style 16 (Flat) and a tip diameter of 3.9 mm. I-P1S4 is specified for 30 A continuous current. The plunger in I-P1S4 is made of brass and is gold-plated.
