Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F563 |
| Pitch (mm/mil) | 3,00 / 118 |
| Temperature | -45°C...+80°C |
| Dimensions | |
|---|---|
| Total length (mm) | 33 |
| Protrusion height (mm) | 16 |
| Tip style diameter (mm) | 2.5 |
| Barrel diameter (mm) | 2.03 |
| Materials and surfaces | |
|---|---|
| Tip style | 06 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 90 |
| Spring force (cN) | 120 |
| Nominal travel (mm) | 4.3 |
| Maximum travel (mm) | 6.4 |
| Pointing accuracy +/- (mm) | 0.1 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 6 |
| Typical contact resistance (mOhm) | 100 |
Graphics
Beschreibung des Produkts

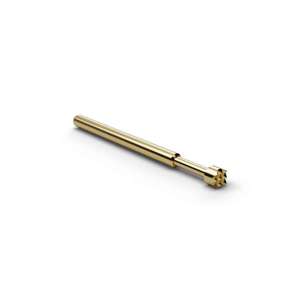

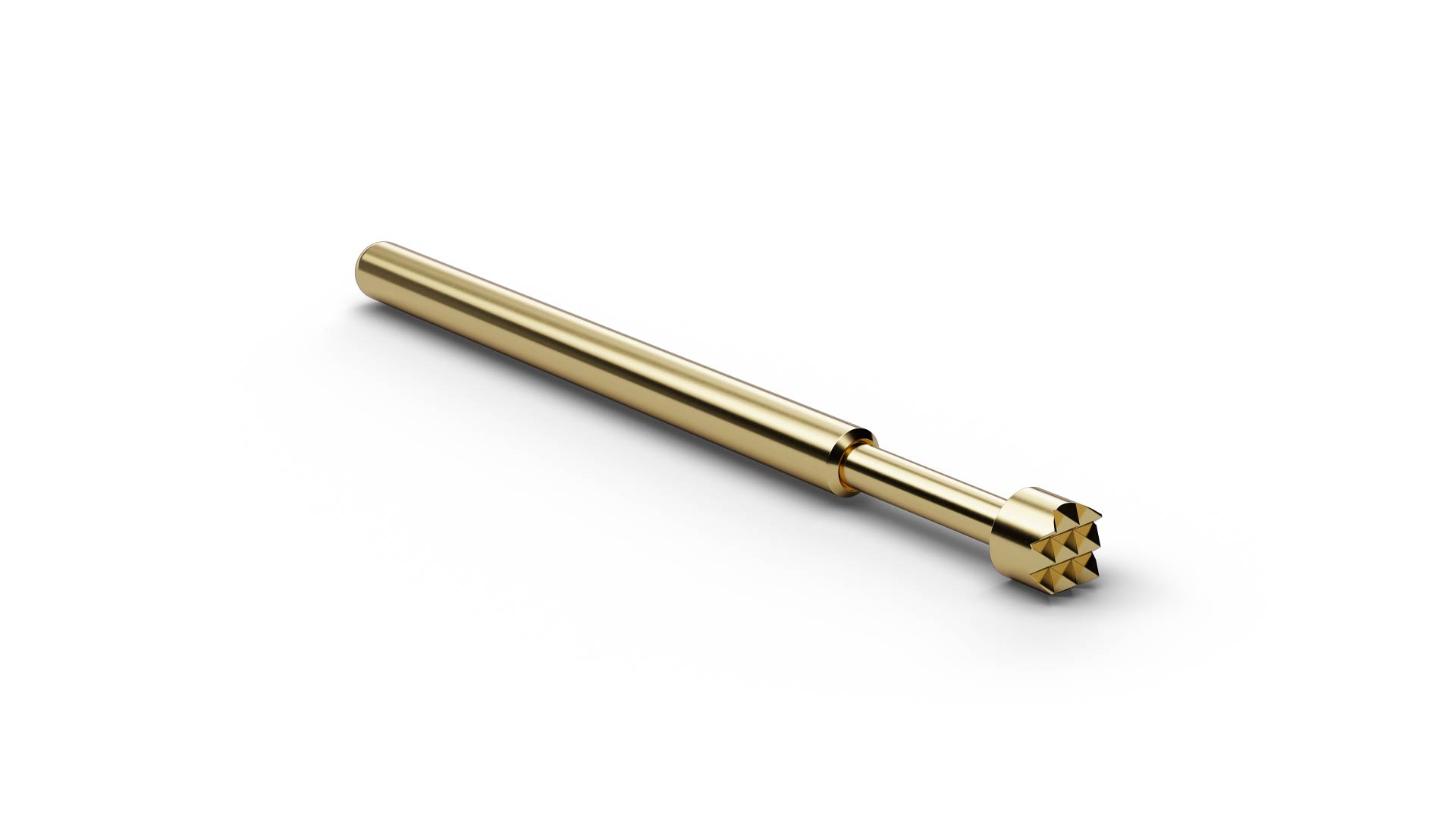

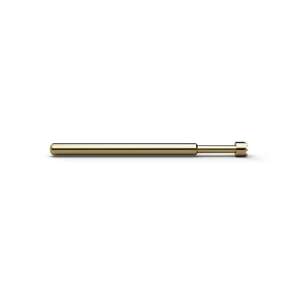

F56306B250G120 (item number 1018495) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 06 (Serrated stepped), F56306B250G120 combines ICT/FCT use with a geometry intended for wires, pins and wire-wrap posts; the geometry is also suited to slightly bent contacts. F56306B250G120 combines a pitch of 3 mm / 118 mil with tip style 06 (Serrated stepped) and a tip diameter of 2.5 mm. Spring force is 120 cN at a nominal travel of 4.3 mm. The electrical rating of F56306B250G120 combines 6 A continuous current with 100 mΩ typical contact resistance. The plunger in F56306B250G120 is made of beryllium copper and is gold-plated.
