Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F561 |
| Pitch (mm/mil) | 1,90 / 75 |
| Temperature | -45°C...+80°C |
| Dimensions | |
|---|---|
| Total length (mm) | 17 |
| Protrusion height (mm) | 4.5 |
| Tip style diameter (mm) | 1.5 |
| Barrel diameter (mm) | 1 |
| Materials and surfaces | |
|---|---|
| Tip style | 15 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 30 |
| Spring force (cN) | 80 |
| Nominal travel (mm) | 2.4 |
| Maximum travel (mm) | 3 |
| Pointing accuracy +/- (mm) | 0.05 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 4 |
| Typical contact resistance (mOhm) | 20 |
Graphics
Beschreibung des Produkts

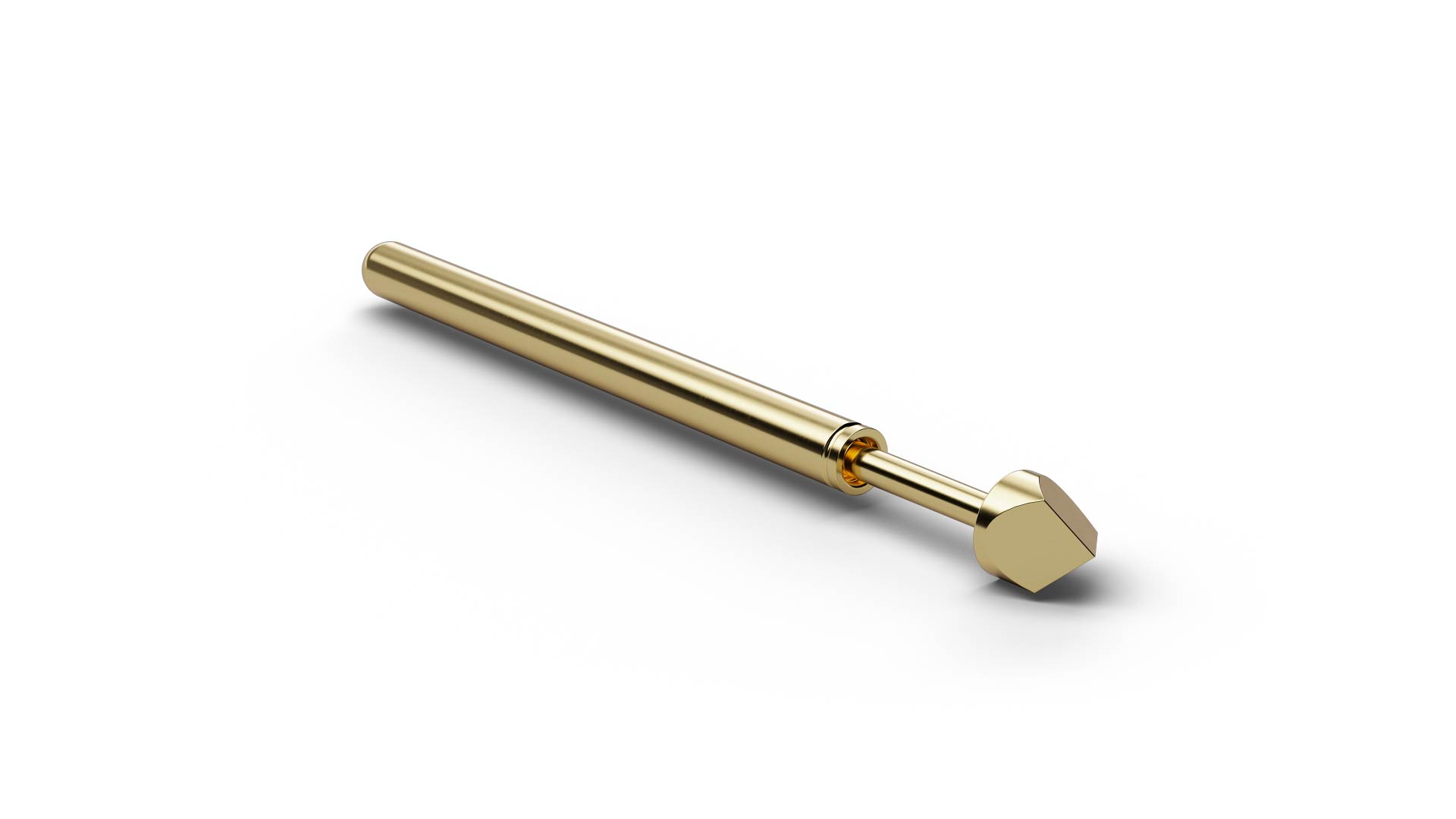

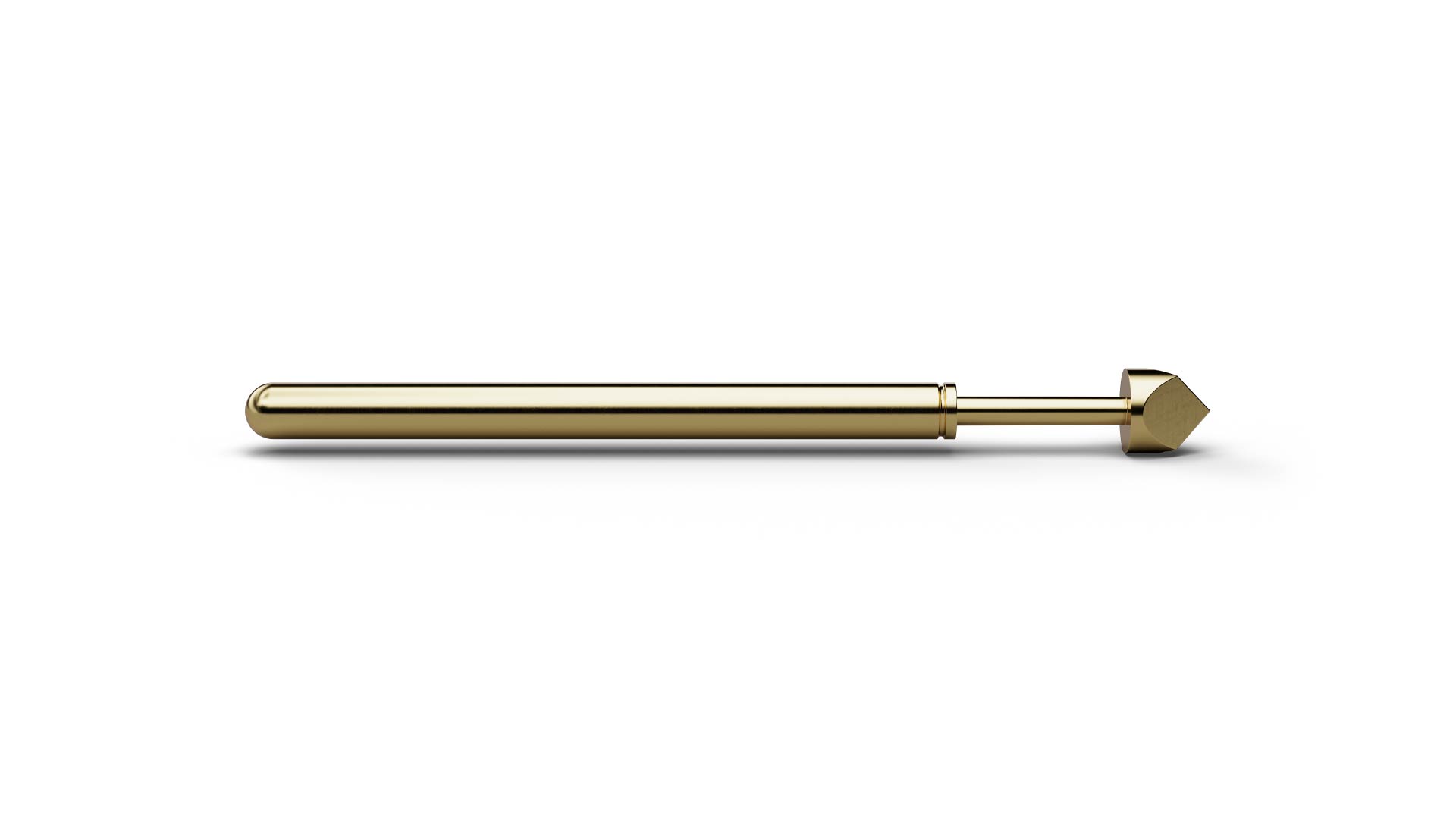

F56115B150G080 (item number 1019526) provides a Basic Contact Probe for defined electrical contact in ICT and Functional Test fixtures. With tip style 15 (Triangular 45° stepped), F56115B150G080 combines ICT/FCT use with a geometry intended for vias and solder pads where sharp edges can penetrate flux residues or oxide layers. F56115B150G080 combines a pitch of 1.9 mm / 75 mil with tip style 15 (Triangular 45° stepped) and a tip diameter of 1.5 mm. F56115B150G080 operates with 80 cN spring force and 2.4 mm nominal travel. For F56115B150G080, the specified continuous current is 4 A.
