Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F730 |
| Pitch (mm/mil) | 1,27 / 50 |
| Temperature | -45°C...+100°C |
| Dimensions | |
|---|---|
| Total length (mm) | 28.9 |
| Protrusion height (mm) | 10.5 |
| Tip style diameter (mm) | 0.75 |
| Barrel diameter (mm) | 0.68 |
| Collar diameter (mm) | 1.16 |
| Press ring diameter (mm) | 1.16 |
| Materials and surfaces | |
|---|---|
| Tip style | 12 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 55 |
| Spring force (cN) | 110 |
| Nominal travel (mm) | 4 |
| Maximum travel (mm) | 5 |
| Pointing accuracy +/- (mm) | 0.08 |
| Thread | M0,9X0,175 |
| Tool size (mm) | 1,0 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 3 |
| Typical contact resistance (mOhm) | 50 |

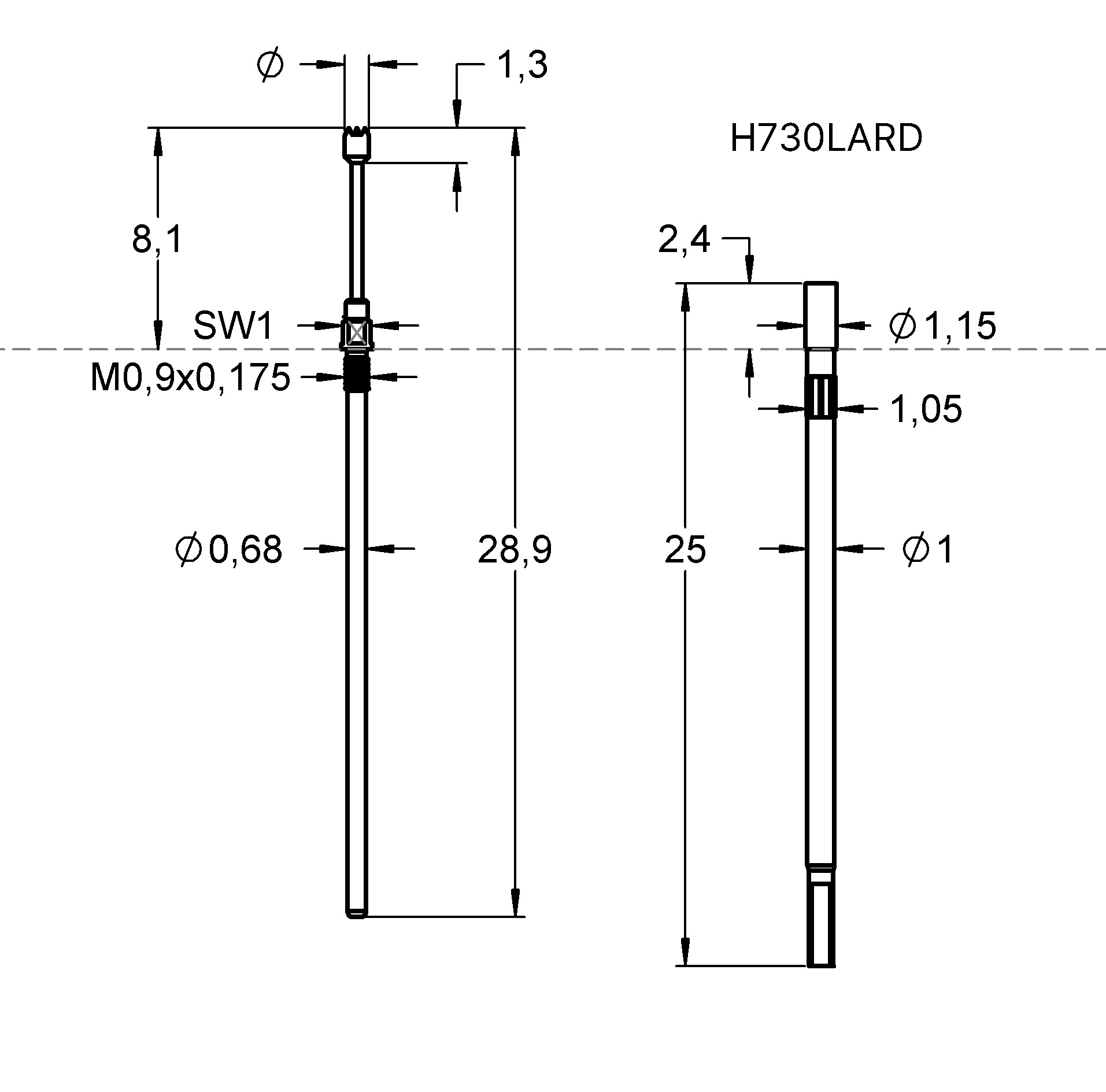

Graphics
Beschreibung des Produkts
F73012B075G110 (item number 1020310) combines spring-loaded contacting with a secure threaded mounting concept. The threaded mounting of F73012B075G110 supports secure seating in wire-harness and connector tests, including setups exposed to vibration or lateral forces. The design of F73012B075G110 is well suited to wire-harness and connector testing and to fixtures exposed to vibration or lateral forces where probe migration must be prevented. F73012B075G110 is installed using a M0.9X0.175 thread. The design combines a pitch of 1.27 mm / 50 mil with tip style 12 (Spherical stepped) and a tip diameter of 0.75 mm. For F73012B075G110, spring force is 110 cN at a nominal travel of 4 mm.
