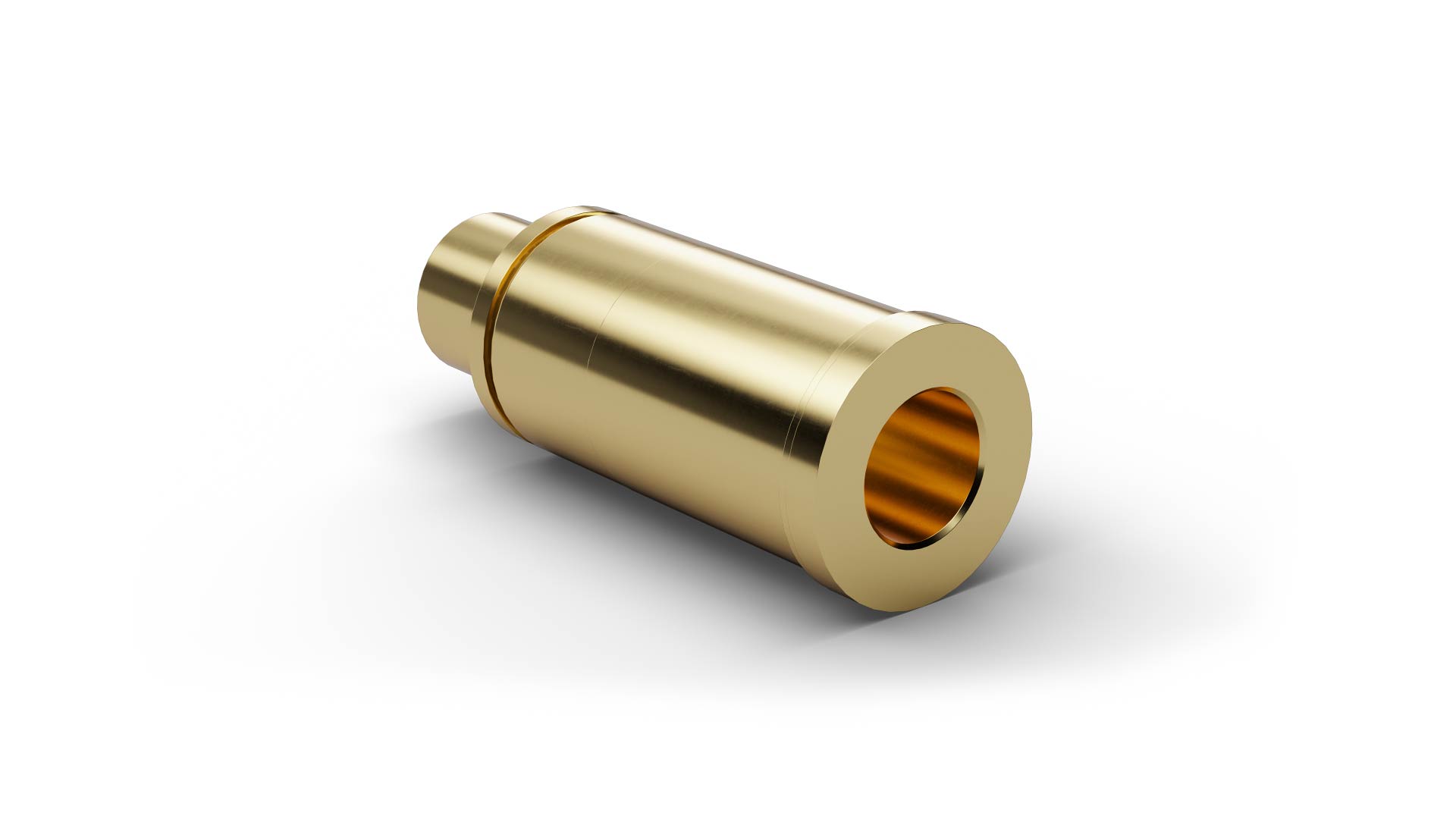

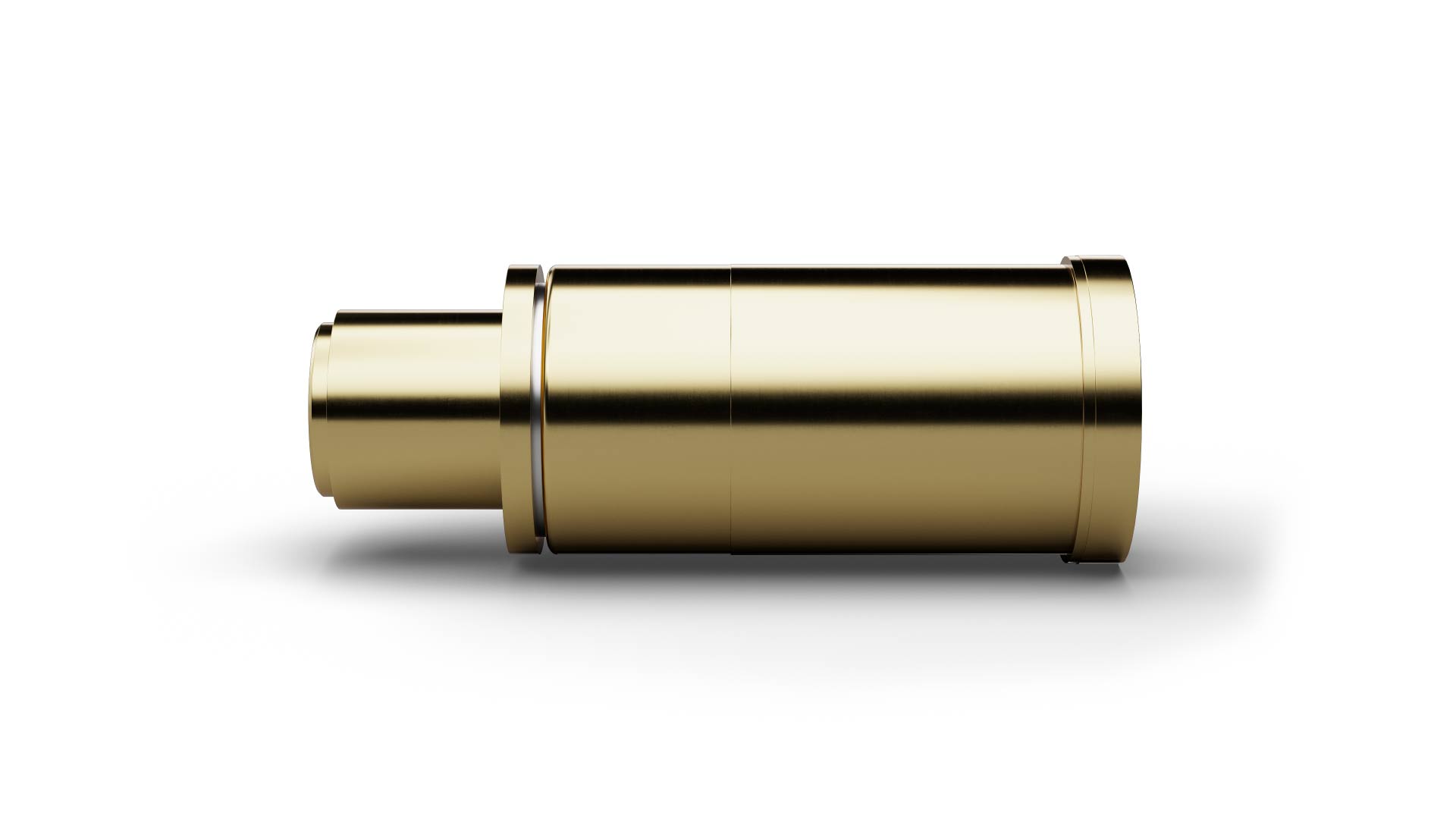

H860FL Perspective 1 H860FL Perspective 2

Radio Frequency Probes (Automotive) H860FL

Item number 1020933

Technical data sheet

Quantity

Technical data

General
Type/family H860
Pitch (mm/mil) 9,00 / 354
Dimensions
Total length (mm) 22
Press ring diameter (mm) 8.5
Outer diameter (mm) 8
Collar height (mm) 1.5
Materials and surfaces
Material, Coating Brass, Gold
Electrical specifications
Continuous current (A) 10

Graphics

H860FL Overview of similar Receptacles H860FL Family designation
