Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | HCF775 |
| Pitch (mm/mil) | 5,00 / 197 |
| Temperature | -45°C...+200°C |
| Dimensions | |
|---|---|
| Total length (mm) | 38.5 |
| Protrusion height (mm) | 10.5 |
| Tip style diameter (mm) | 4 |
| Barrel diameter (mm) | 3.5 |
| Collar diameter (mm) | 4 |
| Press ring diameter (mm) | 4 |
| Materials and surfaces | |
|---|---|
| Tip style | 12 |
| Tip style material | Silver |
| Tip style plating | Uncoated |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 150 |
| Spring force (cN) | 500 |
| Nominal travel (mm) | 4.4 |
| Maximum travel (mm) | 5.5 |
| Pointing accuracy +/- (mm) | 0.1 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 50 |
| Typical contact resistance (mOhm) | 5 |

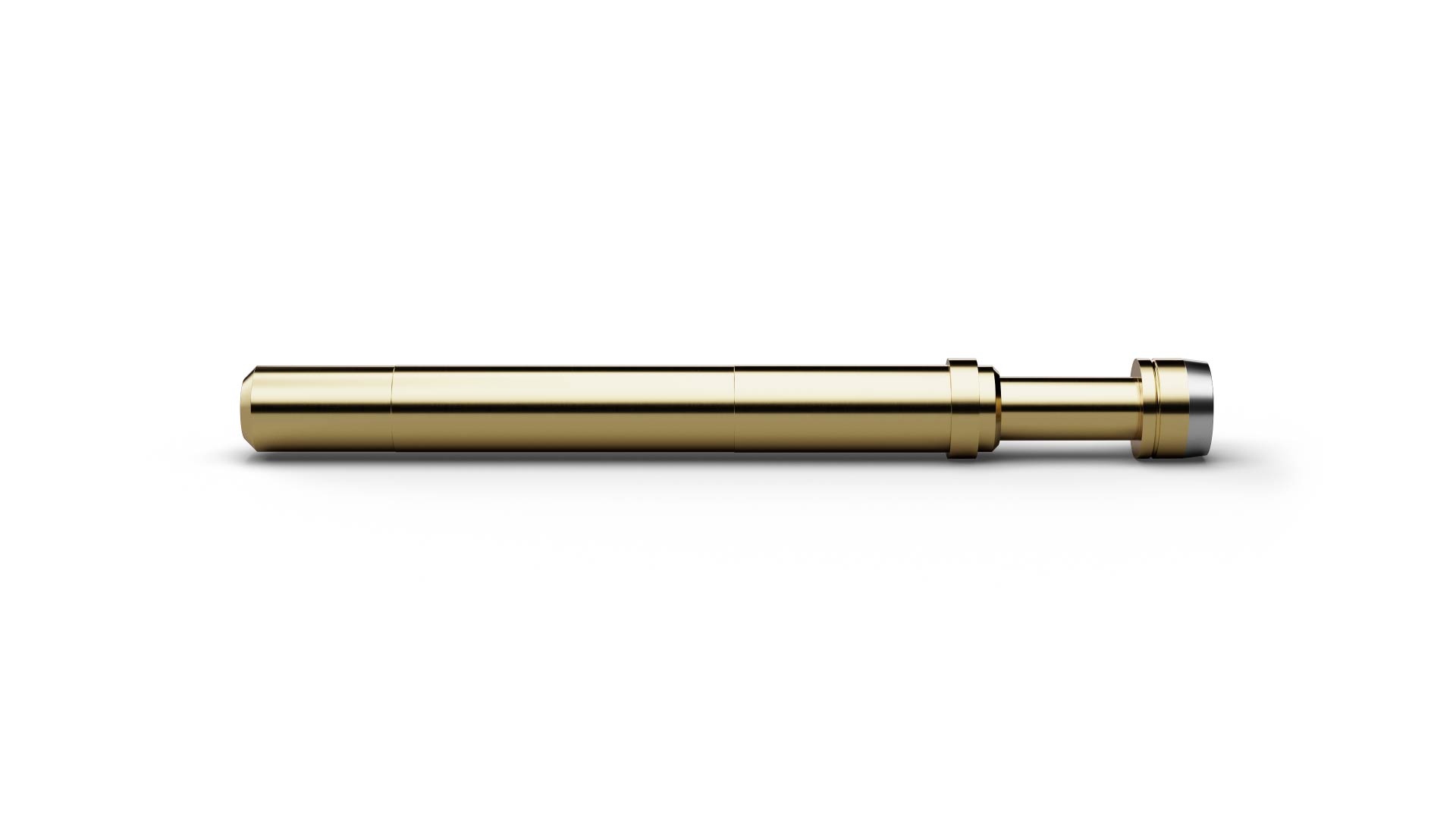

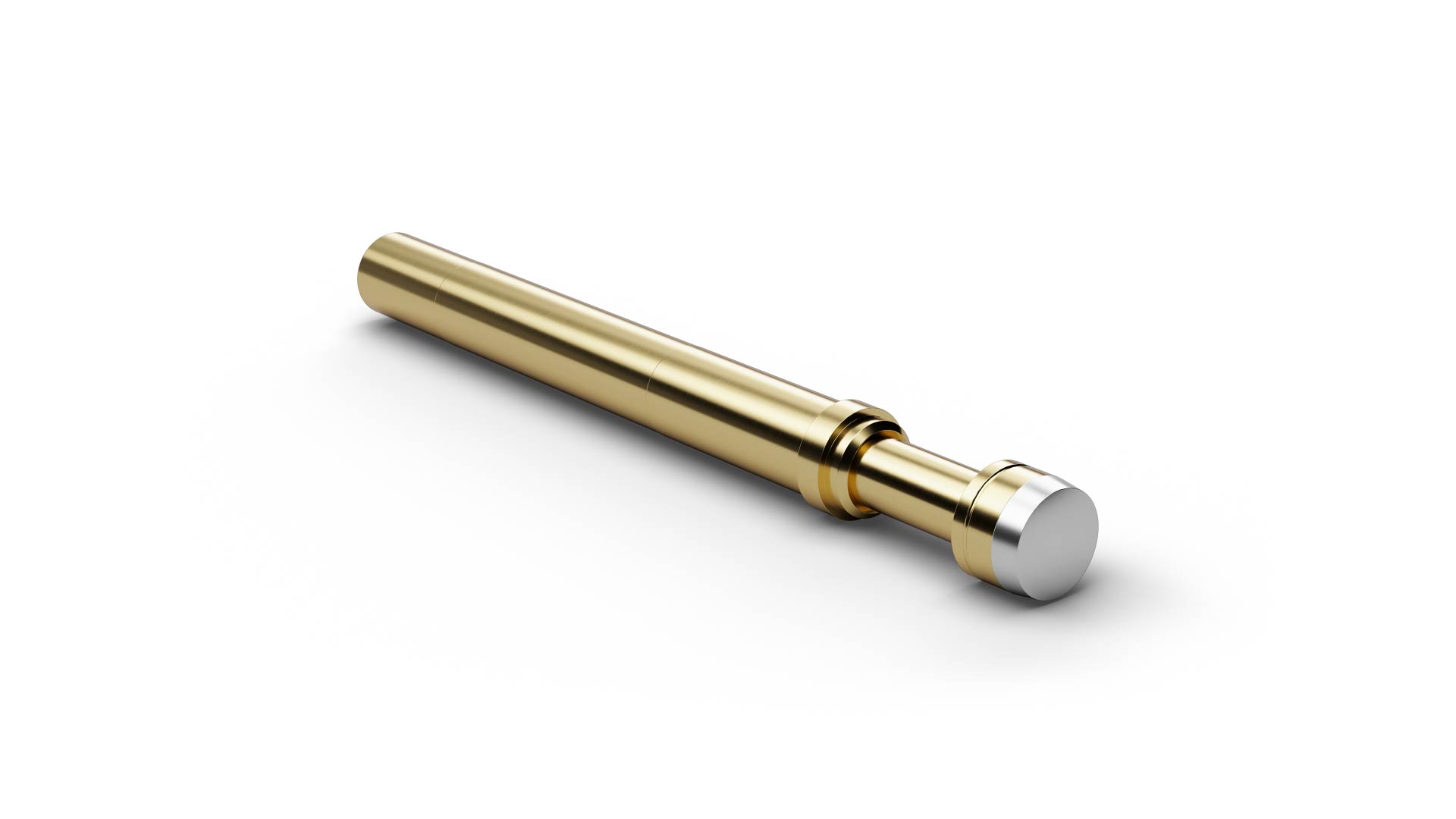

Graphics
Beschreibung des Produkts
For power-intensive contacting, HCF77512A400U500 (item number 1020968) provides a spring-loaded high-current path within the test setup. HCF77512A400U500 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF77512A400U500, current capacity, low contact resistance and defined contact force are key to limiting electrical losses and unwanted heating. The design combines a pitch of 5 mm / 197 mil with tip style 12 (Spherical stepped) and a tip diameter of 4 mm. For HCF77512A400U500, spring force is 500 cN at a nominal travel of 4.4 mm. For HCF77512A400U500, the specified continuous current is 50 A.
