Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F885-NO |
| Pitch (mm/mil) | 3,50 / 138 |
| Temperature | -45°C...+100°C |
| Additional definition | EXX |
| Dimensions | |
|---|---|
| Total length (mm) | 62.2 |
| Protrusion height (mm) | 28 |
| Tip style diameter (mm) | 1.8 |
| Barrel diameter (mm) | 2.65 |
| Collar diameter (mm) | 3.2 |
| Materials and surfaces | |
|---|---|
| Tip style | 16 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 140 |
| Spring force (cN) | 270 |
| Nominal travel (mm) | 4 |
| Maximum travel (mm) | 5 |
| Pointing accuracy +/- (mm) | 0.08 |
| Thread | M2,5 |
| Tool size (mm) | 2,6 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 10 |
| Typical contact resistance (mOhm) | 50 |
| Switch travel (mm) | 1.7 |
| Continuous current (A) 2 | 1 |
Graphics
Beschreibung des Produkts

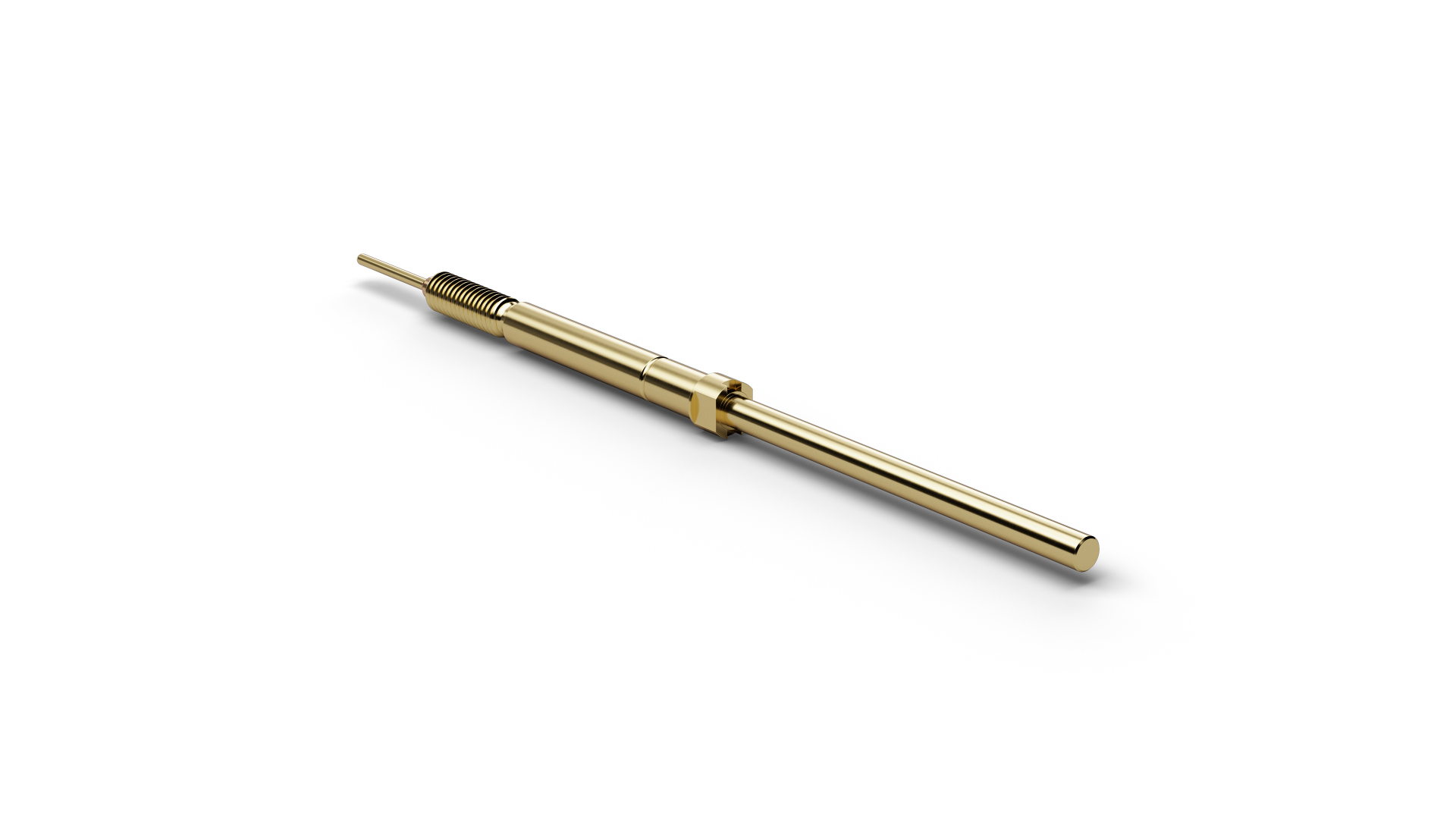

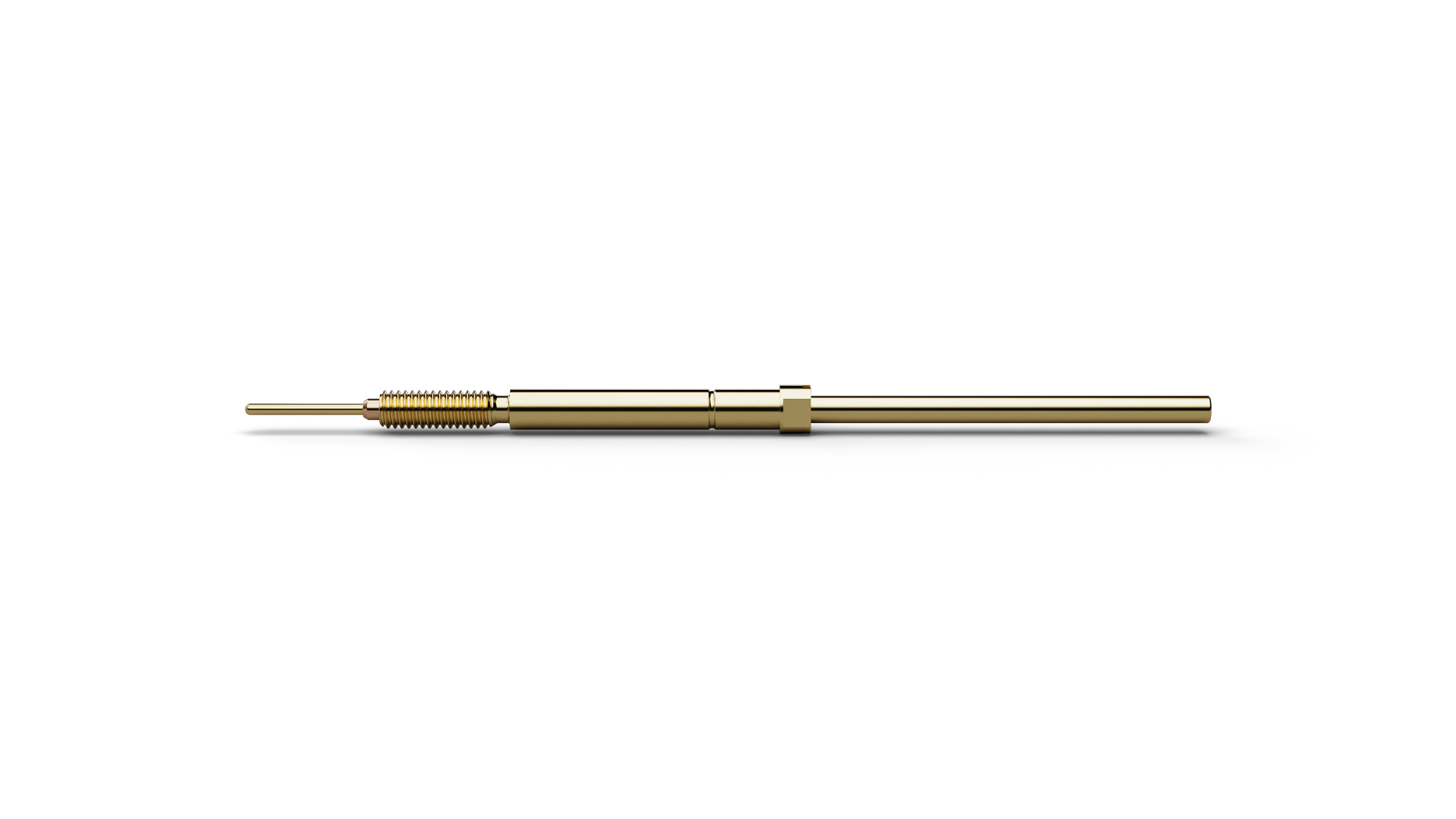

F88516B180G270E28 (item number 1021802) is a Switch Probe for combined electrical contacting and presence or position detection. F88516B180G270E28 combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. The switch type specified for F88516B180G270E28 is NO (Normally Open). The switching travel specified for F88516B180G270E28 is 1.7 mm. F88516B180G270E28 combines a pitch of 3.5 mm / 138 mil with tip style 16 (Flat) and a tip diameter of 1.8 mm. Spring force is 270 cN at a nominal travel of 4 mm.
