Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F885-NO |
| Pitch (mm/mil) | 3,50 / 138 |
| Temperature | -45°C...+100°C |
| Additional definition | SM |
| Dimensions | |
|---|---|
| Total length (mm) | 44.8 |
| Protrusion height (mm) | 10 |
| Tip style diameter (mm) | 1.8 |
| Barrel diameter (mm) | 2.65 |
| Collar diameter (mm) | 3.2 |
| Materials and surfaces | |
|---|---|
| Tip style | 06 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 70 |
| Spring force (cN) | 200 |
| Nominal travel (mm) | 4 |
| Maximum travel (mm) | 5 |
| Pointing accuracy +/- (mm) | 0.08 |
| Thread | M2,5 |
| Tool size (mm) | 2,6 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 10 |
| Typical contact resistance (mOhm) | 50 |
| Switch travel (mm) | 1.7 |
| Continuous current (A) 2 | 1 |
Graphics
Beschreibung des Produkts

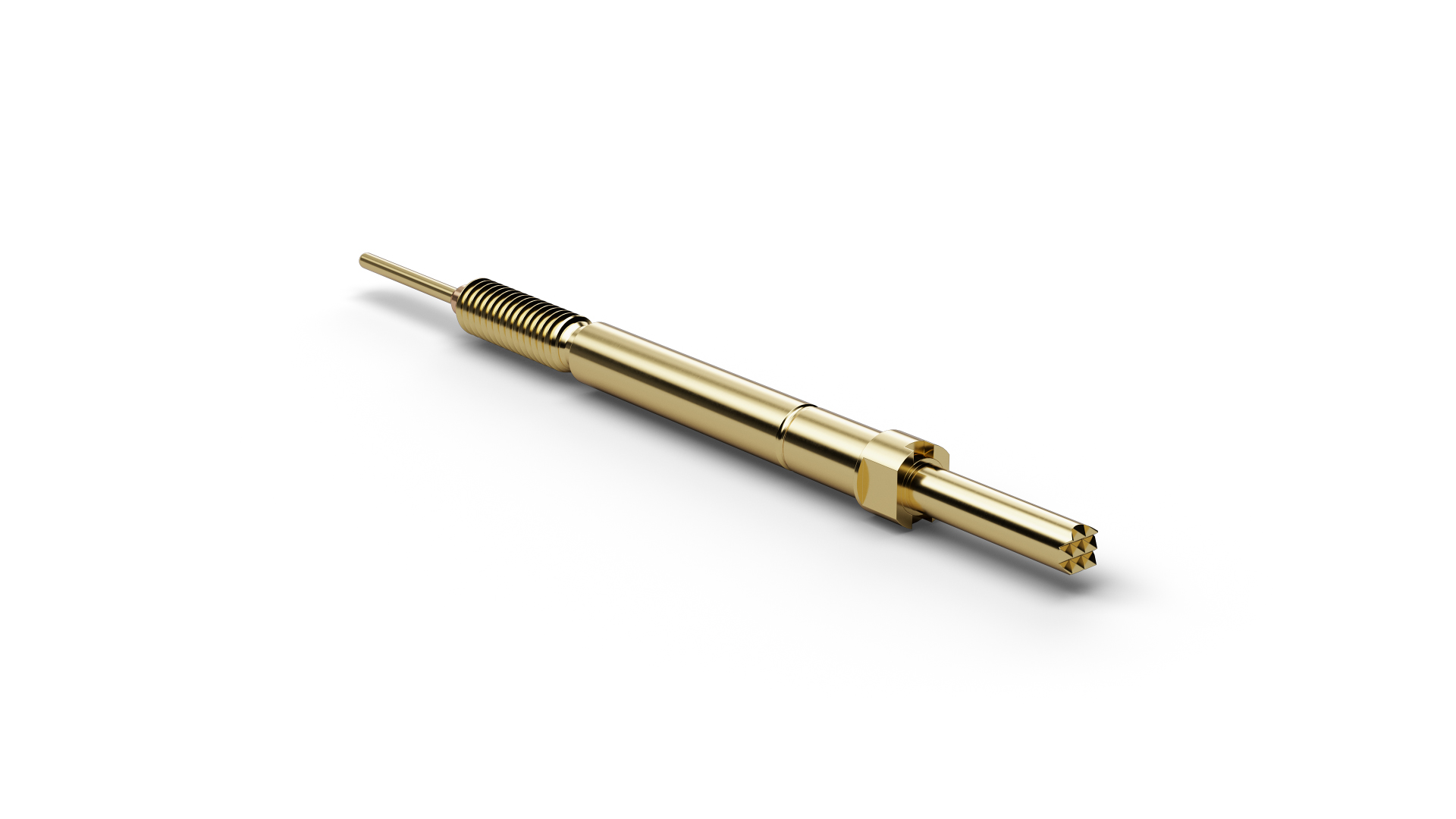

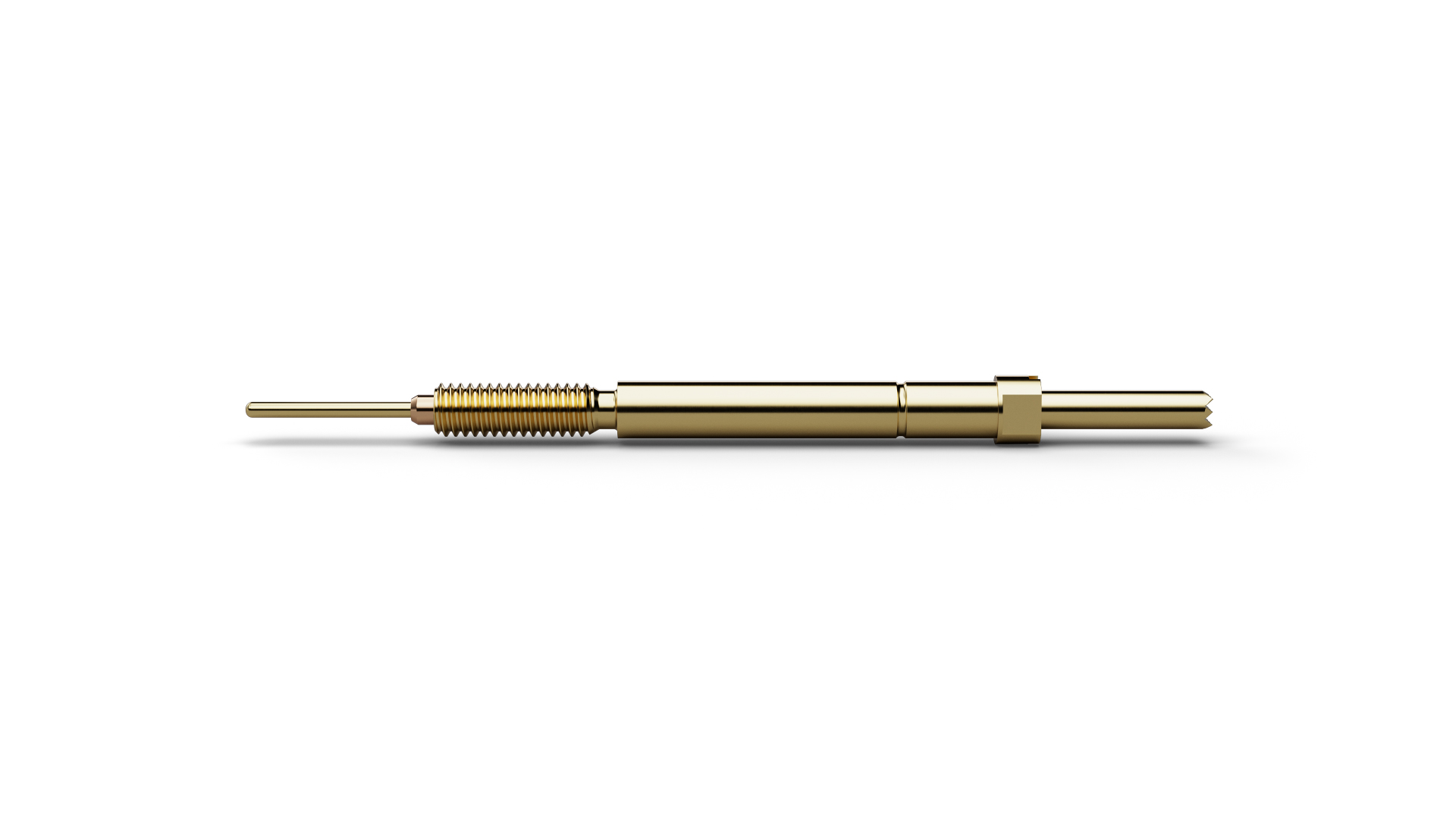

F88506B180G200SM (item number 1022188) belongs to the Switch Probe range and generates an electrical signal at a defined actuation travel. F88506B180G200SM combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. The switch type specified for F88506B180G200SM is NO (Normally Open). The switching travel specified for F88506B180G200SM is 1.7 mm. F88506B180G200SM combines a pitch of 3.5 mm / 138 mil with tip style 06 (Serrated stepped) and a tip diameter of 1.8 mm. F88506B180G200SM operates with 200 cN spring force and 4 mm nominal travel.
