Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | PS733 |
| Pitch (mm/mil) | 4,00 / 157 |
| Temperature | -45°C...+200°C |
| Dimensions | |
|---|---|
| Total length (mm) | 28.8 |
| Protrusion height (mm) | 10.3 |
| Tip style diameter (mm) | 2.3 |
| Barrel diameter (mm) | 2.65 |
| Collar diameter (mm) | 3.6 |
| Press ring diameter (mm) | 3.6 |
| Materials and surfaces | |
|---|---|
| Tip style | 17 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 50 |
| Spring force (cN) | 250 |
| Nominal travel (mm) | 4 |
| Maximum travel (mm) | 5 |
| Pointing accuracy +/- (mm) | 0.1 |
| Thread | M2 |
| Tool size (mm) | 3,0 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 10 |
| Typical contact resistance (mOhm) | 25 |
Graphics
Beschreibung des Produkts

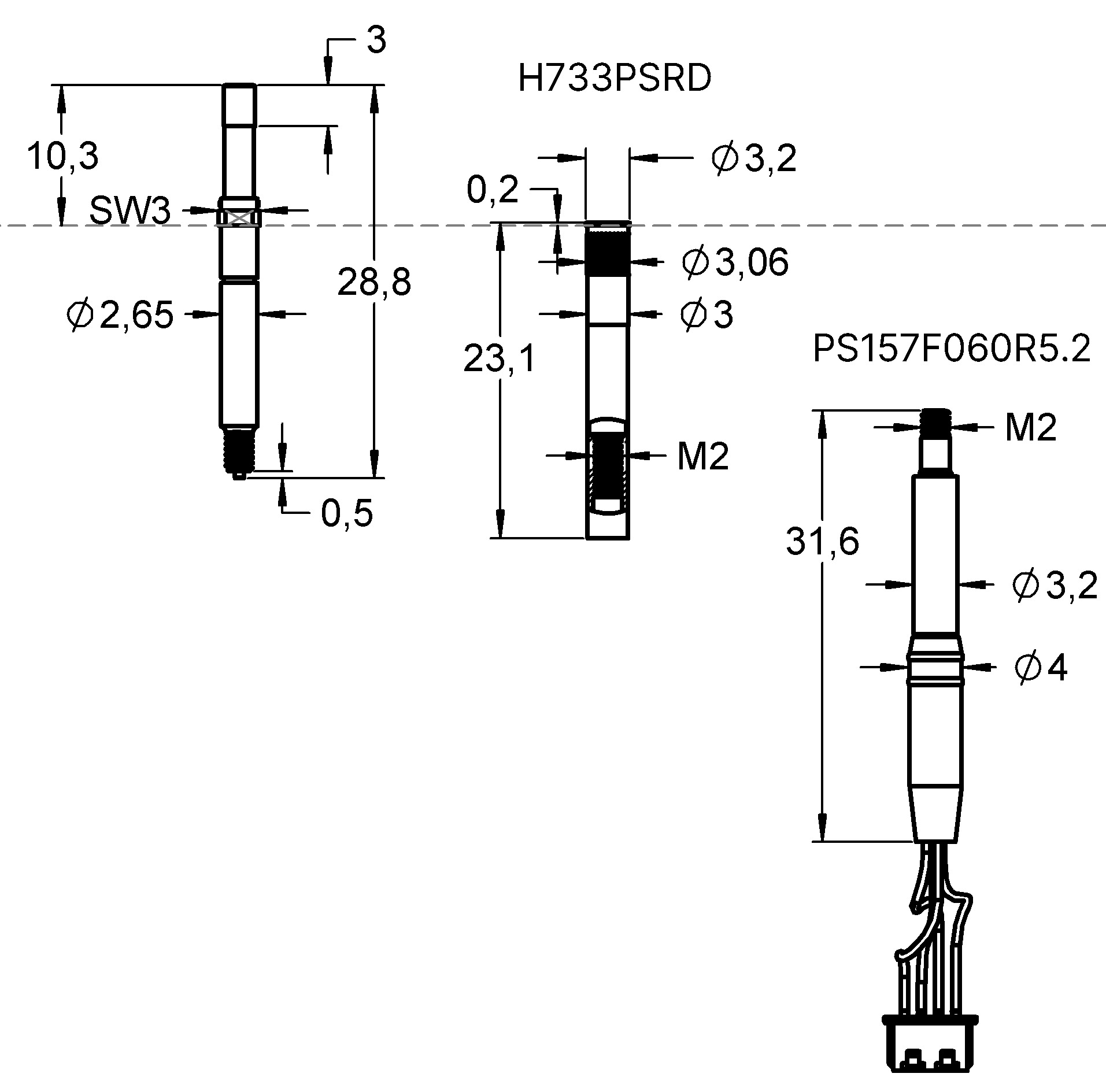

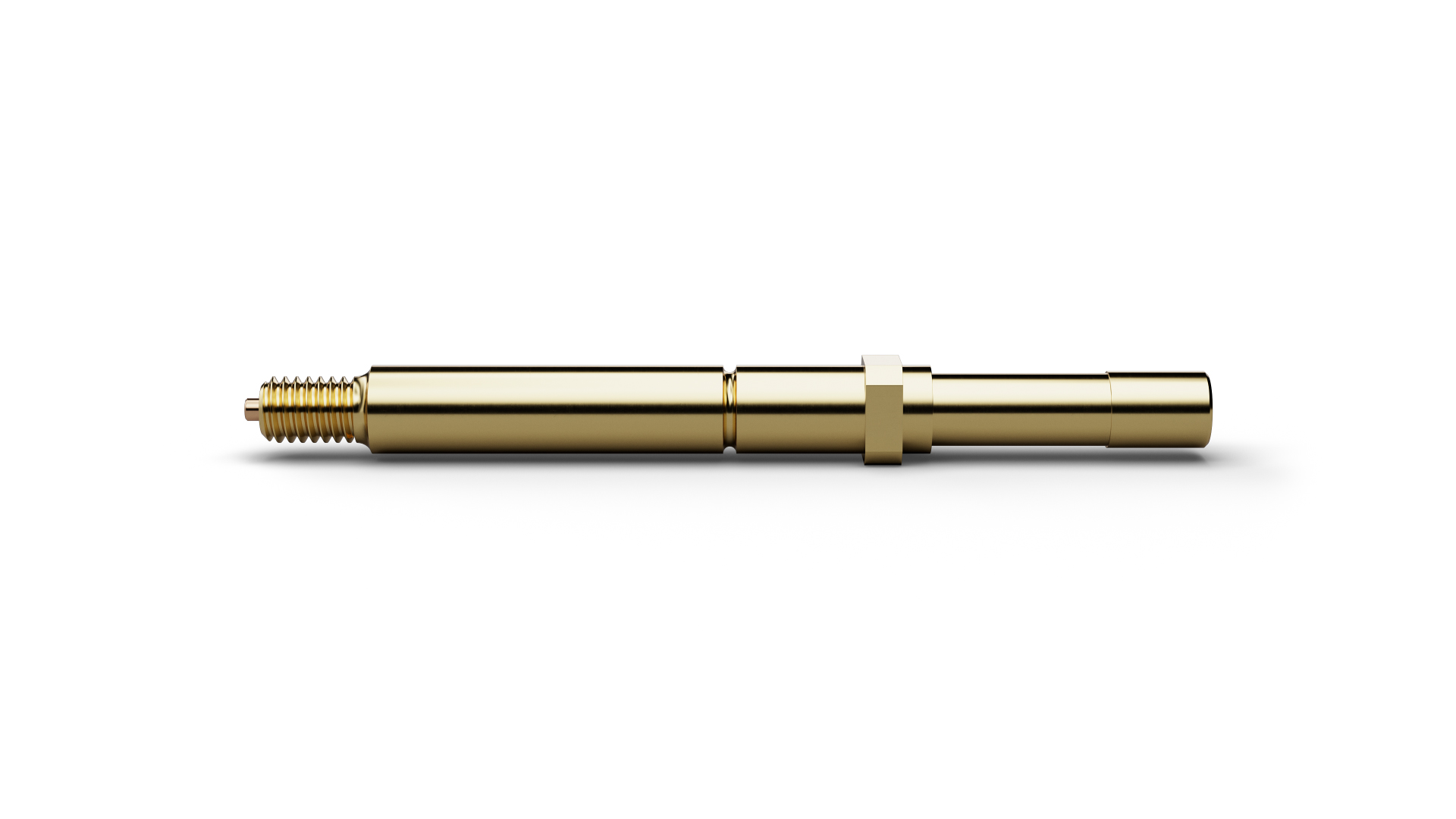

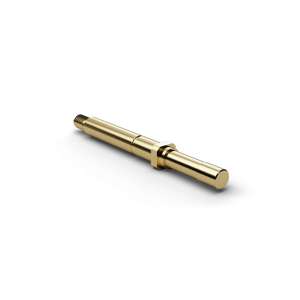

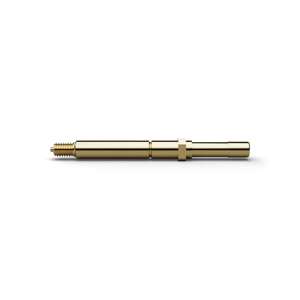

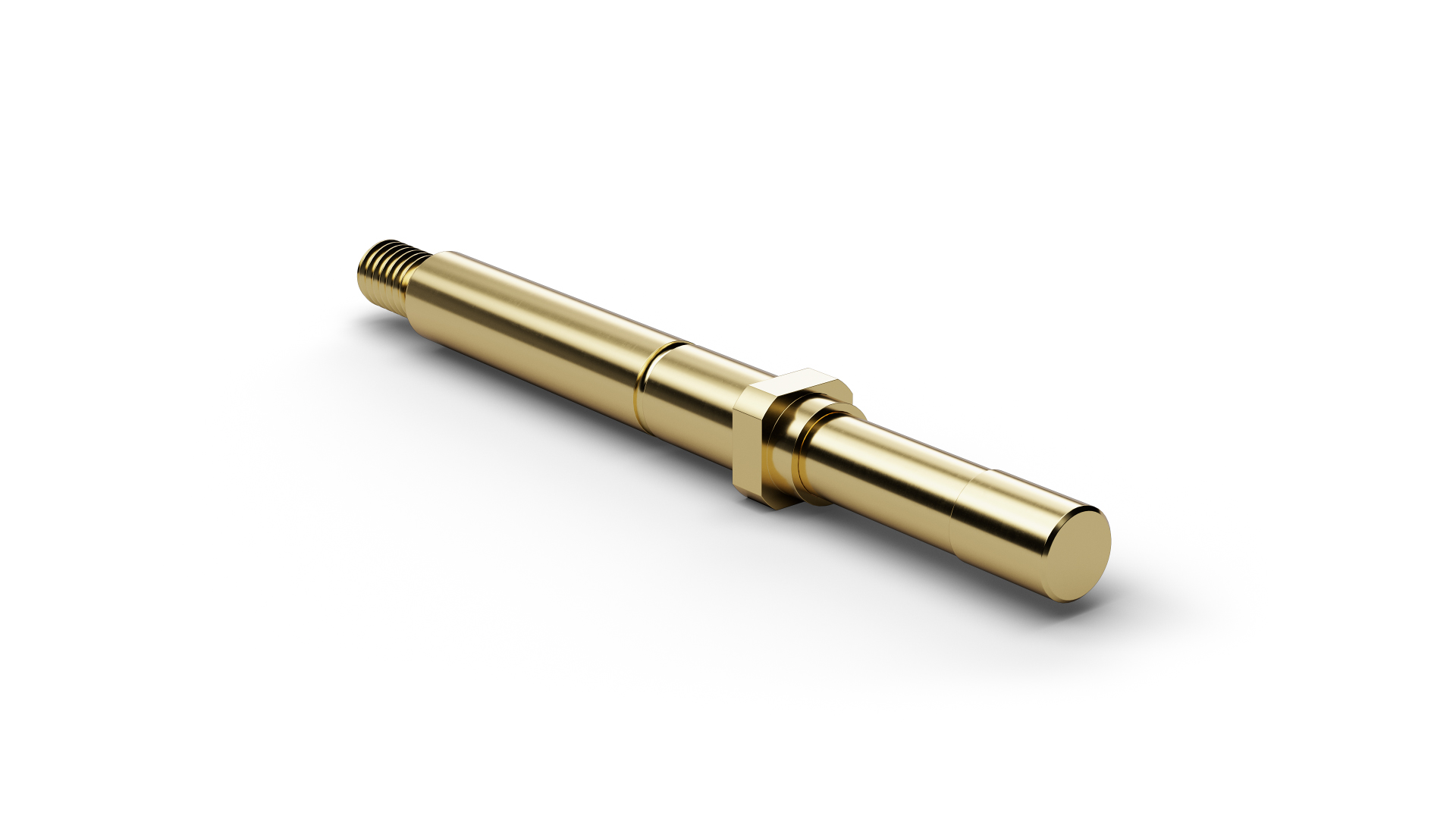

The Position Sensor Probe PS73317B230G250 (item number 1023717) combines spring-loaded contacting with a defined switching or sensing function. PS73317B230G250 combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. PS73317B230G250 is used for presence and position testing and sends an electrical signal to the test system when the defined actuation travel is reached. For PS73317B230G250, spring force is 250 cN at a nominal travel of 4 mm. PS73317B230G250 is rated for 10 A continuous current with a typical contact resistance of 25 mΩ. PS73317B230G250 combines a pitch of 4 mm / 157 mil with tip style 17 (Flat stepped) and a tip diameter of 2.3 mm.
