Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | HCF713 |
| Pitch (mm/mil) | 4,00 / 157 |
| Temperature | -45°C...+200°C |
| Dimensions | |
|---|---|
| Total length (mm) | 15 |
| Protrusion height (mm) | 7.1 |
| Tip style diameter (mm) | 2.3 |
| Barrel diameter (mm) | 2.65 |
| Collar diameter (mm) | 3.2 |
| Press ring diameter (mm) | 3.2 |
| Materials and surfaces | |
|---|---|
| Tip style | 06 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 70 |
| Spring force (cN) | 150 |
| Nominal travel (mm) | 2.8 |
| Maximum travel (mm) | 3.5 |
| Pointing accuracy +/- (mm) | 0.1 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 30 |
| Typical contact resistance (mOhm) | 8 |
Graphics
Beschreibung des Produkts

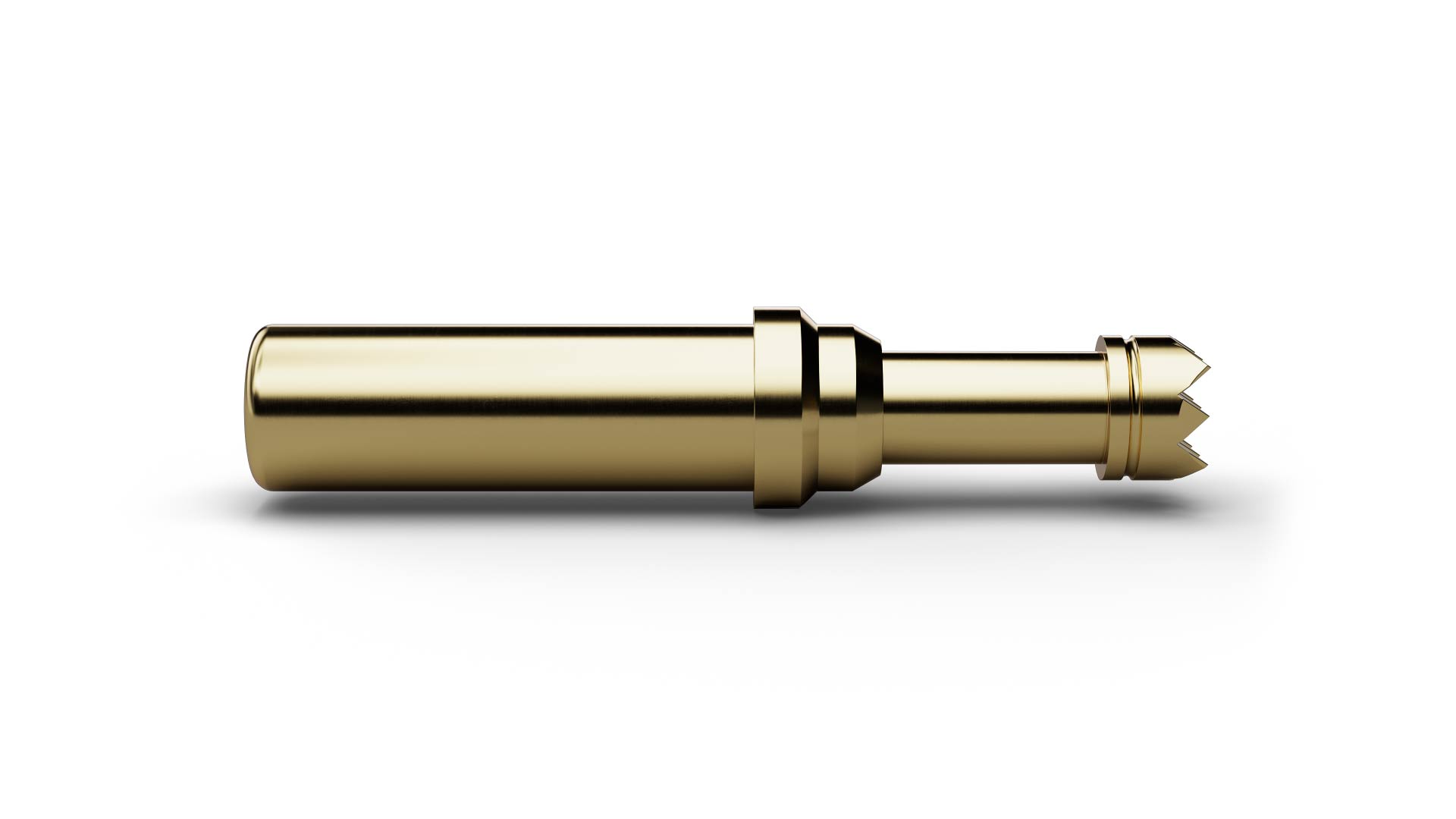

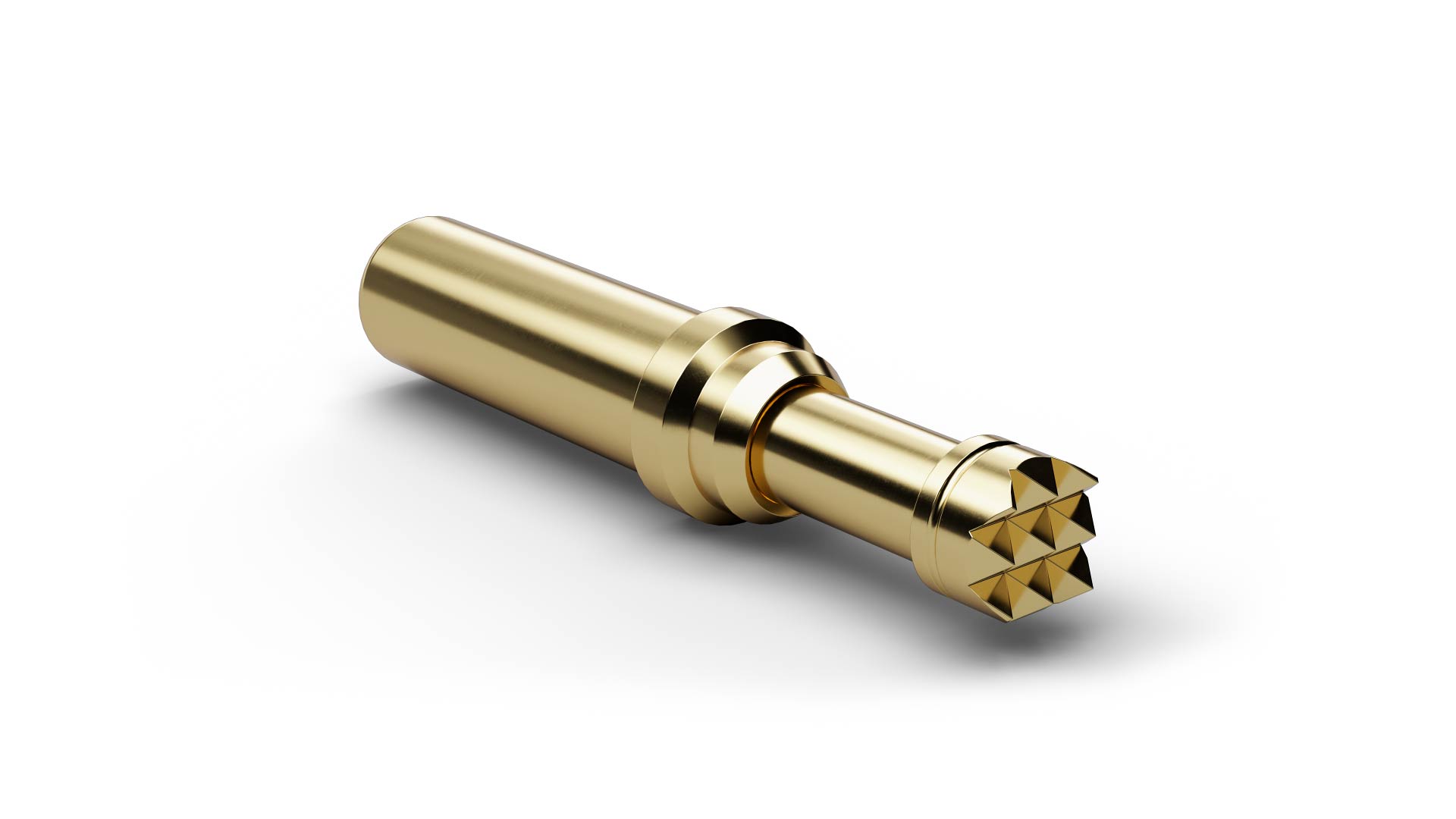

The High Current Probe HCF71306B230G150 (item number 1024197) is designed for safe transmission of high electrical currents in test and contacting applications. HCF71306B230G150 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF71306B230G150, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HCF71306B230G150 includes power-electronics testing. The electrical rating of HCF71306B230G150 combines 30 A continuous current with 8 mΩ typical contact resistance. For HCF71306B230G150, spring force is 150 cN at a nominal travel of 2.8 mm.
