Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F752 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+100°C |
| Additional definition | L |

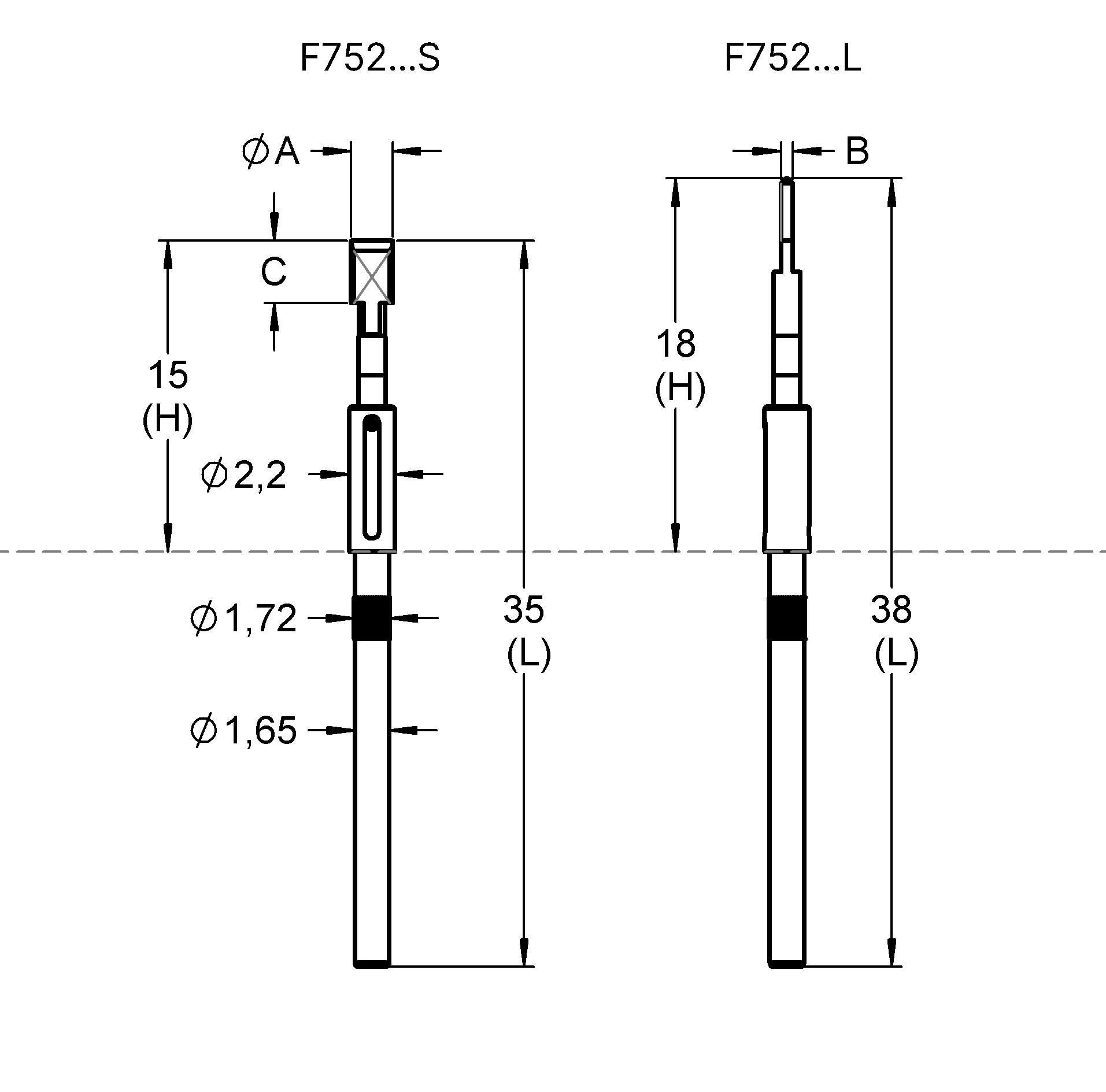

| Dimensions | |
|---|---|
| Total length (mm) | 38 |
| Protrusion height (mm) | 18 |
| Tip style diameter (mm) | 2 |
| Barrel diameter (mm) | 1.64 |
| Collar diameter (mm) | 2.2 |
| Press ring diameter (mm) | 2.2 |
| A – spade diameter (mm) | 2 |
| B – spade width (mm) | 0.75 |
| C – spade length (mm) | 3 |
| Materials and surfaces | |
|---|---|

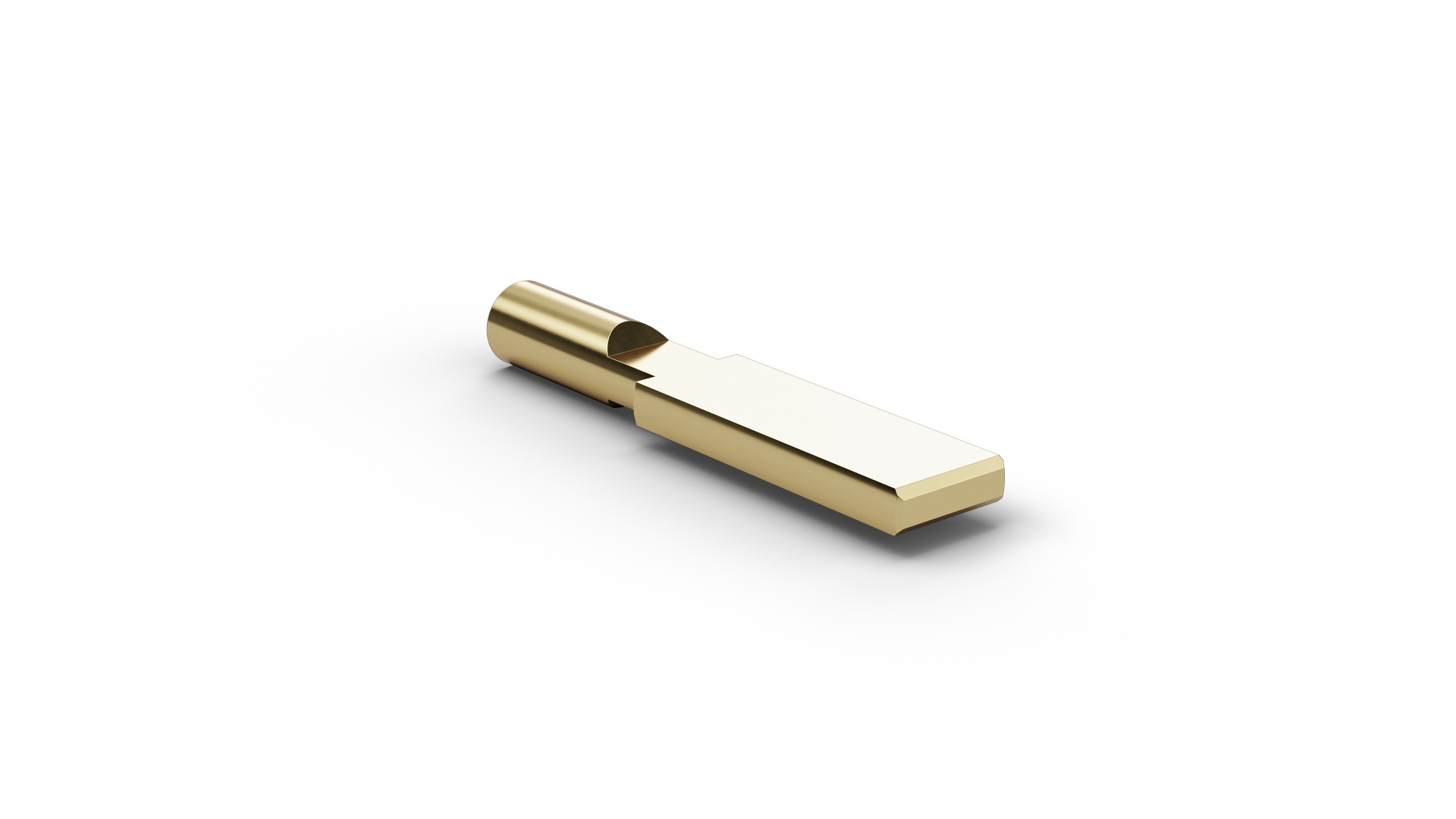

| Tip style | 84 |
| Plunger material | Steel |
| Plunger plating | Longtime Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 50 |
| Spring force (cN) | 150 |
| Nominal travel (mm) | 4 |
| Maximum travel (mm) | 5 |
| Pointing accuracy +/- (mm) | 0.1 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 3 |
| Typical contact resistance (mOhm) | 30 |
Graphics
Beschreibung des Produkts

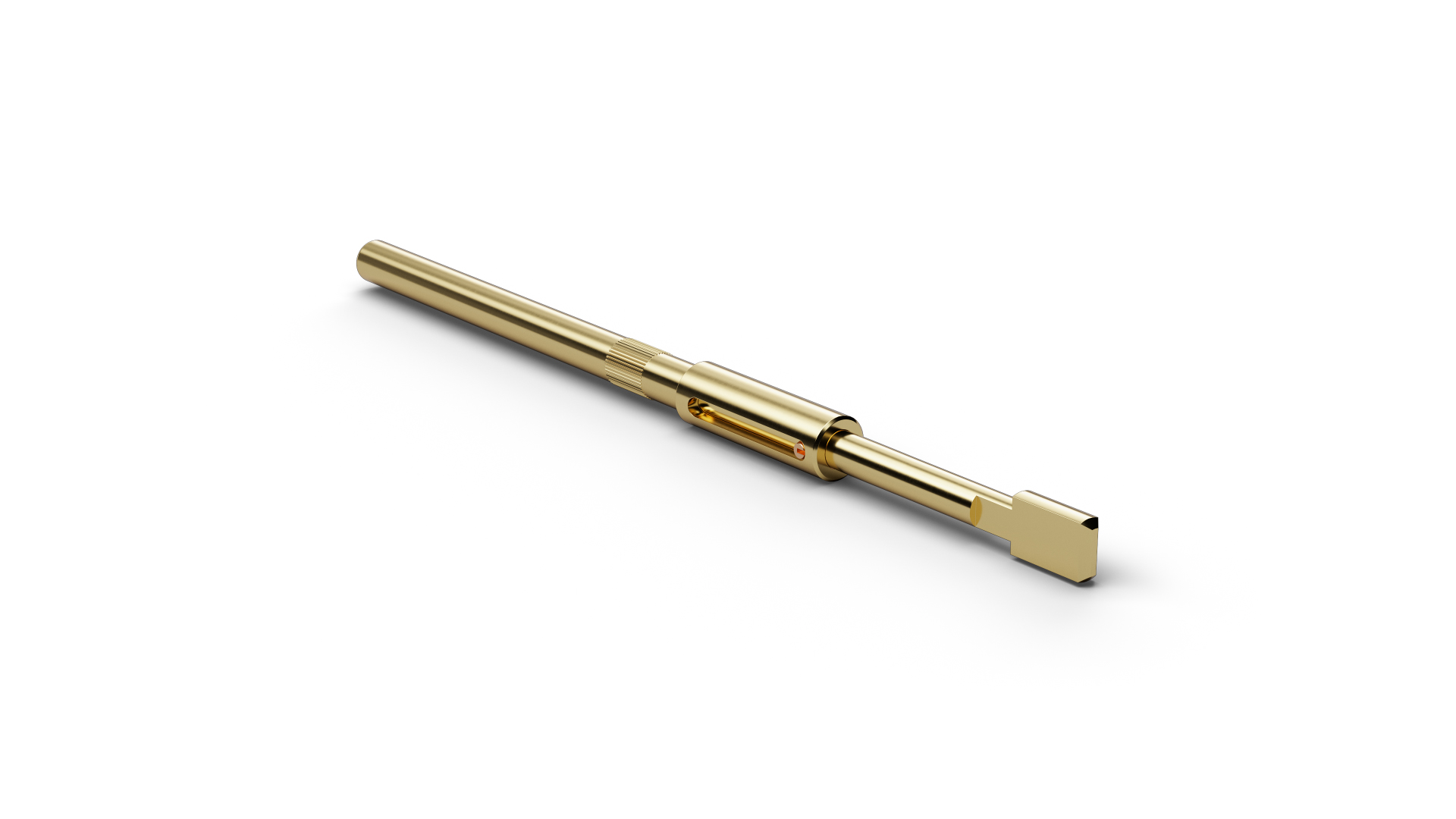

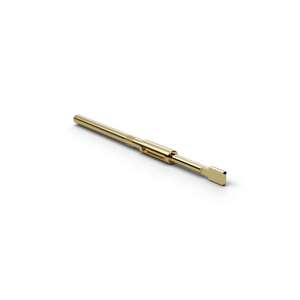

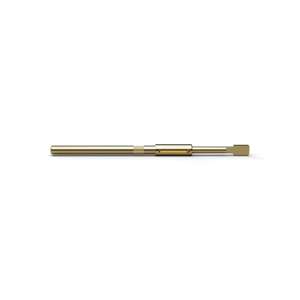

F75284S0008L150L (item number 1025313) belongs to the Twist Proof Probe range for repeatable connector tests with controlled tip orientation. On F75284S0008L150L, tip style 84 (SpadeØ > plungerØ stepped) supports twist-proof contacting of connector elements whose orientation must be maintained in the test fixture. Orientation-relevant dimensions include spade diameter 2 mm, spade width 0.75 mm, spade length 3 mm. F75284S0008L150L combines a pitch of 2.54 mm / 100 mil with tip style 84 (SpadeØ > plungerØ stepped) and a tip diameter of 2 mm. F75284S0008L150L operates with 150 cN spring force and 4 mm nominal travel. F75284S0008L150L is specified for 3 A continuous current.
