Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F100 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+80°C |
| Dimensions | |
|---|---|
| Total length (mm) | 33.3 |
| Protrusion height (mm) | 8.5 |
| Tip style diameter (mm) | 0.6 |
| Barrel diameter (mm) | 1.37 |
| Materials and surfaces | |
|---|---|
| Tip style | 10 |
| Plunger material | Steel |
| Plunger plating | Progressive |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 150 |
| Spring force (cN) | 300 |
| Nominal travel (mm) | 4.3 |
| Maximum travel (mm) | 6.4 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 20 |

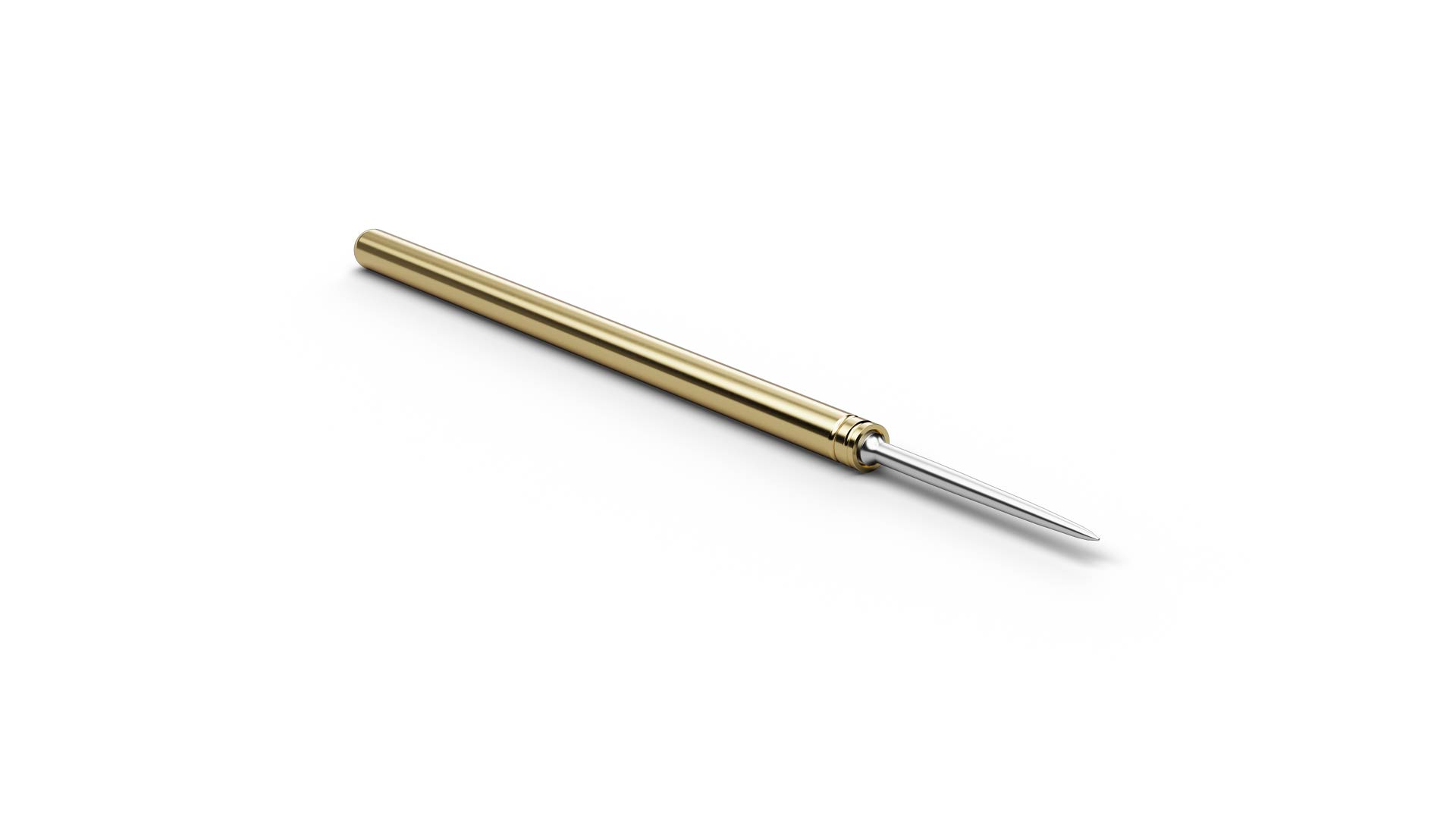

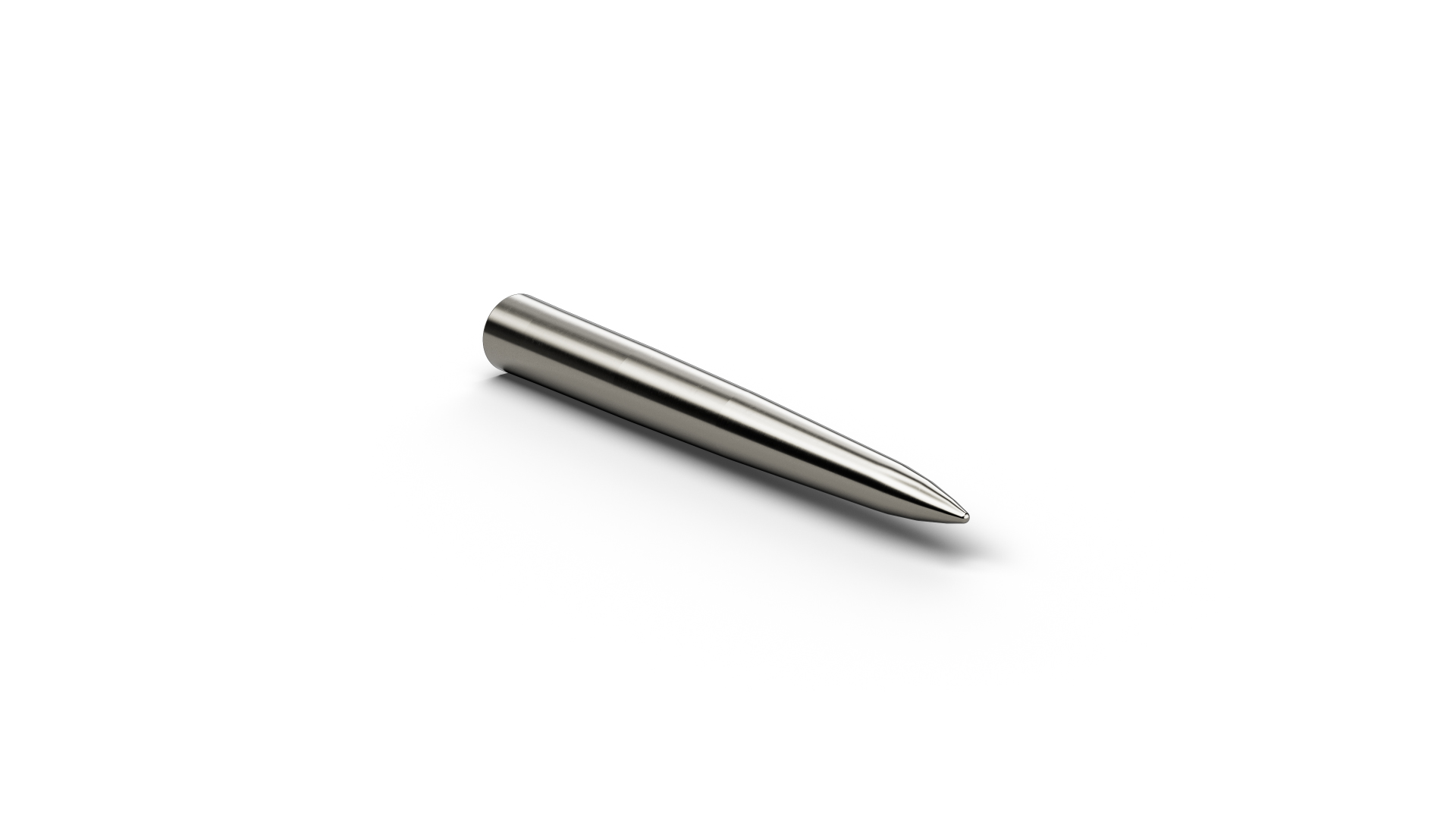

Graphics
Beschreibung des Produkts
As a Basic Contact Probe, F10010S060P300 (item number 1026144) establishes a spring-loaded electrical connection to the test point. With tip style 10 (Flexible needle), F10010S060P300 combines ICT/FCT use with a geometry intended for solder pads and vias. F10010S060P300 combines a pitch of 2.54 mm / 100 mil with tip style 10 (Flexible needle) and a tip diameter of 0.6 mm. F10010S060P300 operates with 300 cN spring force and 4.3 mm nominal travel. F10010S060P300 is rated for 5 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F10010S060P300 is made of steel and uses Progressive Coating.
