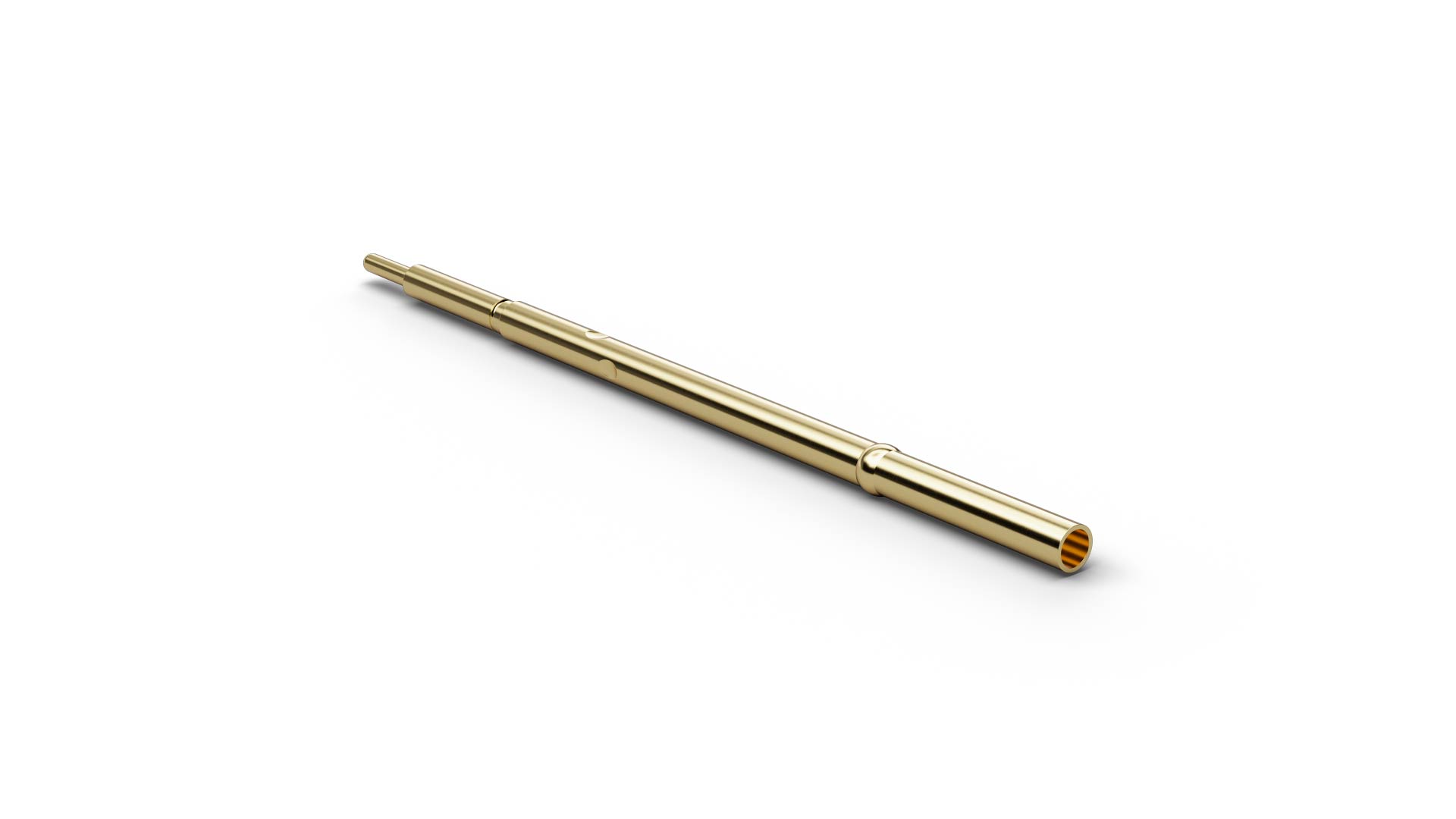

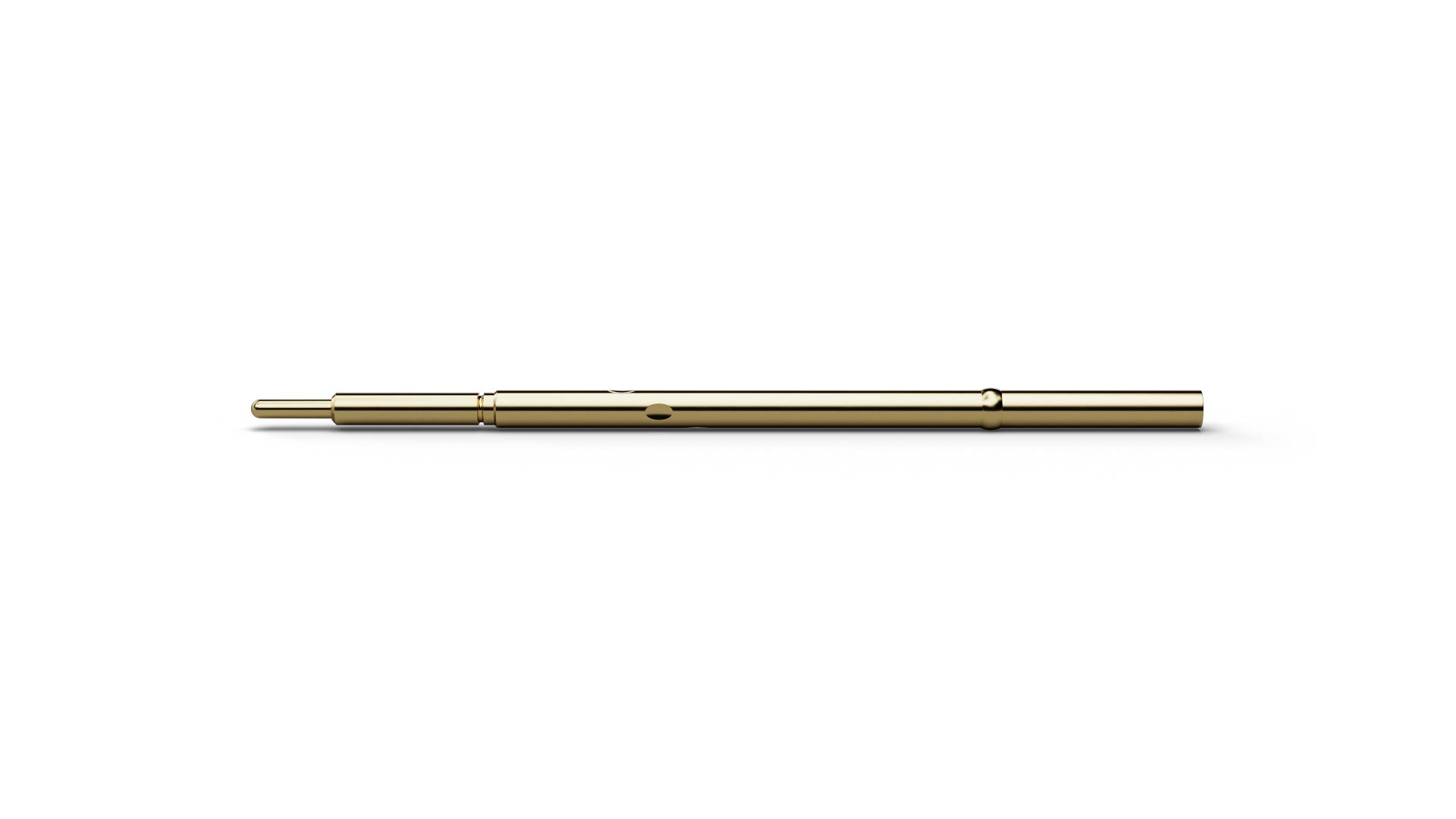

H075WL-7.6 (item number 1026400) is a receptacle for the compatible Basic Contact Probe and defines its installed position in the test fixture. As a Receptacle, H075WL-7.6 guides and positions the matching Contact Probe; depending on the design, the Receptacle can also provide electrical connection or insulation and supports controlled probe replacement during maintenance. Relevant installation data includes pitch 1.9 mm / 75 mil, outside diameter 1.3 mm, length 32.8 mm, connection type Wire Less. When selecting H075WL-7.6, the matching probe family, installation dimensions and any required connection or insulation design should be considered together.
