Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | P-T / P500T-L210 |
| Pitch (mm/mil) | 6,50 / 256 |
| Temperature | -45°C...+200°C |

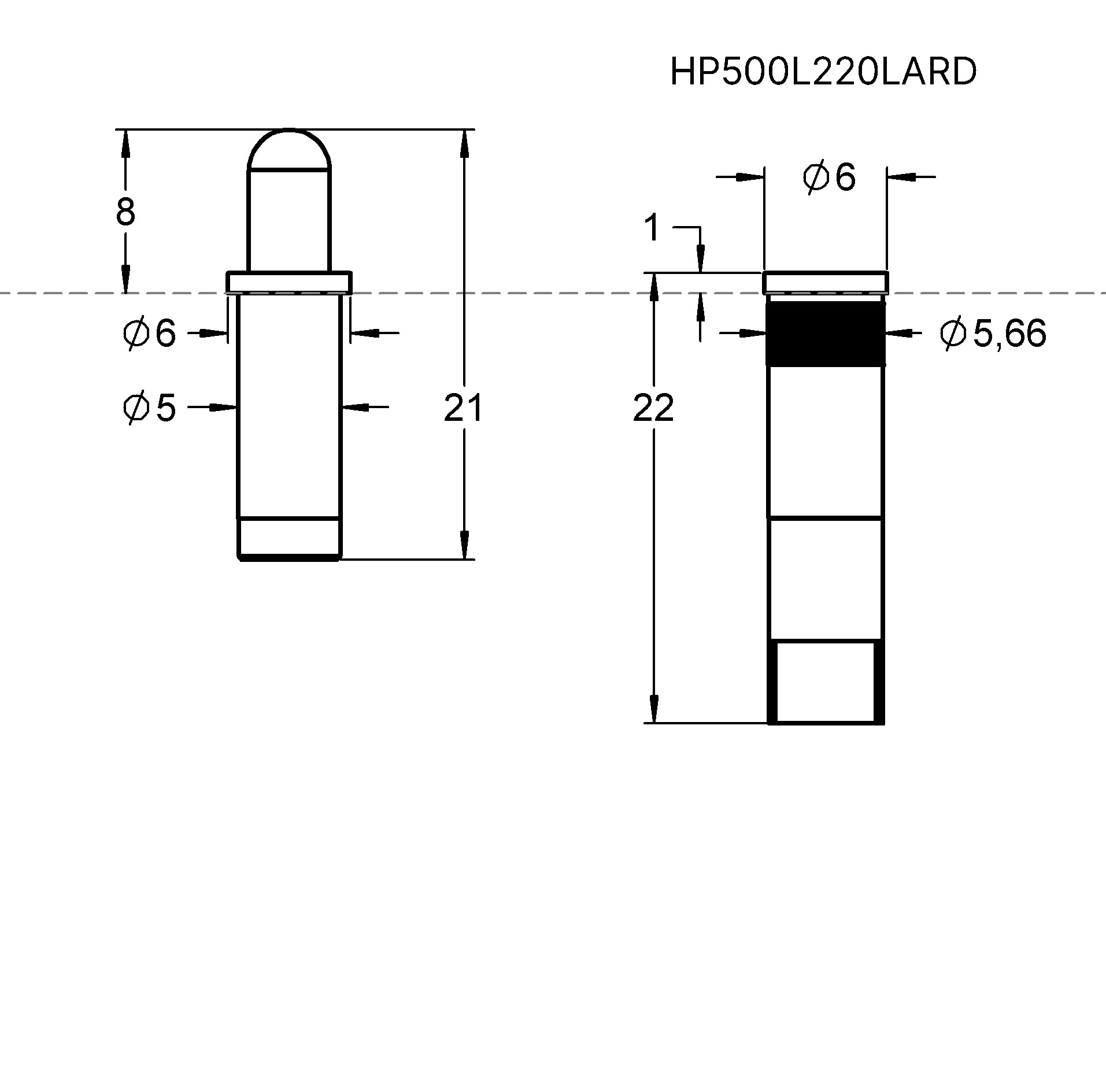

| Dimensions | |
|---|---|
| Total length (mm) | 21 |
| Protrusion height (mm) | 8 |
| Tip style diameter (mm) | 4 |
| Barrel diameter (mm) | 5 |
| Collar diameter (mm) | 6 |
| Press ring diameter (mm) | 6 |
| Materials and surfaces | |
|---|---|
| Tip style | 11 |
| Plunger material | Brass |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 60 |
| Spring force (cN) | 150 |
| Nominal travel (mm) | 4.8 |
| Maximum travel (mm) | 7 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 30 |
| Typical contact resistance (mOhm) | 30 |

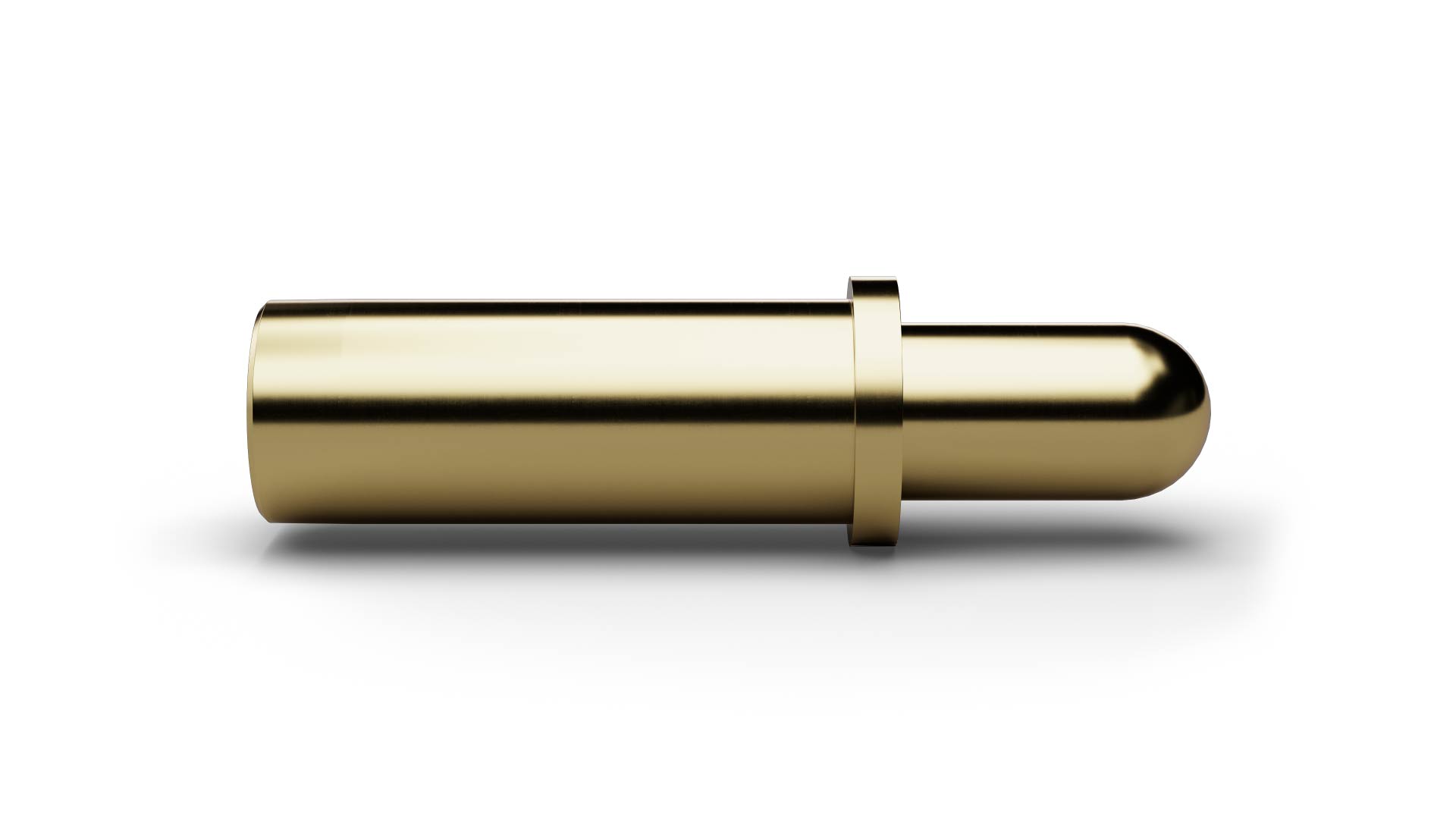

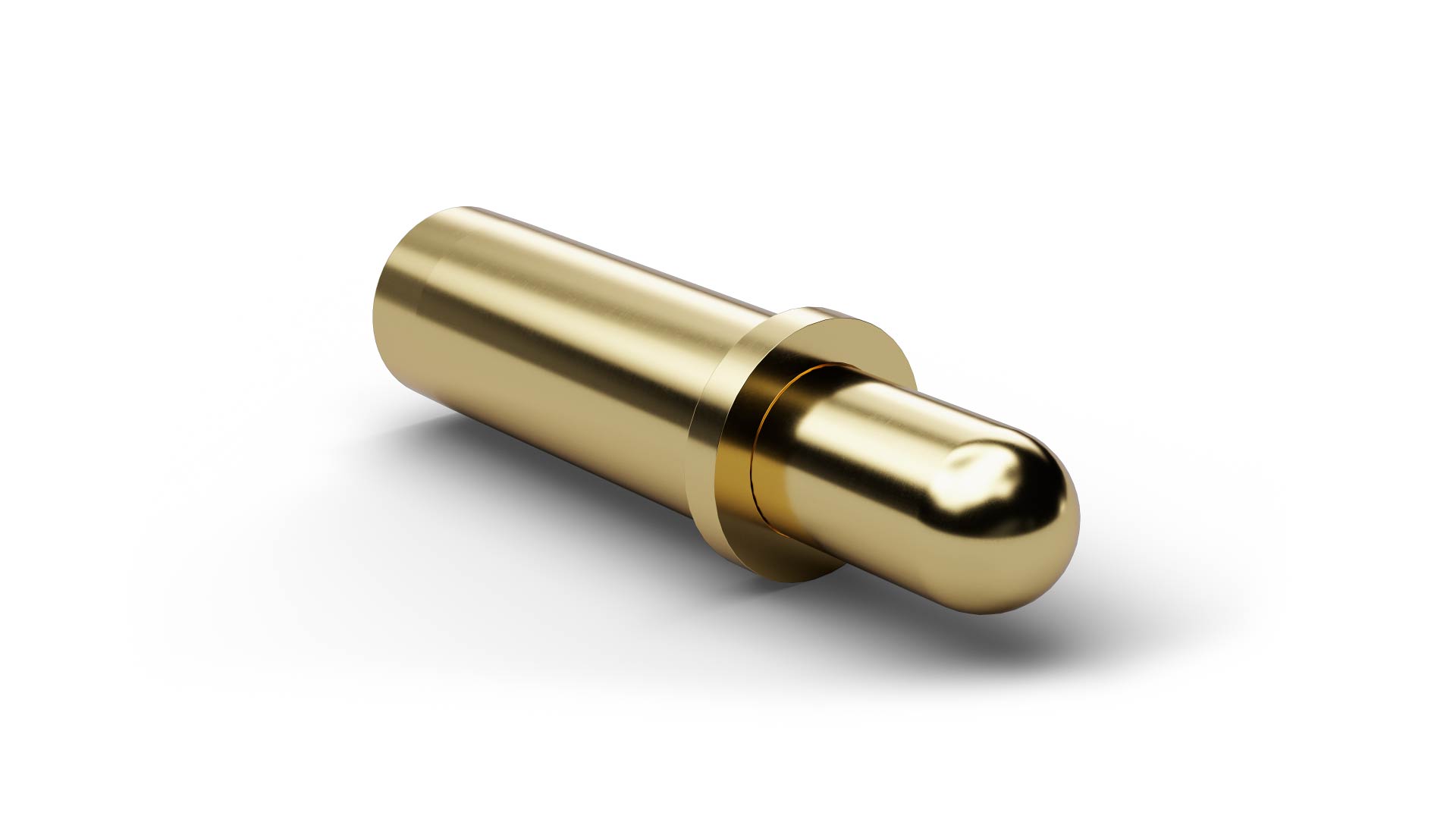

Graphics
