Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F075 |
| Pitch (mm/mil) | 1,90 / 75 |
| Temperature | -45°C...+200°C |
| Additional definition | HS1 |
| Dimensions | |
|---|---|
| Total length (mm) | 46.6 |
| Protrusion height (mm) | 21.3 |
| Tip style diameter (mm) | 0.64 |
| Barrel diameter (mm) | 1.02 |
| Materials and surfaces | |
|---|---|
| Tip style | 18 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 60 |
| Spring force (cN) | 160 |
| Nominal travel (mm) | 4.3 |
| Maximum travel (mm) | 6.4 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 4 |
| Typical contact resistance (mOhm) | 100 |
Graphics
Beschreibung des Produkts

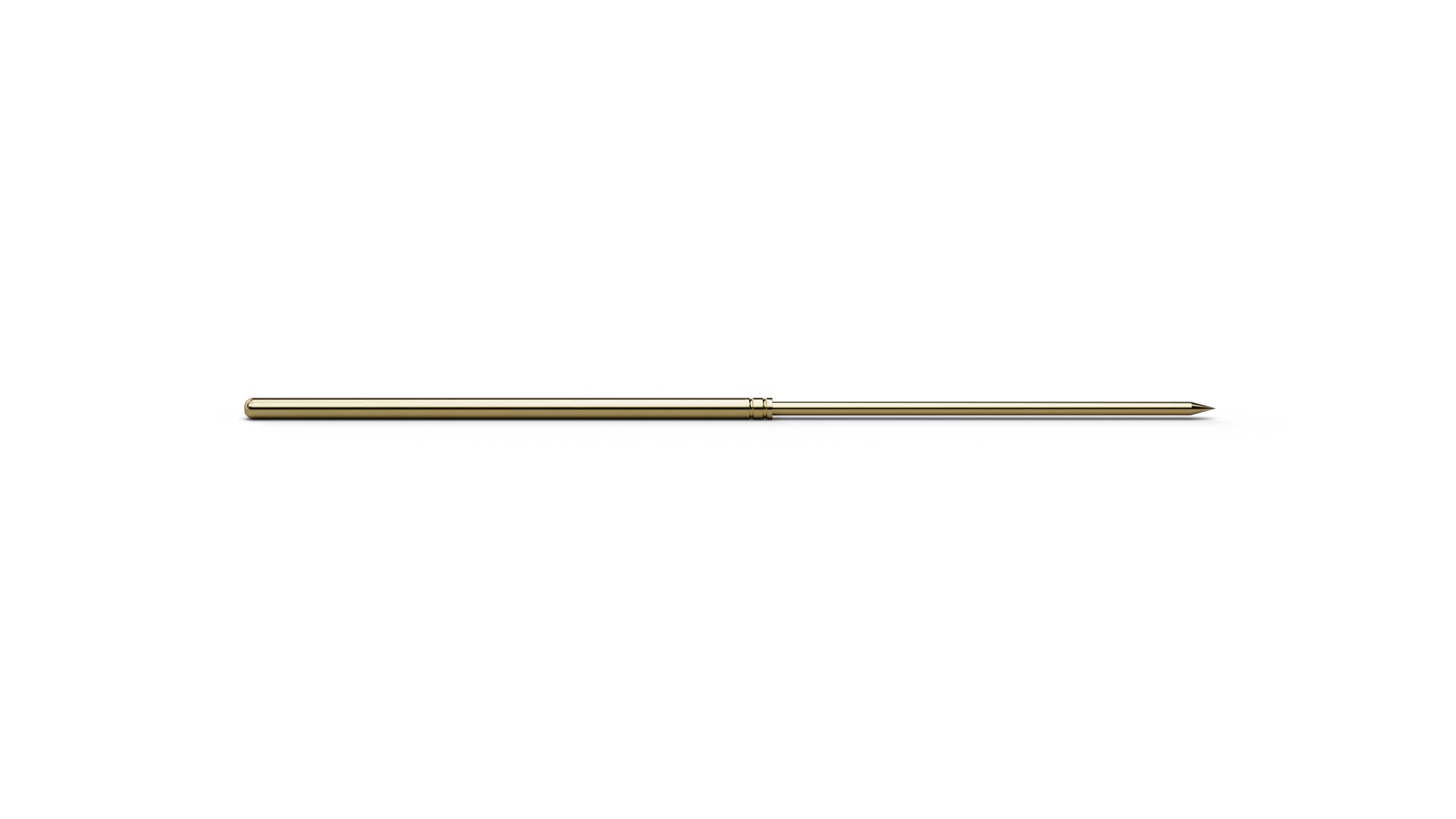

F07518B064G160HS1 (item number 1027683) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 18 (Conical 30°), F07518B064G160HS1 combines ICT/FCT use with a geometry intended for solder pads and vias. F07518B064G160HS1 combines a pitch of 1.9 mm / 75 mil with tip style 18 (Conical 30°) and a tip diameter of 0.64 mm. Spring force is 160 cN at a nominal travel of 4.3 mm. F07518B064G160HS1 is rated for 4 A continuous current with a typical contact resistance of 100 mΩ. The plunger in F07518B064G160HS1 is made of beryllium copper and is gold-plated.
