Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | P / P146-L062 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+100°C |
| Additional definition | NM |
| Dimensions | |
|---|---|

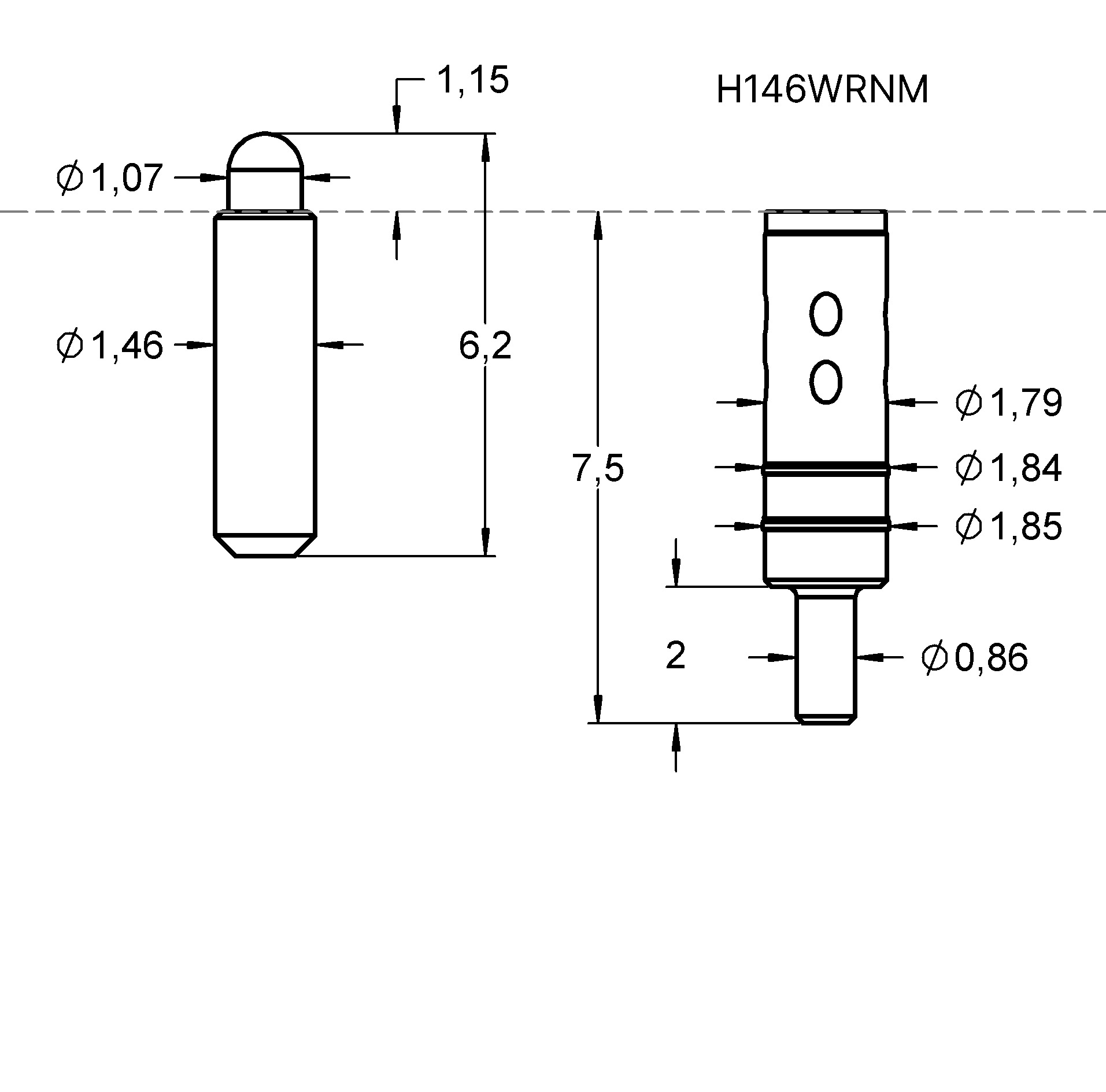

| Total length (mm) | 6.2 |
| Protrusion height (mm) | 1.15 |
| Tip style diameter (mm) | 1.07 |
| Barrel diameter (mm) | 1.46 |
| Materials and surfaces | |
|---|---|
| Tip style | 11 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | Copper |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 25 |
| Spring force (cN) | 70 |
| Nominal travel (mm) | 0.5 |
| Maximum travel (mm) | 1 |
| Pointing accuracy +/- (mm) | 0.06 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 10 |
| Typical contact resistance (mOhm) | 60 |
Graphics
Beschreibung des Produkts

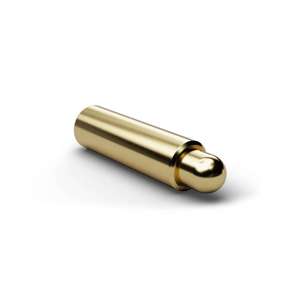

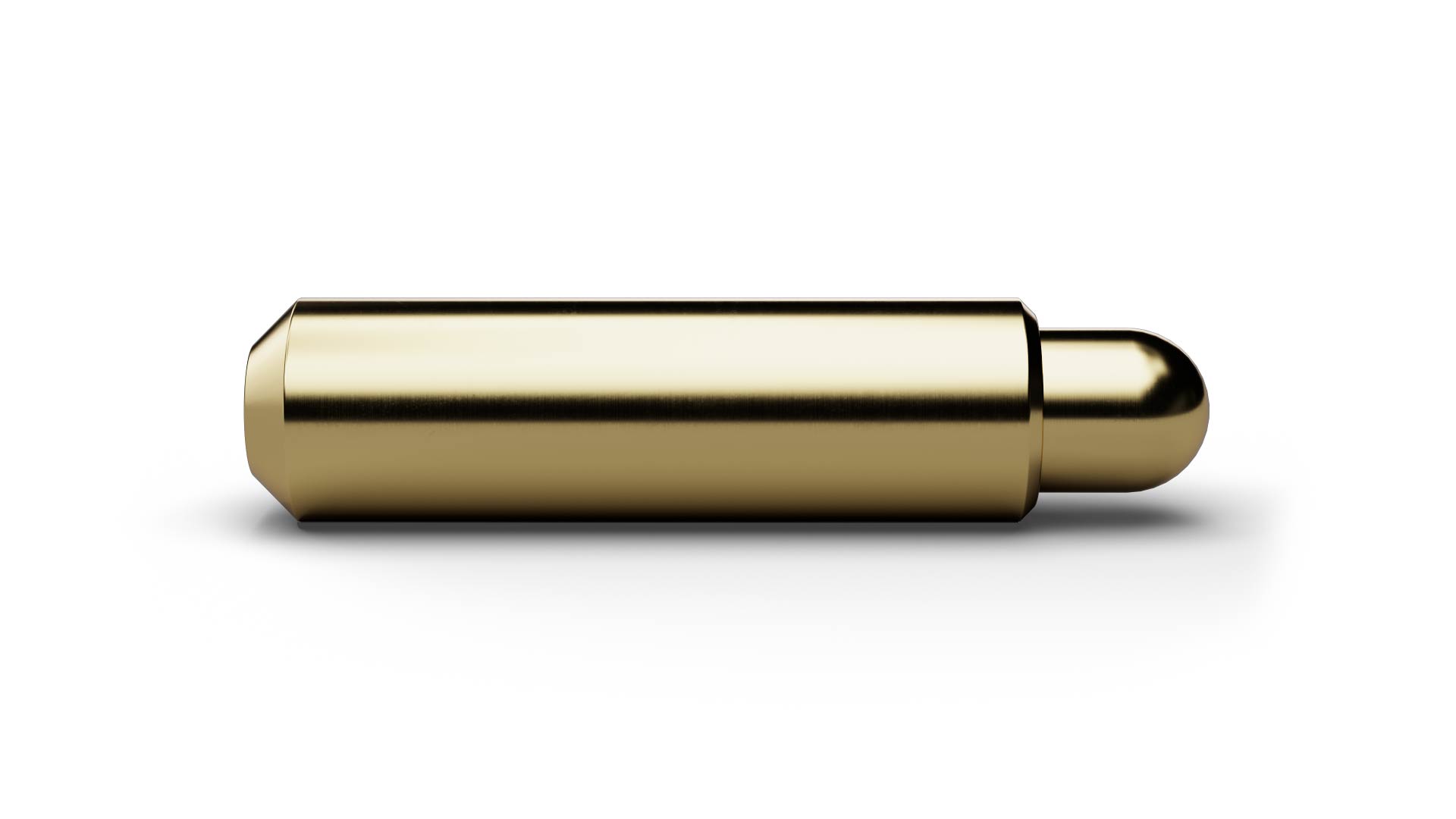

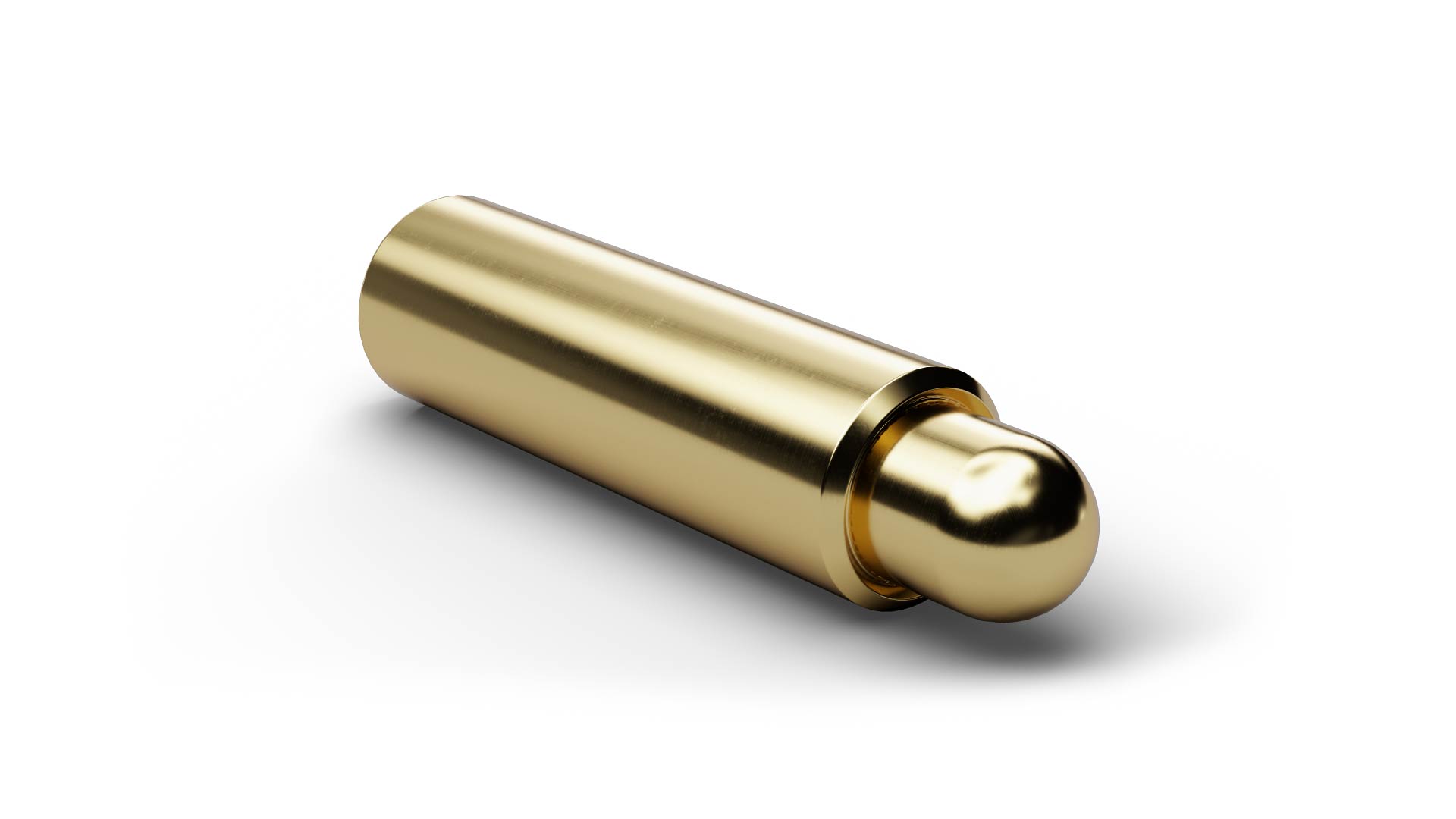

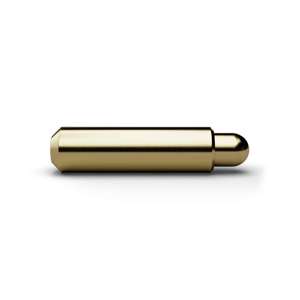

The Pogo Connector P14611B107G070L062NM (item number 1031088) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P14611B107G070L062NM is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P14611B107G070L062NM is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. For a pitch of 2.54 mm / 100 mil, spring force is 70 cN at a nominal travel of 0.5 mm. The probe is rated for 10 A continuous current with a typical contact resistance of 60 mΩ. Tip style 11 (Spherical) has a diameter of 1.07 mm.
