Technical data
| General | |
|---|---|

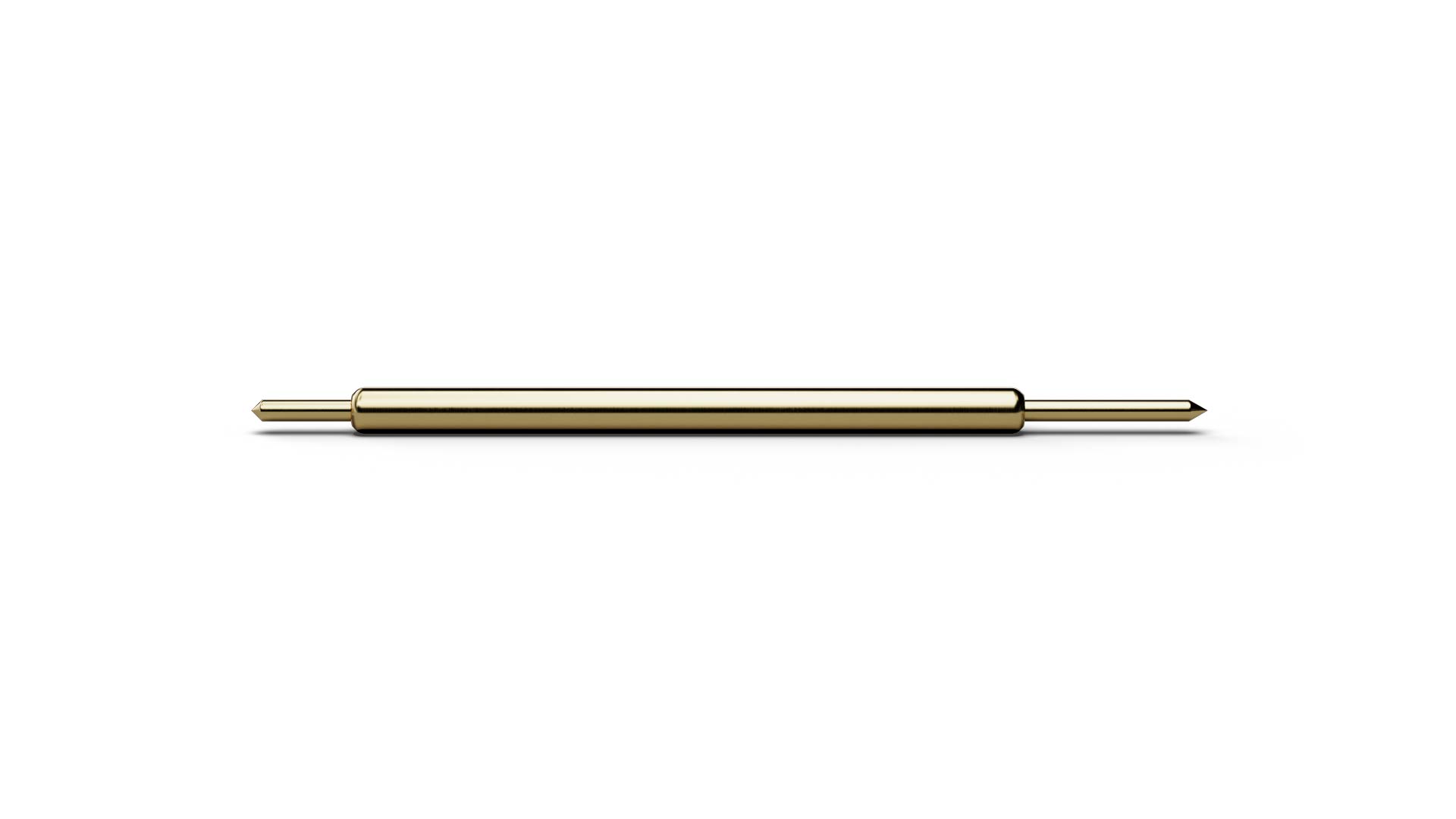

| Structure | Double Plunger Probe |
| Type/family | FP-D |
| Pitch (mm/mil) | 0,35 / 14 |
| Temperature | -45°C...+120°C |

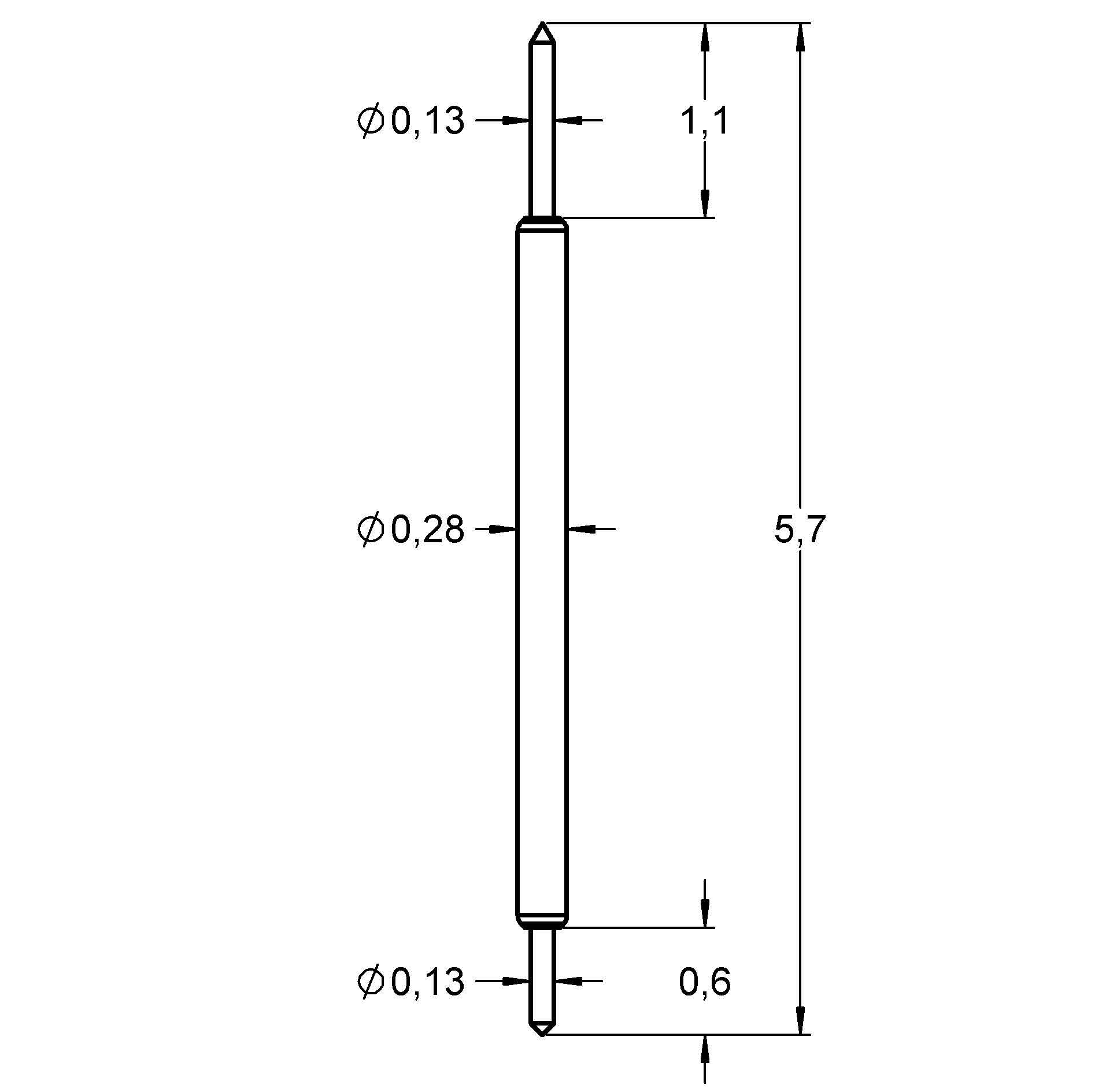

| Dimensions | |
|---|---|
| Total length (mm) | 5.7 |
| Protrusion height (mm) | 1.1 |
| Tip style diameter (mm) | 0.13 |
| Barrel diameter (mm) | 0.28 |
| Tip style diameter (mm) 2 | 0.13 |
| Materials and surfaces | |
|---|---|

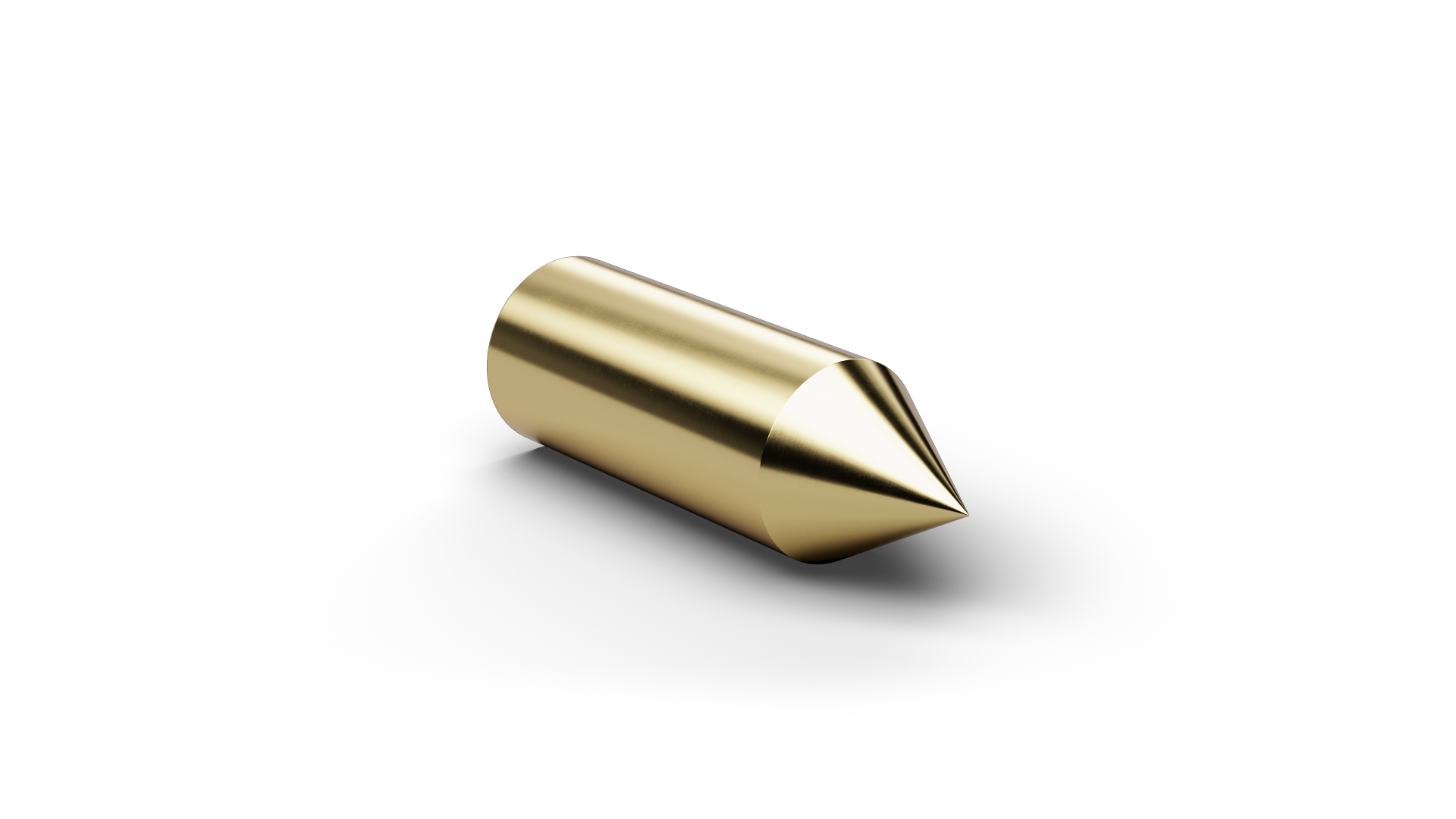

| Tip style | 03 |
| Tip style 2 | 01 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Gold |
| Plunger material 2 | Beryllium copper |
| Plunger plating 2 | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 6 |
| Spring force (cN) | 25 |
| Nominal travel (mm) | 0.5 |
| Maximum travel (mm) | 0.8 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 1.5 |
| Typical contact resistance (mOhm) | 100 |
Graphics
