Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | P-M / P410M-L104 |
| Pitch (mm/mil) | 6,00 / 236 |
| Temperature | -45°C...+200°C |
| Dimensions | |
|---|---|

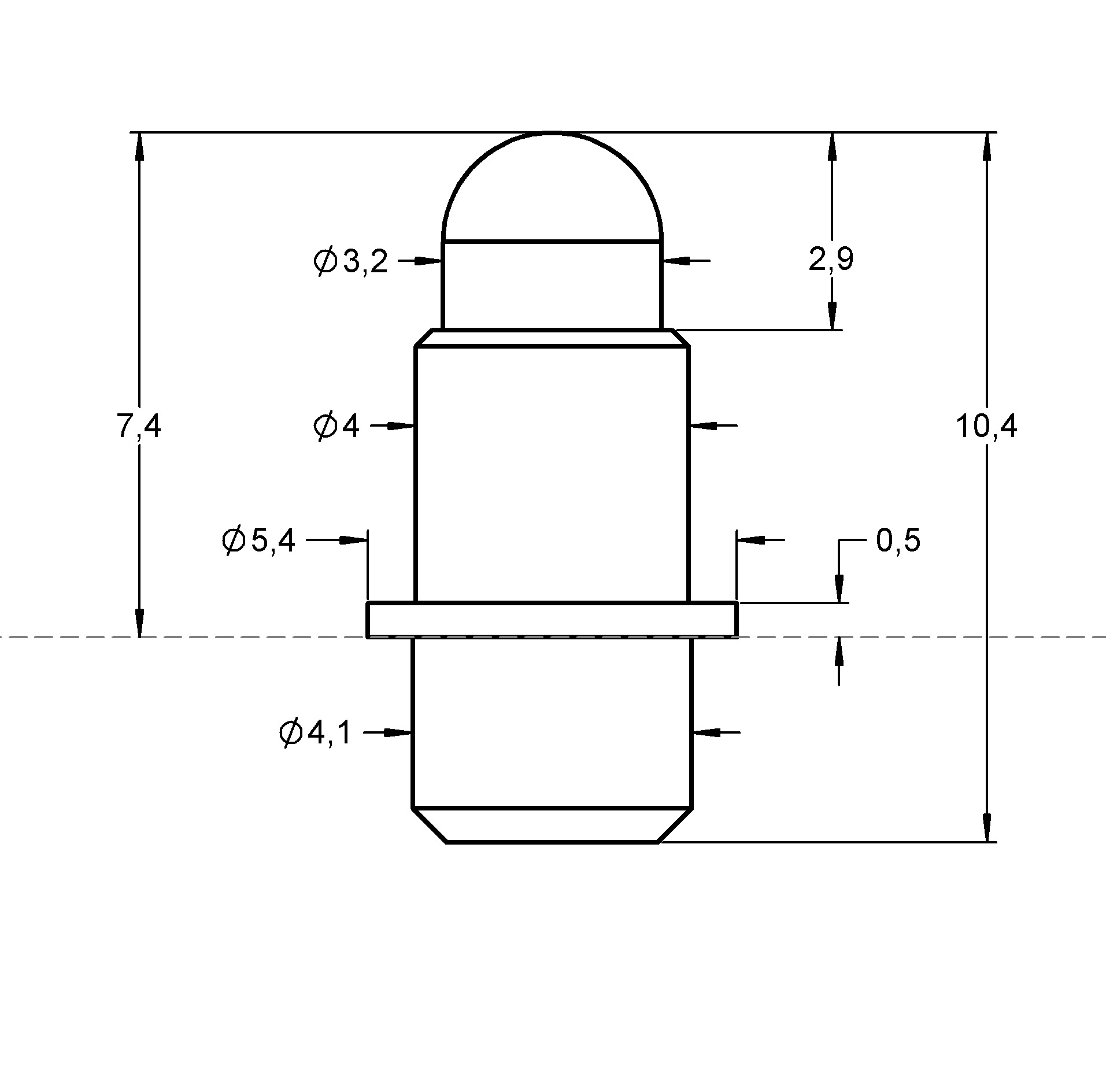

| Total length (mm) | 10.4 |
| Protrusion height (mm) | 7.4 |
| Tip style diameter (mm) | 3.2 |
| Barrel diameter (mm) | 4.1 |
| Collar diameter (mm) | 5.4 |
| Press ring diameter (mm) | 5.4 |
| Materials and surfaces | |
|---|---|
| Tip style | 11 |
| Tip style material | Beryllium copper |
| Tip style plating | Gold |
| Plunger material | Brass |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 150 |
| Spring force (cN) | 300 |
| Nominal travel (mm) | 1.6 |
| Maximum travel (mm) | 2.4 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 10 |
| Typical contact resistance (mOhm) | 30 |
Graphics
Beschreibung des Produkts

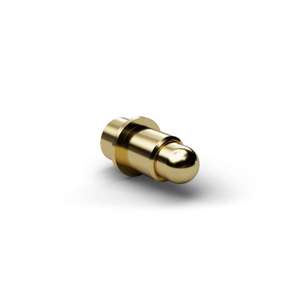

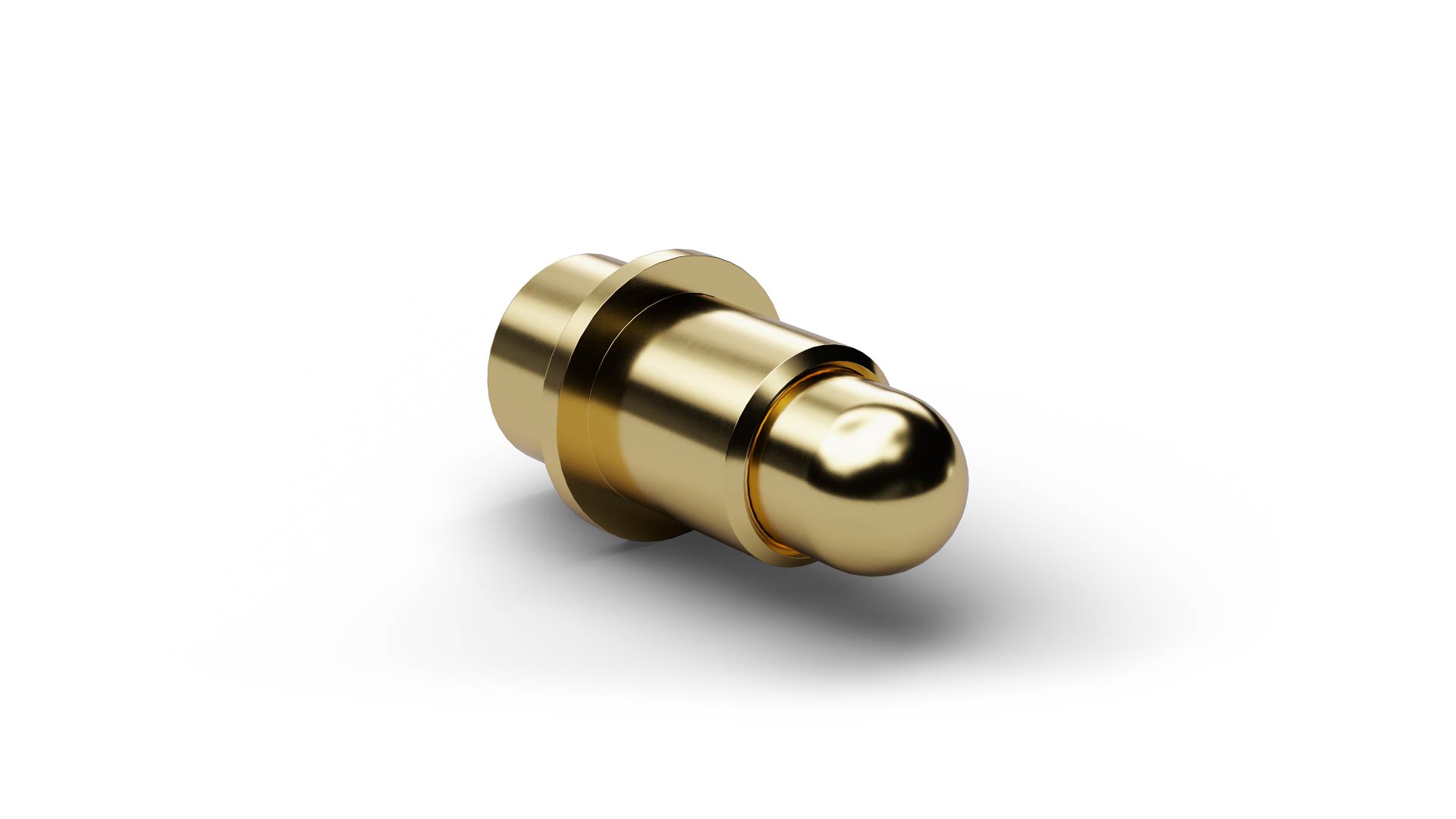

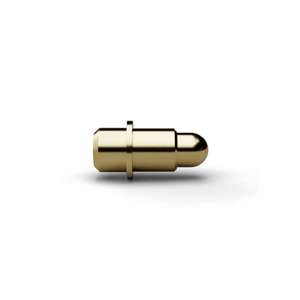

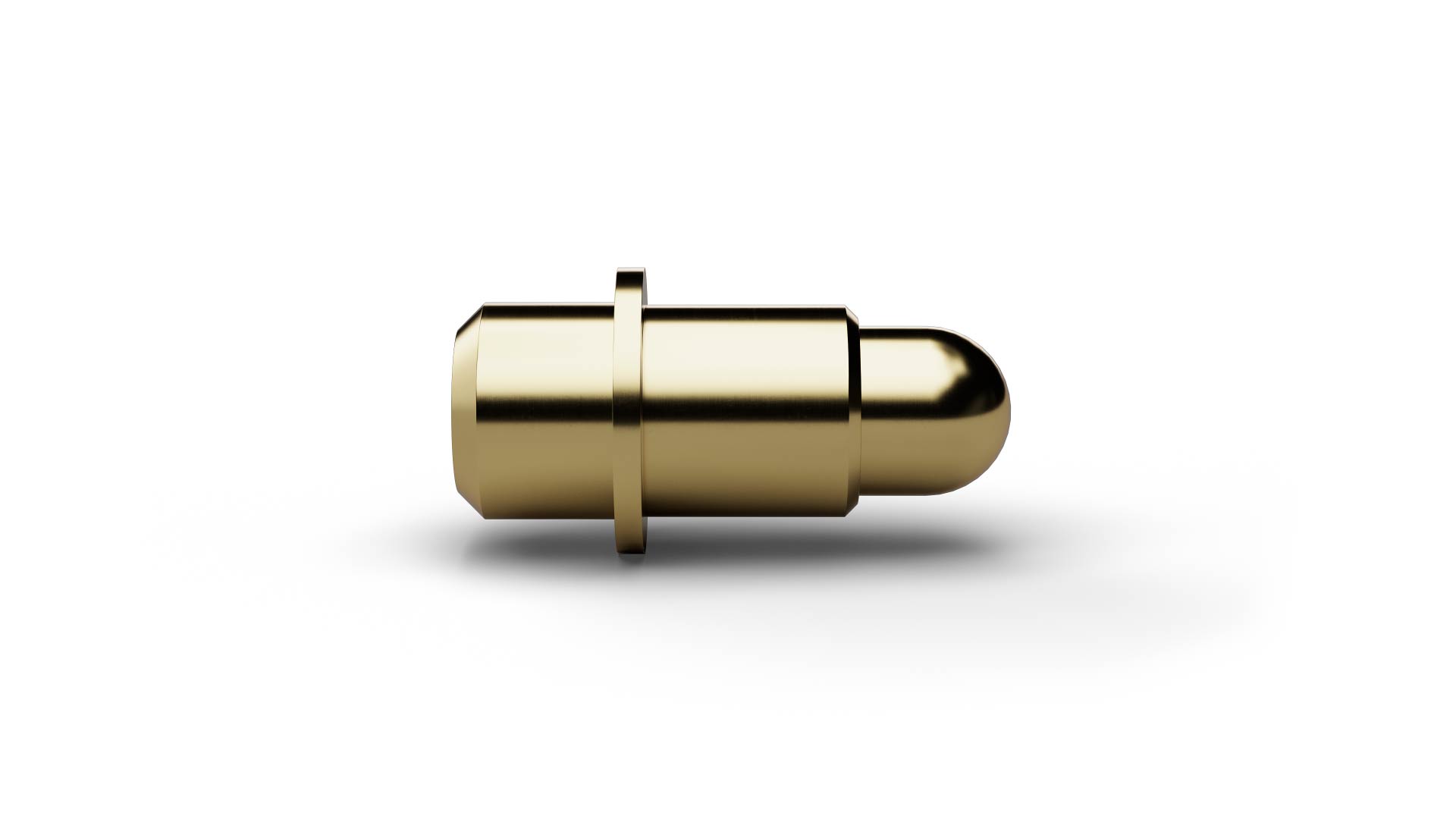

The Pogo Connector P41011M320G300ML104ST (item number 1031194) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P41011M320G300ML104ST is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P41011M320G300ML104ST is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. For a pitch of 6 mm / 236 mil, spring force is 300 cN at a nominal travel of 1.6 mm. P41011M320G300ML104ST is rated for 10 A continuous current with a typical contact resistance of 30 mΩ. Tip style 11 (Spherical) has a diameter of 3.2 mm.
