Home › Products › Product Finder › HP137L100LA

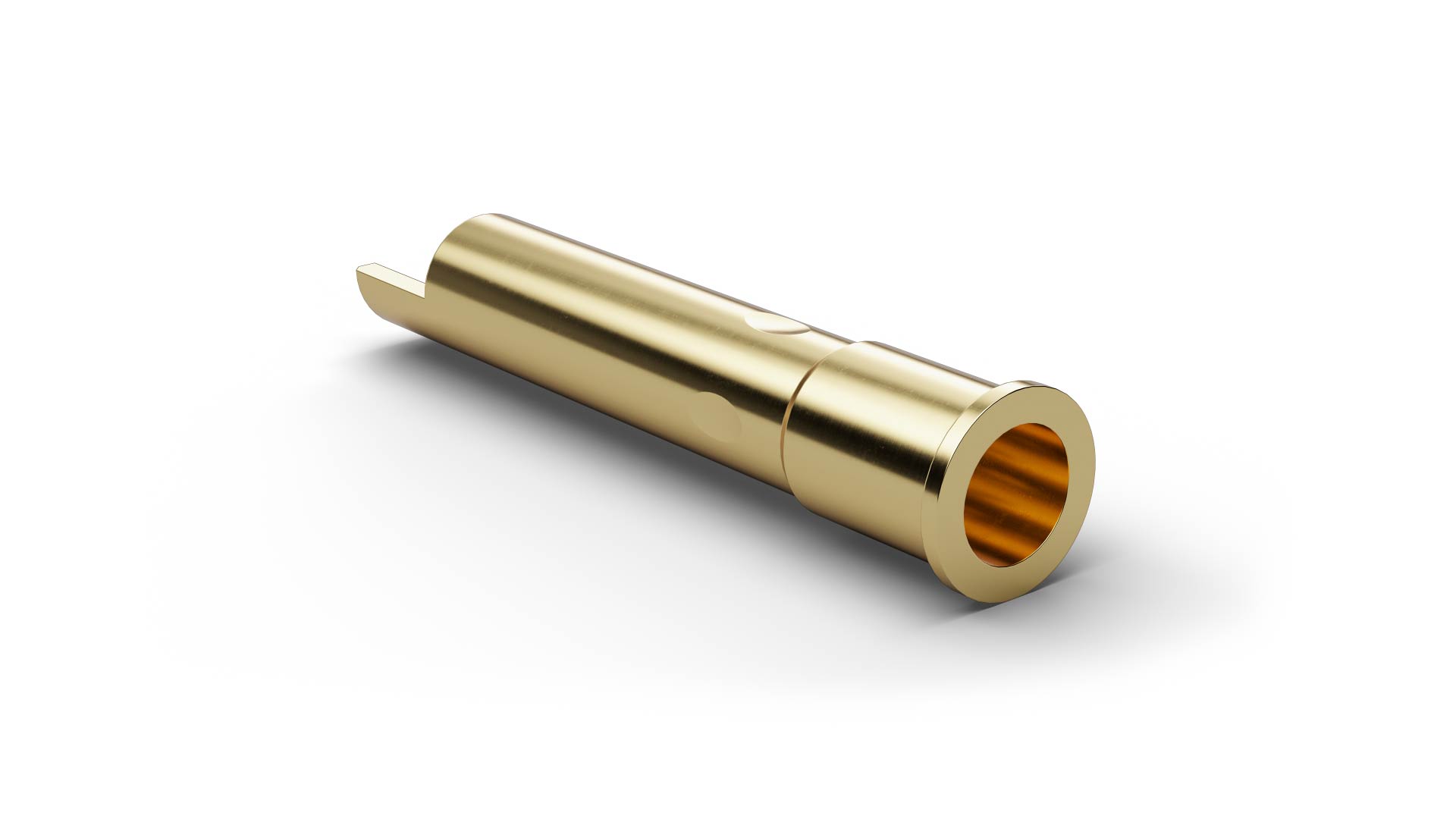

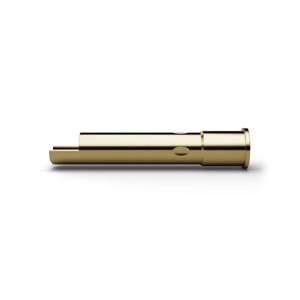

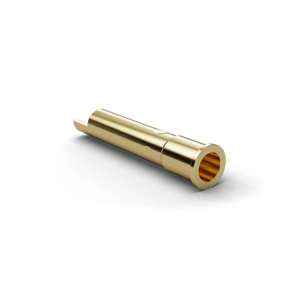

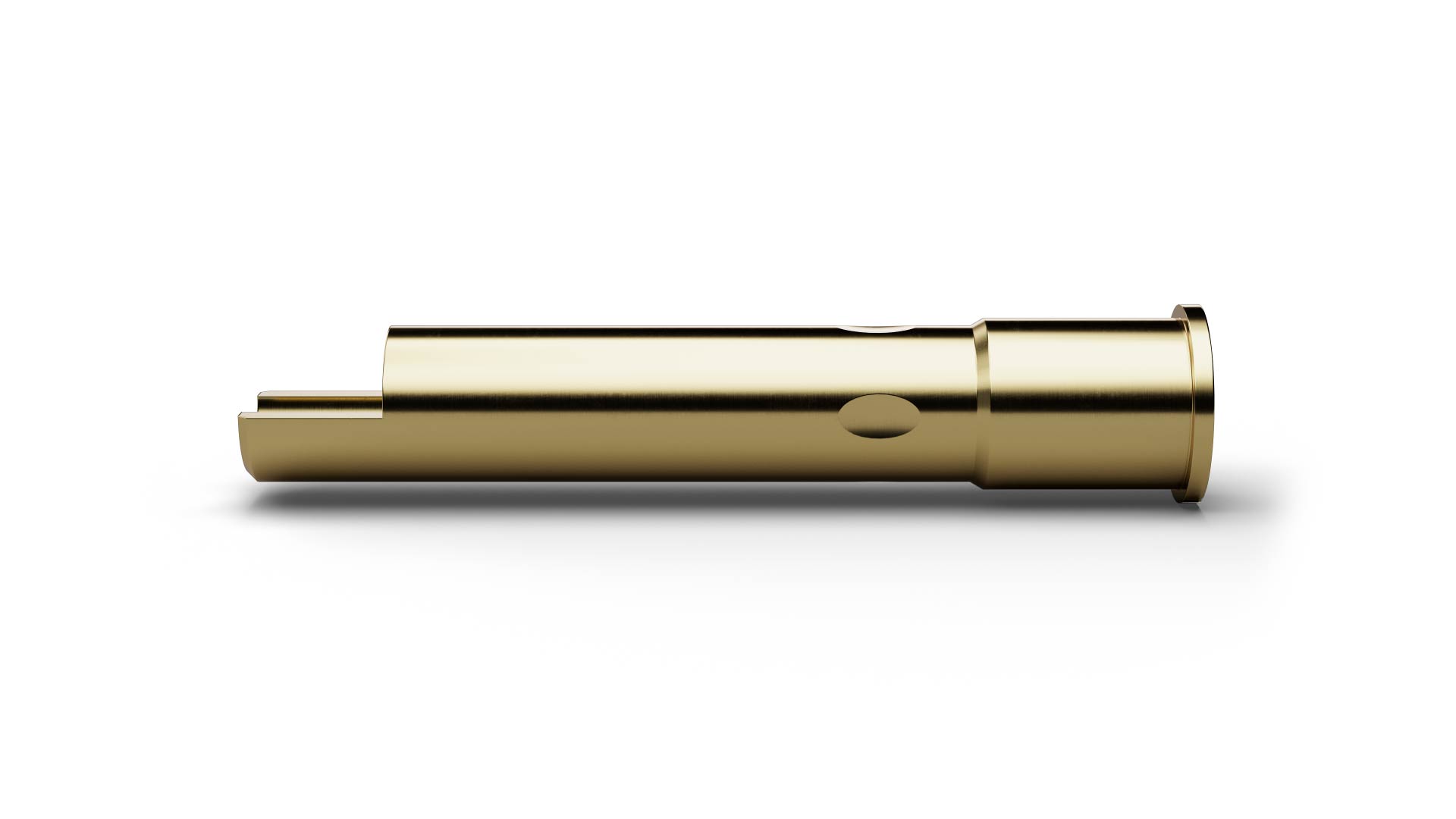

HP137L100LA Perspective 1 HP137L100LA Perspective 2

Pogo Connectors (≤ 2,54mm / 100mil) HP137L100LA

Item number 1032995

Technical data sheet

Quantity

Technical data

General
Type/family P / P137
Pitch (mm/mil) 2,54 / 100
Additional definition Solder tight
Dimensions
Total length (mm) 10
Press ring diameter (mm) 2.1
Outer diameter (mm) 1.81
Collar height (mm) 0.2
Materials and surfaces
Material, Coating Brass, Gold
Mechanical specifications
Connection Solder Connection
Electrical specifications
Continuous current (A) 3

Graphics

HP137L100LA Family designation

Beschreibung des Produkts

The receptacle HP137L100LA (item number 1032995) guides and positions the compatible Pogo Connector in a defined location within the fixture or contacting assembly. HP137L100LA uses a solder-tight construction for the specified installation concept. The electrical connection of HP137L100LA uses a solder connection. Key installation dimensions are outside diameter 1.81 mm, length 10 mm. The Receptacle HP137L100LA is designed for a pitch of 2.54 mm / 100 mil. The Receptacle HP137L100LA is made of brass and is gold-plated.
