Technical data
| General | |
|---|---|
| Type/family | HCB280 |
| Temperature | -45°C...+200°C |
| Additional definition | D |
| Dimensions | |
|---|---|
| Total length (mm) | 75 |
| Protrusion height (mm) | 5 |
| Tip style diameter (mm) | 1.8 |
| Materials and surfaces | |
|---|---|
| Tip style | 6 |
| Tip style 2 | 29 |
| Tip style material | Beryllium copper |
| Tip style plating | Gold |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Block material | Aluminium |
| Block plating | Silver |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Plunger material 2 | Beryllium copper |
| Plunger plating 2 | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 7000 |
| Spring force (cN) | 24500 |
| Nominal travel (mm) | 4 |
| Maximum travel (mm) | 5 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 600 |
Graphics
Beschreibung des Produkts

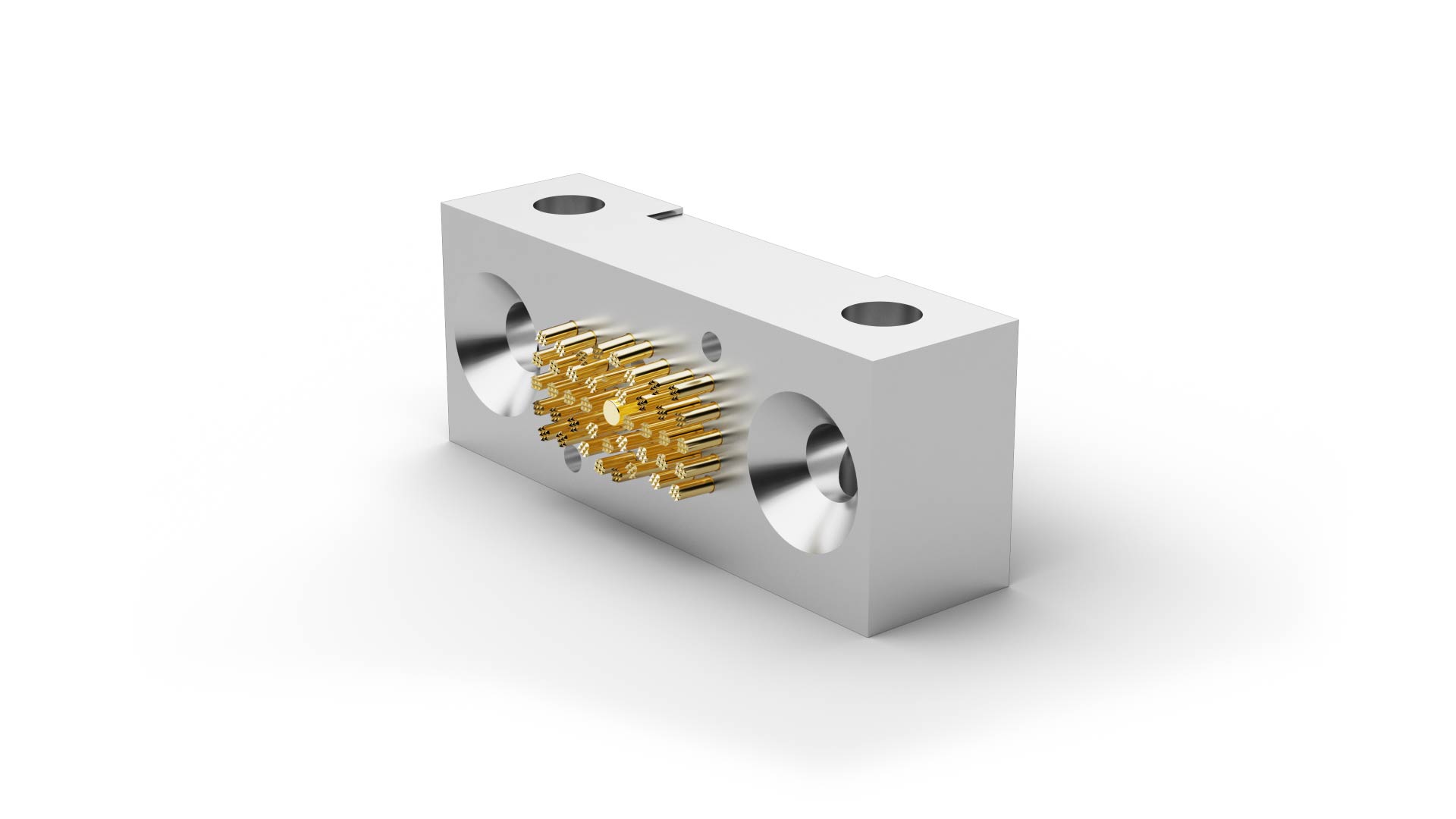

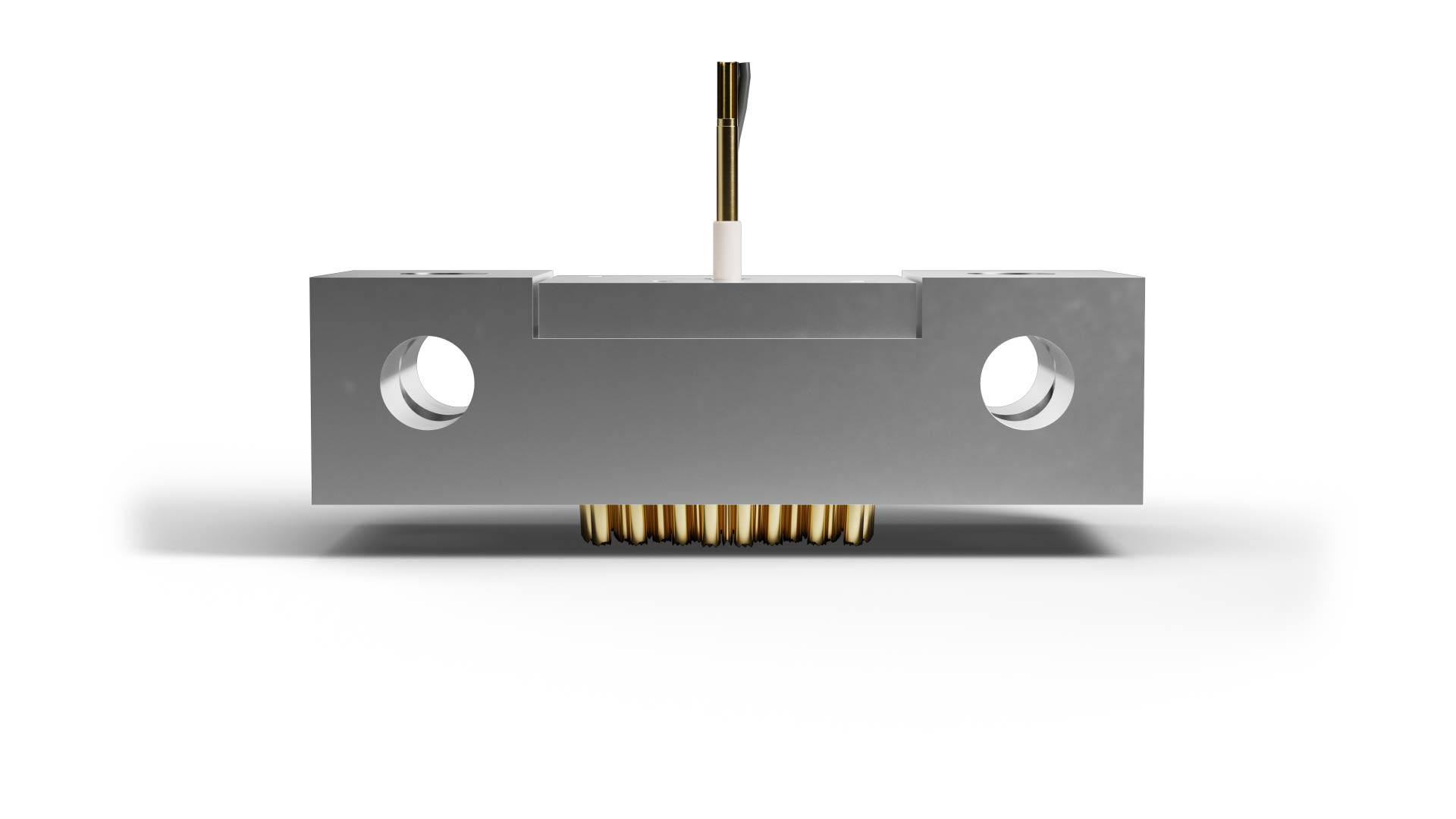

The High Current Block HCB280D6ALS245NTC (item number 1033725) is a connection element for test setups carrying high electrical currents. HCB280D6ALS245NTC focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. In HCB280D6ALS245NTC, the block design integrates robust current contacting into a defined interface; current rating, contact resistance and thermal conditions are central to fixture design. The intended application area for HCB280D6ALS245NTC includes battery contacting. The continuous-current rating of HCB280D6ALS245NTC is 600 A. HCB280D6ALS245NTC operates with 24500 cN spring force and 4 mm nominal travel.
