Technical data
| General | |
|---|---|
| Type/family | HCB056 |
| Temperature | -45°C...+200°C |
| Additional definition | B |
| Dimensions | |
|---|---|
| Total length (mm) | 44.2 |
| Protrusion height (mm) | 10.3 |
| Tip style diameter (mm) | 1 |
| Materials and surfaces | |
|---|---|
| Tip style | 29 |
| Tip style 2 | 18 |
| Tip style material | Beryllium copper |
| Tip style plating | Gold |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Block material | Brass |
| Block plating | Silver |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Plunger material 2 | Steel |
| Plunger plating 2 | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 50 |
| Spring force (cN) | 980 |
| Nominal travel (mm) | 4 |
| Maximum travel (mm) | 5 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 50 |
| Typical contact resistance (mOhm) | 3 |
Graphics
Beschreibung des Produkts

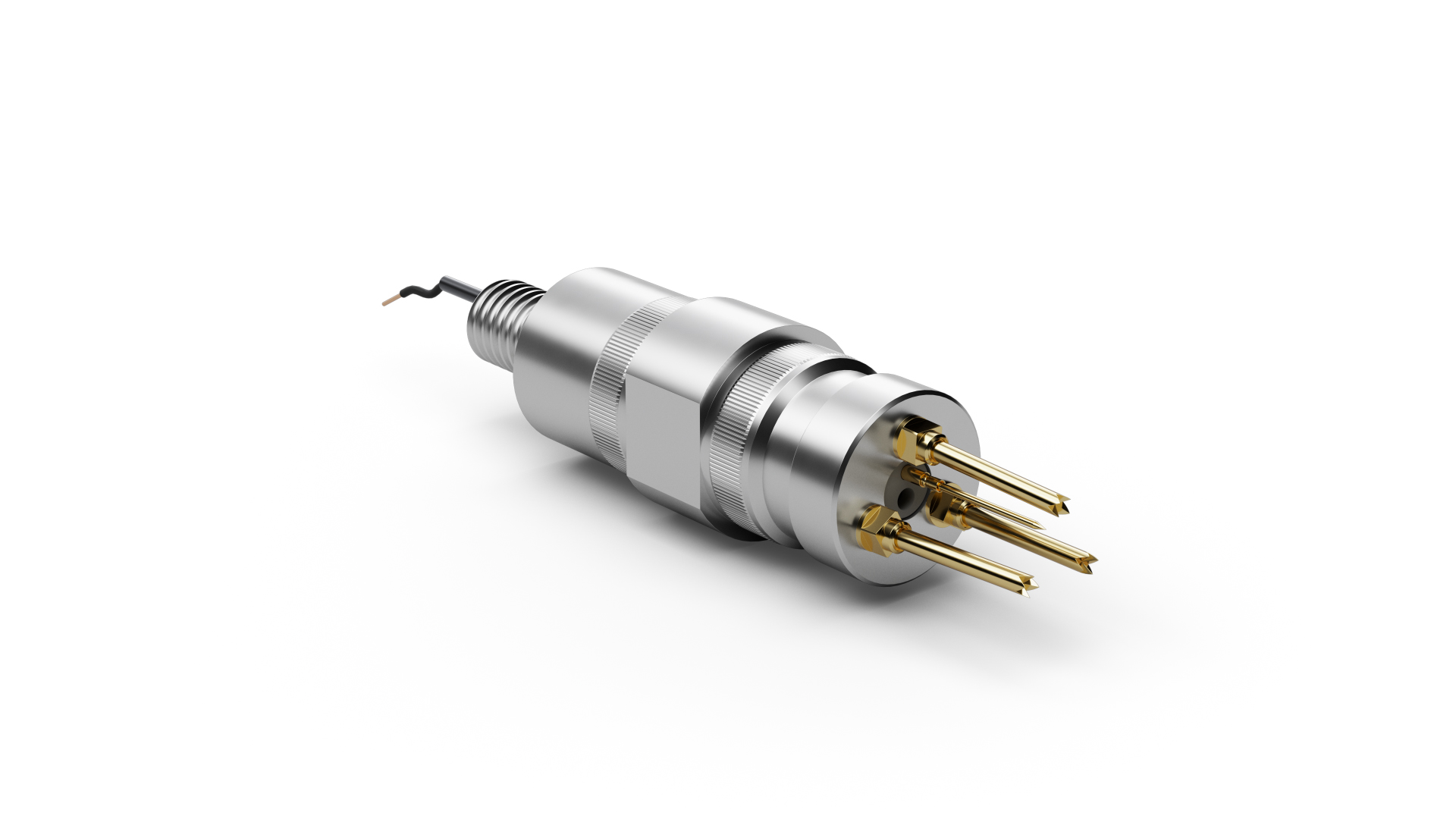

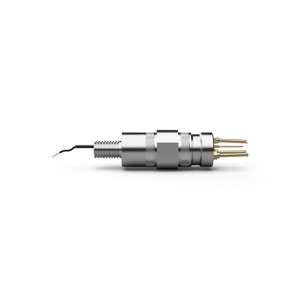

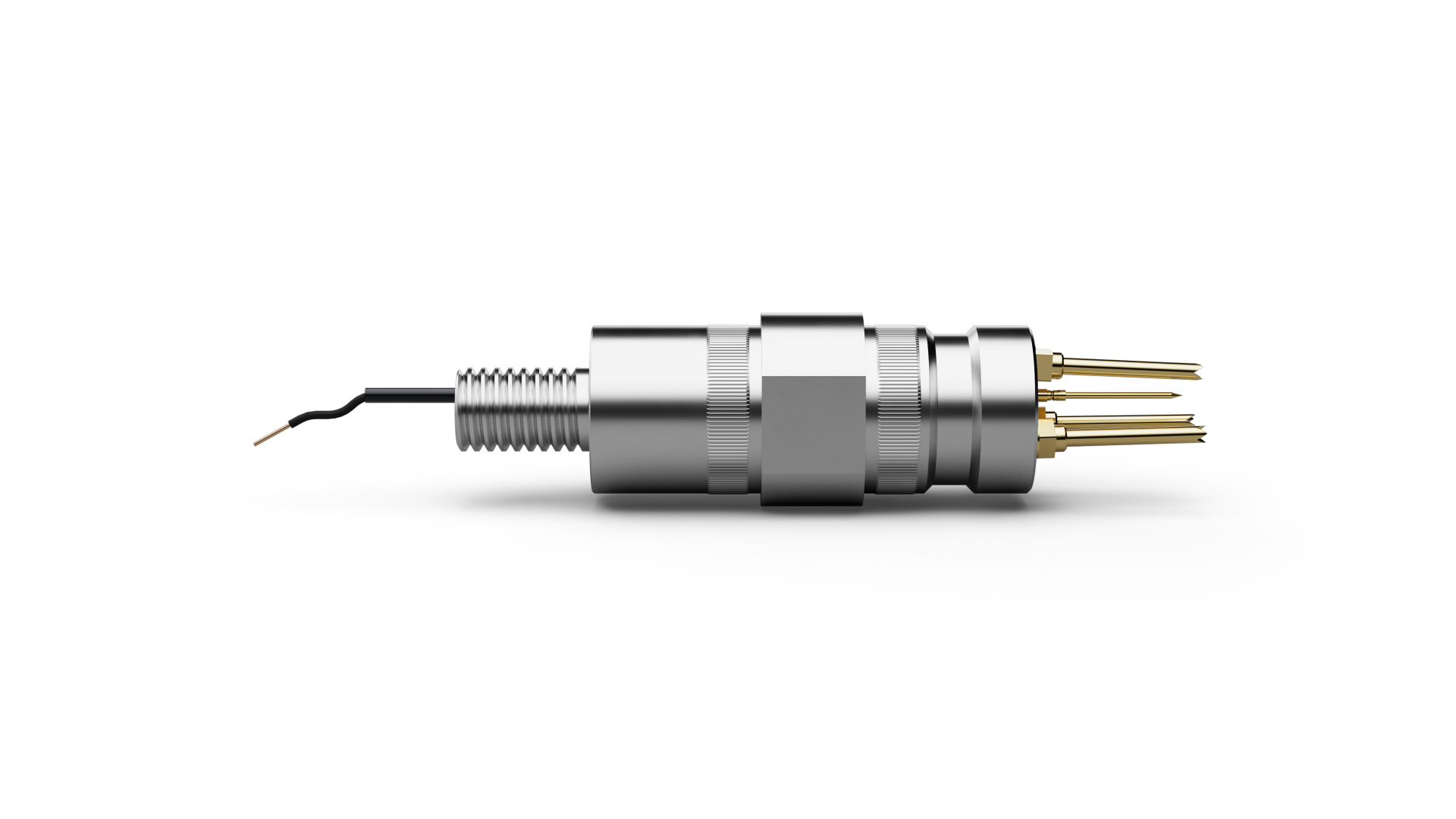

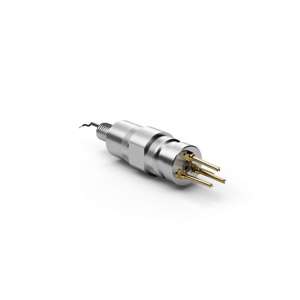

The High Current Block HCB056B29MS9 (item number 1034104) is a connection element for test setups carrying high electrical currents. HCB056B29MS9 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. In HCB056B29MS9, the block design integrates robust current contacting into a defined interface; current rating, contact resistance and thermal conditions are central to fixture design. The intended application area for HCB056B29MS9 includes battery contacting. The continuous-current rating of HCB056B29MS9 is 50 A. Spring force is 980 cN at a nominal travel of 4 mm.
