Technical data
| General | |
|---|---|
| Structure | Step Probe |
| Type/family | F703SP |
| Pitch (mm/mil) | 1,90 / 75 |
| Temperature | -45°C...+100°C |
| Additional definition | SP |

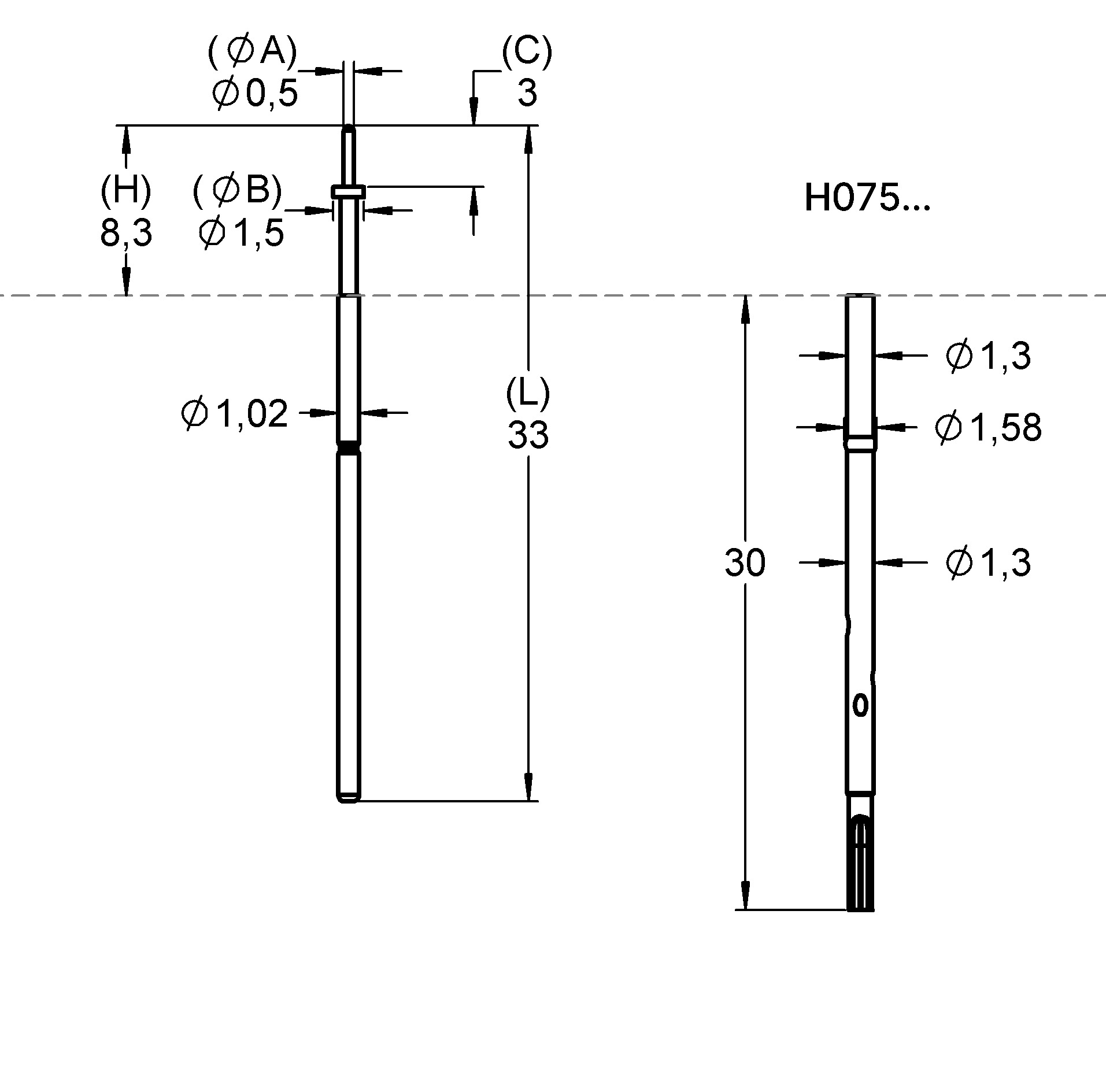

| Dimensions | |
|---|---|
| Total length (mm) | 33 |
| Protrusion height (mm) | 8.3 |
| Tip style diameter (mm) | 0.5 |
| Barrel diameter (mm) | 1.02 |
| A – pin diameter (mm) | 0.5 |
| B – plate diameter (mm) | 1.5 |
| C – pin length (mm) | 3 |
| Materials and surfaces | |
|---|---|

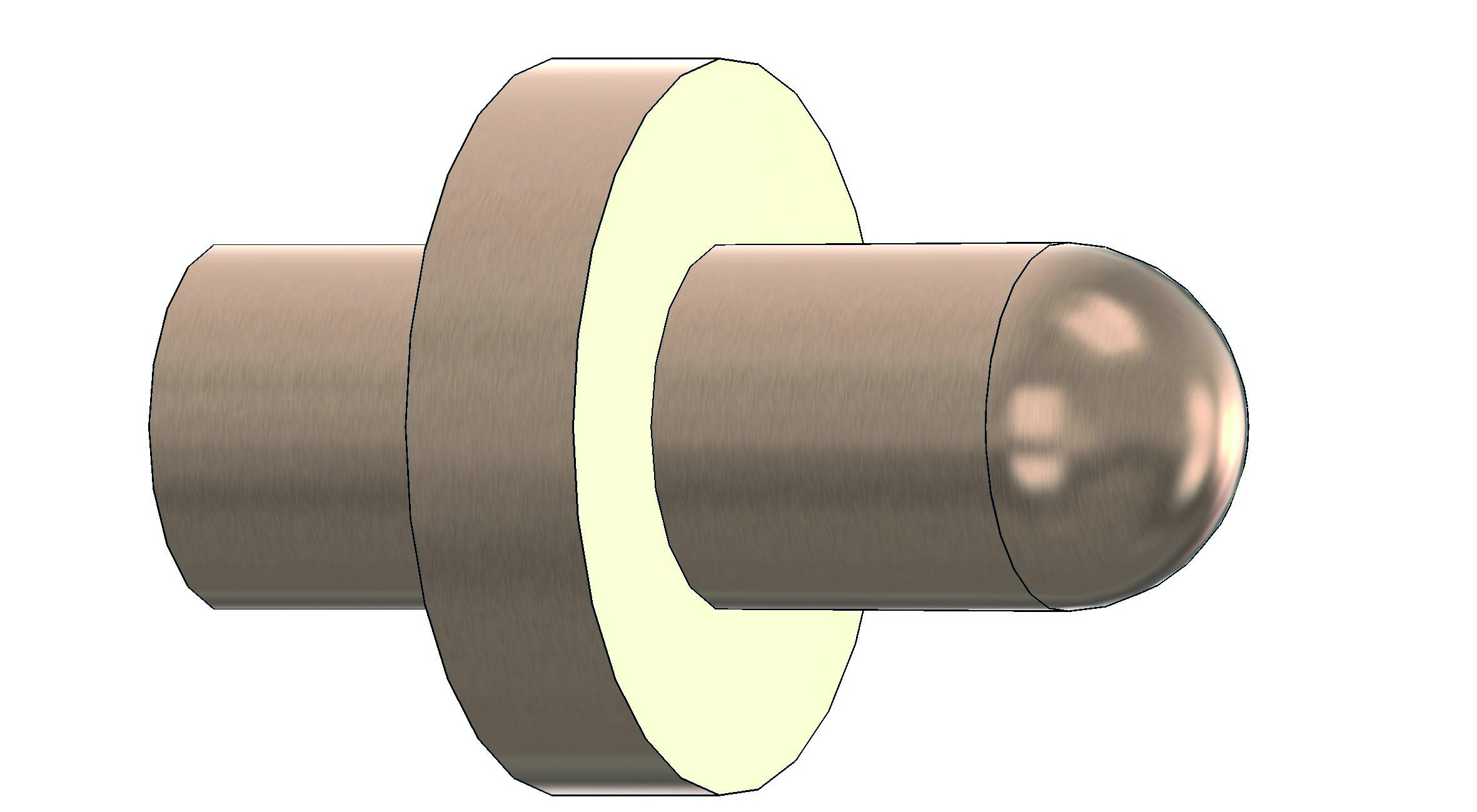

| Tip style | 11 |
| Plunger material | Beryllium copper |
| Plunger plating | Rhodium |
| Barrel material | Nickel silver |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 50 |
| Spring force (cN) | 80 |
| Nominal travel (mm) | 3 |
| Maximum travel (mm) | 4.5 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 4 |
| Typical contact resistance (mOhm) | 30 |
Graphics
Beschreibung des Produkts
For contact points inside housings and recesses, F70311B0001R080BSP (item number 1035714) uses a flat plate head at a defined penetration depth. On F70311B0001R080BSP, electrical contact is established only at the intended penetration depth, making the Step Probe suitable for position and presence checks on connectors. On F70311B0001R080BSP, contact geometry is characterized by pin diameter 0.5 mm, plate diameter 1.5 mm, pin length 3 mm. For a pitch of 1.9 mm / 75 mil, spring force is 80 cN at a nominal travel of 3 mm. The continuous-current rating of F70311B0001R080BSP is 4 A. The plunger is made of beryllium copper and is Rhodium-plated.
