Technical data
| General | |
|---|---|
| Type/family | H885 |
| Additional definition | Combi (airtight) |
| Dimensions | |
|---|---|
| Total length (mm) | 38.1 |
| Press ring diameter (mm) | 3.2 |
| Outer diameter (mm) | 3 |
| Diameter of knurling (mm) | 3.06 |
| Collar height (mm) | 0.2 |
| Materials and surfaces | |
|---|---|
| Material, Coating | Brass, Gold |
| Mechanical specifications | |
|---|---|
| Thread | 2,5 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 1 |
Graphics
Beschreibung des Produkts

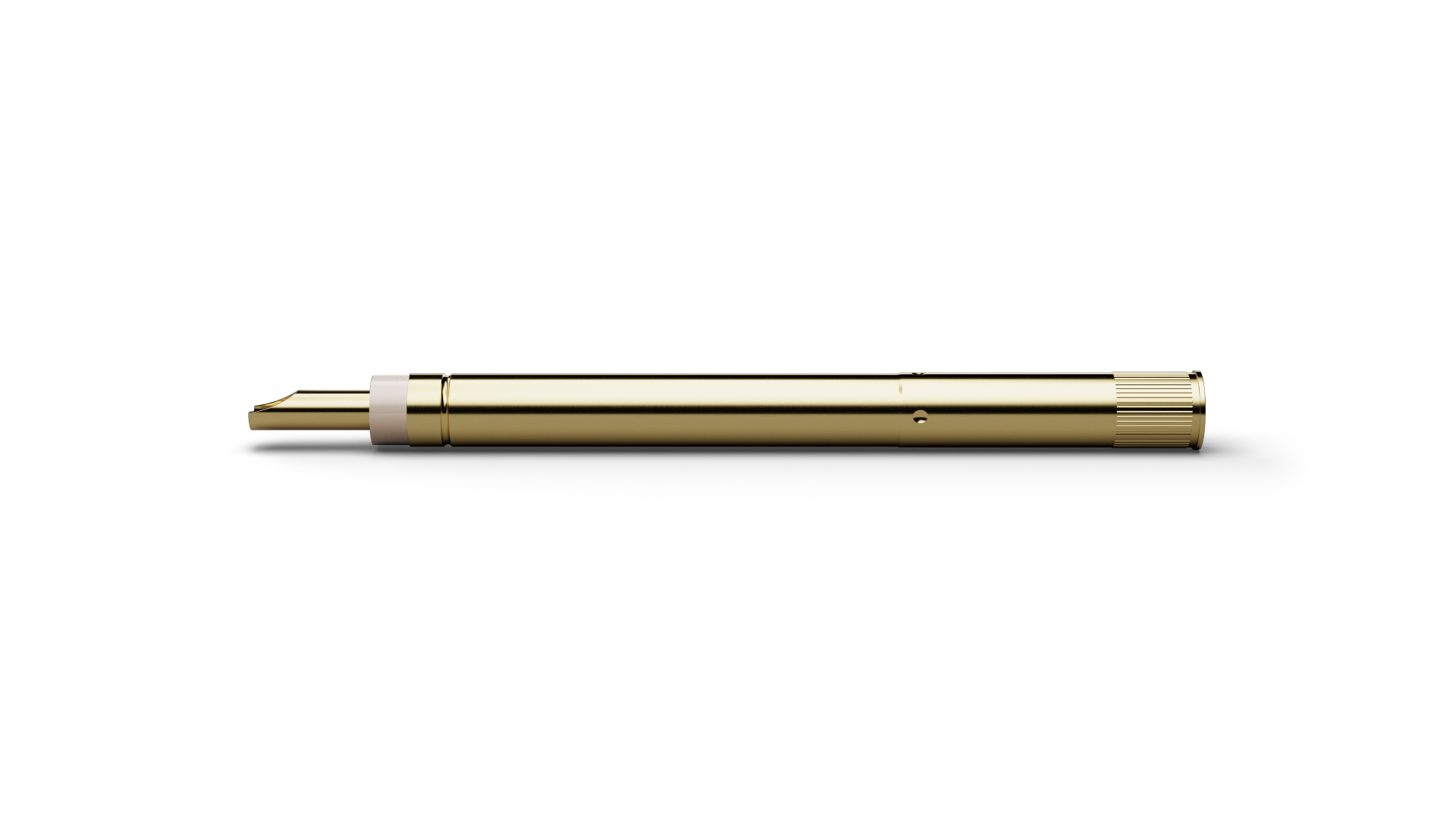

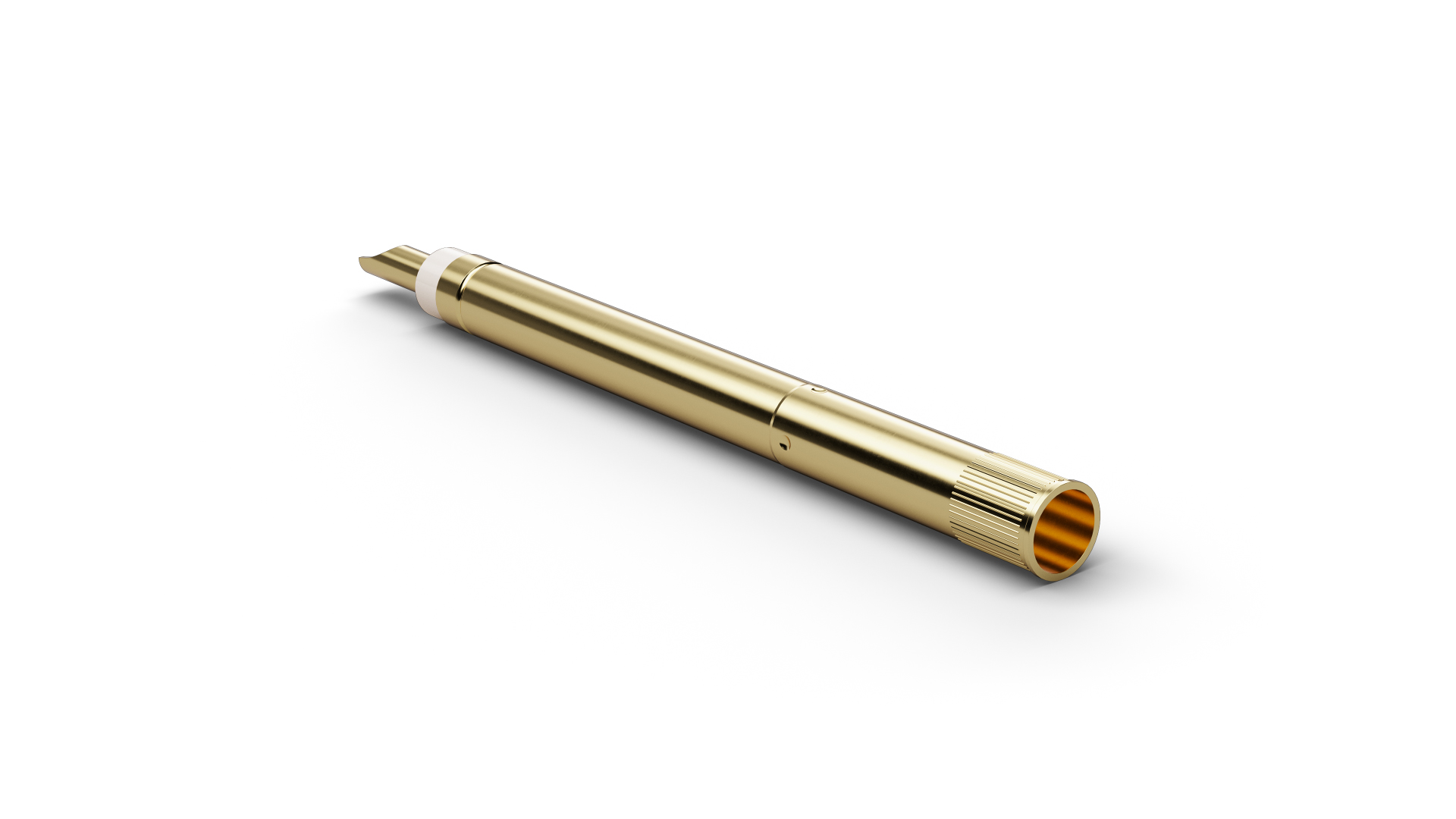

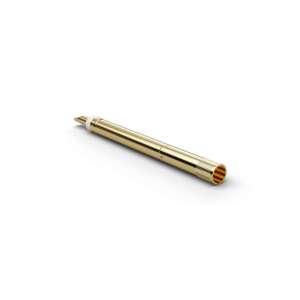

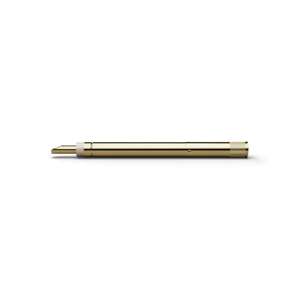

The receptacle H885KBAT (item number 1037131) is designed for the compatible Switch Probe in the test fixture. As a Receptacle, H885KBAT guides and positions the matching Contact Probe; depending on the design, the Receptacle can also provide electrical connection or insulation and supports controlled probe replacement during maintenance. When selecting H885KBAT, the matching probe family, installation dimensions and any required connection or insulation design should be considered together.
