Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | P / P067-L114 |
| Pitch (mm/mil) | 1,27 / 50 |
| Temperature | -45°C...+100°C |
| Additional definition | S1 |
| Dimensions | |
|---|---|
| Total length (mm) | 11.4 |
| Protrusion height (mm) | 2.2 |
| Tip style diameter (mm) | 0.48 |
| Barrel diameter (mm) | 0.67 |
| Materials and surfaces | |
|---|---|
| Tip style | 11 |
| Plunger material | Steel |
| Plunger plating | Longtime Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 50 |
| Spring force (cN) | 75 |
| Nominal travel (mm) | 0.8 |
| Maximum travel (mm) | 1.2 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 4 |
| Typical contact resistance (mOhm) | 70 |

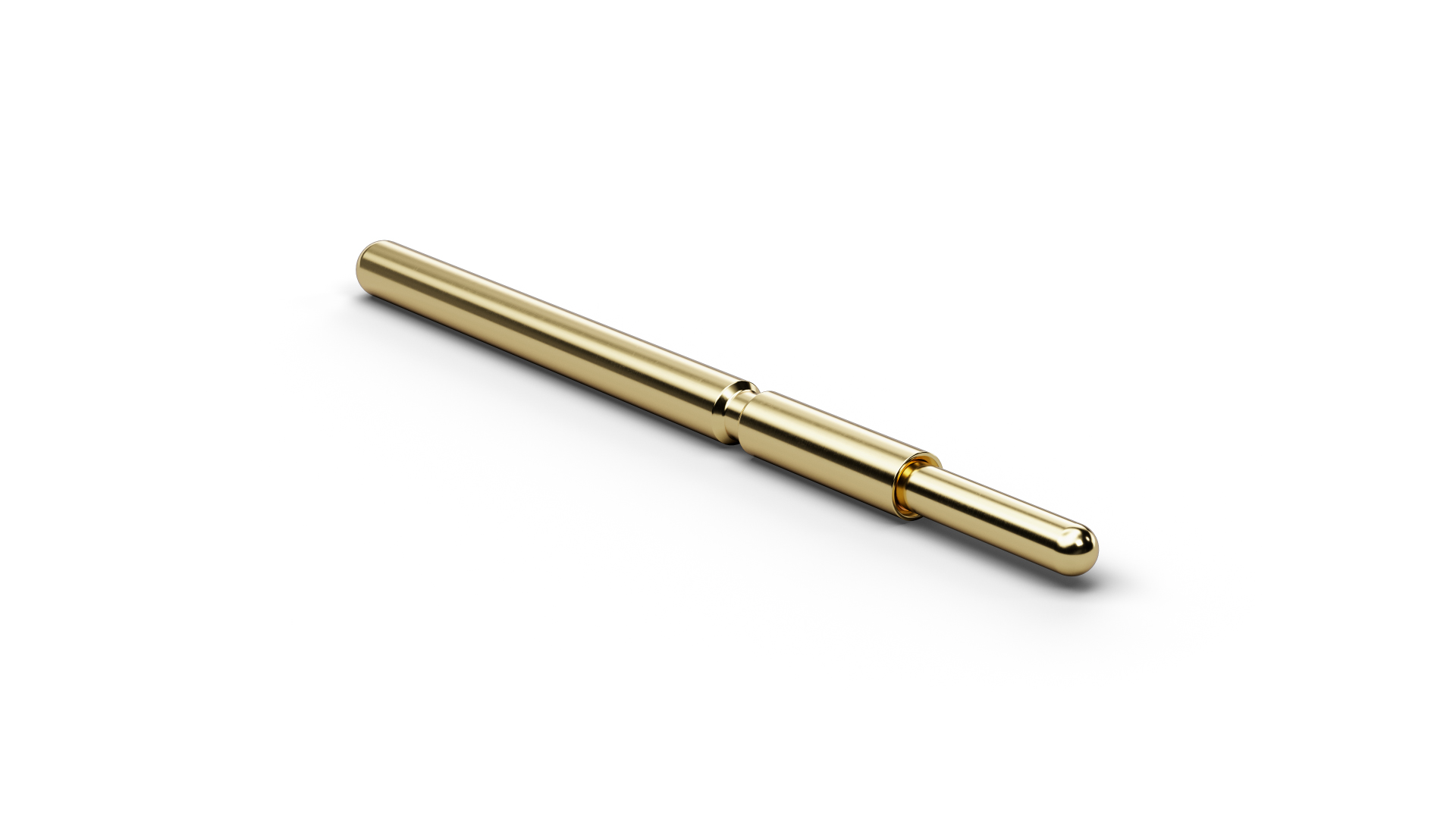

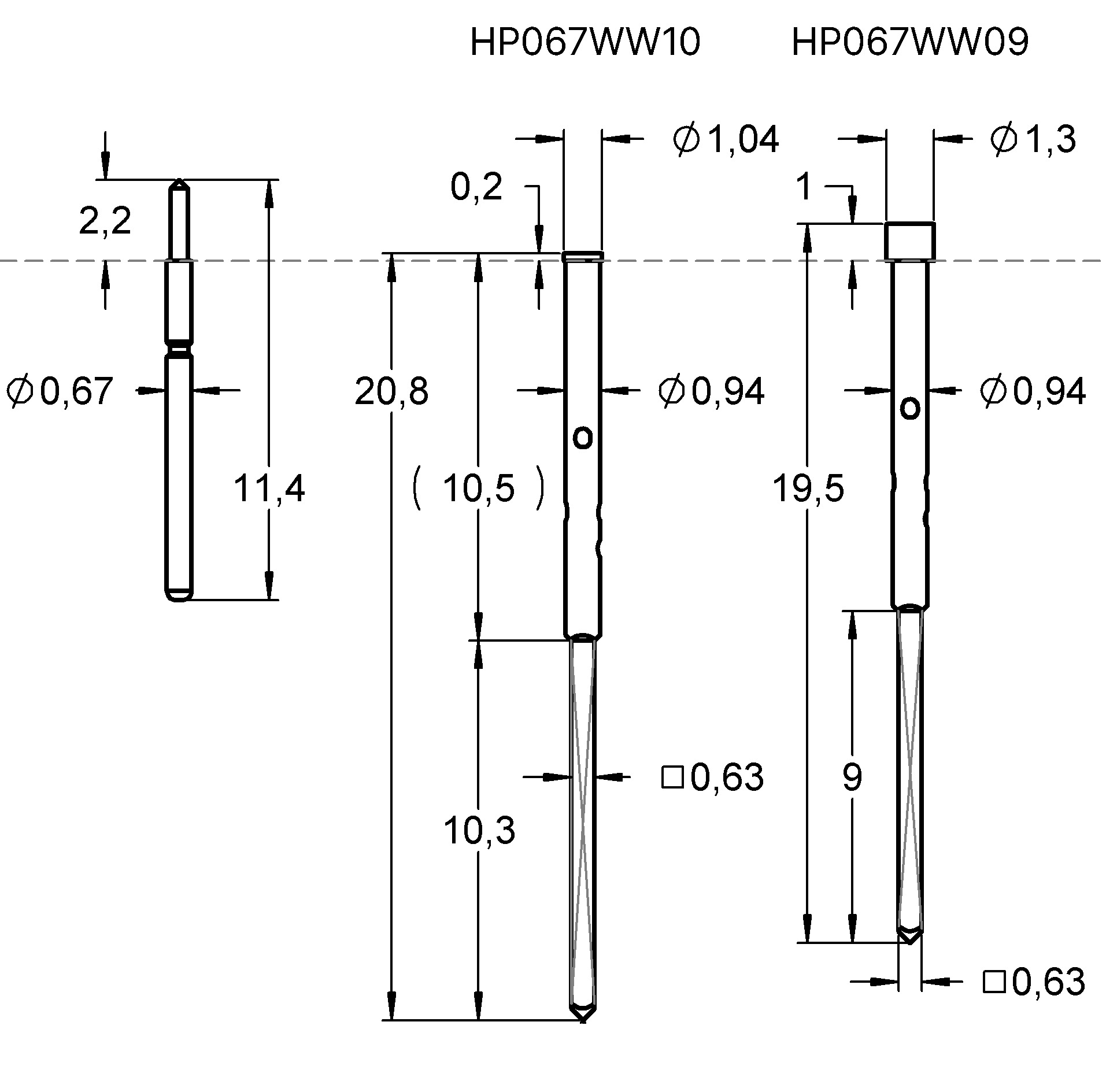

Graphics
Beschreibung des Produkts
The Pogo Connector P06711S048L075L114 (item number 1037886) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P06711S048L075L114 is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P06711S048L075L114 is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. The design combines a pitch of 1.27 mm / 50 mil with tip style 11 (Spherical) and a tip diameter of 0.48 mm. P06711S048L075L114 operates with 75 cN spring force and 0.8 mm nominal travel. The continuous-current rating of P06711S048L075L114 is 4 A.
