Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | P-T / P165T-L126 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+200°C |
| Additional definition | S1 |

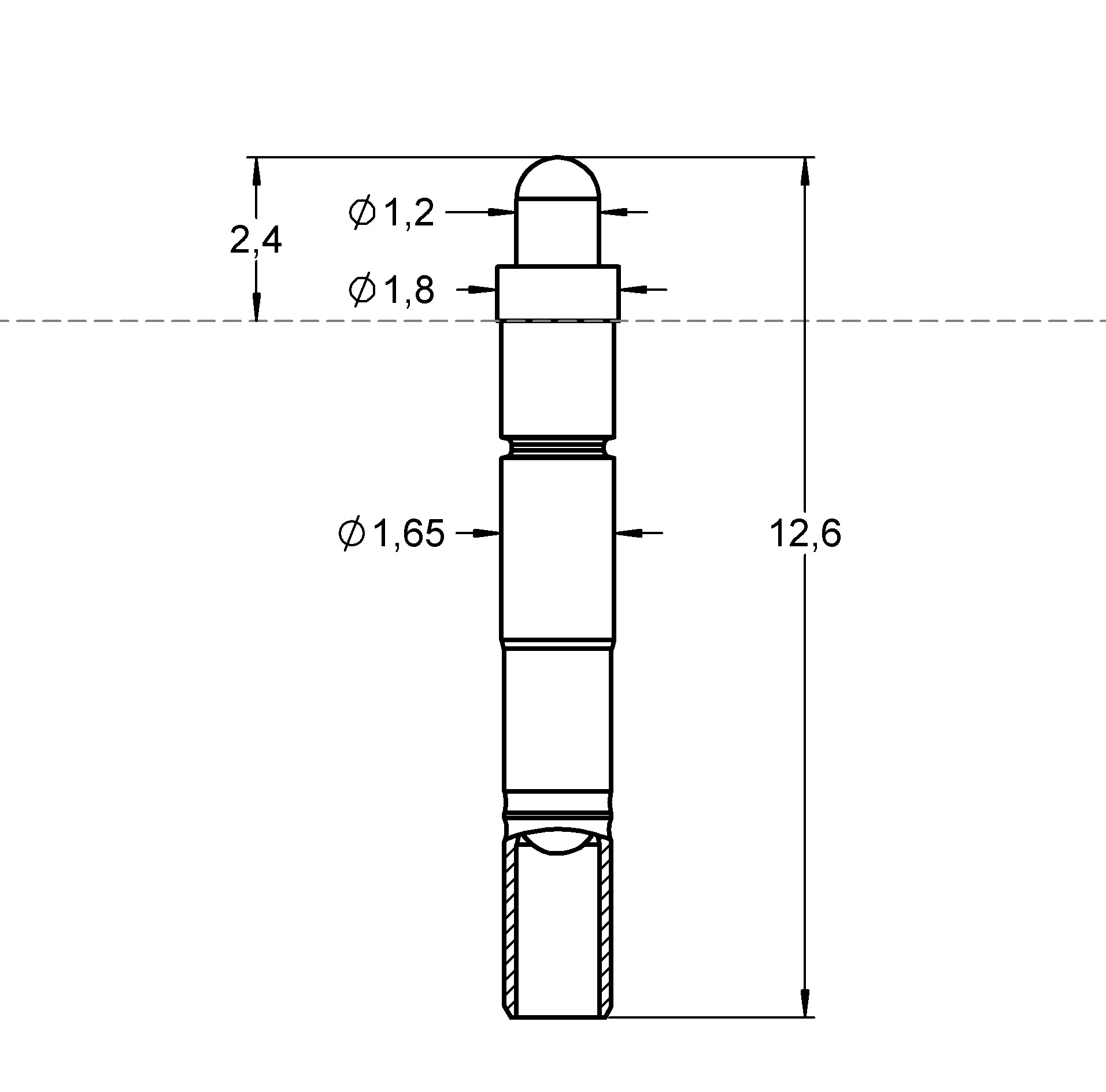

| Dimensions | |
|---|---|
| Total length (mm) | 12.6 |
| Protrusion height (mm) | 2.4 |
| Tip style diameter (mm) | 1.2 |
| Barrel diameter (mm) | 1.65 |
| Collar diameter (mm) | 1.78 |
| Press ring diameter (mm) | 1.78 |
| Materials and surfaces | |
|---|---|
| Tip style | 01 |
| Plunger material | Steel |
| Plunger plating | Longtime Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 40 |
| Spring force (cN) | 75 |
| Nominal travel (mm) | 1.3 |
| Maximum travel (mm) | 1.6 |
| Pointing accuracy +/- (mm) | 0.08 |
| Connection | Crimp Connection |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 12 |
| Typical contact resistance (mOhm) | 30 |
Graphics
Beschreibung des Produkts

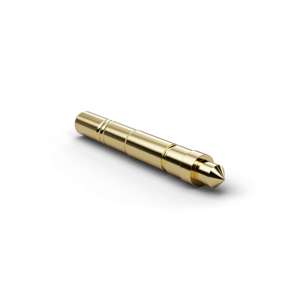

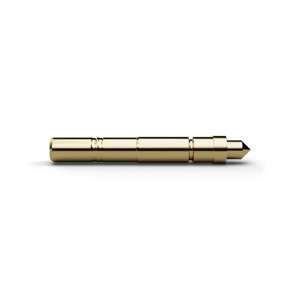

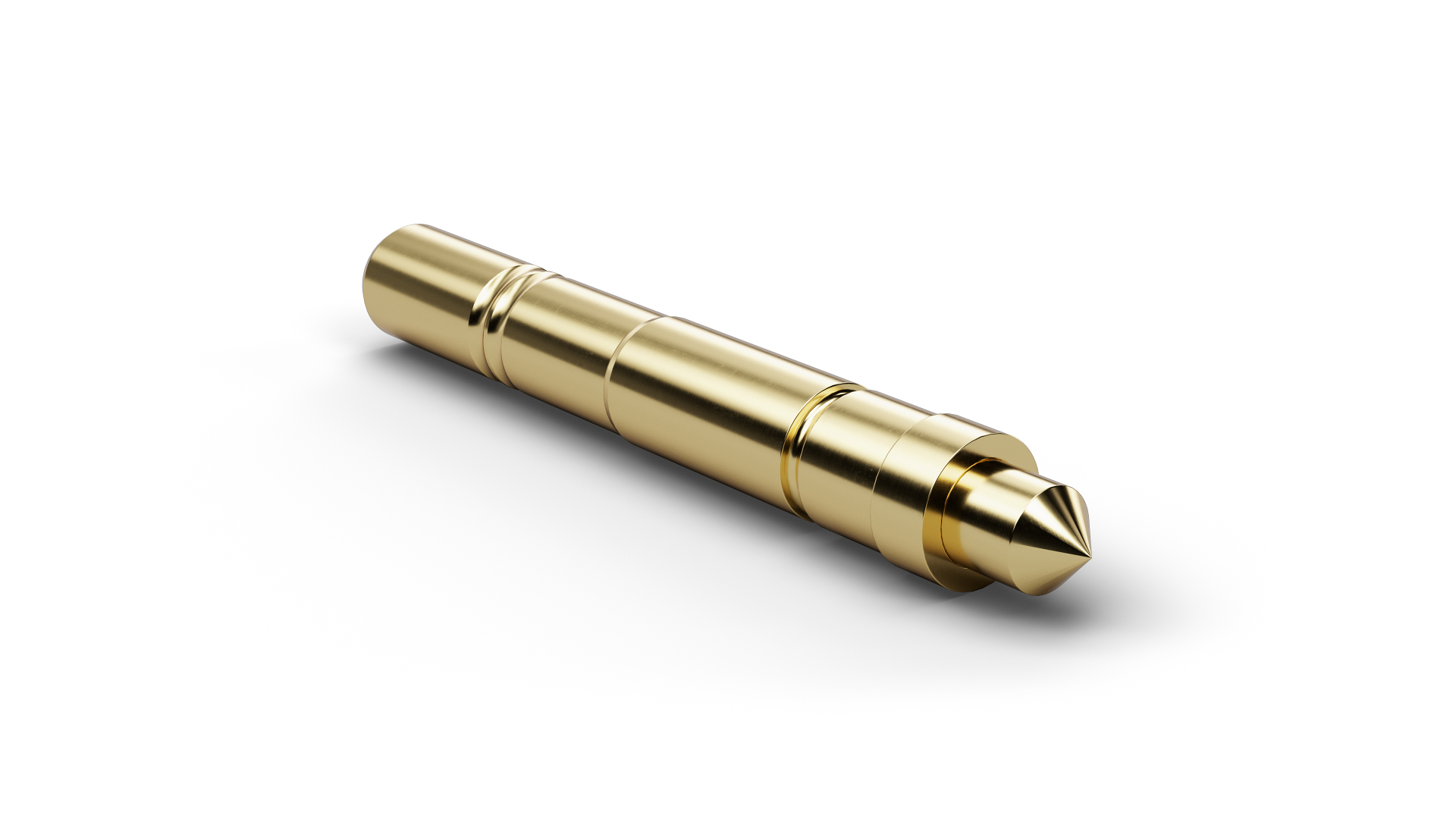

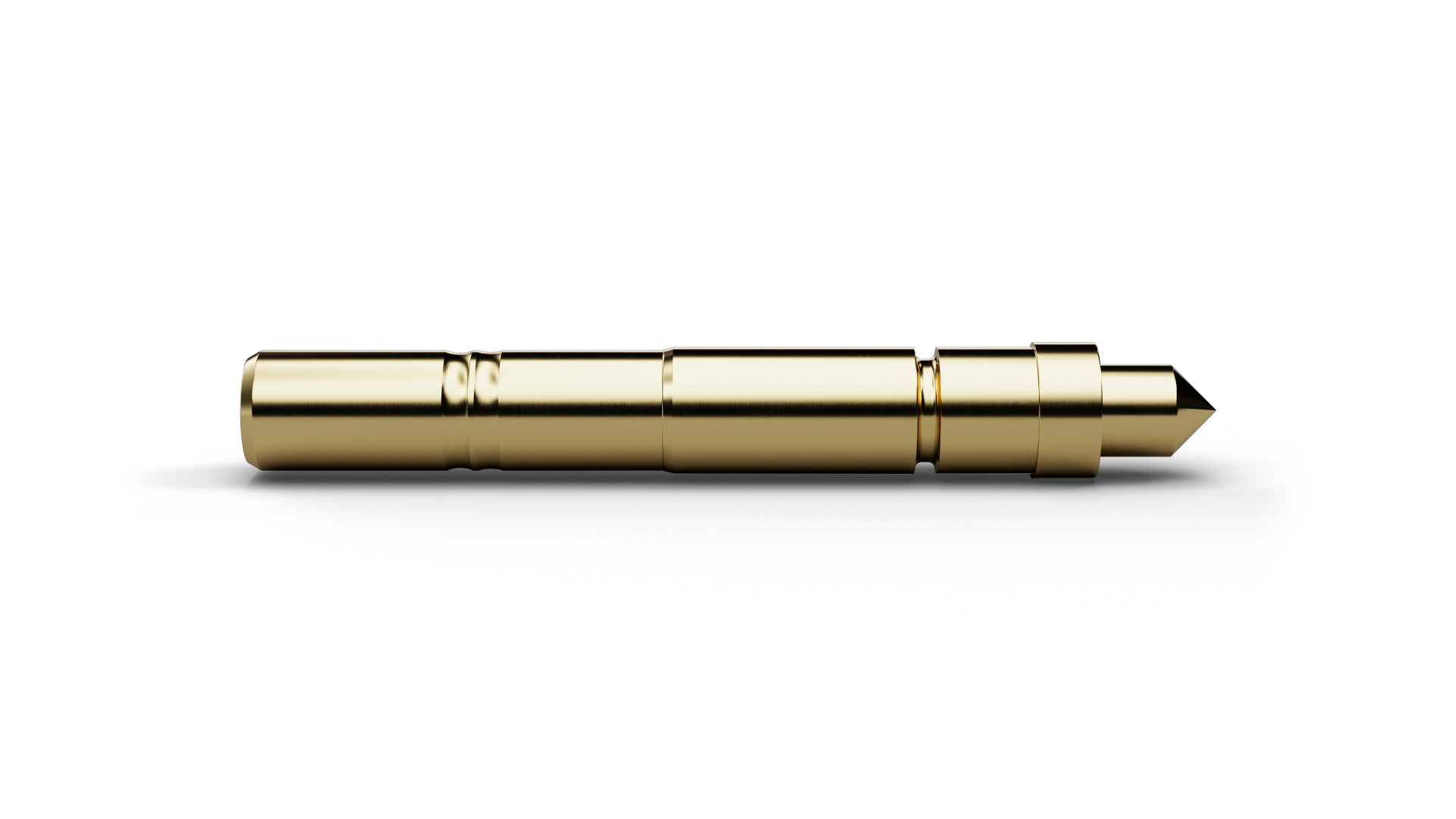

The Pogo Connector P16501S120L075TL126CRS1 (item number 1038813) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P16501S120L075TL126CRS1 is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P16501S120L075TL126CRS1 is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. On P16501S120L075TL126CRS1, a pitch of 2.54 mm / 100 mil is combined with 75 cN spring force and 1.3 mm nominal travel. The probe is rated for 12 A continuous current with a typical contact resistance of 30 mΩ. On P16501S120L075TL126CRS1, tip style 01 (Conical 90°) has a diameter of 1.2 mm.
