Technical data
| General | |
|---|---|
| Structure | Coaxial Probe |
| Type/family | HF77 |
| Pitch (mm/mil) | 4,00 / 157 |
| Temperature | -45°C...+100°C |
| Dimensions | |
|---|---|
| Total length (mm) | 36.1 |
| Tip style diameter (mm) | 0.45 |
| Barrel diameter (mm) | 2.95 |
| Inside/outside distance (mm) | 0.2 |
| Tip style diameter (mm) 2 | 0.45 |
| Materials and surfaces | |
|---|---|
| Tip style | 11 |
| Tip style 2 | 11 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Plunger material 2 | Beryllium copper |
| Plunger plating 2 | Gold |
| Spring material 2 | Spring steel |
| Spring plating 2 | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 130 |
| Connection | Plug |
| DUT | MATE-AX Female 4 Pos |
| Electrical specifications | |
|---|---|
| Impedance (ohm) | 50 |
| Frequency (GHz) | 8 |
| Internal contact specifications | |
|---|---|
| Nominal travel (mm) 2 | 0.5 |
| Maximum travel (mm) 2 | 1.8 |
| Preload (cN) 2 | 95 |
| Spring force (cN) 2 | 120 |

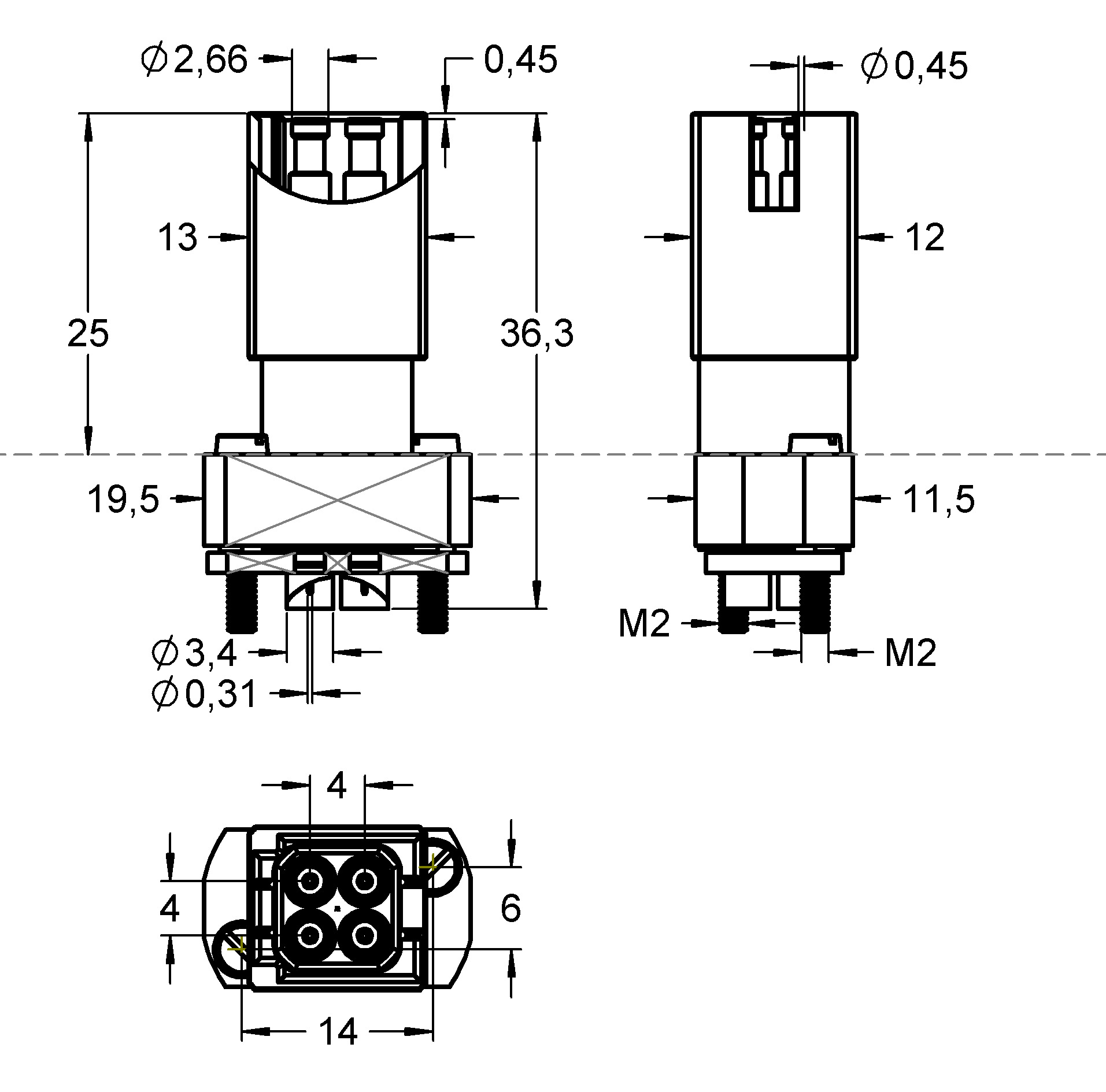

Graphics
Beschreibung des Produkts

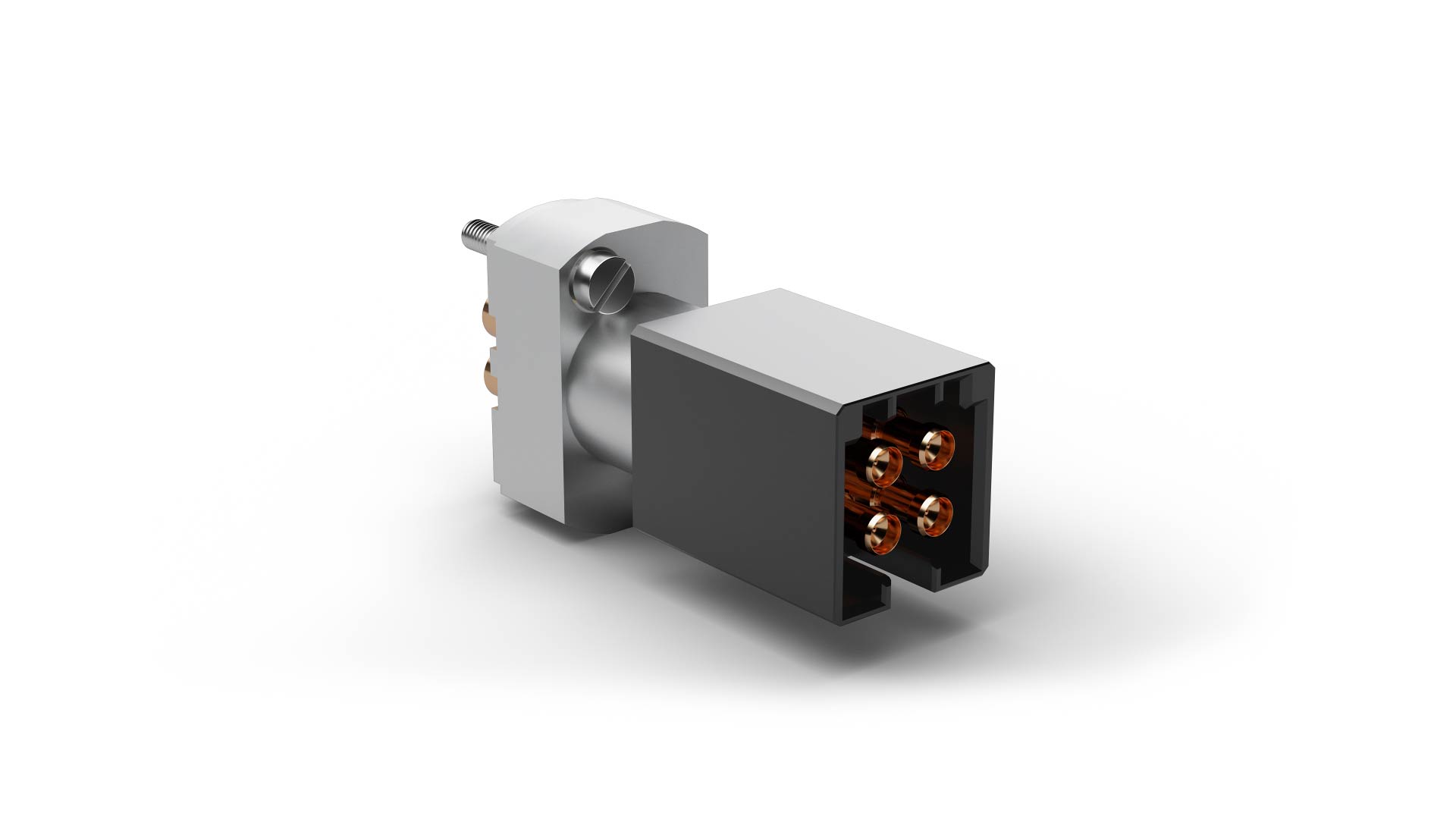

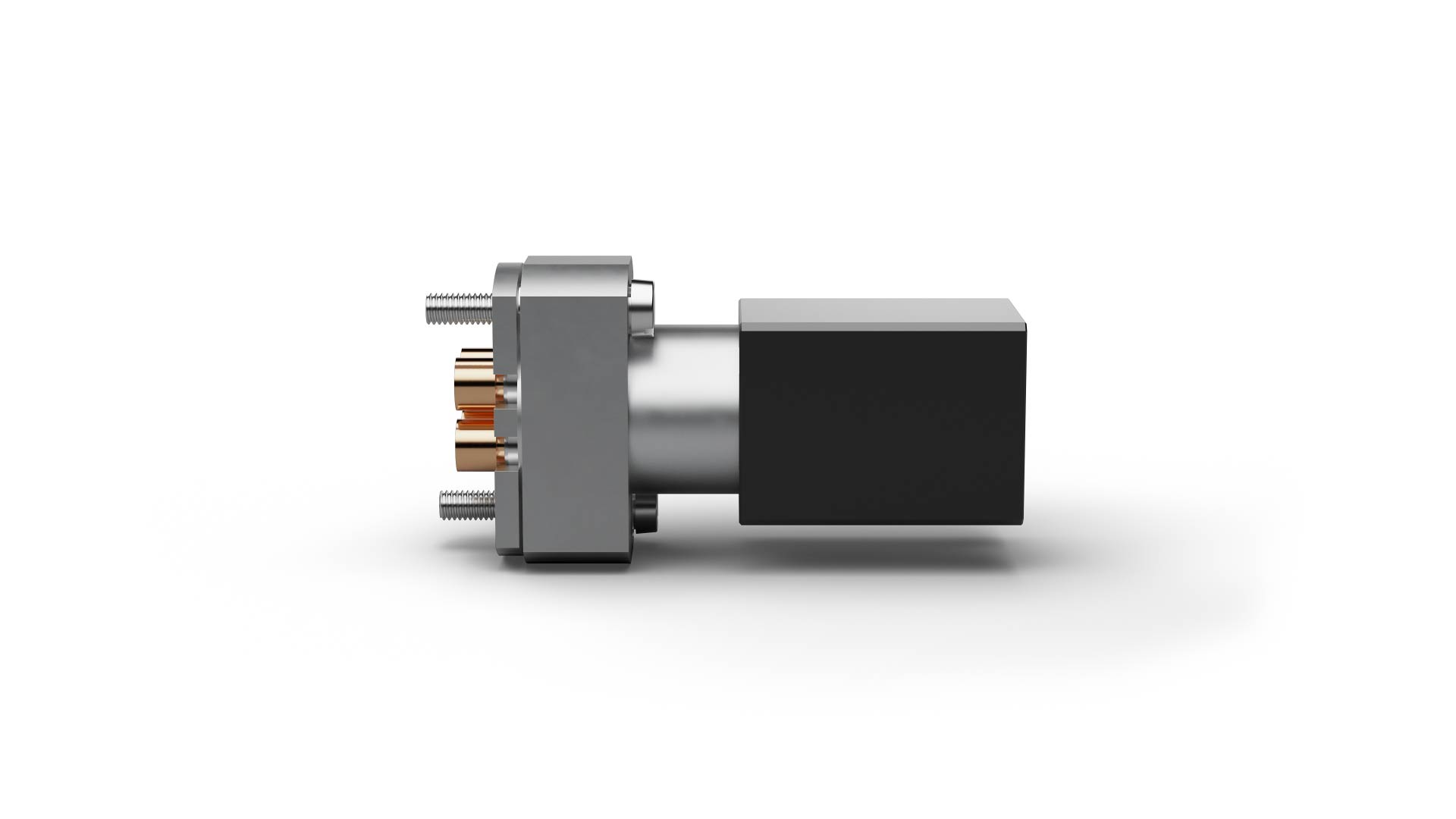

The High Frequency Probe HF77MATEAXf0412G2160MSMPmF (item number 1051198) is designed for reliable transmission of high-frequency signals in test and measurement applications. With a defined impedance of 50 Ω, HF77MATEAXf0412G2160MSMPmF supports controlled signal routing and helps minimize reflections and signal loss at the test interface. The frequency range extends up to 8 GHz, and this version is intended for contacting MATE-AX Female 4 Pos connectors. HF77MATEAXf0412G2160MSMPmF also has the following specified feature: The specified pitch is 4.00 / 157.
