Technical data
| General | |
|---|---|
| Structure | Coaxial Probe |
| Type/family | HF77 |
| Pitch (mm/mil) | 3,90 / 154 |
| Temperature | -45°C...+100°C |

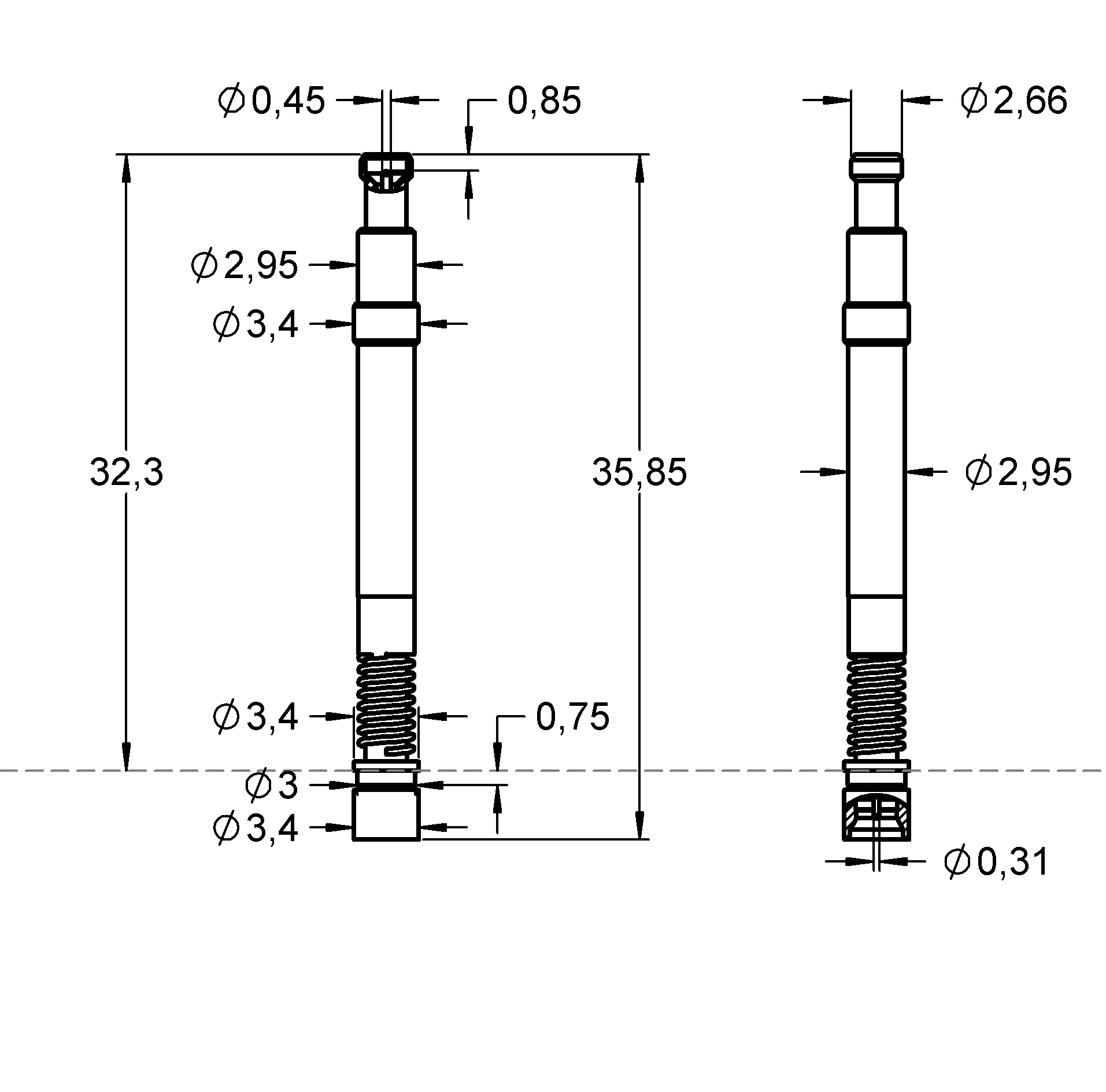

| Dimensions | |
|---|---|
| Total length (mm) | 35.9 |
| Tip style diameter (mm) | 0.45 |
| Barrel diameter (mm) | 3.4 |
| Inside/outside distance (mm) | 0.85 |
| Tip style diameter (mm) 2 | 2.66 |
| Materials and surfaces | |
|---|---|
| Tip style | 11 |
| Tip style 2 | 11 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Gold |
| Plunger material 2 | Beryllium copper |
| Plunger plating 2 | Gold |
| Spring material 2 | High-grade steel |
| Spring plating 2 | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 130 |
| Spring force (cN) | 420 |
| Nominal travel (mm) | 3 |
| Maximum travel (mm) | 3.8 |
| Connection | Plug |
| DUT | MATE-AX Female 1 Pos |
| Electrical specifications | |
|---|---|
| Impedance (ohm) | 50 |
| Frequency (GHz) | 12 |
| Internal contact specifications | |
|---|---|
| Nominal travel (mm) 2 | 0.5 |
| Maximum travel (mm) 2 | 1.8 |
| Preload (cN) 2 | 95 |
| Spring force (cN) 2 | 120 |
Graphics
Beschreibung des Produkts

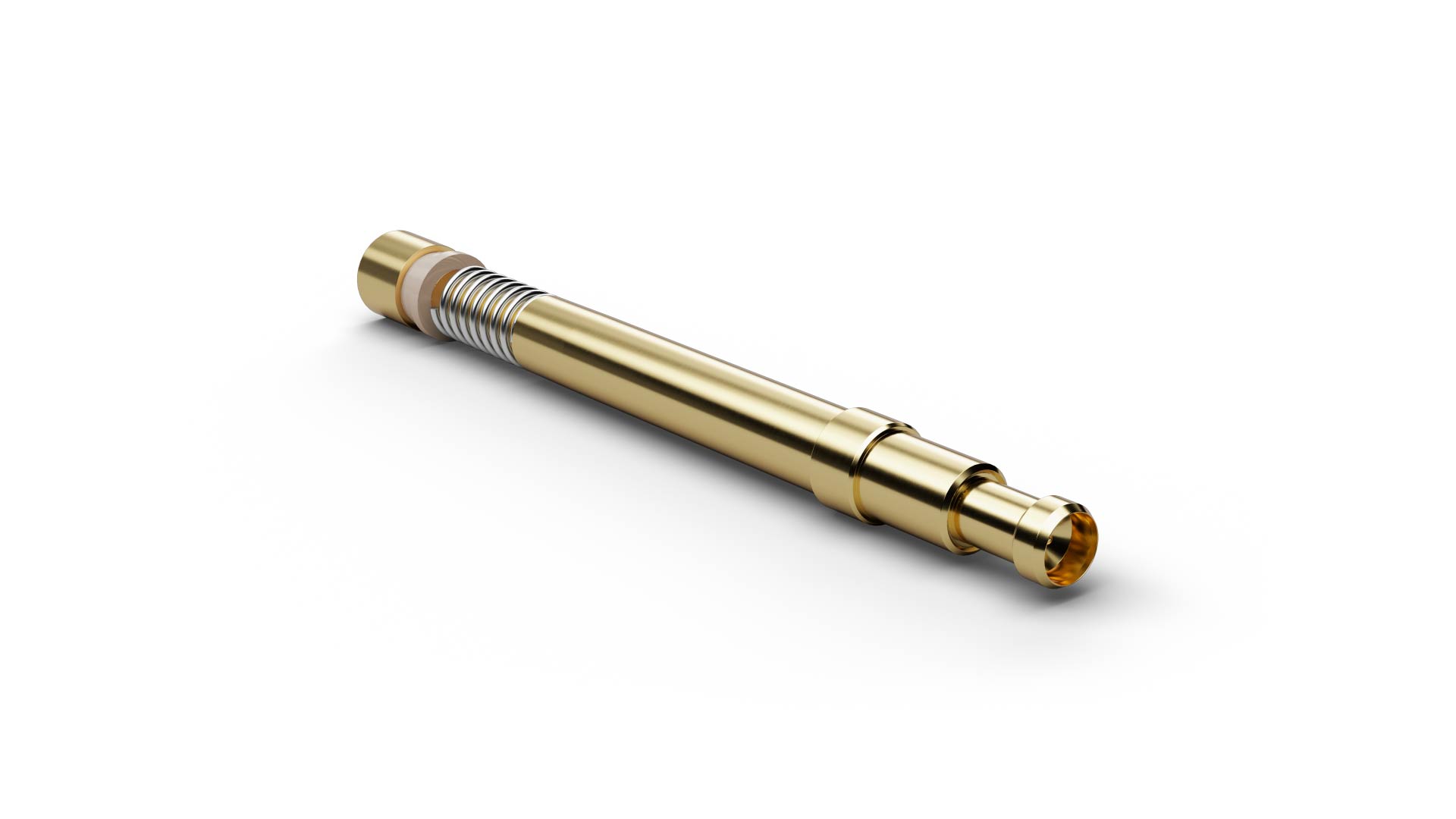

The High Frequency Probe HF77MATEAXf0112G540MSMPmP (item number 1056232) is designed for reliable transmission of high-frequency signals in test and measurement applications. With a defined impedance of 50 Ω, HF77MATEAXf0112G540MSMPmP supports controlled signal routing and helps minimize reflections and signal loss at the test interface. The frequency range extends up to 12 GHz, and this version is intended for contacting MATE-AX Female 1 Pos connectors. On HF77MATEAXf0112G540MSMPmP, spring forces of 420 cN on the outer contact and 120 cN on the inner contact provide defined mechanical contacting.
