Technical data
| General | |
|---|---|
| Structure | Coaxial Probe |
| Type/family | F832 |
| Pitch (mm/mil) | 5,50 / 217 |
| Temperature | -45°C...+200°C |
| Dimensions | |
|---|---|
| Total length (mm) | 32 |
| Protrusion height (mm) | 9.2 |
| Tip style diameter (mm) | 3.6 |
| Barrel diameter (mm) | 4.3 |
| Collar diameter (mm) | 4.5 |
| Inside/outside distance (mm) | 0.5 |
| Tip style diameter (mm) 2 | 0.45 |
| Materials and surfaces | |
|---|---|
| Tip style | 05 |
| Tip style 2 | 11 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Plunger material 2 | Steel |
| Plunger plating 2 | Longtime Gold |
| Spring material 2 | High-grade steel |
| Spring plating 2 | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 250 |
| Spring force (cN) | 450 |
| Nominal travel (mm) | 2 |
| Maximum travel (mm) | 2.6 |
| Thread | M4X0,5 |
| DUT | FAKRA-FEMALE |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 6 |
| Typical contact resistance (mOhm) | 60 |
| Impedance (ohm) | 50 |
| Frequency (GHz) | 1.2 |
| Continuous current (A) 2 | 1.6 |
| Typical contact resistance (mOhm) 2 | 30 |
| Internal contact specifications | |
|---|---|
| Nominal travel (mm) 2 | 3 |
| Maximum travel (mm) 2 | 3.5 |
| Preload (cN) 2 | 100 |
| Spring force (cN) 2 | 200 |

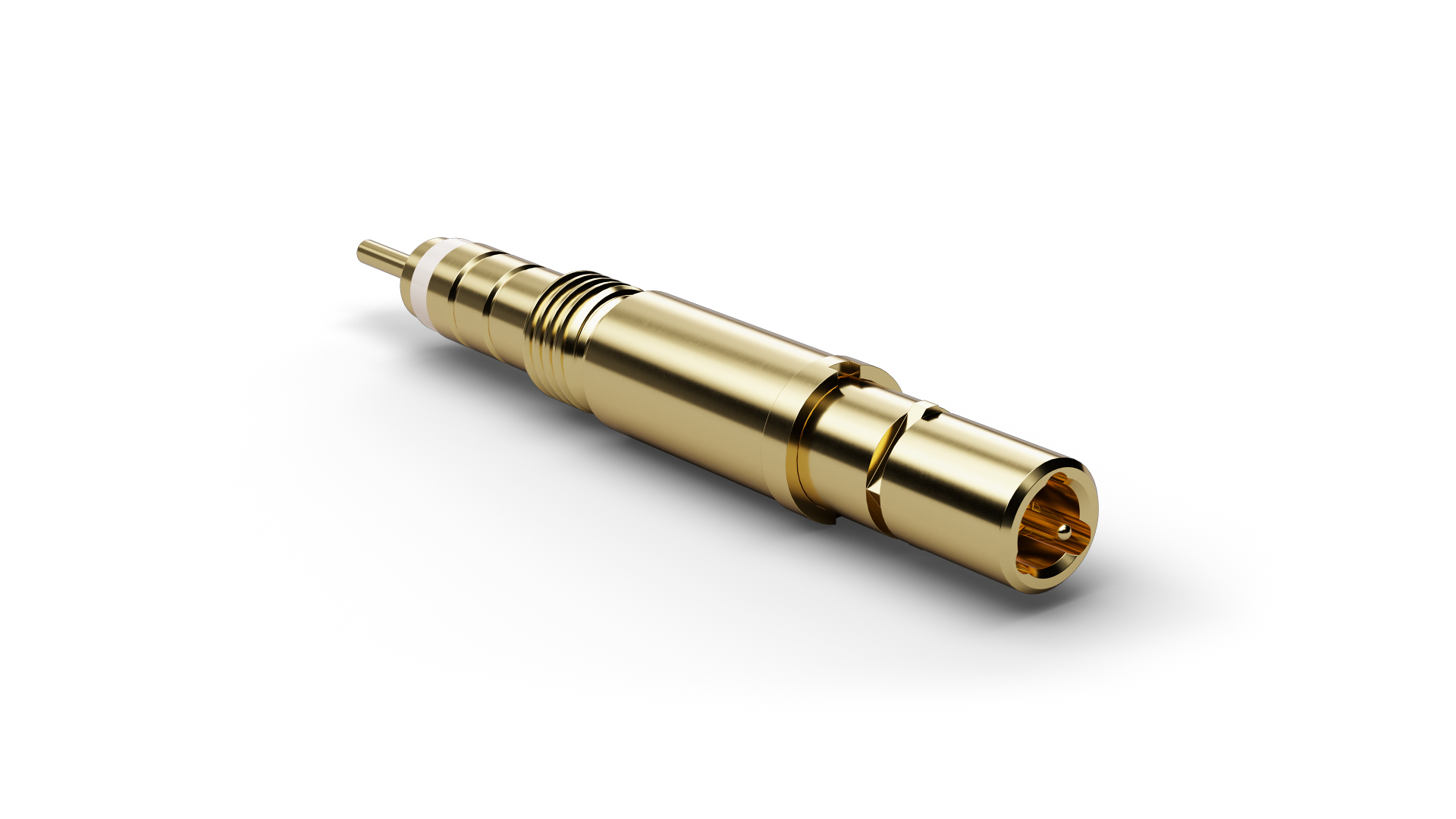

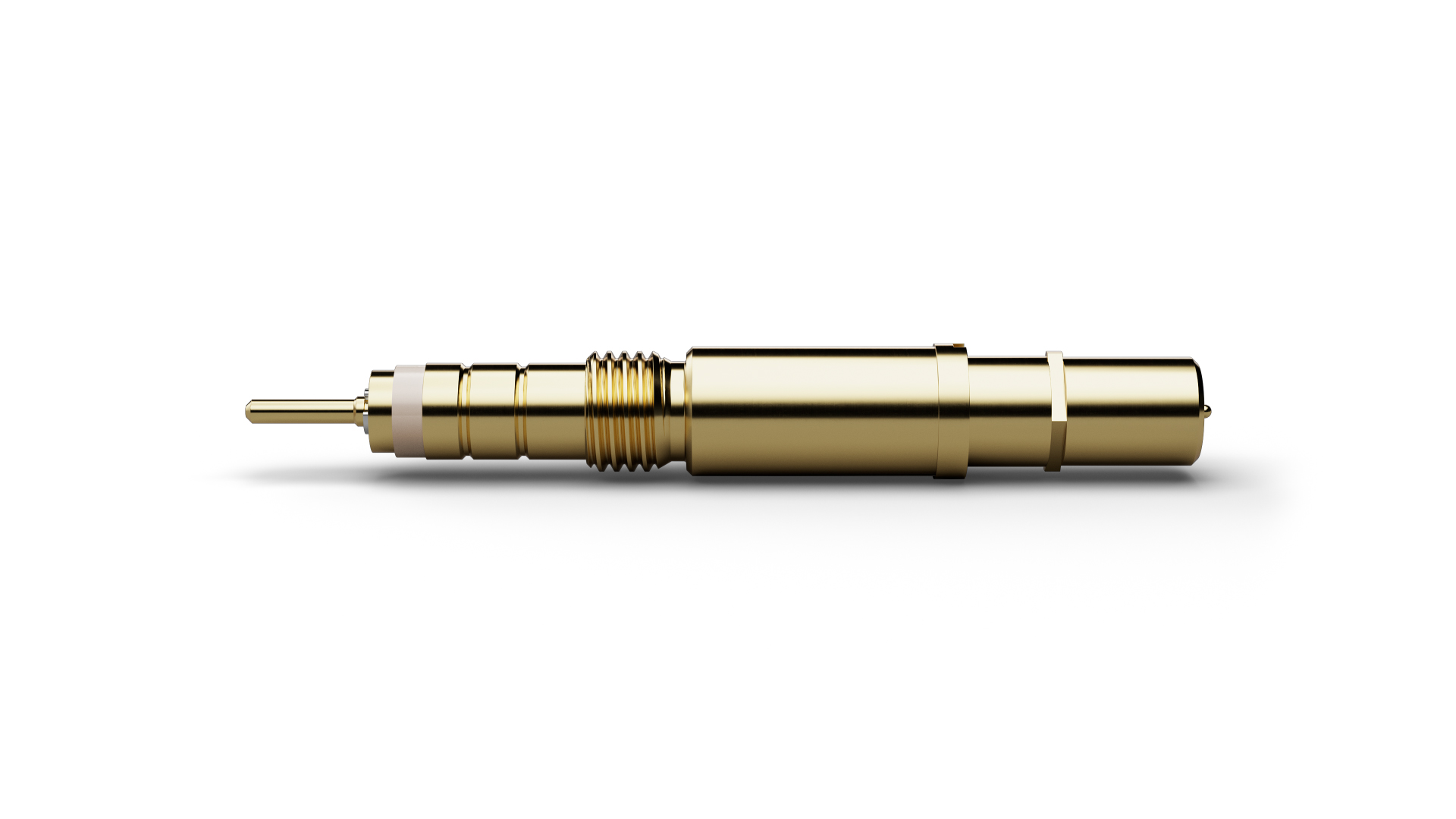

Graphics
