Technical data
| General | |
|---|---|
| Structure | Coaxial Probe |
| Type/family | HCF349 |
| Pitch (mm/mil) | 7,60 / 300 |
| Temperature | -45°C...+200°C |
| Dimensions | |
|---|---|
| Total length (mm) | 61.9 |
| Protrusion height (mm) | 10.5 |
| Tip style diameter (mm) | 6 |
| Barrel diameter (mm) | 5.8 |
| Collar diameter (mm) | 6.4 |
| Tip style diameter (mm) 2 | 0.64 |
| Materials and surfaces | |
|---|---|
| Tip style | 06 |
| Tip style 2 | 18 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Silver |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Plunger material 2 | Beryllium copper |
| Plunger plating 2 | Gold |
| Spring material 2 | High-grade steel |
| Spring plating 2 | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 500 |
| Spring force (cN) | 1400 |
| Nominal travel (mm) | 4.4 |
| Maximum travel (mm) | 5.5 |
| Thread | M5 |
| Tool size (mm) | 6,0 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 100 |
| Typical contact resistance (mOhm) | 4 |
| Continuous current (A) 2 | 4 |
| Typical contact resistance (mOhm) 2 | 60 |
| Internal contact specifications | |
|---|---|
| Nominal travel (mm) 2 | 4.3 |
| Maximum travel (mm) 2 | 6.4 |
| Preload (cN) 2 | 60 |
| Spring force (cN) 2 | 160 |
Graphics
Beschreibung des Produkts

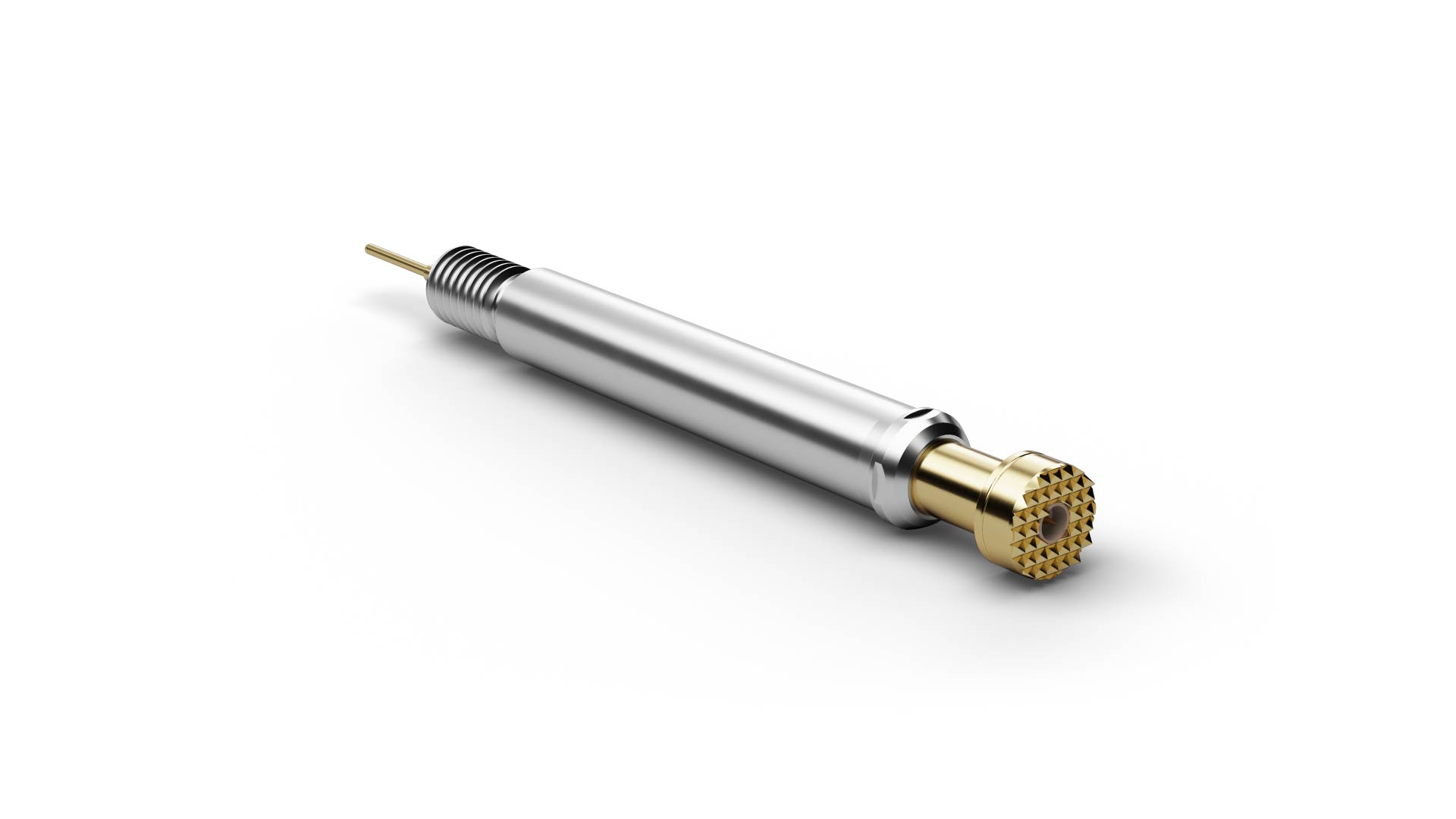

The Coaxial High Current Probe HCF34906B600G1500A (item number 1090823) is designed for safe transmission of high electrical currents in test and contacting applications. HCF34906B600G1500A focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF34906B600G1500A, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HCF34906B600G1500A includes battery and power-electronics testing. The electrical rating of HCF34906B600G1500A combines 100 A continuous current with 4 mΩ typical contact resistance. For HCF34906B600G1500A, spring force is 1400 cN at a nominal travel of 4.4 mm.
