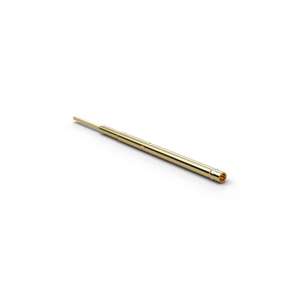

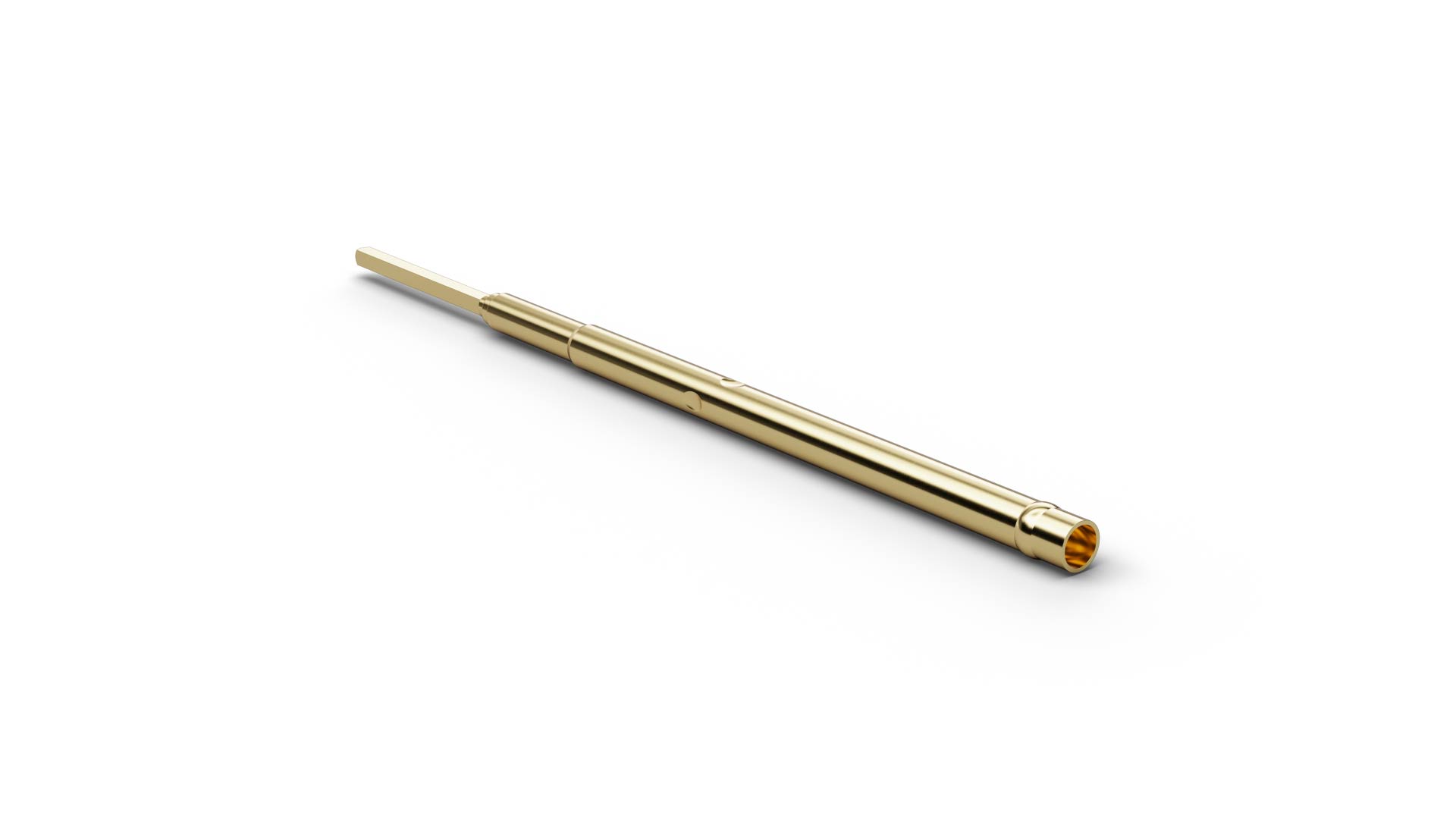

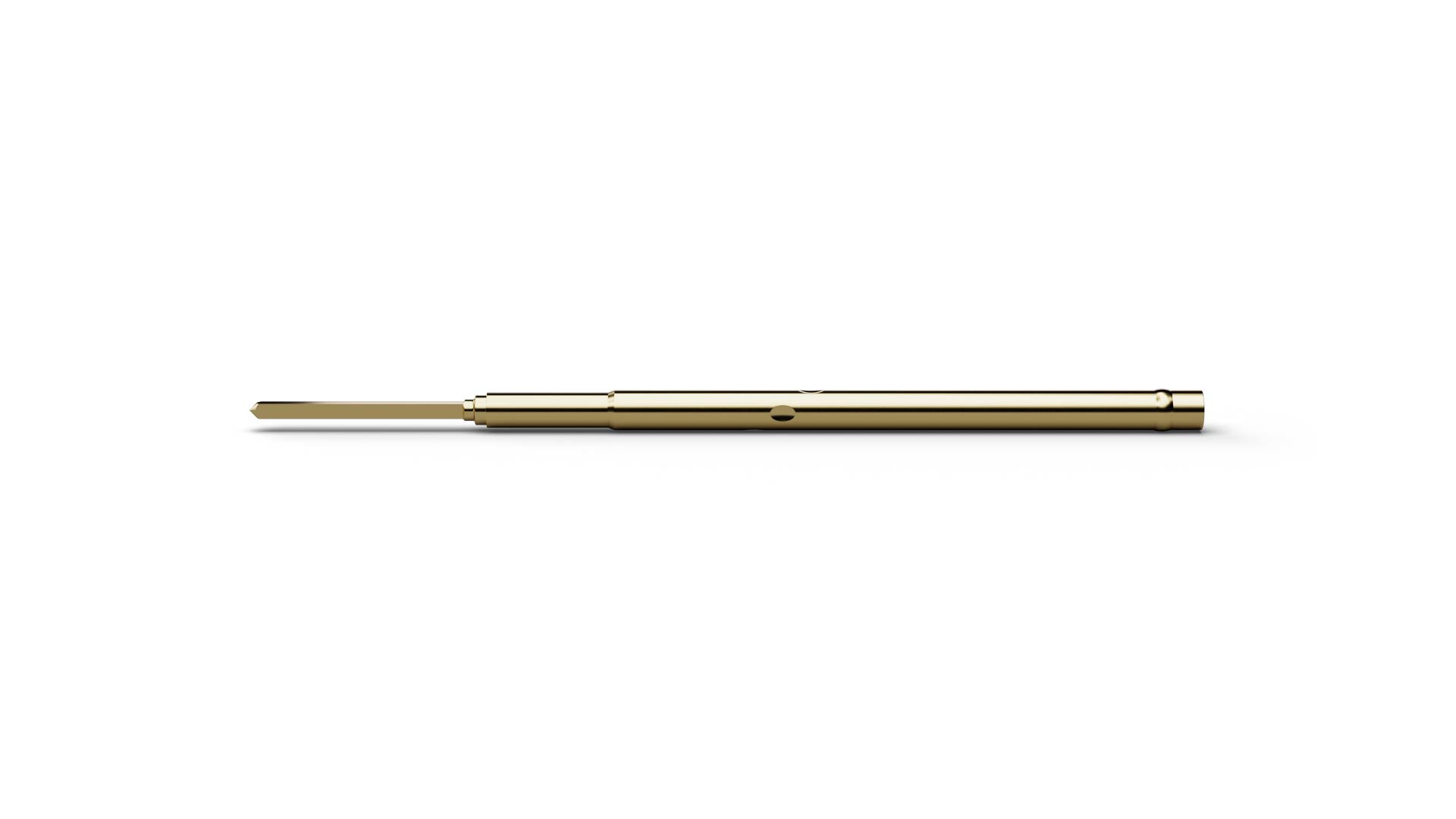

H100WW10-2.0AT Perspective 1 H100WW10-2.0AT Perspective 2

Basic Contact Probes (100 mil) H100WW10-2.0AT

Item number 1092162

Technical data sheet

Quantity

Technical data

General
Type/family H100
Pitch (mm/mil) 2,54 / 100
Additional definition Airtight
Dimensions
Total length (mm) 40
Press ring diameter (mm) 1.81
Outer diameter (mm) 1.68
Materials and surfaces
Material, Coating Nickel silver, Gold
Mechanical specifications
Connection Wire Wrap
Electrical specifications
Continuous current (A) 5

Graphics

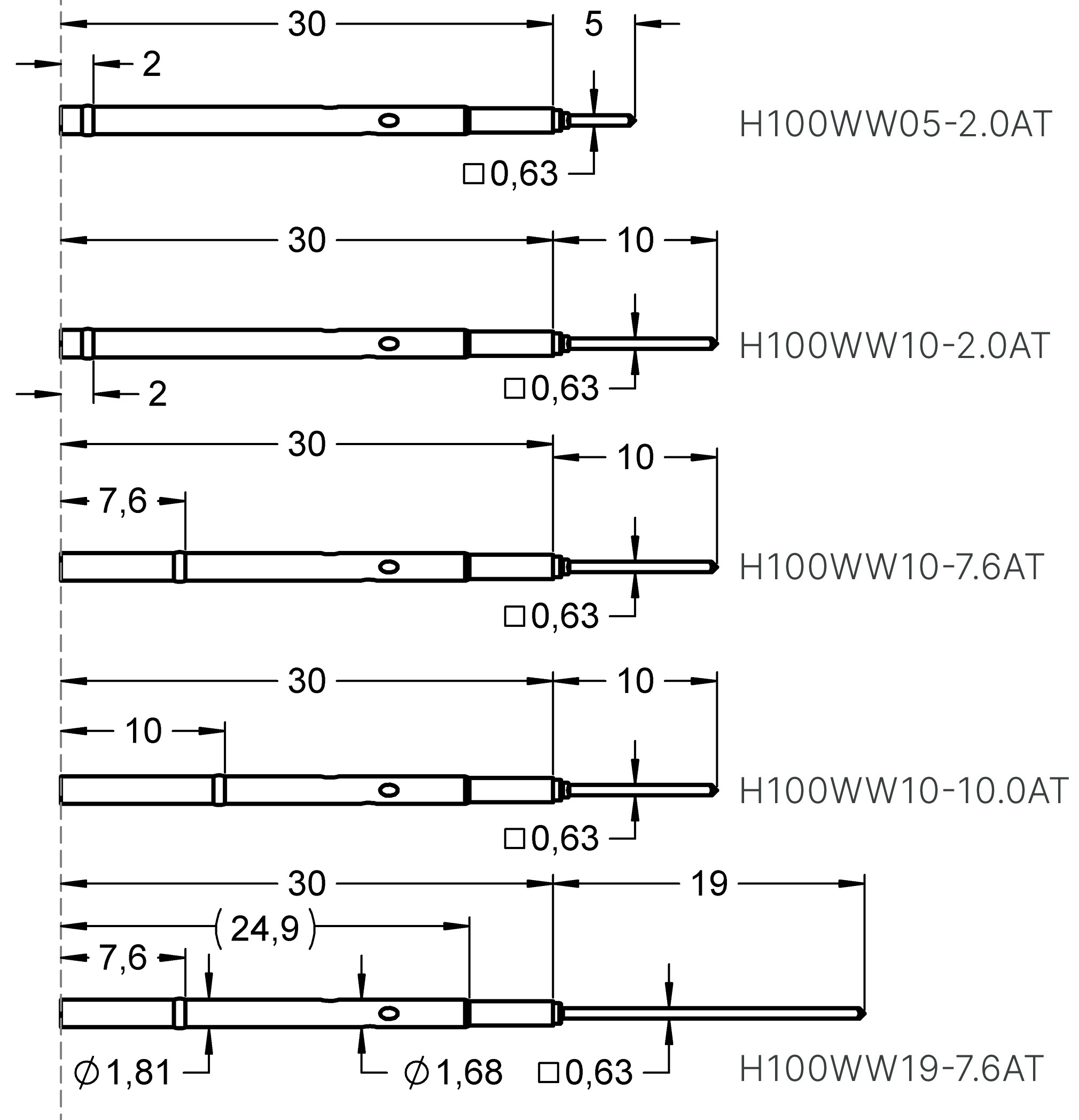

H100WW10-2.0AT Overview of similar Receptacles H100WW10-2.0AT Family designation
