Technical data
| General | |
|---|---|
| Type/family | HCC220 |
| Temperature | -45°C...+200°C |
| Additional definition | B |
| Dimensions | |
|---|---|
| Total length (mm) | 65 |
| Protrusion height (mm) | 13 |
| Tip style diameter (mm) | 3 |
| Materials and surfaces | |
|---|---|
| Tip style | 12 |
| Tip style material | Silver |
| Tip style plating | Uncoated |
| Plunger material | Silver |
| Plunger plating | Uncoated |
| Block material | Aluminium |
| Block plating | Silver |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Plunger material 2 | Brass |
| Plunger plating 2 | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 800 |
| Spring force (cN) | 5000 |
| Nominal travel (mm) | 2.5 |
| Maximum travel (mm) | 3.5 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 250 |
| Typical contact resistance (mOhm) | 0.2 |

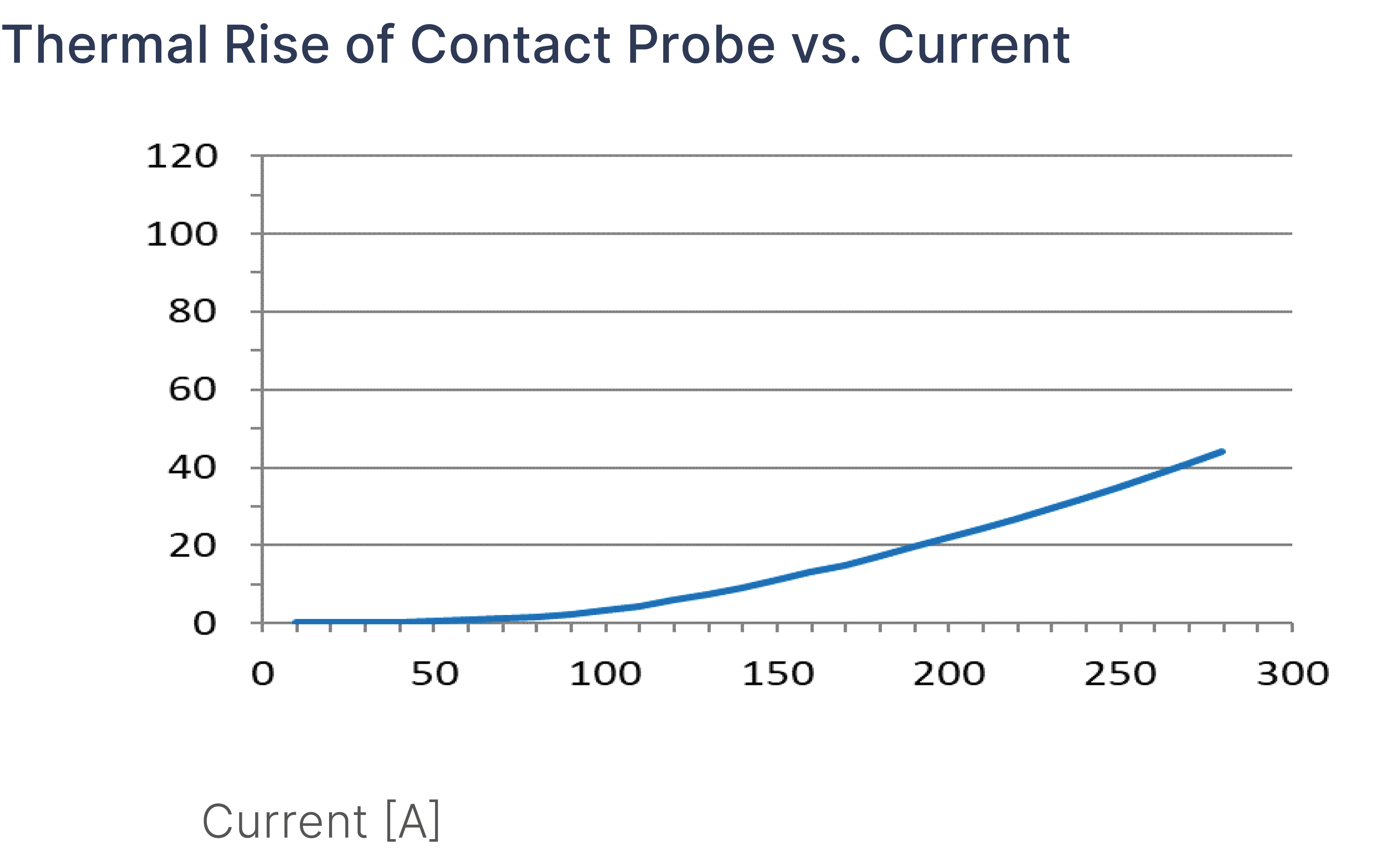

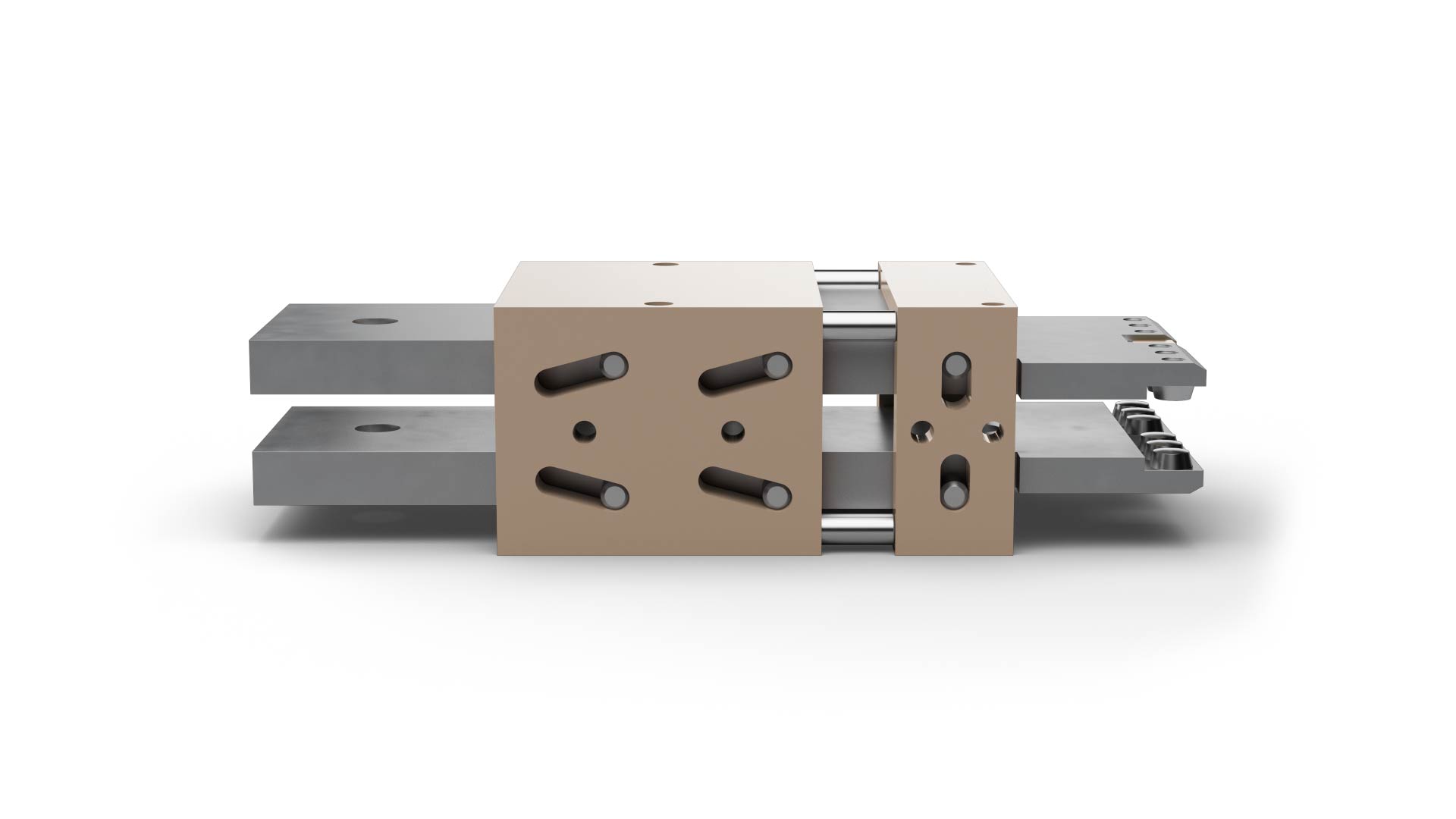

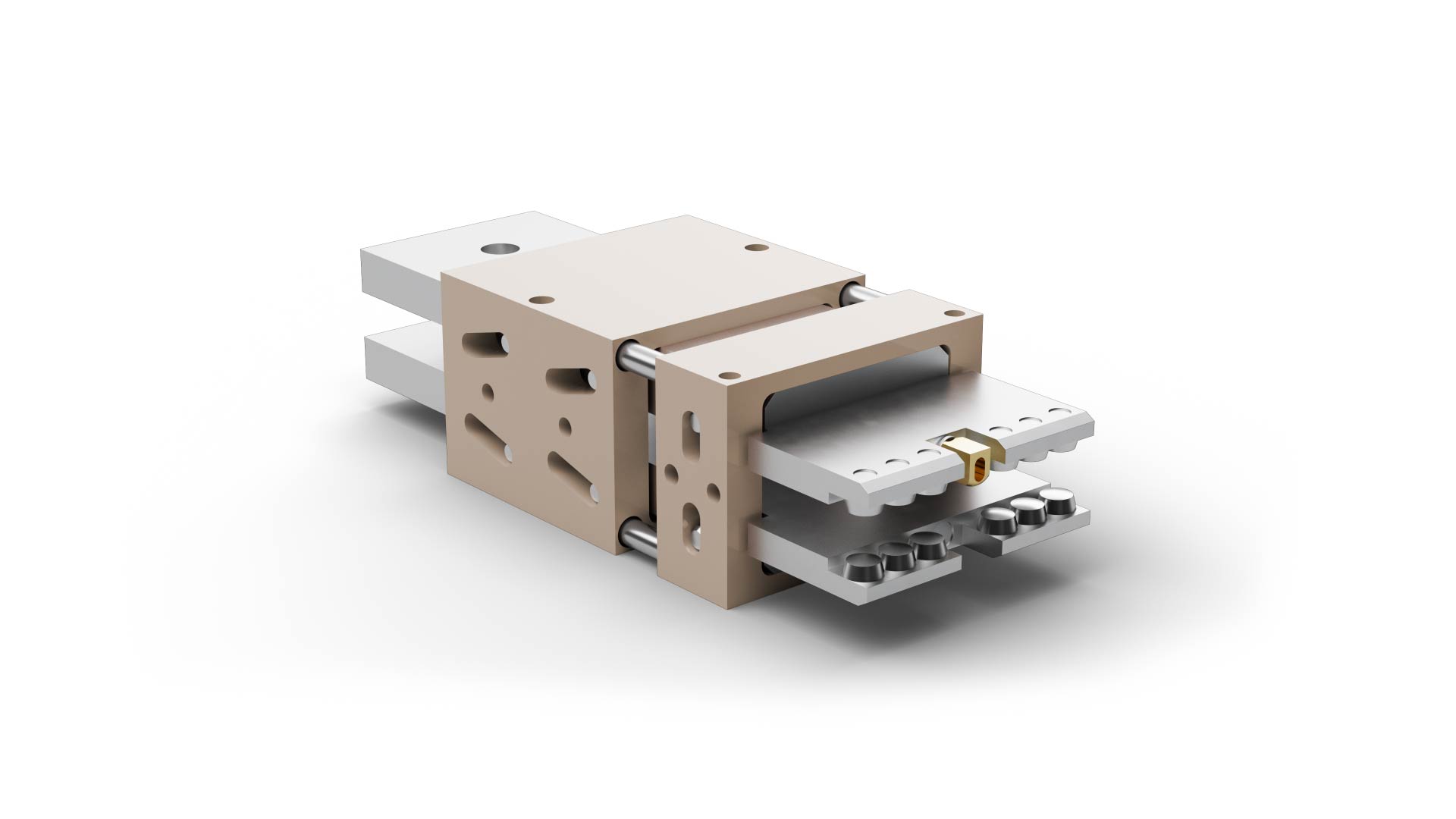

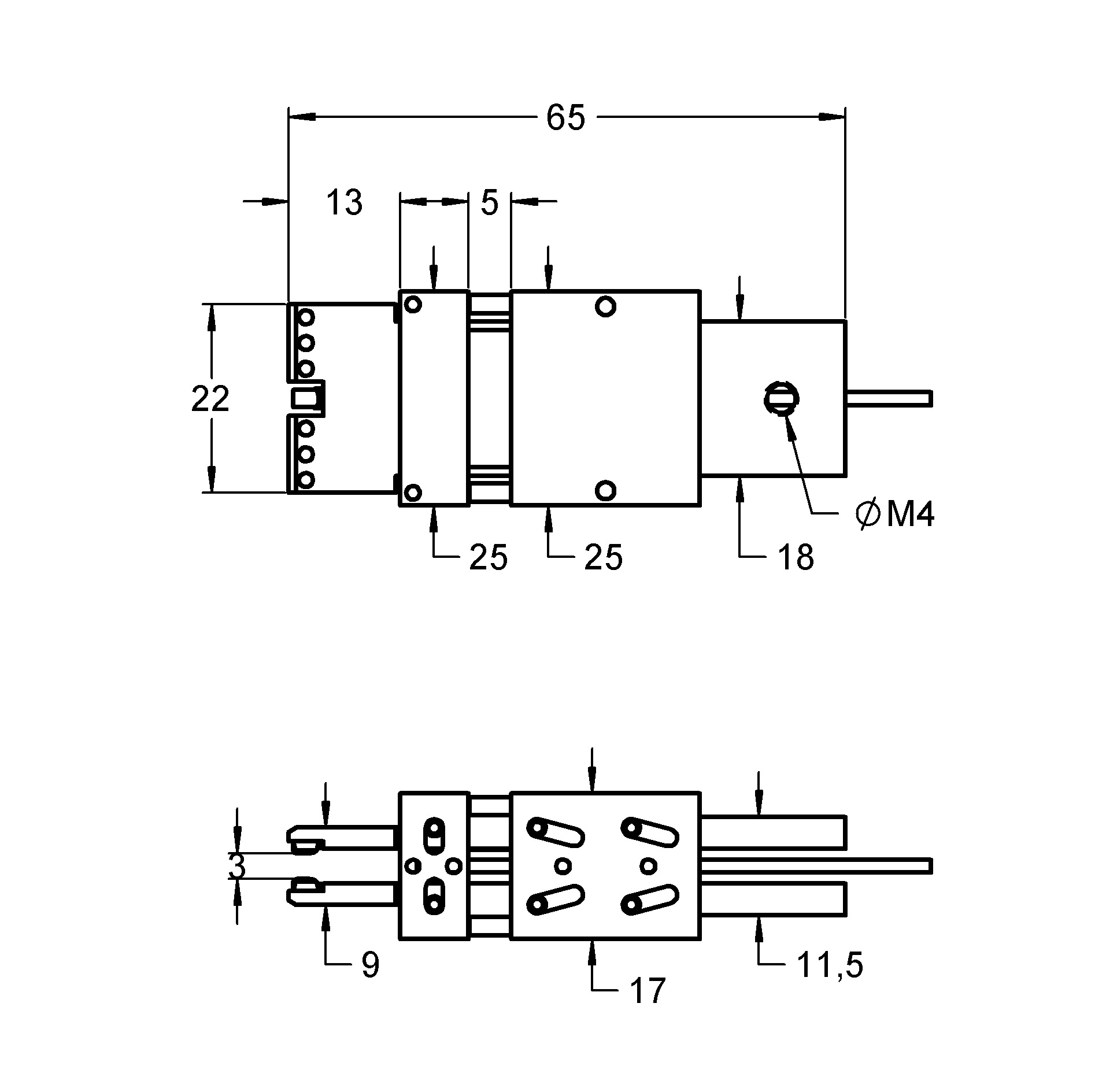

Graphics
Beschreibung des Produkts
The High Current Clamp HCC220B12ALS50 (item number 1103549) is designed for mechanically stable contacting at high electrical currents. HCC220B12ALS50 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. The clamping function of HCC220B12ALS50 creates a defined contact area; current rating, contact force, mating geometry and heat generation should be considered together. The intended application area for HCC220B12ALS50 includes connector testing. The continuous-current rating of HCC220B12ALS50 is 250 A. For HCC220B12ALS50, spring force is 5000 cN at a nominal travel of 2.5 mm.
