Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F077 |
| Pitch (mm/mil) | 1,40 / 55 |
| Temperature | -45°C...+80°C |
| Dimensions | |
|---|---|
| Total length (mm) | 13 |
| Protrusion height (mm) | 2 |
| Tip style diameter (mm) | 0.9 |
| Barrel diameter (mm) | 0.65 |
| Materials and surfaces | |
|---|---|
| Tip style | 02 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 130 |
| Spring force (cN) | 195 |
| Nominal travel (mm) | 0.9 |
| Maximum travel (mm) | 1.2 |
| Pointing accuracy +/- (mm) | 0.05 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 3 |
| Typical contact resistance (mOhm) | 25 |

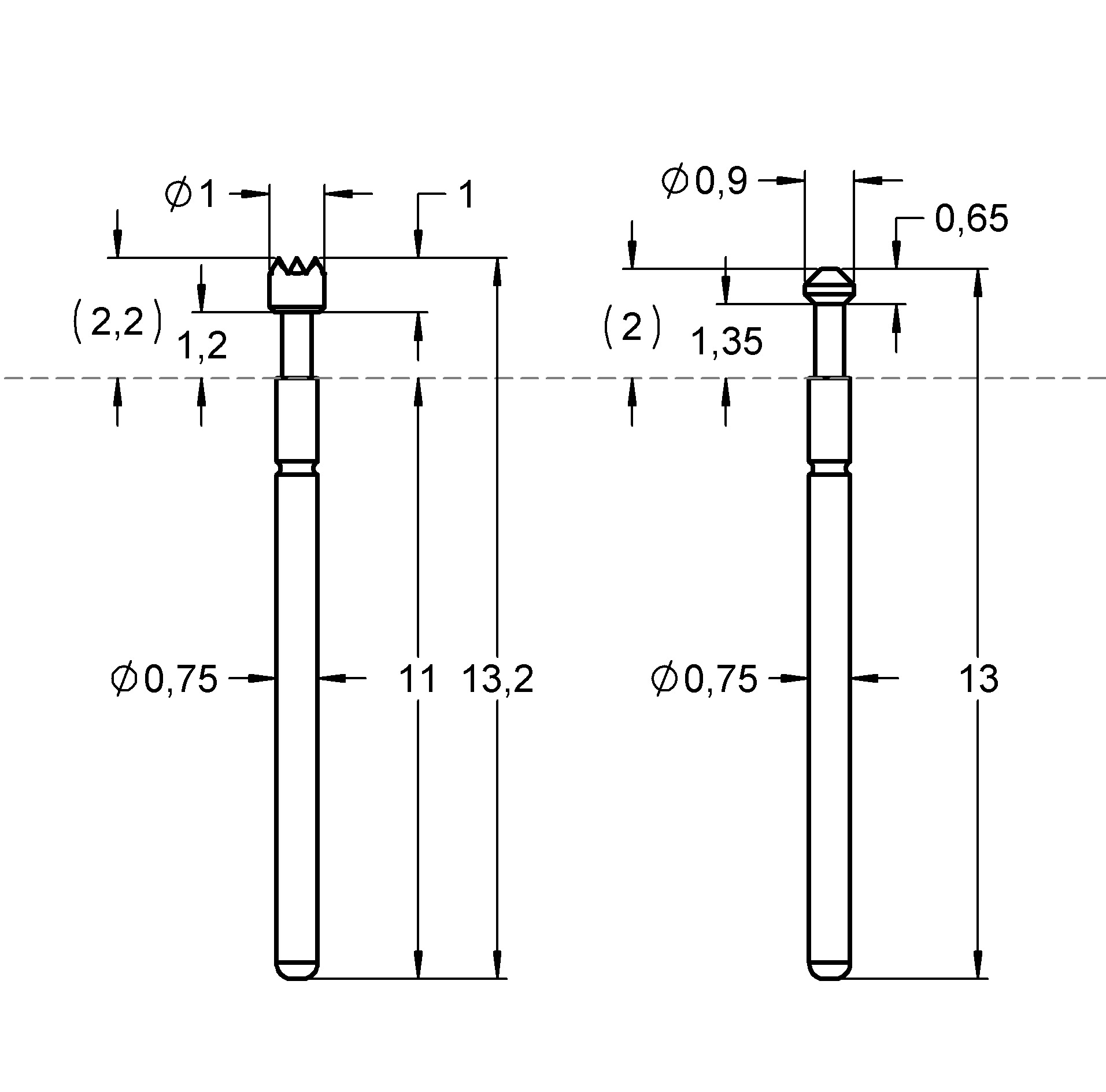

Graphics
Beschreibung des Produkts

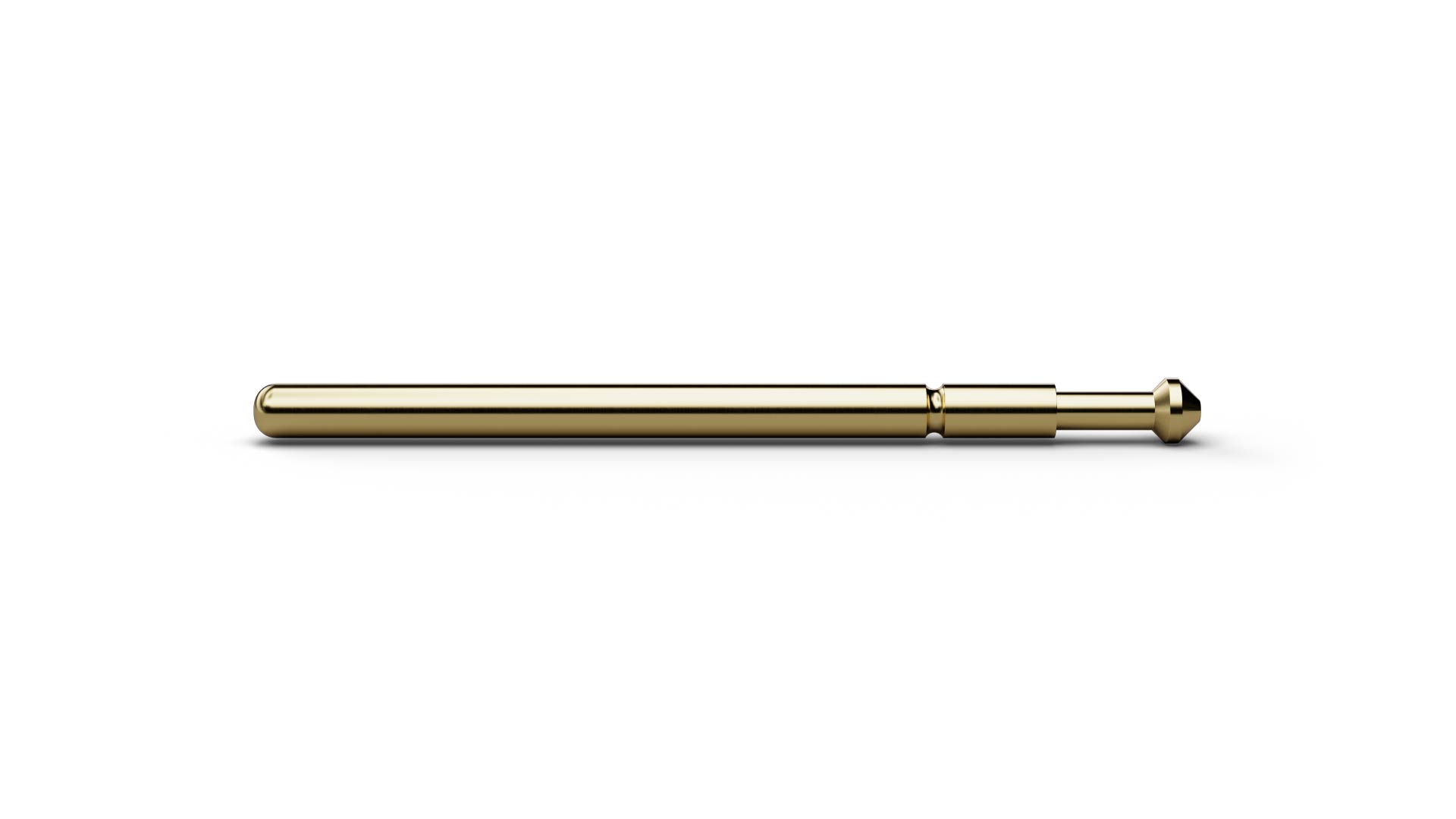

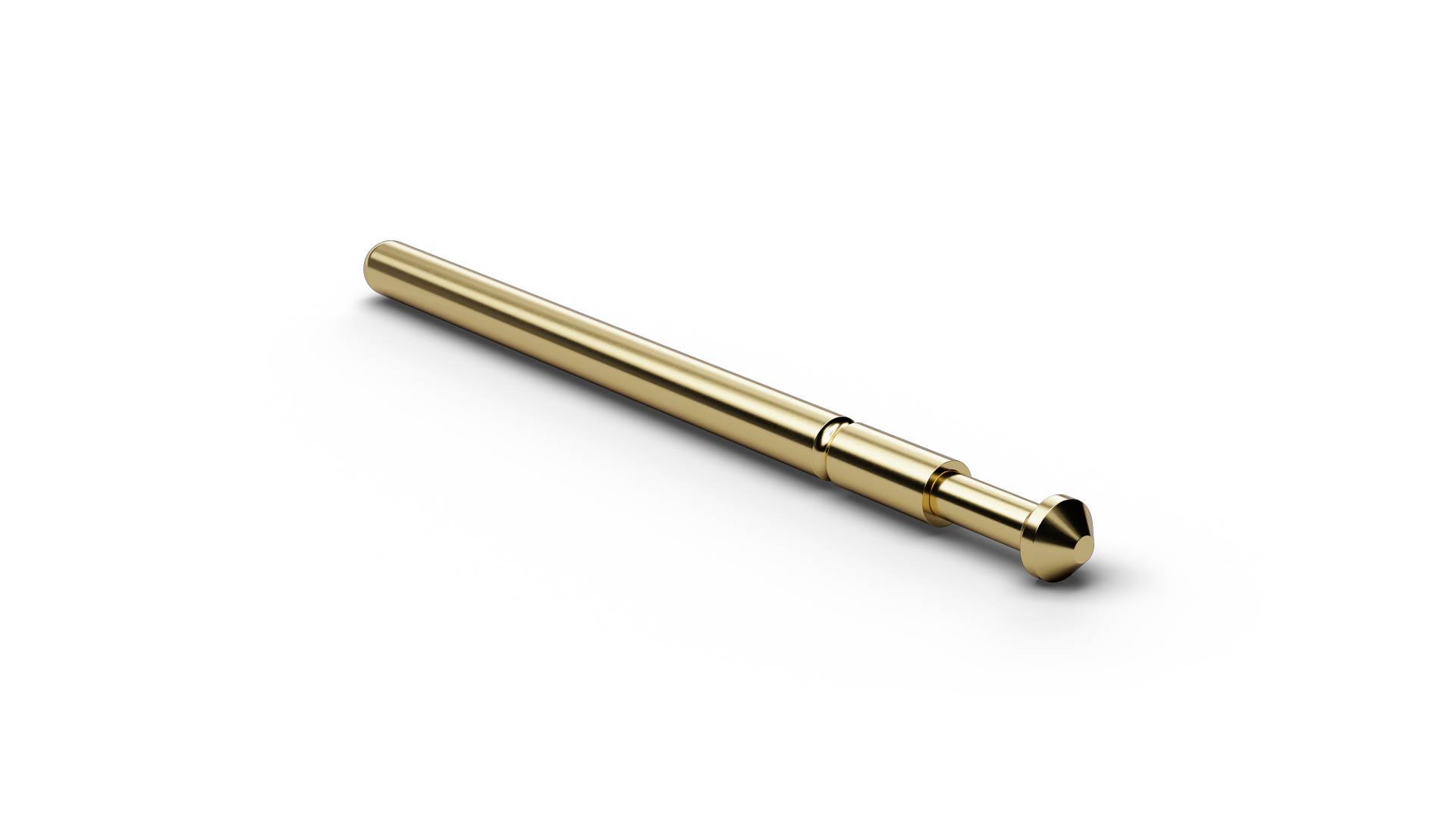

The Basic Contact Probe F07702B090G195 (item number 1104597) is a spring-loaded probe for temporary electrical contact with test points. With tip style 02 (Conical 90° stepped), F07702B090G195 combines ICT/FCT use with a geometry intended for solder pads and vias. The design combines a pitch of 1.4 mm / 55 mil with tip style 02 (Conical 90° stepped) and a tip diameter of 0.9 mm. For F07702B090G195, spring force is 195 cN at a nominal travel of 0.9 mm. F07702B090G195 is rated for 3 A continuous current with a typical contact resistance of 25 mΩ. The plunger in F07702B090G195 is made of beryllium copper and is gold-plated.
